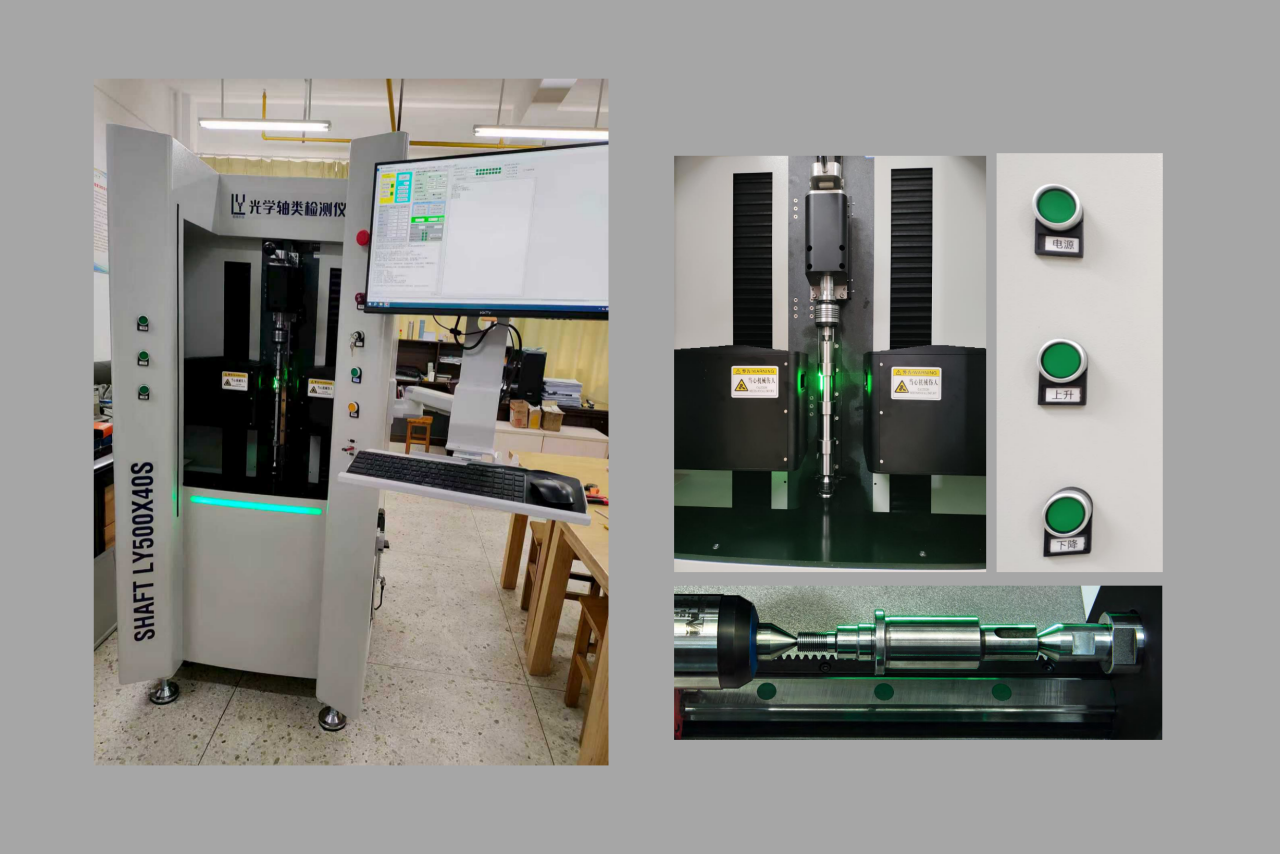

Optical Shaft Inspection Instrument
Optical Shaft Inspection Instrument
Price range: ¥3.00 through ¥100.00
An optical shaft inspection instrument for static dimensional measurement, geometric tolerancing, and thread measurement.
| Mechanical Dimensions(mm) | 278×155×50 |
|---|---|
| Delivery Time | 7day |
Product Features
- Static measurement: Diameter, length, angle, radius, distance between points, distance from point to line, distance between lines, chamfer, and fillet.
- Geometric tolerancing: Roundness, radial runout, cylindricity, and coaxiality.
- Thread measurement: Major diameter, pitch diameter, minor diameter, thread angle, pitch, and helix angle.

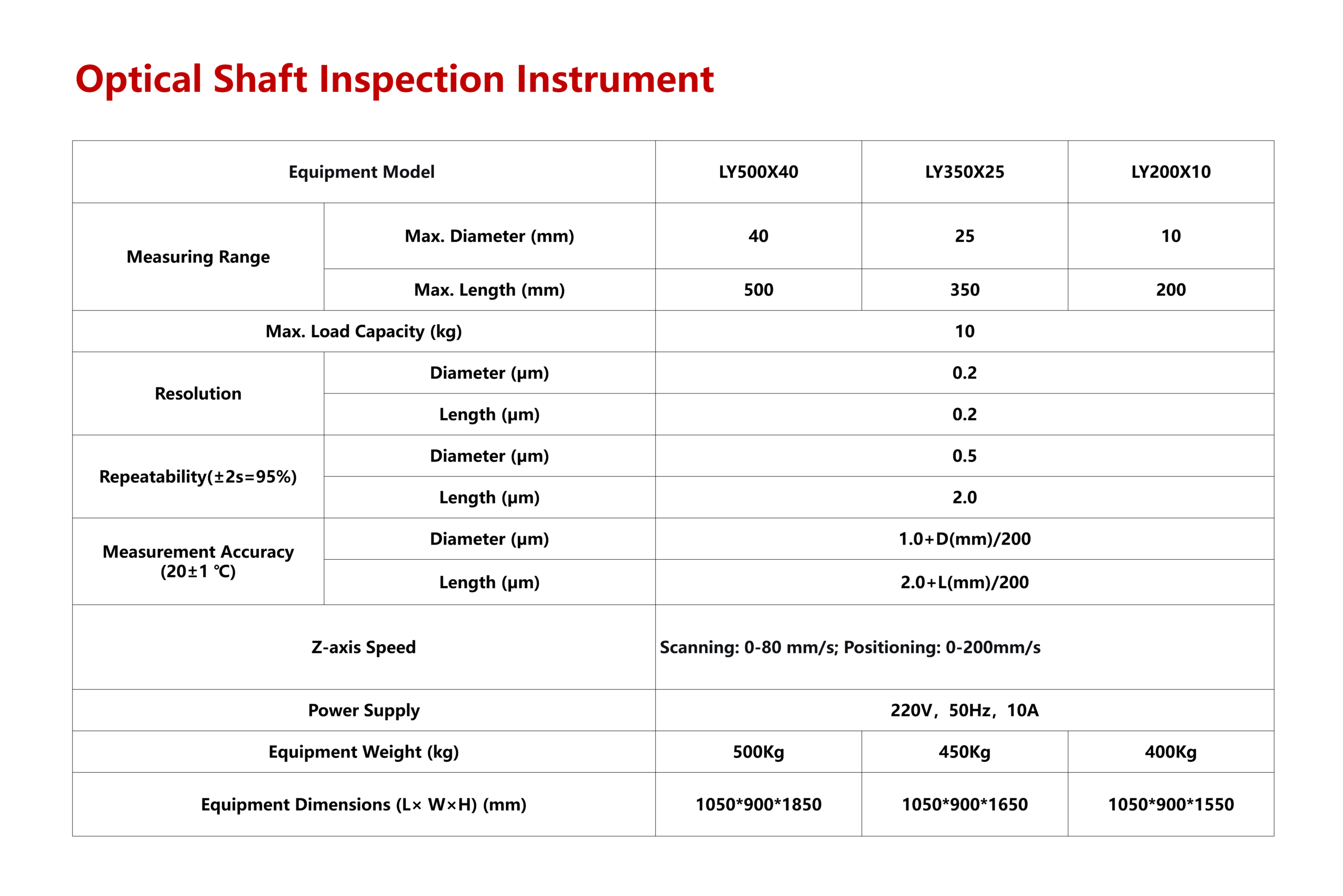

Technical Specifications
LY500X40
| Parameter | Specification |
|---|---|
| Measuring Range — Max. Diameter (mm) | 40 |
| Measuring Range — Max. Length (mm) | 500 |
| Max. Load Capacity (kg) | 10 |
| Resolution — Diameter (μm) | 0.2 |
| Resolution — Length (μm) | 0.2 |
| Repeatability (±2s=95%) — Diameter (μm) | 0.5 |
| Repeatability (±2s=95%) — Length (μm) | 2.0 |
| Measurement Accuracy (20±1 °C) — Diameter (μm) | 1.0+D(mm)/200 |
| Measurement Accuracy (20±1 °C) — Length (μm) | 2.0+L(mm)/200 |
| Z-axis Speed | Scanning: 0-80 mm/s; Positioning: 0-200mm/s |
| Power Supply | 220V, 50Hz, 10A |
| Equipment Weight (kg) | 500Kg |
| Equipment Dimensions (L×W×H) (mm) | 1050 × 900 × 1850 |
LY350X25
| Parameter | Specification |
|---|---|
| Measuring Range — Max. Diameter (mm) | 25 |
| Measuring Range — Max. Length (mm) | 350 |
| Max. Load Capacity (kg) | 10 |
| Resolution — Diameter (μm) | 0.2 |
| Resolution — Length (μm) | 0.2 |
| Repeatability (±2s=95%) — Diameter (μm) | 0.5 |
| Repeatability (±2s=95%) — Length (μm) | 2.0 |
| Measurement Accuracy (20±1 °C) — Diameter (μm) | 1.0+D(mm)/200 |
| Measurement Accuracy (20±1 °C) — Length (μm) | 2.0+L(mm)/200 |
| Z-axis Speed | Scanning: 0-80 mm/s; Positioning: 0-200mm/s |
| Power Supply | 220V, 50Hz, 10A |
| Equipment Weight (kg) | 450Kg |
| Equipment Dimensions (L×W×H) (mm) | 1050 × 900 × 1650 |
LY200X10
| Parameter | Specification |
|---|---|
| Measuring Range — Max. Diameter (mm) | 10 |
| Measuring Range — Max. Length (mm) | 200 |
| Max. Load Capacity (kg) | 10 |
| Resolution — Diameter (μm) | 0.2 |
| Resolution — Length (μm) | 0.2 |
| Repeatability (±2s=95%) — Diameter (μm) | 0.5 |
| Repeatability (±2s=95%) — Length (μm) | 2.0 |
| Measurement Accuracy (20±1 °C) — Diameter (μm) | 1.0+D(mm)/200 |
| Measurement Accuracy (20±1 °C) — Length (μm) | 2.0+L(mm)/200 |
| Z-axis Speed | Scanning: 0-80 mm/s; Positioning: 0-200mm/s |
| Power Supply | 220V, 50Hz, 10A |
| Equipment Weight (kg) | 400Kg |
| Equipment Dimensions (L×W×H) (mm) | 1050 × 900 × 1550 |
