Automatic power supply Hi-pot and final test system
Automatic power supply Hi-pot and final test system

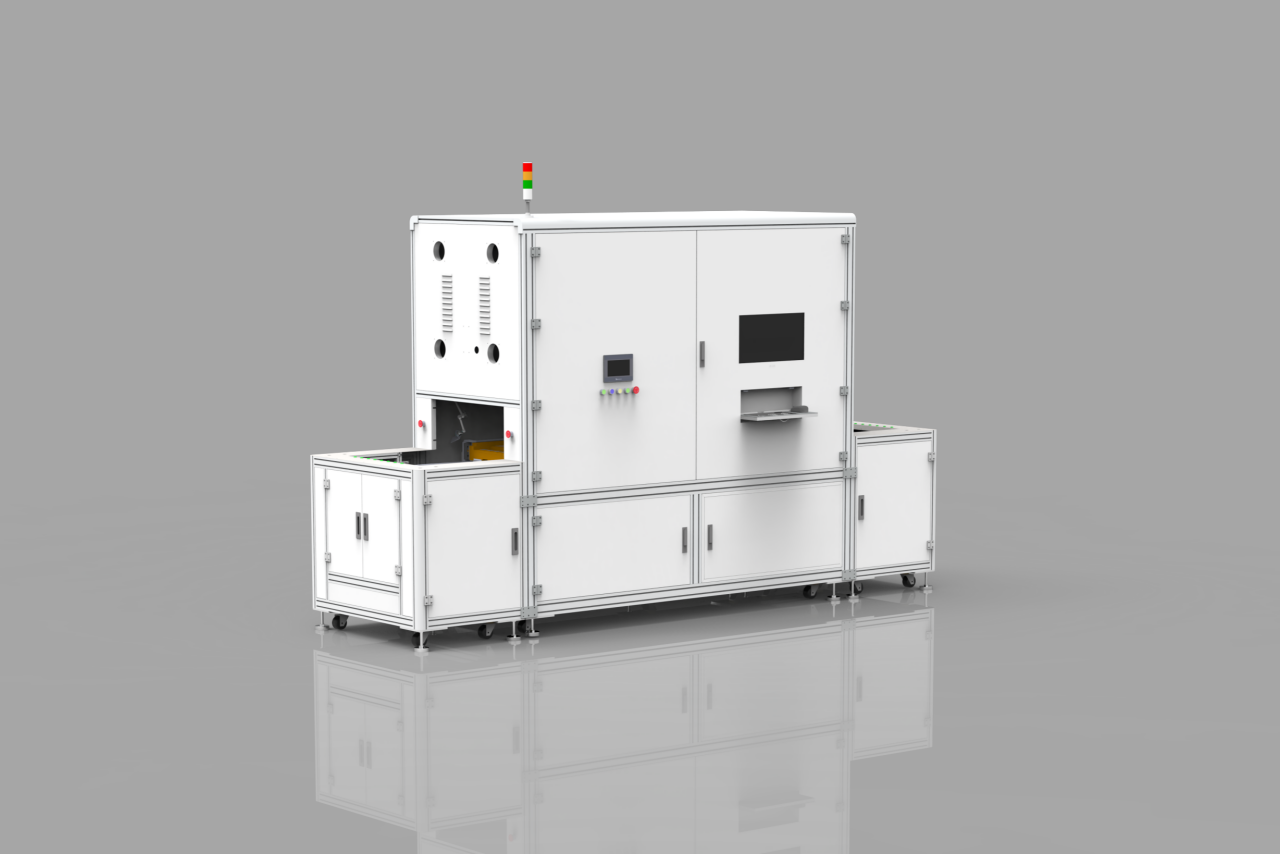

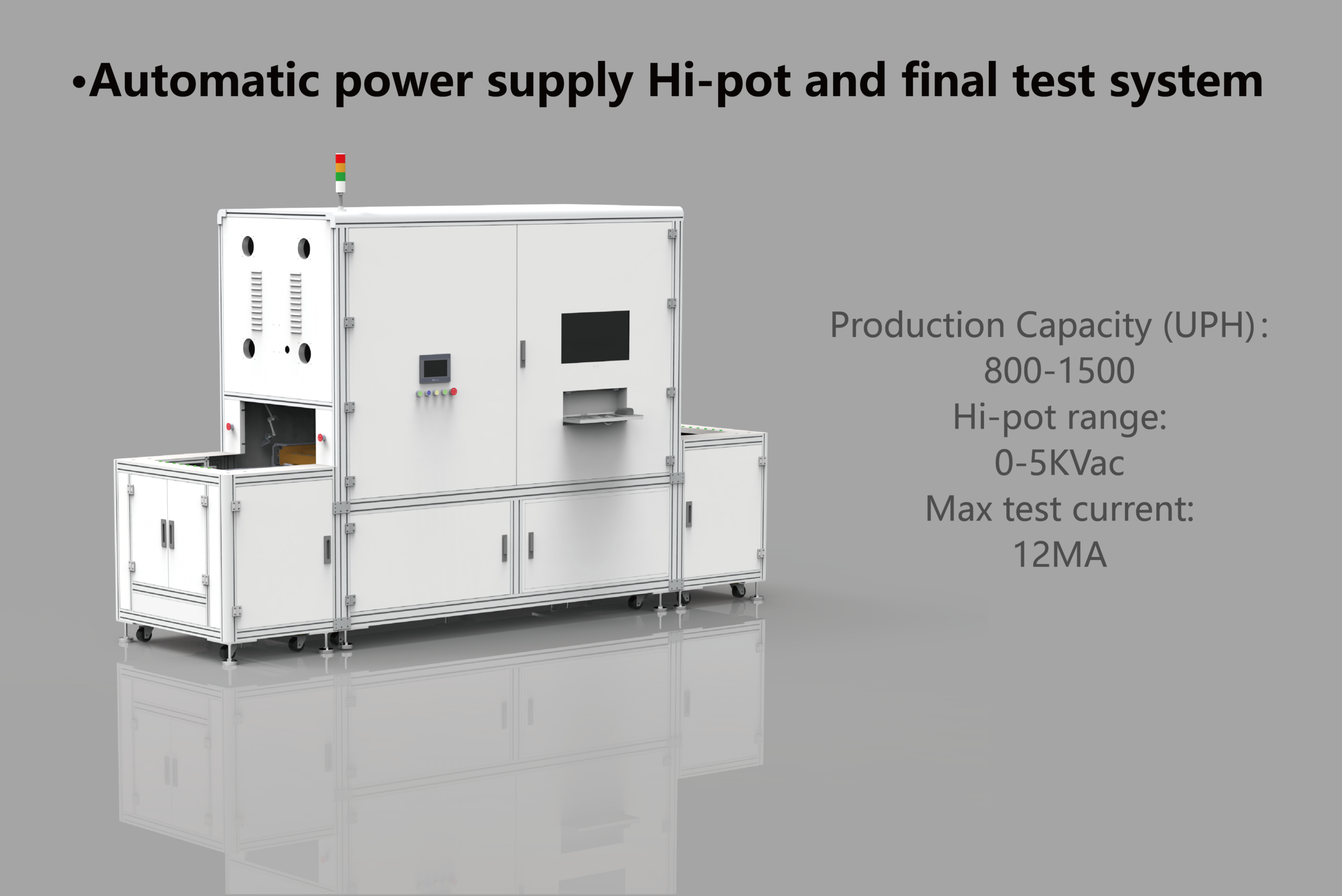

This equipment is a high-voltage safety test system designed for power supply products, performing insulation verification and critical safety checks. It ensures insulation reliability through 0-5KVac testing, providing dependable safety assurance.
| Production Capacity (UPH) | 800-1500 |
|---|---|
| Max Test Current | 12MA |
| Applicable Products | Power Supply and Adapter Products |
| Hi Pot Range | 0-5KVac |
Product Features
- Universal design, compatible with a variety of products.
- Modular design, convenient assembly and disassembly, easy maintenance.
- Visual operation, all product information can be easily read.
- Unit automation platform can be combined according to different process requirements to form an assembly line.
- Scope of application: Power supply and adapter products in-line automatic test
Technical Specifications
Device Parameters

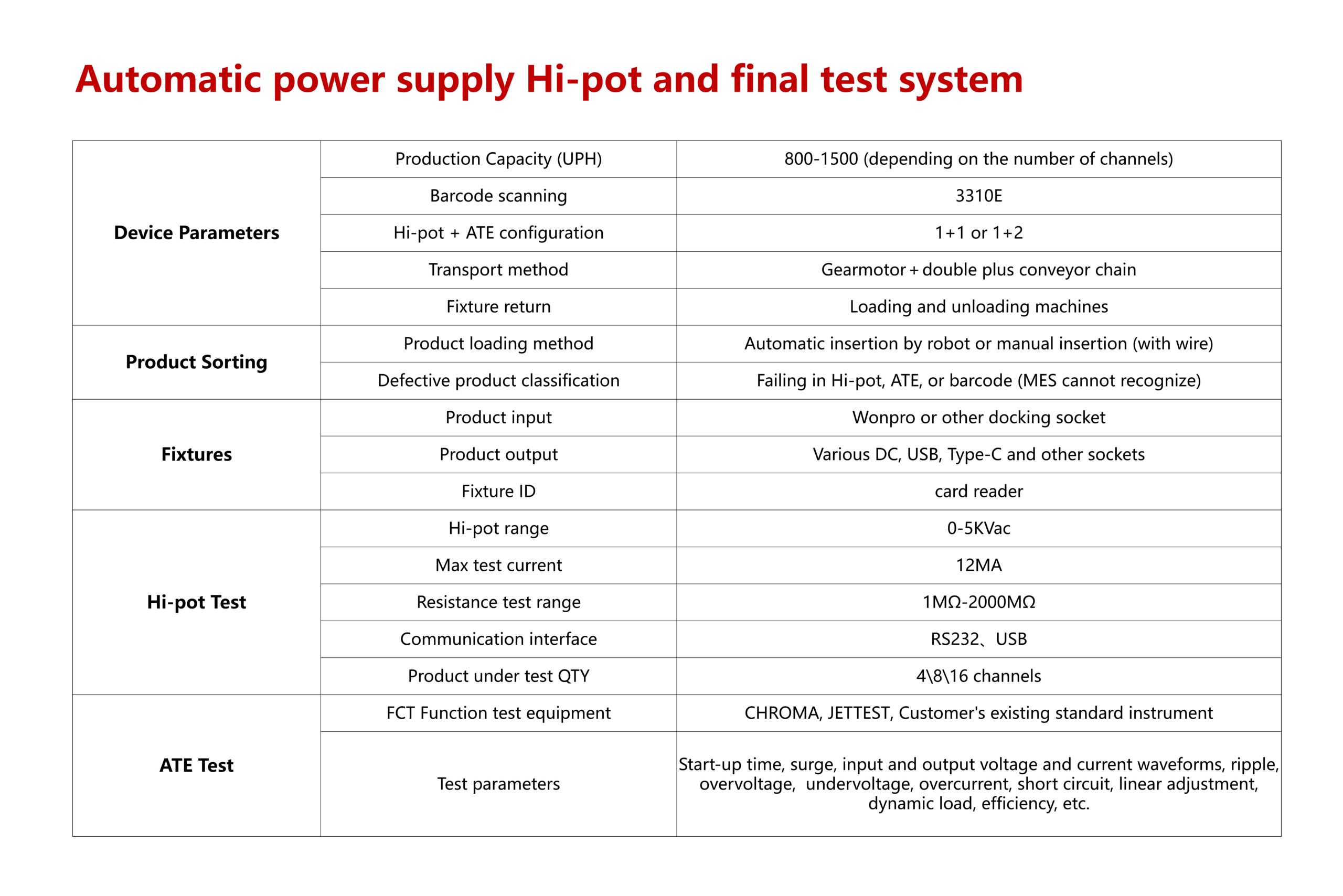

| Parameter | Specification |
|---|---|
| Production Capacity (UPH) | 800-1500 (depending on the number of channels) |
| Barcode scanning | 3310E |
| Hi-pot + ATE configuration | 1+1 or 1+2 |
| Transport method | Gearmotor + double plus conveyor chain |
| Fixture return | Loading and unloading machines |
Product Sorting
| Parameter | Specification |
|---|---|
| Product loading method | Automatic insertion by robot or manual insertion (with wire) |
| Defective product classification | Failing in Hi-pot, ATE, or barcode (MES cannot recognize) |
Fixtures
| Parameter | Specification |
|---|---|
| Product input | Wonpro or other docking socket |
| Product output | Various DC, USB, Type-C and other sockets |
| Fixture ID | card reader |
Hi-pot Test
| Parameter | Specification |
|---|---|
| Hi-pot range | 0-5KVac |
| Max test current | 12MA |
| Resistance test range | 1MΩ-2000MΩ |
| Communication interface | RS232、USB |
| Product under test QTY | 4\8\16 channels |
ATE Test
| Parameter | Specification |
|---|---|
| FCT Function test equipment | CHROMA, JETTEST, Customer's existing standard instrument |
| Test parameters | Start-up time, surge, input and output voltage and current waveforms, ripple, overvoltage, undervoltage, overcurrent, short circuit, linear adjustment, dynamic load, efficiency, etc. |
