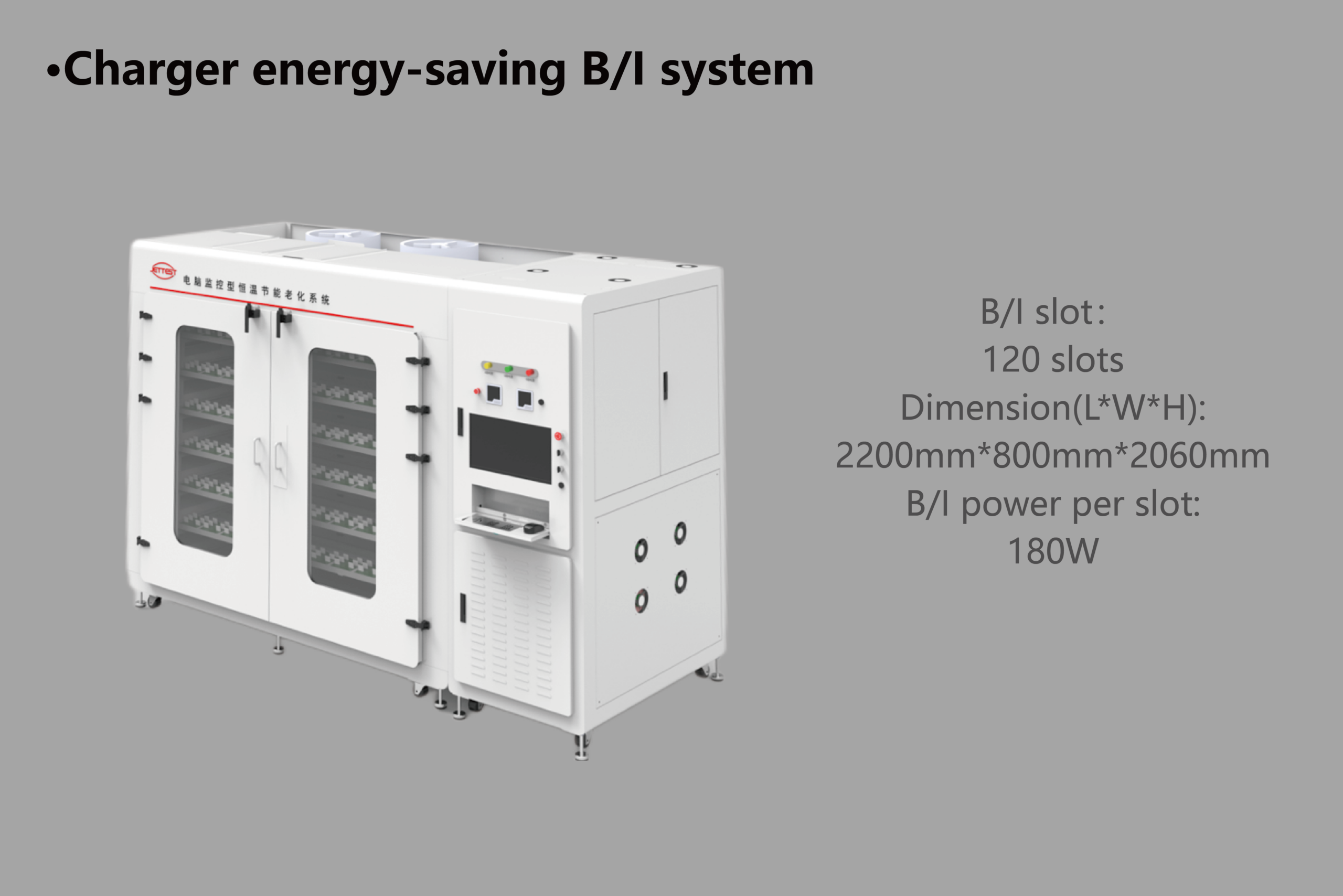

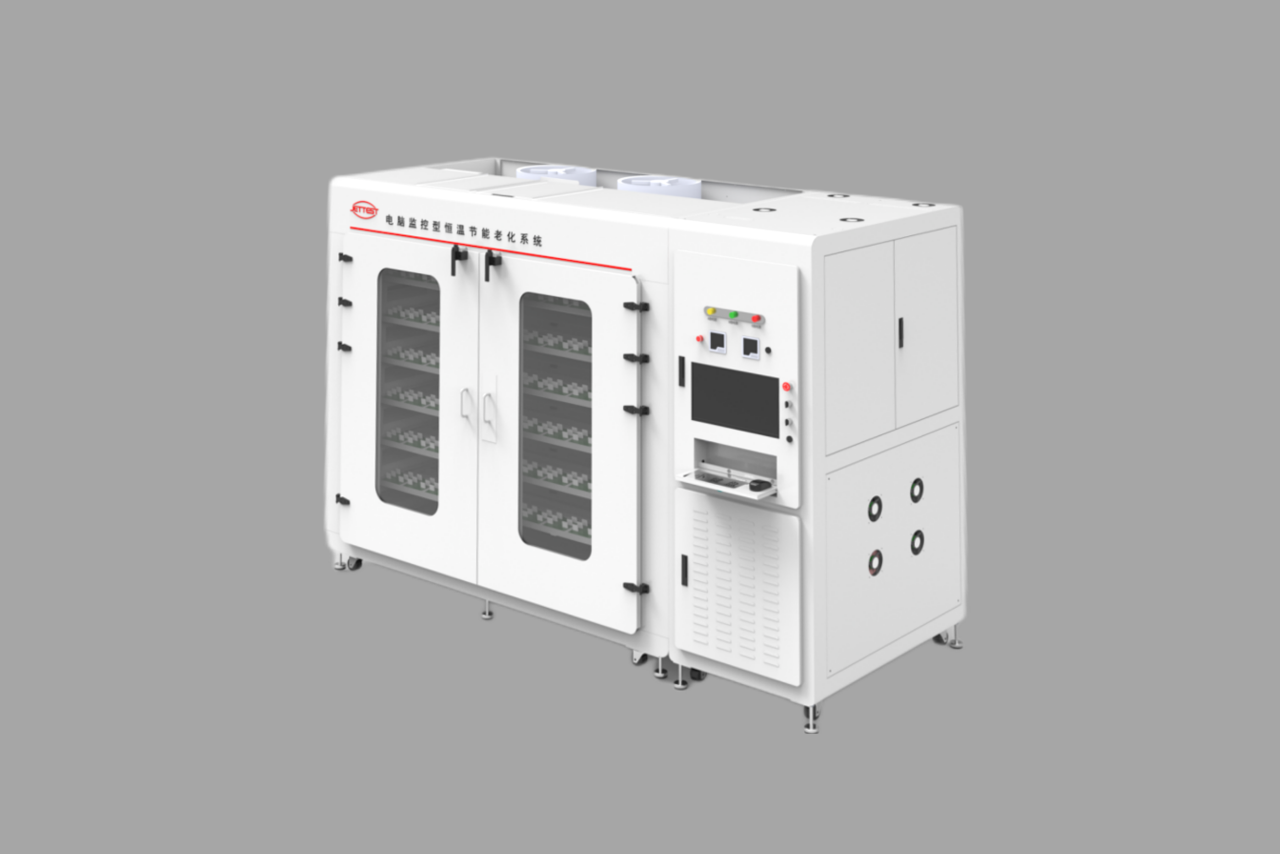

Charger energy-saving B/I system
Charger energy-saving B/I system
This equipment is designed for chargers and adapters, performing energy-efficient aging tests on batch products. The system can simultaneously test 120 units, verifying long-term reliability and stability through precise temperature control and energy-saving loads.
| Dimension(L*W*H) | 2200*800*2060(mm) |
|---|---|
| B/I slot | 120 slots |
| Applicable Products | Chargers and Adapters |
| B/I power per slot | 180W |
Product Features
- Electric leakage protection: Automatically cuts off when leakage is detected
- Over temperature: Automatically cuts off product power and activates alarm
- Smoke detection: Automatically cuts off product power and triggers alarm device
- Fault alarm: Automatically identifies faulty unit and activates alarm
- Emergency shutdown: Used for emergency cut-off of system power

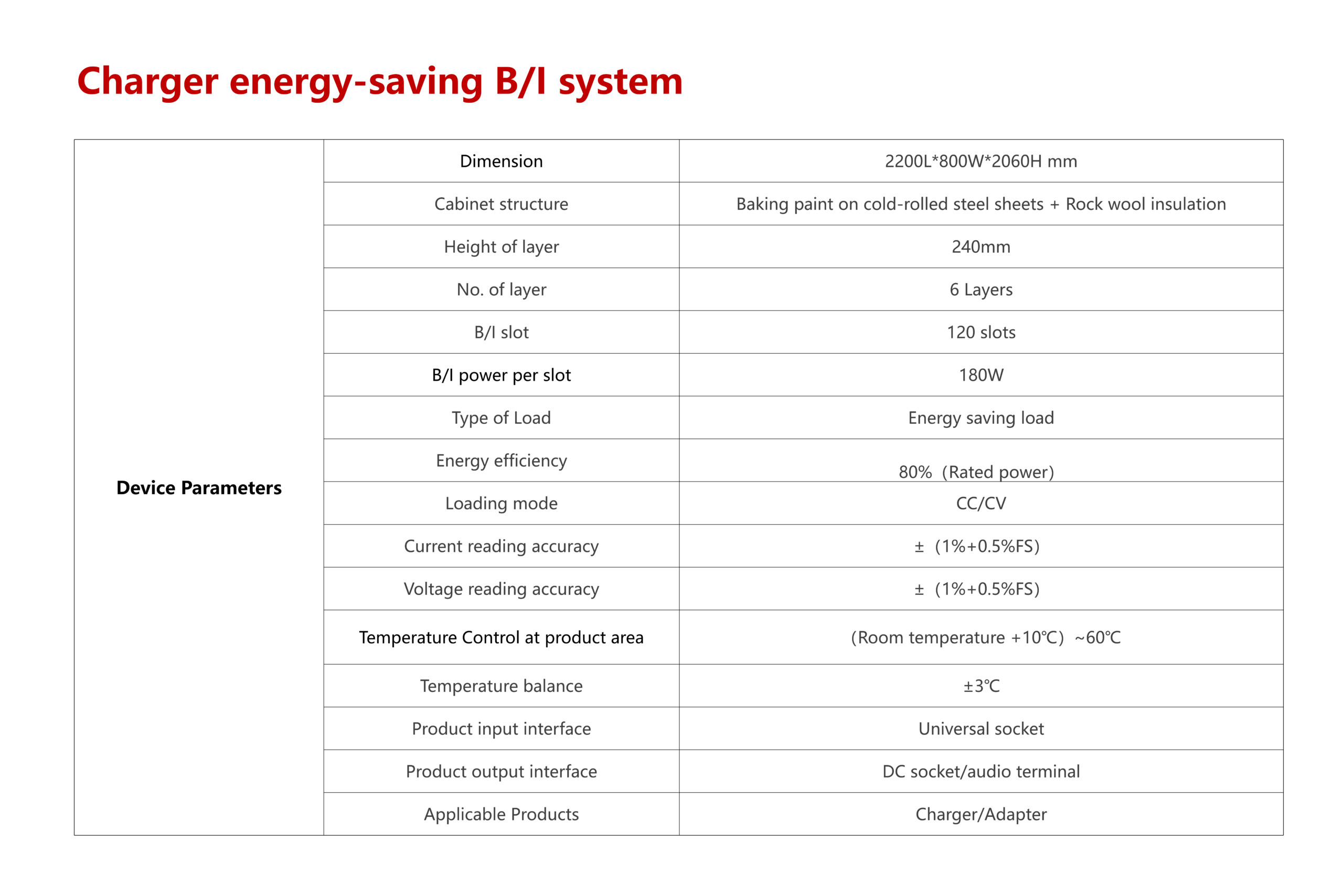

Technical Specifications
Device Parameters
| Parameter | Specification |
|---|---|
| Dimension | 2200L*800W*2060H mm |
| Cabinet structure | Baking paint on cold-rolled steel sheets + Rock wool insulation |
| Height of layer | 240mm |
| No. of layer | 6 Layers |
| B/I slot | 120 slots |
| B/I power per slot | 180W |
| Type of Load | Energy saving load |
| Energy efficiency | 80% (Rated power) |
| Loading mode | CC/CV |
| Current reading accuracy | ± (1%+0.5%FS) |
| Voltage reading accuracy | ± (1%+0.5%FS) |
| Temperature Control at product area | (Room temperature +10°C) ~60°C |
| Temperature balance | ±3°C |
| Product input interface | Universal socket |
| Product output interface | DC socket/audio terminal |
| Applicable Products | Charger/Adapter |
