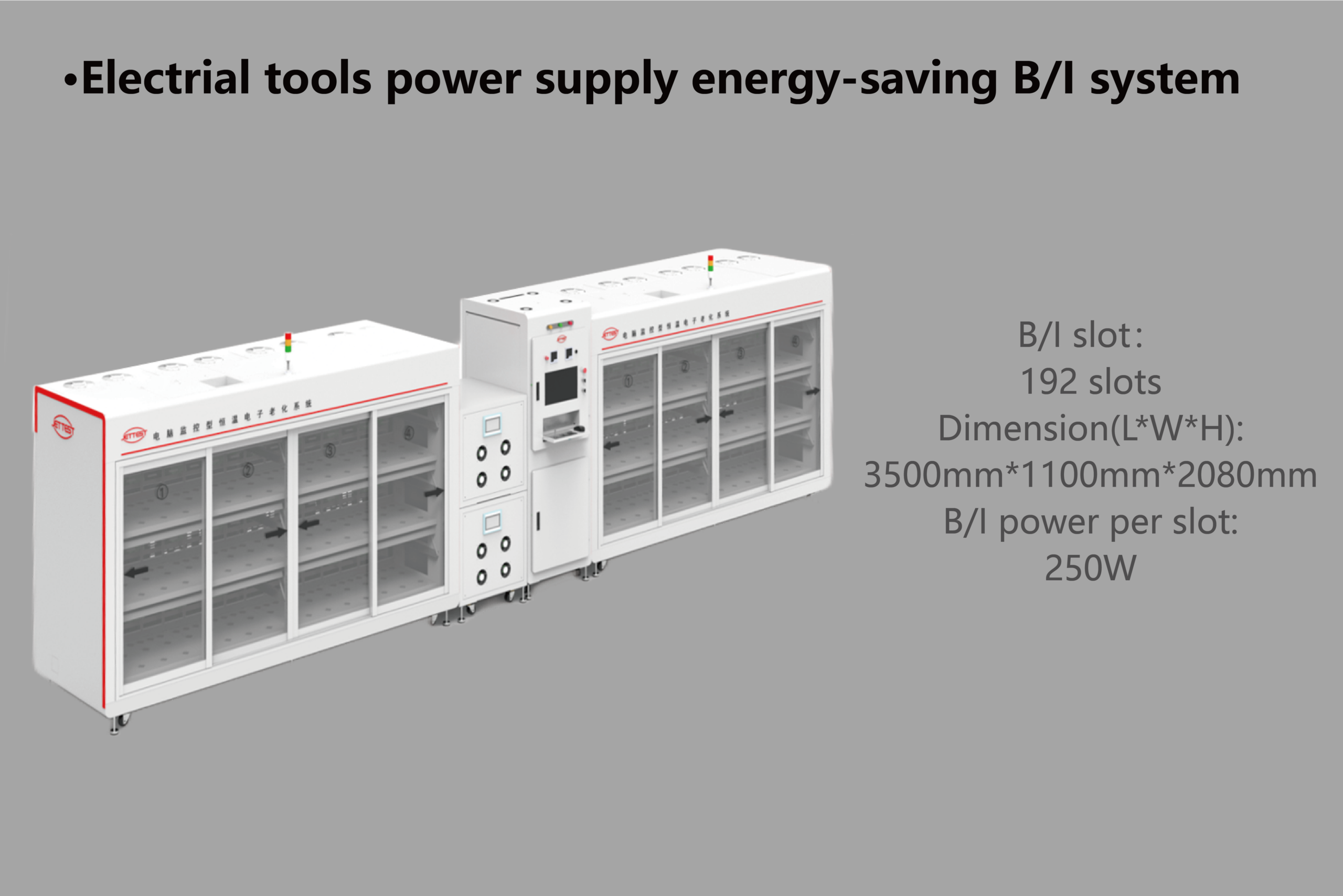

Electrical tools power supply energy-saving B/I system
Electrical tools power supply energy-saving B/I system

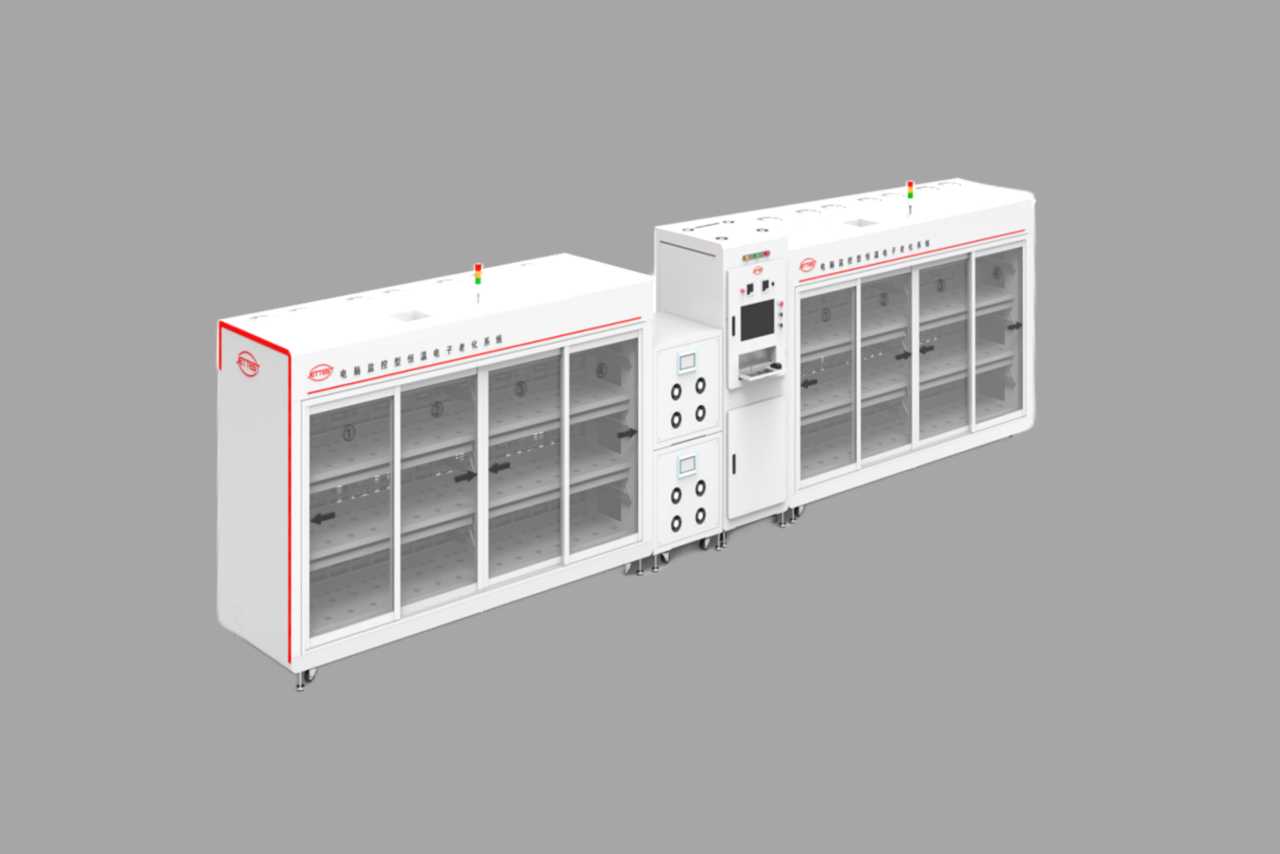

This equipment is designed for power tools power supplies, performing energy-efficient aging tests on batch products. The system can simultaneously test 192 units under extended operation, verifying product reliability and durability through precise temperature control.
| Dimension(L*W*H) | 3500*1100*2080(mm) |
|---|---|
| B/I slot | 192slots |
| Applicable Products | Power Supply for Electric Tools |
| B/I power per slot | 250W |
Product Features
- Electric leakage protection: Automatically cuts off when leakage is detected
- Over temperature: Automatically cuts off product power and activates alarm
- Smoke detection: Automatically cuts off product power and triggers alarm device
- Fault alarm: Automatically identifies faulty unit and activates alarm
- Emergency shutdown: Used for emergency cut-off of system power
Technical Specifications

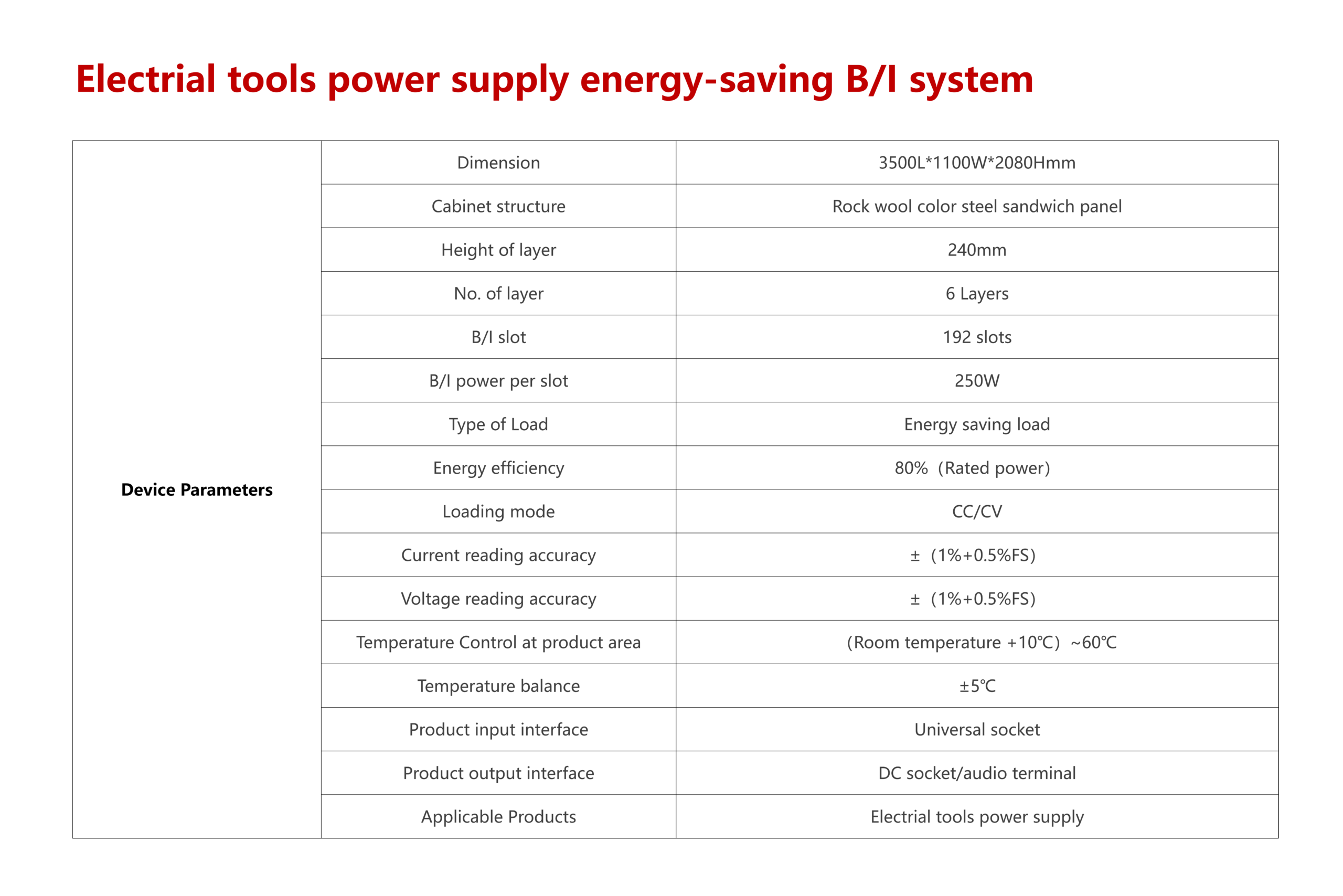

Device Parameters
| Parameter | Specification |
|---|---|
| Dimension | 3500L*1100W*2080Hmm |
| Cabinet structure | Rock wool color steel sandwich panel |
| Height of layer | 240mm |
| No. of layer | 6 Layers |
| B/I slot | 192 slots |
| B/I power per slot | 250W |
| Type of Load | Energy saving load |
| Energy efficiency | 80% (Rated power) |
| Loading mode | CC/CV |
| Current reading accuracy | ± (1%+0.5%FS) |
| Voltage reading accuracy | ± (1%+0.5%FS) |
| Temperature Control at product area | (Room temperature +10°C) ~60°C |
| Temperature balance | ±5°C |
| Product input interface | Universal socket |
| Product output interface | DC socket/audio terminal |
| Applicable Products | Electrial tools power supply |
