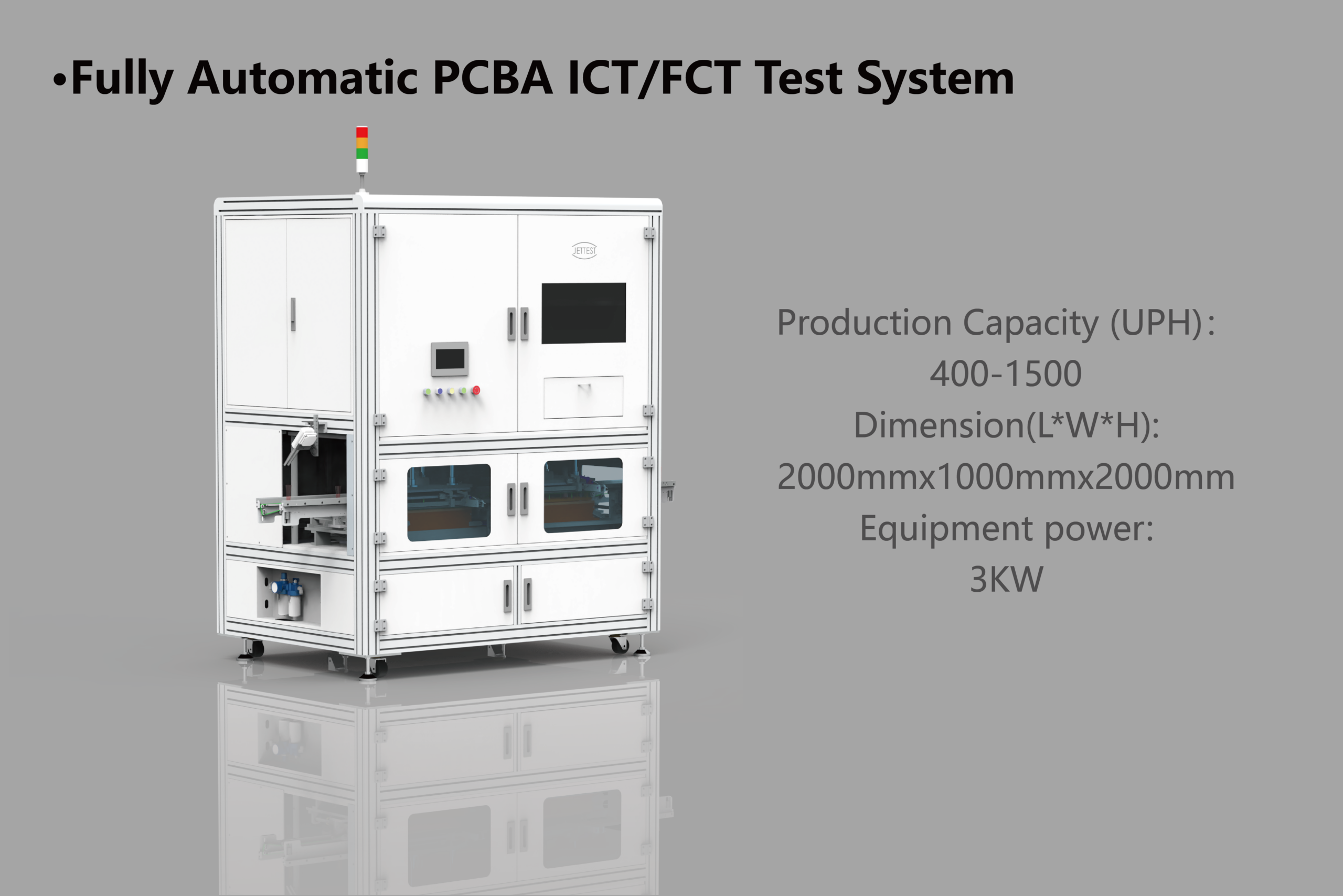

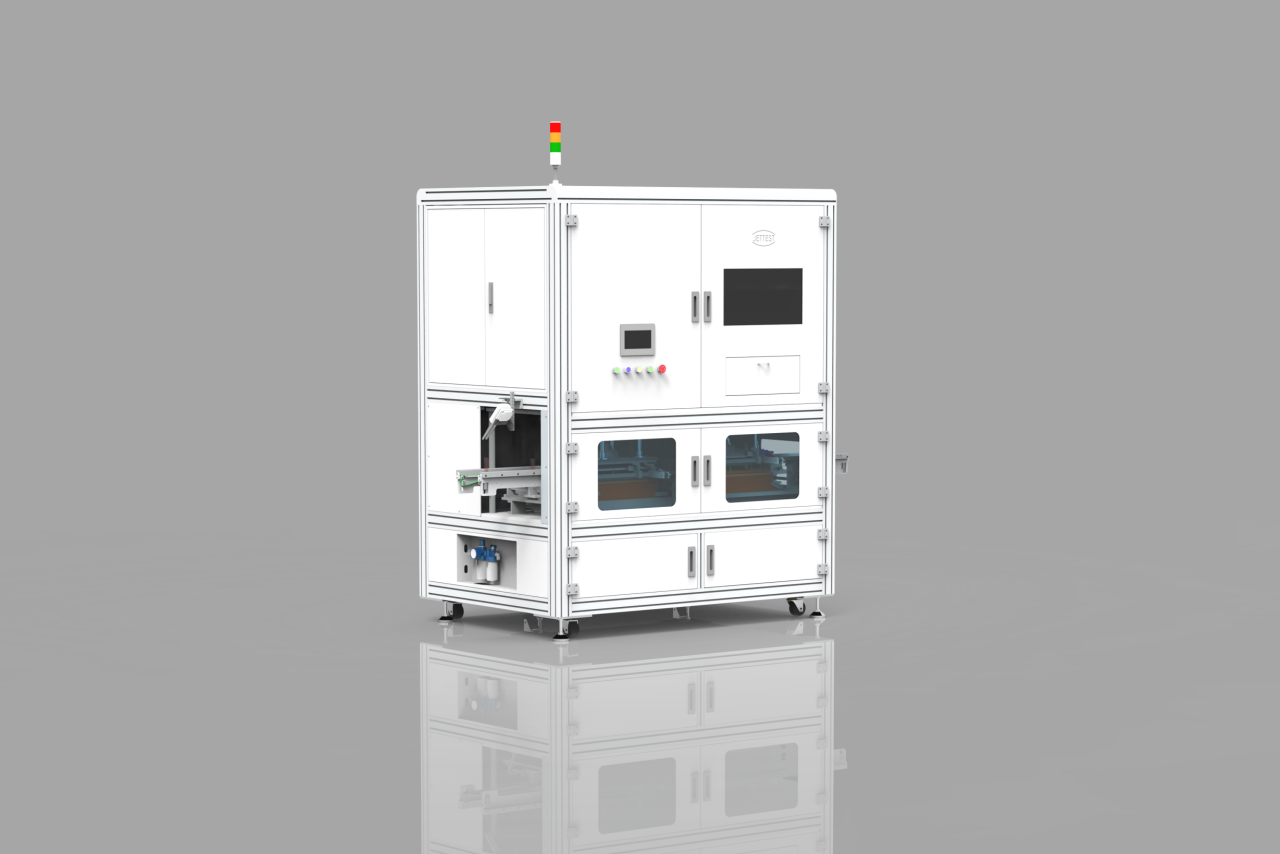

Fully Automatic PCBA ICT/FCT Test System
Fully Automatic PCBA ICT/FCT Test System
| Dimension(L*W*H) | 2000mmx1000mmx2000mm |
|---|---|
| Production Capacity (UPH) | 800-1500 |
| Applicable Products | PCBA (Printed Circuit Board Assembly) Semi-Finished Products |
| Equipment Power | 3KW |
Product Features
- Automatic ICT test +automatic FCT test, dual or multi-station design to save manpower.
- Visual operation, all product information can be easily read.
- Universal design, compatible with a variety of fixtures, a variety of PCBA, very strong applicability.
- Unit automation platform, can be combined according to different process requirements to form an assembly line.
- Scope of application: PCBA automatic test

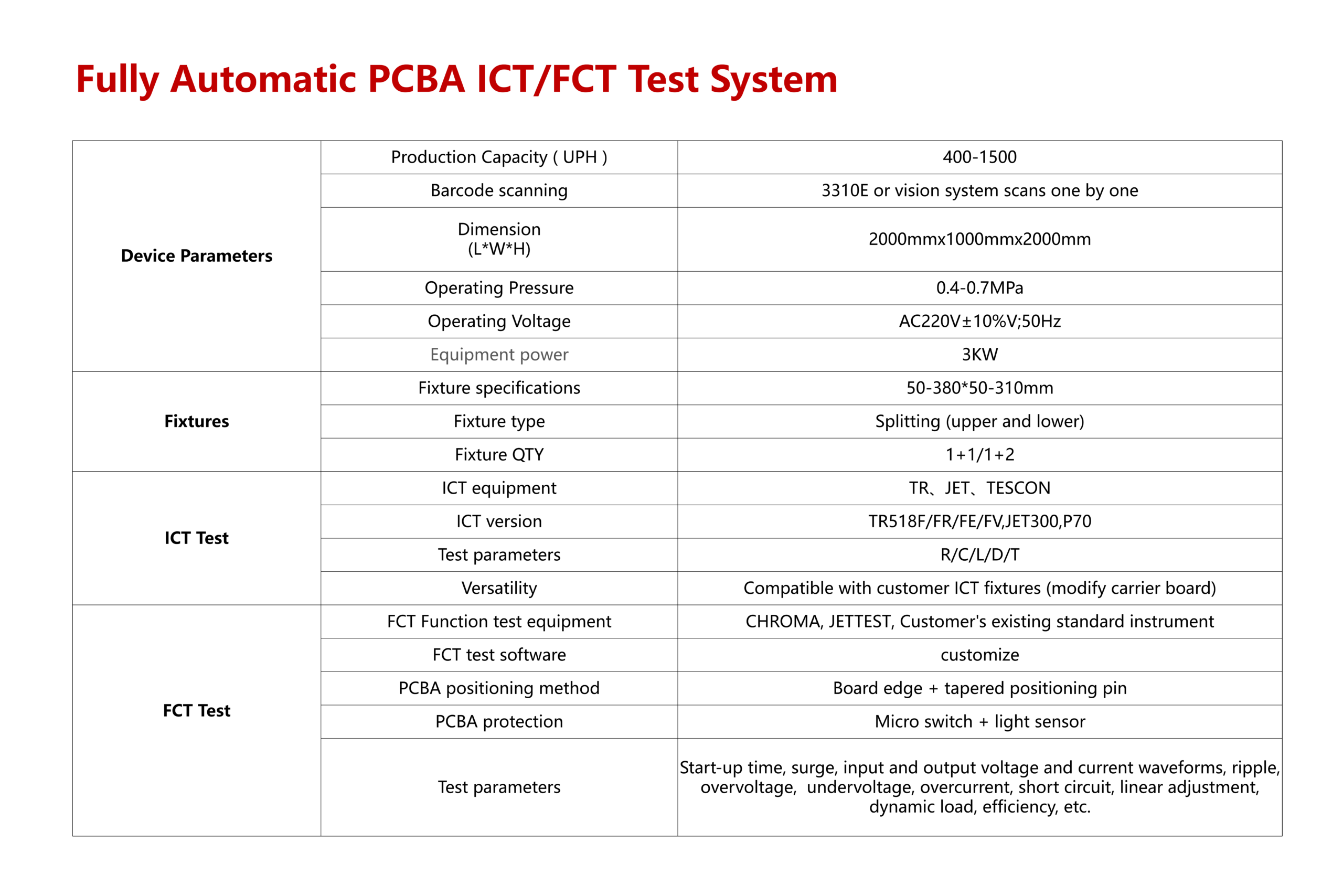

Technical Specifications
Device Parameters
| Parameter | Specification |
|---|---|
| Production Capacity ( UPH ) | 400-1500 |
| Barcode scanning | 3310E or vision system scans one by one |
| Dimension (L*W*H) | 2000mmx1000mmx2000mm |
| Operating Pressure | 0.4-0.7MPa |
| Operating Voltage | AC220V±10%V;50Hz |
| Equipment power | 3KW |
Fixtures
| Parameter | Specification |
|---|---|
| Fixture specifications | 50-380*50-310mm |
| Fixture type | Splitting (upper and lower) |
| Fixture QTY | 1+1/1+2 |
ICT Test
| Parameter | Specification |
|---|---|
| ICT equipment | TR、JET、TESCON |
| ICT version | TR518F/FR/FE/FV,JET300,P70 |
| Test parameters | R/C/L/D/T |
| Versatility | Compatible with customer ICT fixtures (modify carrier board) |
FCT Test
| Parameter | Specification |
|---|---|
| FCT Function test equipment | CHROMA, JETTEST, Customer's existing standard instrument |
| FCT test software | customize |
| PCBA positioning method | Board edge + tapered positioning pin |
| PCBA protection | Micro switch + light sensor |
| Test parameters | Start-up time, surge, input and output voltage and current waveforms, ripple, overvoltage, undervoltage, overcurrent, short circuit, linear adjustment, dynamic load, efficiency, etc. |
