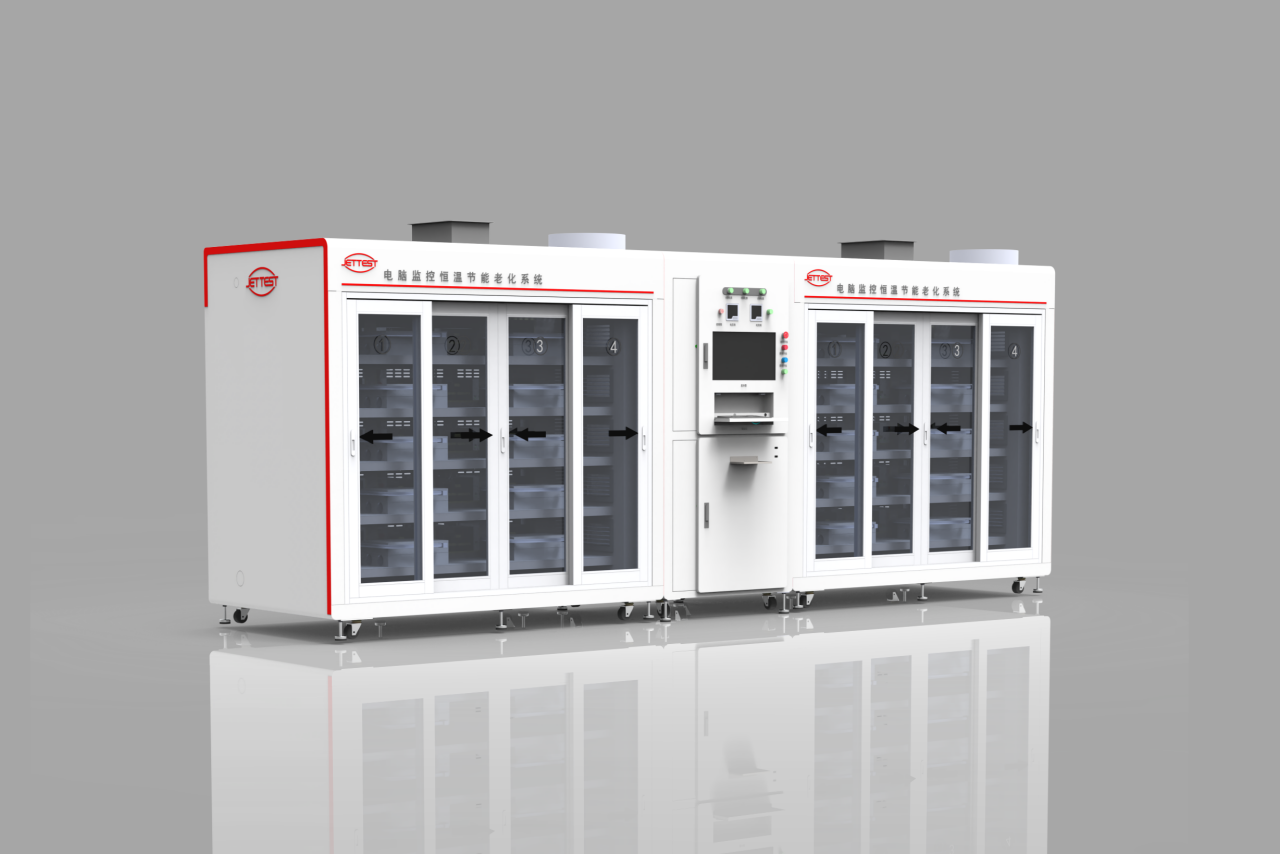

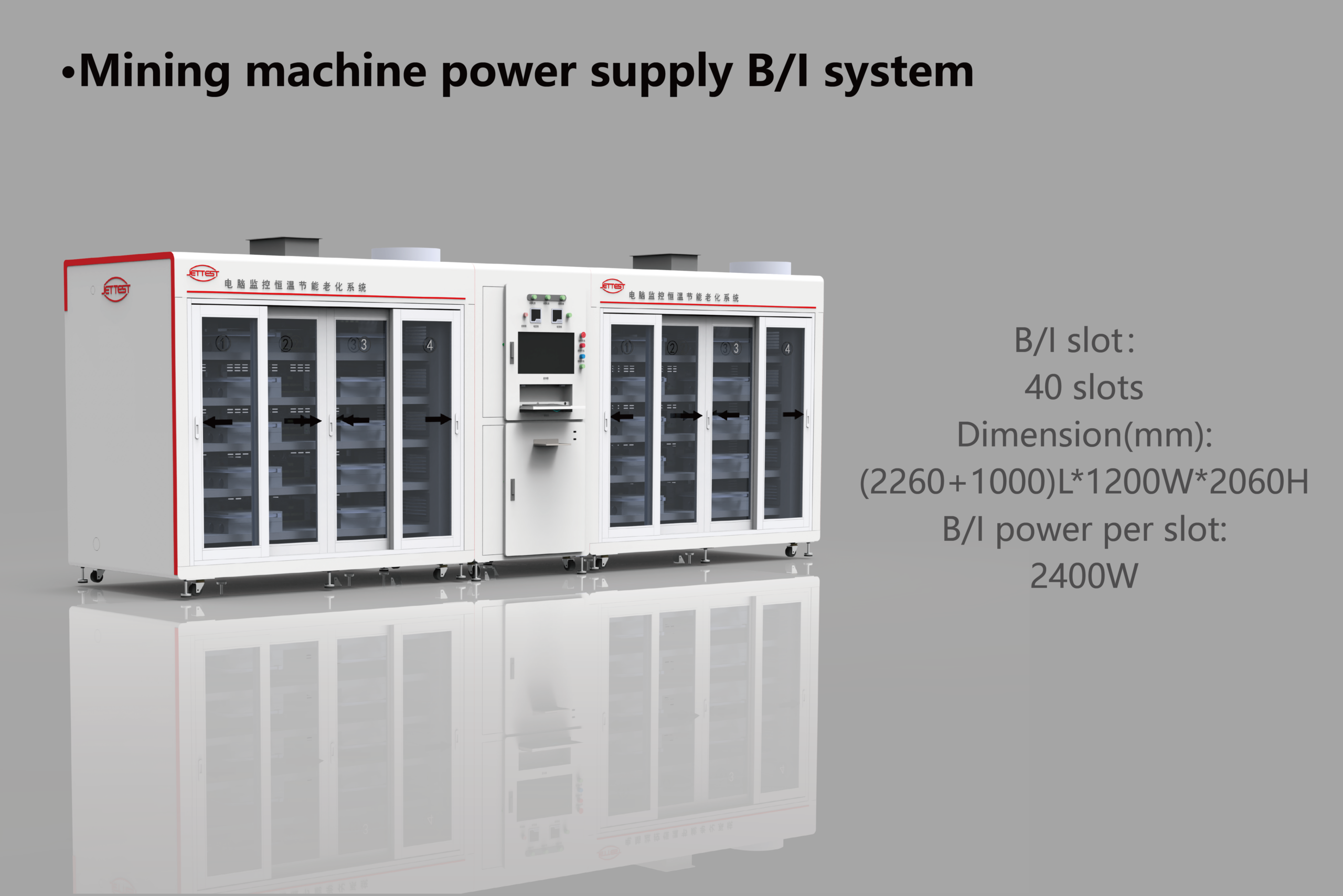

Mining machine power supply B/I system
Mining machine power supply B/I system
This equipment is designed for mining machine and server power supplies, conducting long-term aging tests on high-power products. The system can simultaneously perform full-load operation tests on 40 high-power units, verifying their continuous operational stability and reliability under high-temperature conditions.
| Dimension(L*W*H) | (2260+1000)*1200*2060(mm) |
|---|---|
| B/I slot | 40 slots |
| Applicable Products | Power Supply for Mining Rigs、 Power Supply for Servers |
| B/I power per slot | 2400W |
Product Features
- Electric leakage protection: Automatically cuts off when leakage is detected
- Over temperature: Automatically cuts off product power and activates alarm
- Smoke detection: Automatically cuts off product power and triggers alarm device
- Fault alarm: Automatically identifies faulty unit and activates alarm
- Emergency shutdown: Used for emergency cut-off of system power

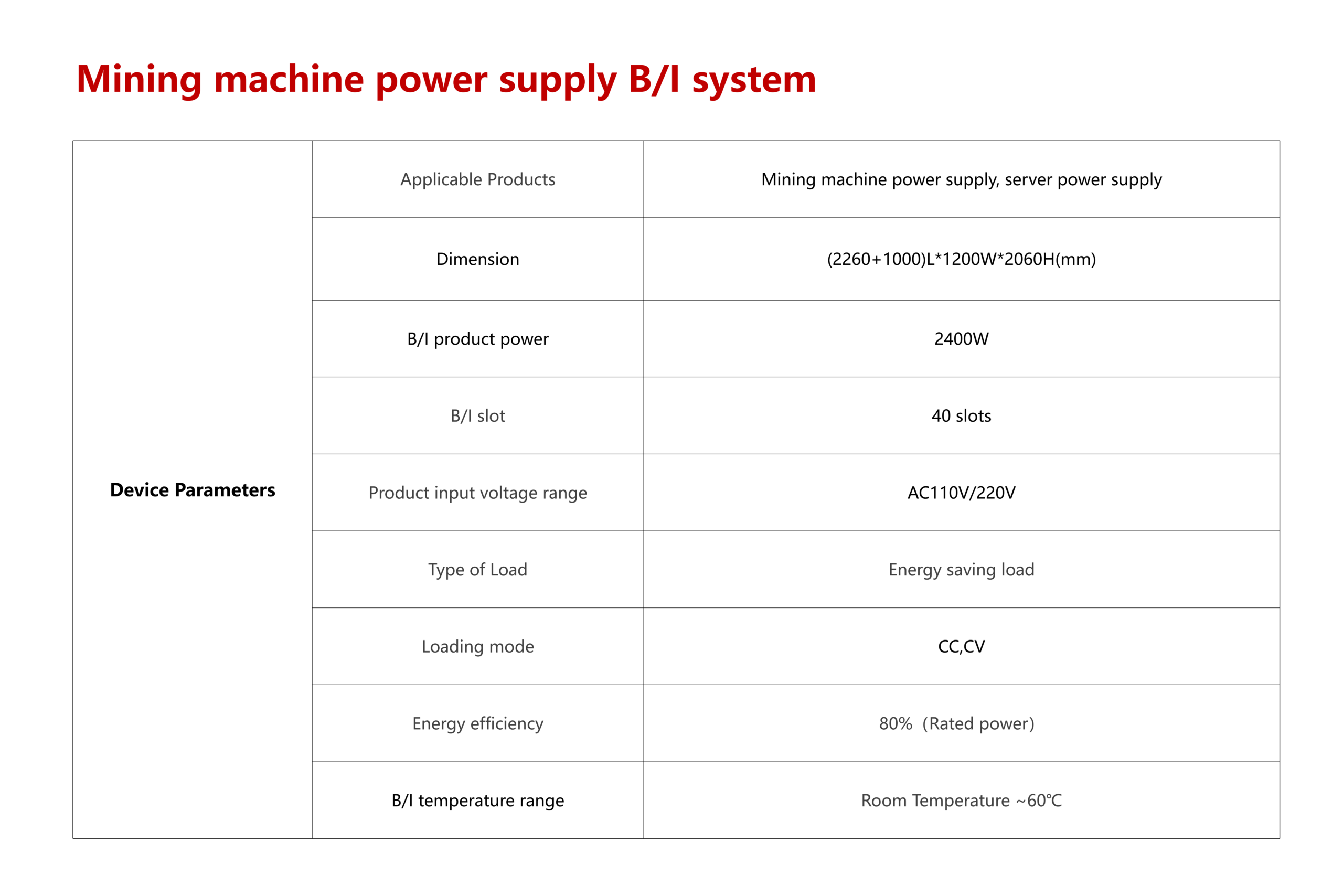

Technical Specifications
Device Parameters
| Parameter | Specification |
|---|---|
| Applicable Products | Mining machine power supply, server power supply |
| Dimension | (2260+1000)L*1200W*2060H(mm) |
| B/I product power | 2400W |
| B/I slot | 40 slots |
| Product input voltage range | AC110V/220V |
| Type of Load | Energy saving load |
| Loading mode | CC,CV |
| Energy efficiency | 80% (Rated power) |
| B/I temperature range | Room Temperature ~60°C |
