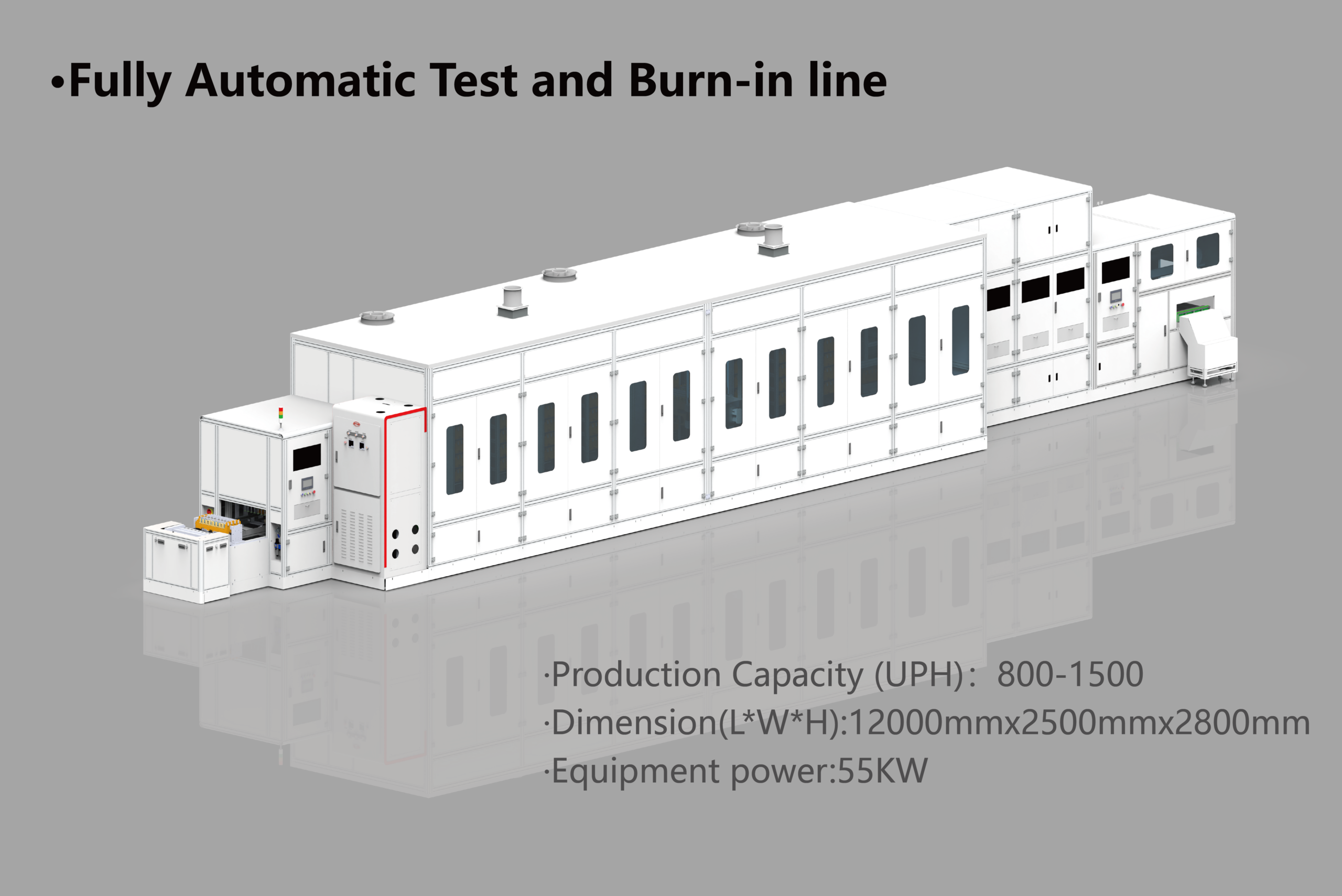

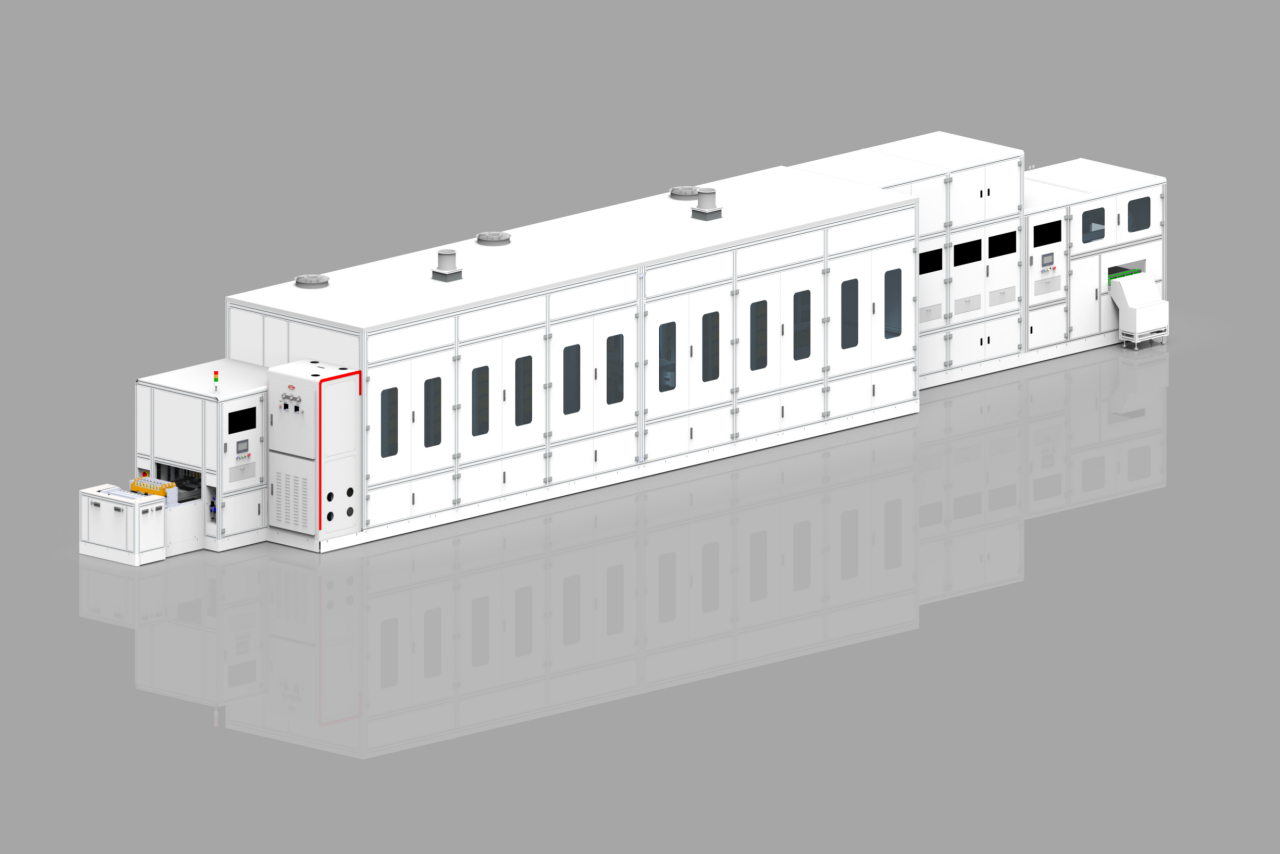

Fully Automatic Test and Burn-in line
This equipment is a fully automatic test system for power supply circuit boards, capable of rapidly checking component soldering quality and overall functional performance. Through automated testing, it accurately identifies defects to ensure every power board meets quality standards before delivery.
| Dimension(L*W*H) | 12000*2500*2800(mm) |
|---|---|
| Production Capacity (UPH) | 400-1500 |
| Applicable Products | Power Supplies and Adapters |
| Equipment Power | 55KW |
●Automatic ICT test + automatic FCT test, dual or multi-position station design to save manpower.
●Visual operation, all product information can be easily read.
●Universal design, compatible with a variety of fixtures, a variety of PCBA, very strong applicability.
●Unit automation platform, can be combined according to different process requirements to form an assembly line.
●Scope of application: PCBA automatic test.
Process Flow:
Start → Manual/Automatic Loading → Automatic PIN Insertion → Automatic Fixture Unclamping → Automatic Barcode Scanning → Power-on Test → Automatic Burn-in → Automatic Withstand Voltage Test → Automatic Final Test → Automatic PIN Extraction → Automatic Unloading (Automatic Machine Switching & Sorting) → Fixture Decoding & Board Return

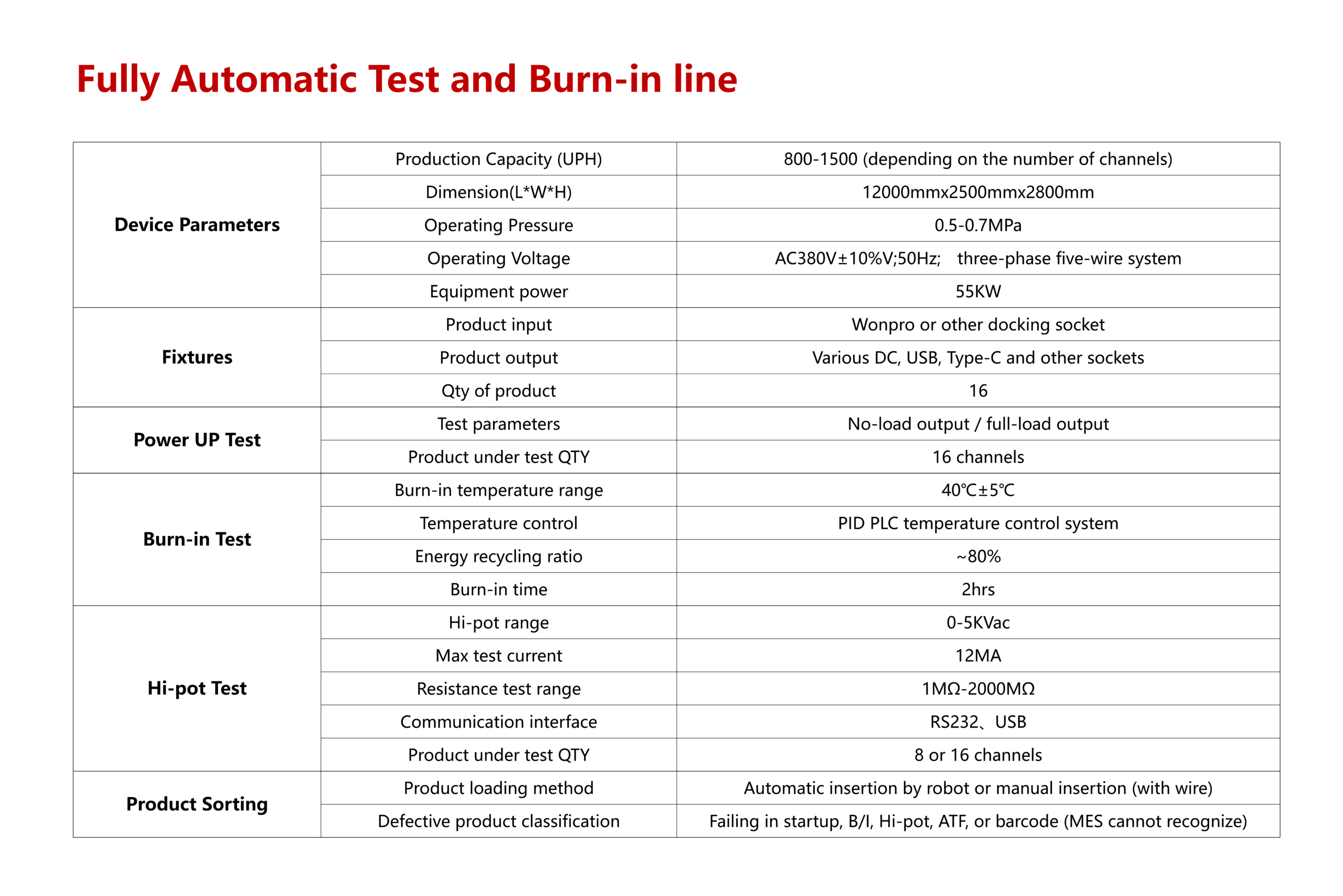

| Parameter | Specification |
|---|---|
| Device Parameters | |
| Production capacity (UPH) | 800–1500 (depending on the number of channels) |
| Dimensions (L × W × H) | 12000 × 2500 × 2800 mm |
| Operating pressure | 0.5–0.7 MPa |
| Operating voltage | AC 380 V ±10%, 50 Hz; three-phase five-wire system |
| Equipment power | 55 kW |
| Fixtures | |
| Product input | Wonpro or other docking socket |
| Product output | Various DC, USB, Type-C and other sockets |
| Quantity of products | 16 |
| Power-up Test | |
| Test parameters | No-load output / full-load output |
| Products under test | 16 channels |
| Burn-in Test | |
| Burn-in temperature range | 40°C ±5°C |
| Temperature control | PID PLC temperature control system |
| Energy recycling ratio | Approximately 80% |
| Burn-in time | 2 hours |
| Hi-pot Test | |
| Hi-pot range | 0–5 kV AC |
| Maximum test current | 12 mA |
| Resistance test range | 1–2000 MΩ |
| Communication interface | RS232, USB |
| Products under test | 8 or 16 channels |
| Product Sorting | |
| Product loading method | Automatic insertion by robot or manual insertion (with wire) |
| Defective product classification | Failing in startup, B/I, Hi-pot, ATF, or barcode (MES cannot recognize) |
