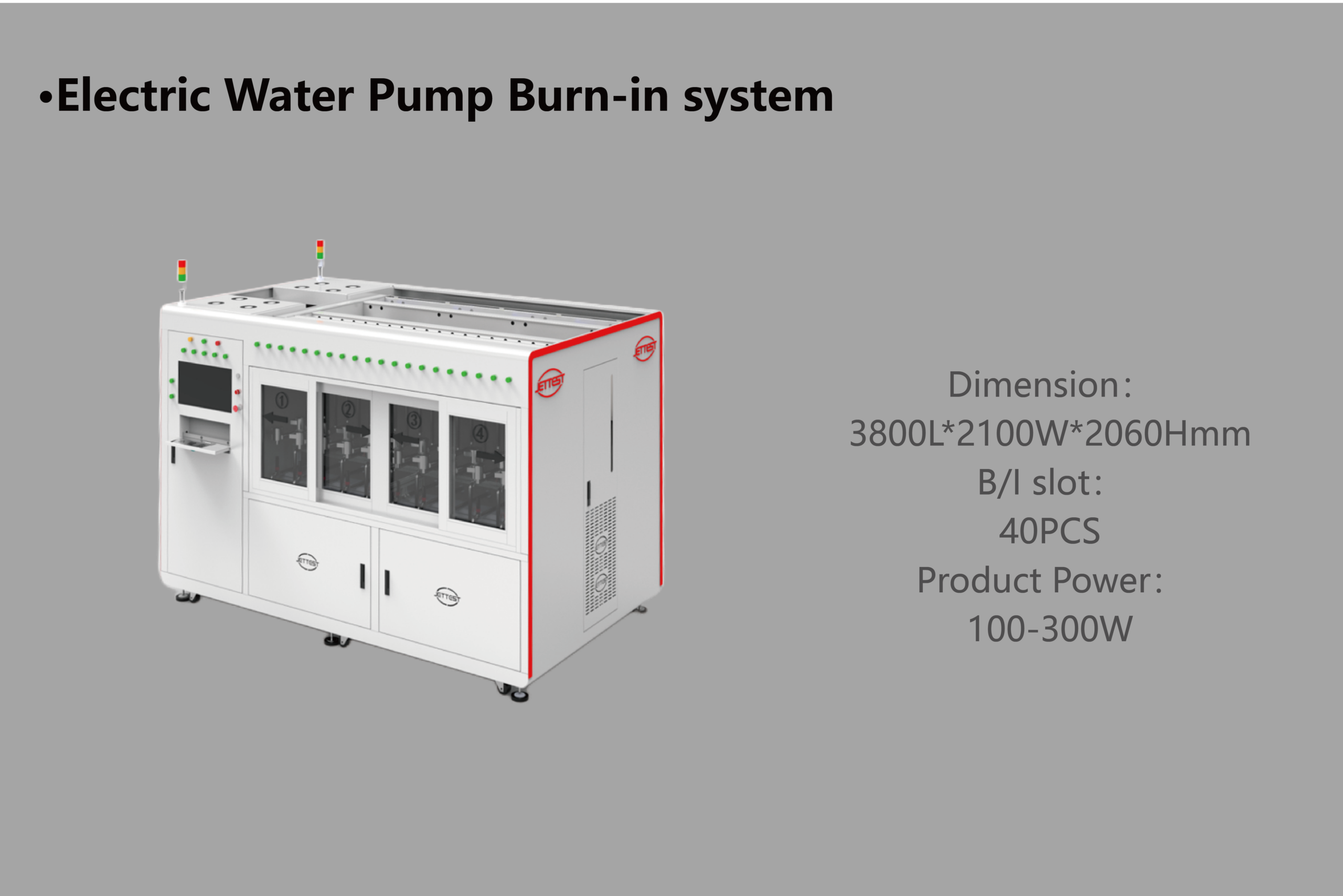

Electric Water Pump Burn-in system
Electric Water Pump Burn-in system

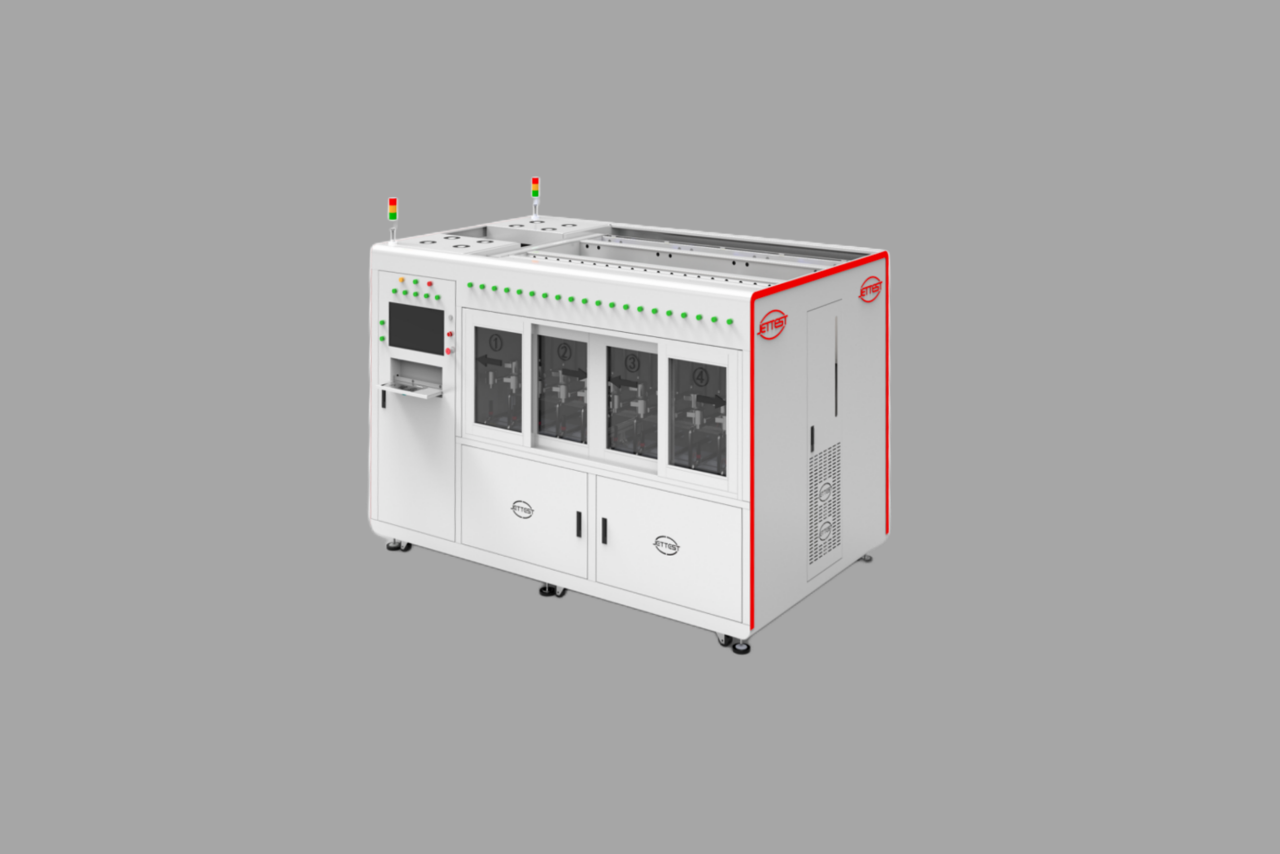

This equipment is a specialized aging test system for automotive electric water pumps, simulating real operating conditions to verify reliability. It can simultaneously test 40 pumps, ensuring durability and stability during vehicle operation through water temperature control, flow regulation, and LIN communication monitoring.
| Dimension(L*W*H) | 3800*2100*2060(mm) |
|---|---|
| B/I slot | 40 slots |
| Applicable Products | Electric Water Pump |
| Product Power | 100-300W |
Product Features
- PC+PLC automatically monitor aging without personnel on duty
- MES tracking the process for easy traceability
- Feely to set the voltage, current and temperature.
- The water in the pipeline will be dried automatically after aging completed
Technical Specifications

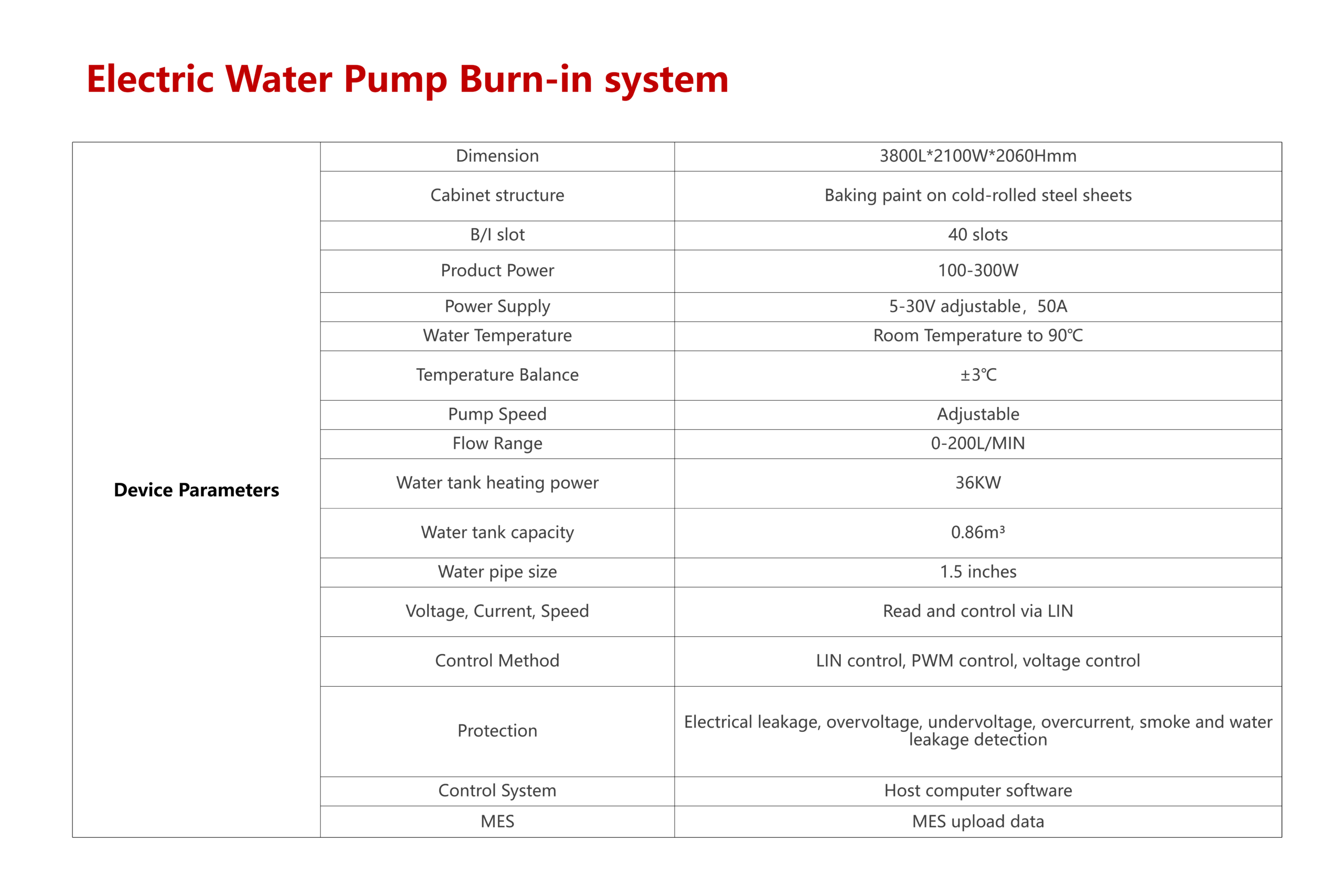

Device Parameters
| Dimension | 3800L*2100W*2060Hmm |
|---|---|
| Cabinet structure | Baking paint on cold-rolled steel sheets |
| B/I slot | 40 slots |
| Product Power | 100-300W |
| Power Supply | 5-30V adjustable，50A |
| Water Temperature | Room Temperature to 90°C |
| Temperature Balance | ±3°C |
| Pump Speed | Adjustable |
| Flow Range | 0-200L/MIN |
| Water tank heating power | 36KW |
| Water tank capacity | 0.86m³ |
| Water pipe size | 1.5 inches |
| Voltage, Current, Speed | Read and control via LIN |
| Control Method | LIN control, PWM control, voltage control |
| Protection | Electrical leakage, overvoltage, undervoltage, overcurrent, smoke and water leakage detection |
| Control System | Host computer software |
| MES | MES upload data |
