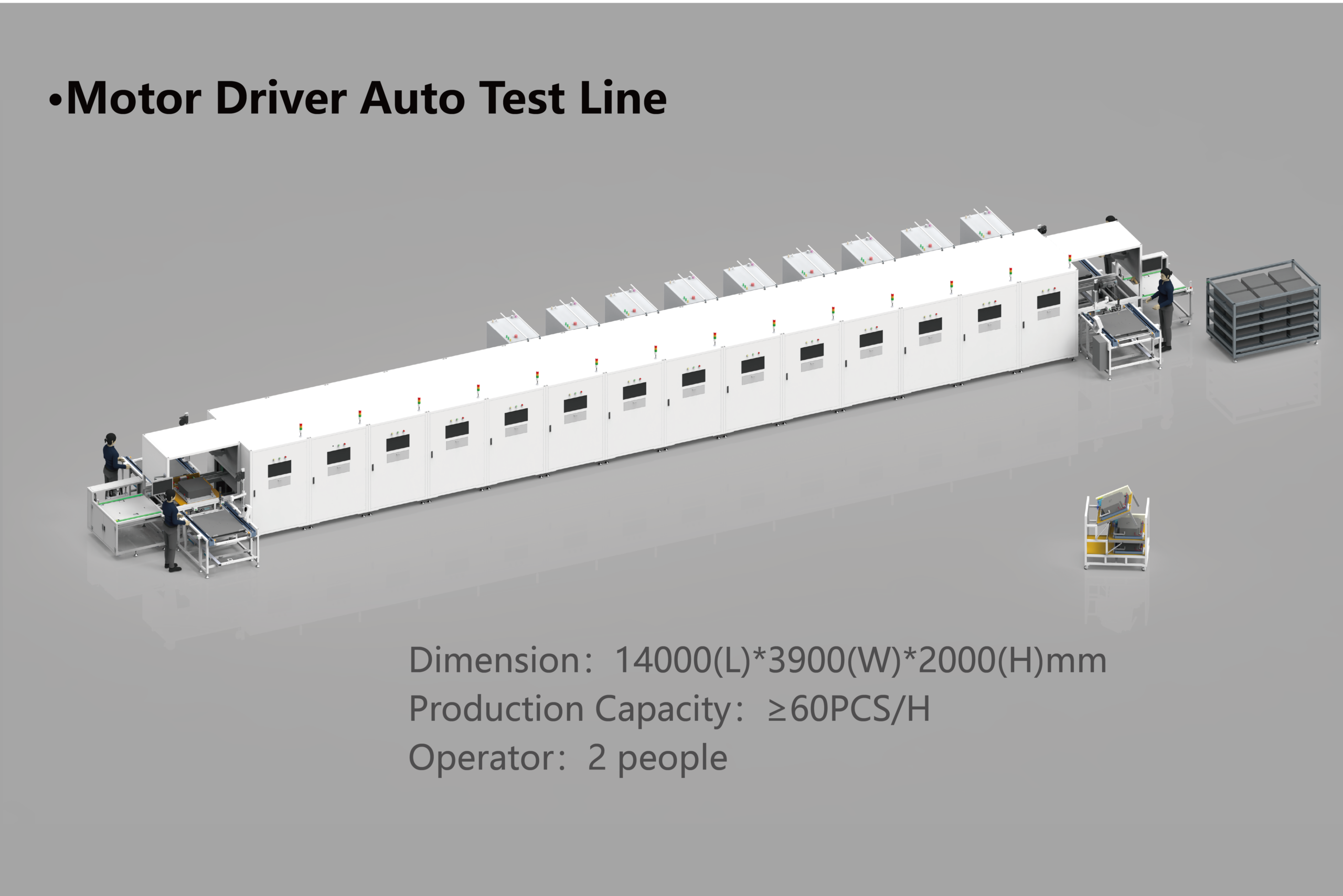

Motor Driver Auto Test Line

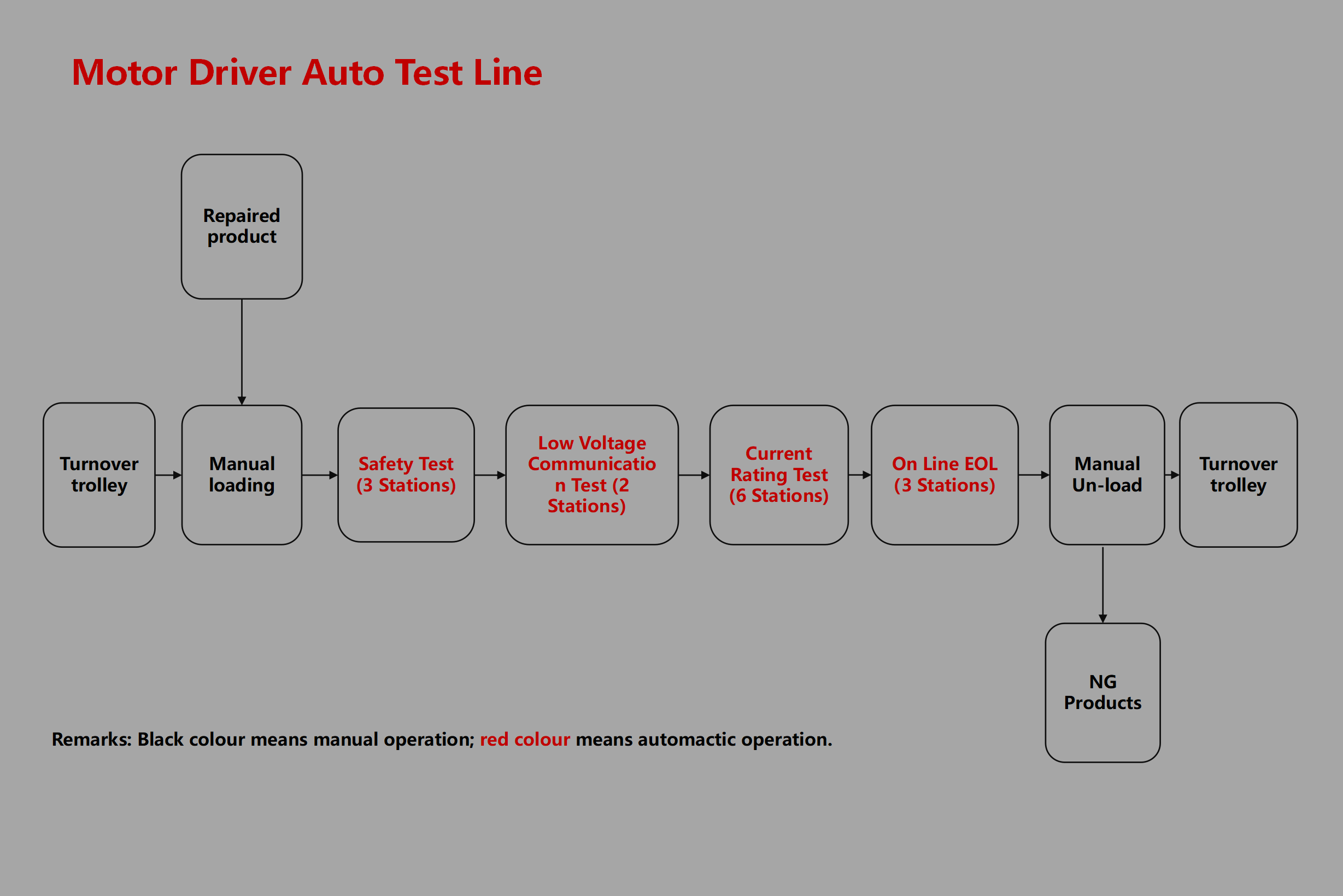

This equipment is an automated test line specifically for new energy vehicle motor controllers, performing comprehensive performance validation of electric drive systems. The system simulates real operating conditions to test output power, voltage/current, and communication functions, ensuring products meet design specifications.

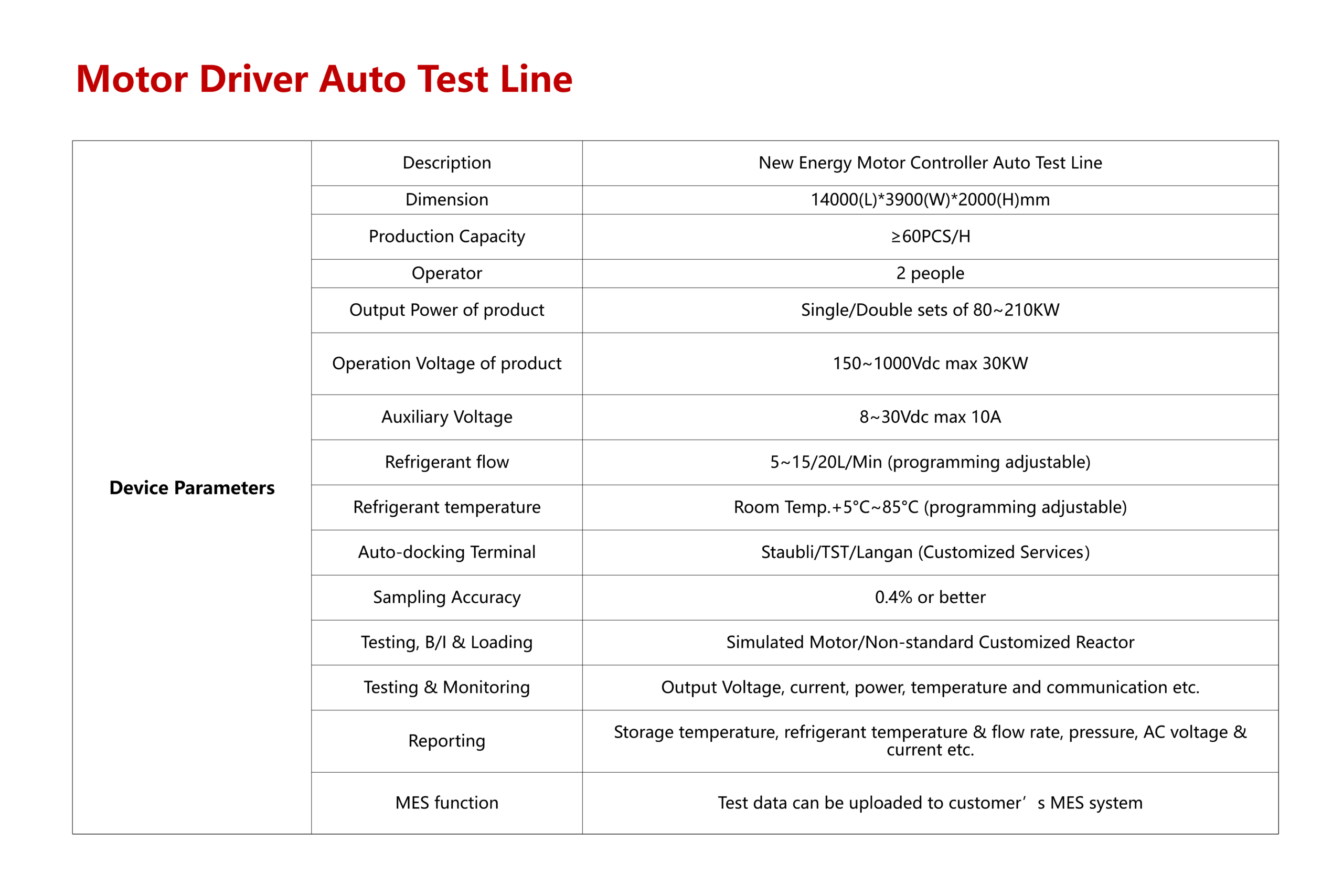

| Dimension(L*W*H) | 14000*3900*2000(mm) |
|---|---|
| Production Capacity | ≥60PCS/H |
| Applicable Products | Motor Driver for New Energy Vehicles |
| Operator | 2 people |

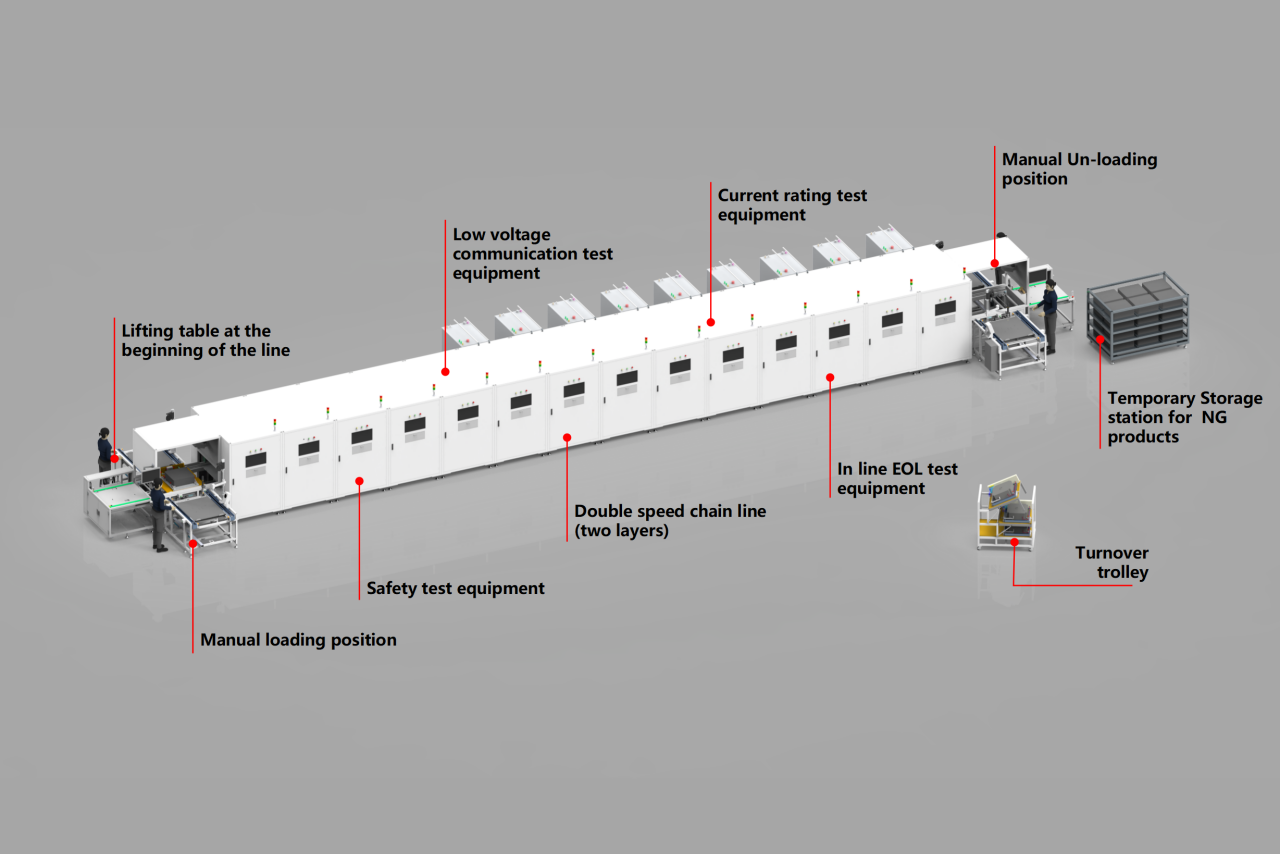

●Double speed chain mode: automatic cycle, simple structure, easy maintenance, reliable action, speed can be segmented control, error control;
● line control: reserved segment control, according to the testing requirements of each process; can also carry pallets to make automatic circulation transport;
● modular design, flexible combination, easy to disassemble and transpose;
● high level of safety protection, intelligent stop and power off for safe production;
