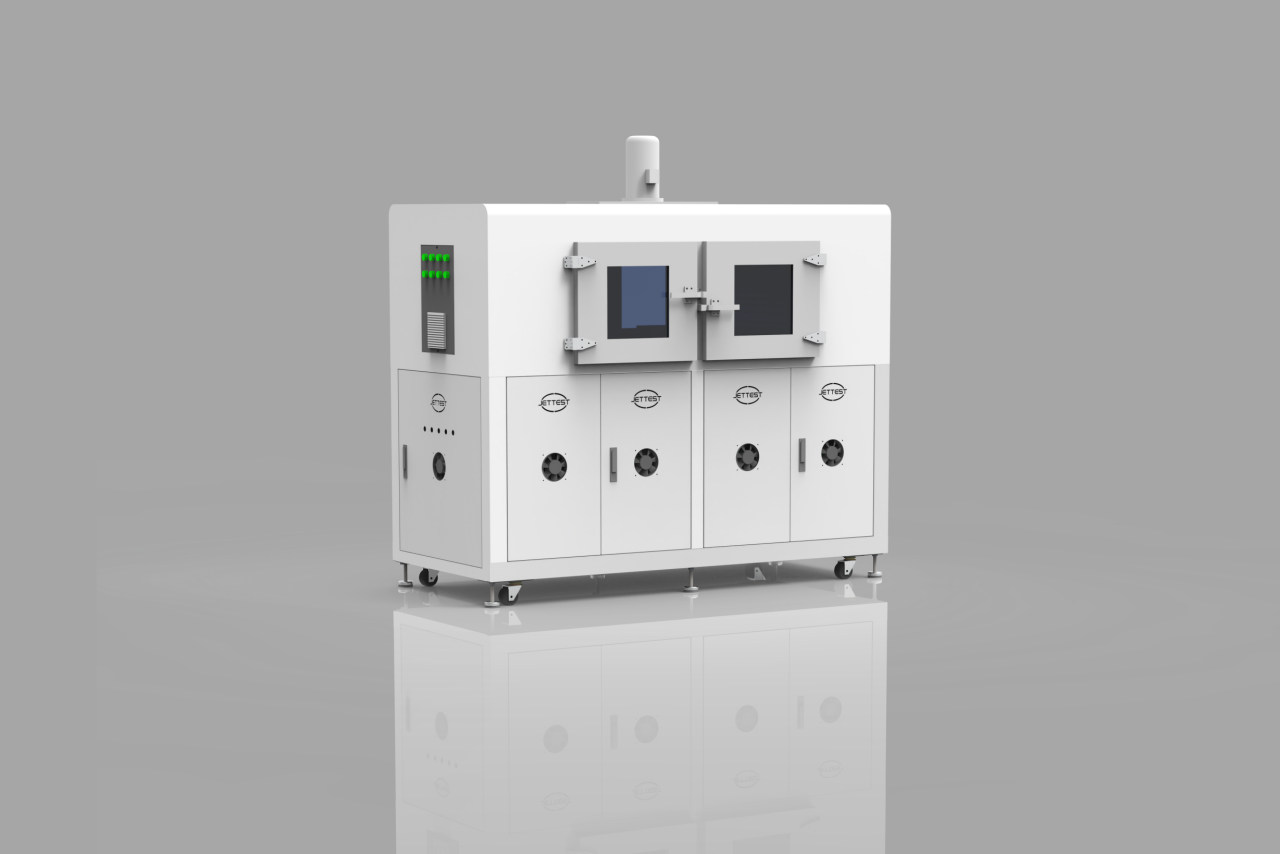

Compressor Burn-in system
Compressor Burn-in system
This system is designed for high-temperature endurance testing of compressors. It operates continuously at a constant 80°C, with real-time data monitoring and MES integration, to validate long-term operational stability and reliability.

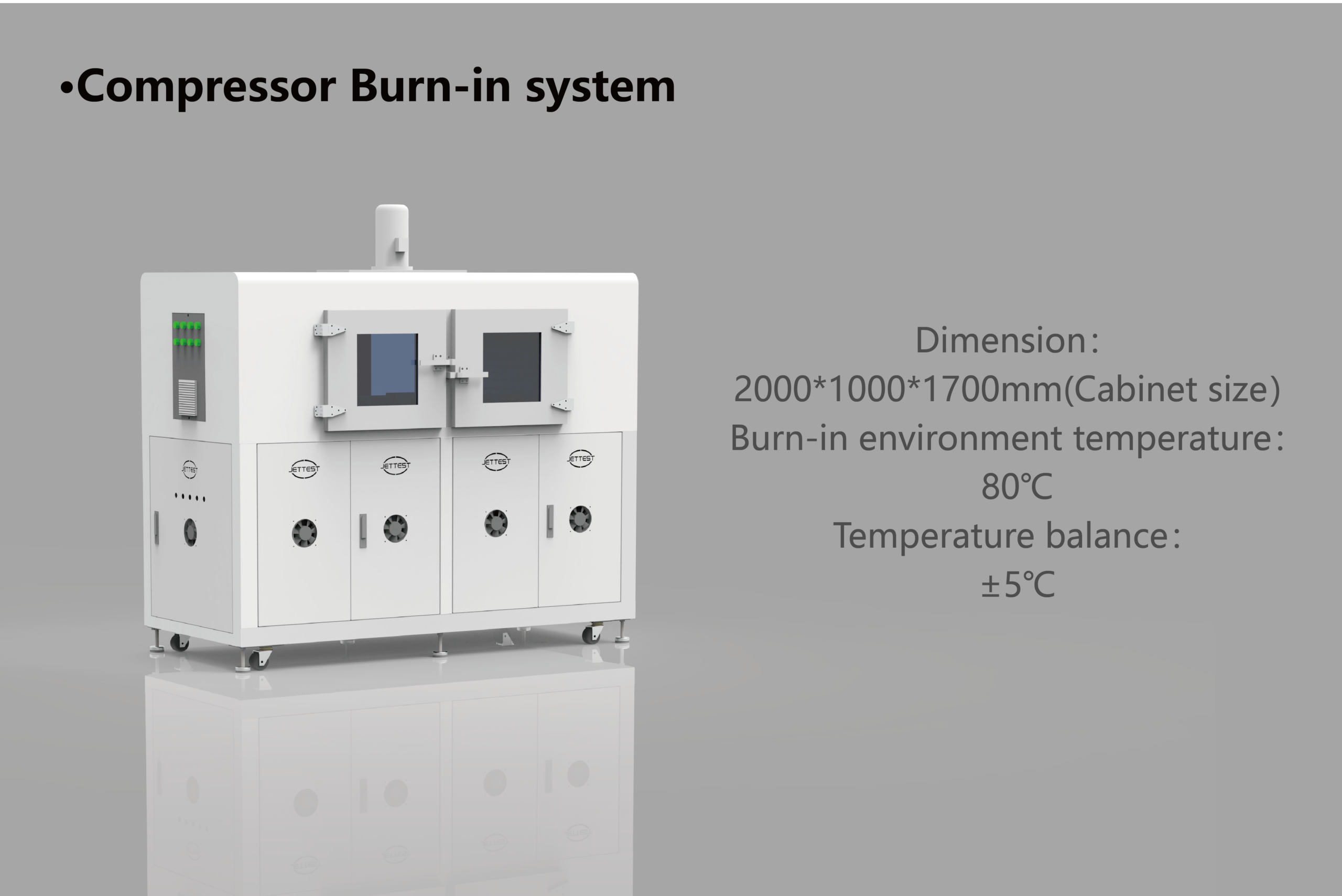

| Dimension(L*W*H) | 2000*1000*1700mm(Cabinet size） |
|---|---|
| Temperature balance | ±5℃ |
| Applicable Products | Compressor |
| Burn-in environment temperature | 80℃ |
Product Features
- PC+PLC automatically monitor aging without personnel on duty
- MES tracking the process for easy traceability
- Feely to set the voltage, current and temperature.
- The water in the pipeline will be dried automatically after aging completed
Technical Specifications

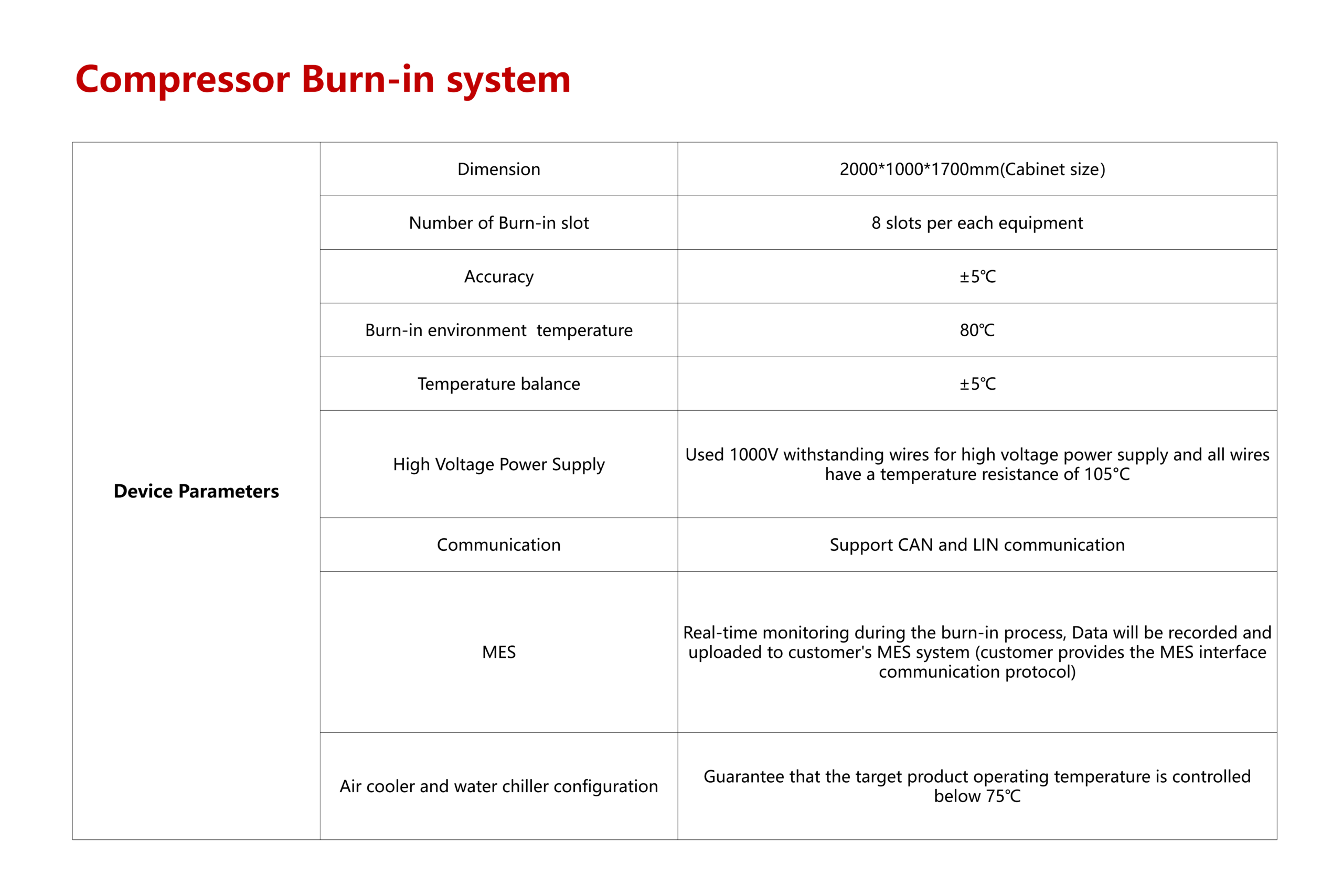

Device Parameters
| Parameter | Specification |
|---|---|
| Dimension | 2000*1000*1700mm(Cabinet size) |
| Number of Burn-in slot | 8 slots per each equipment |
| Accuracy | ±5°C |
| Burn-in environment temperature | 80°C |
| Temperature balance | ±5°C |
| High Voltage Power Supply | Used 1000V withstanding wires for high voltage power supply and all wires have a temperature resistance of 105°C |
| Communication | Support CAN and LIN communication |
| MES | Real-time monitoring during the burn-in process, Data will be recorded and uploaded to customer's MES system (customer provides the MES interface communication protocol) |
| Air cooler and water chiller configuration | Guarantee that the target product operating temperature is controlled below 75°C |
