Controller (Driver) testing and B/I sllotaging system

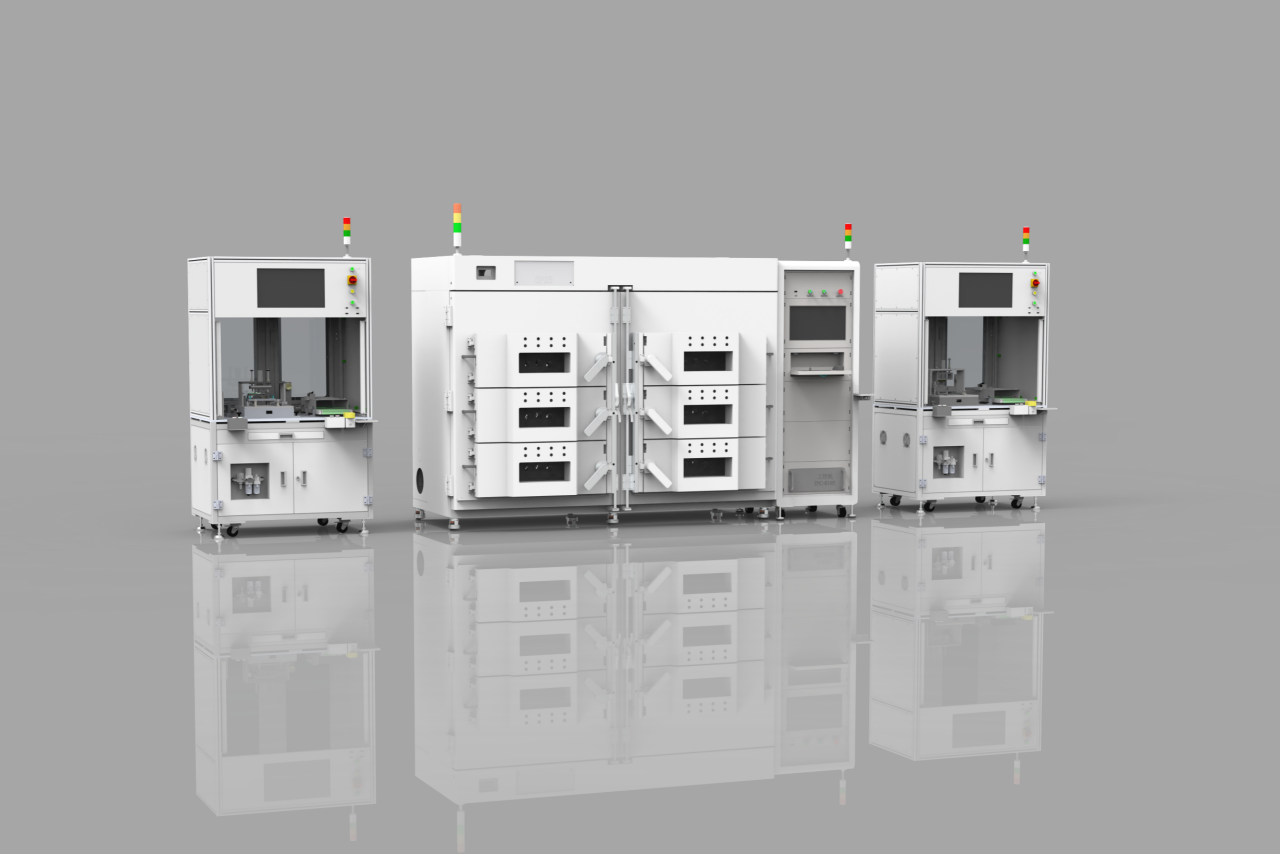

This equipment is a specialized testing and aging system for automotive controllers, capable of simultaneously processing 48 units through temperature-controlled aging and load testing. With precise temperature control and continuous load operation, it verifies controller stability in high-temperature environments, ensuring compliance with automotive electronics reliability standards.

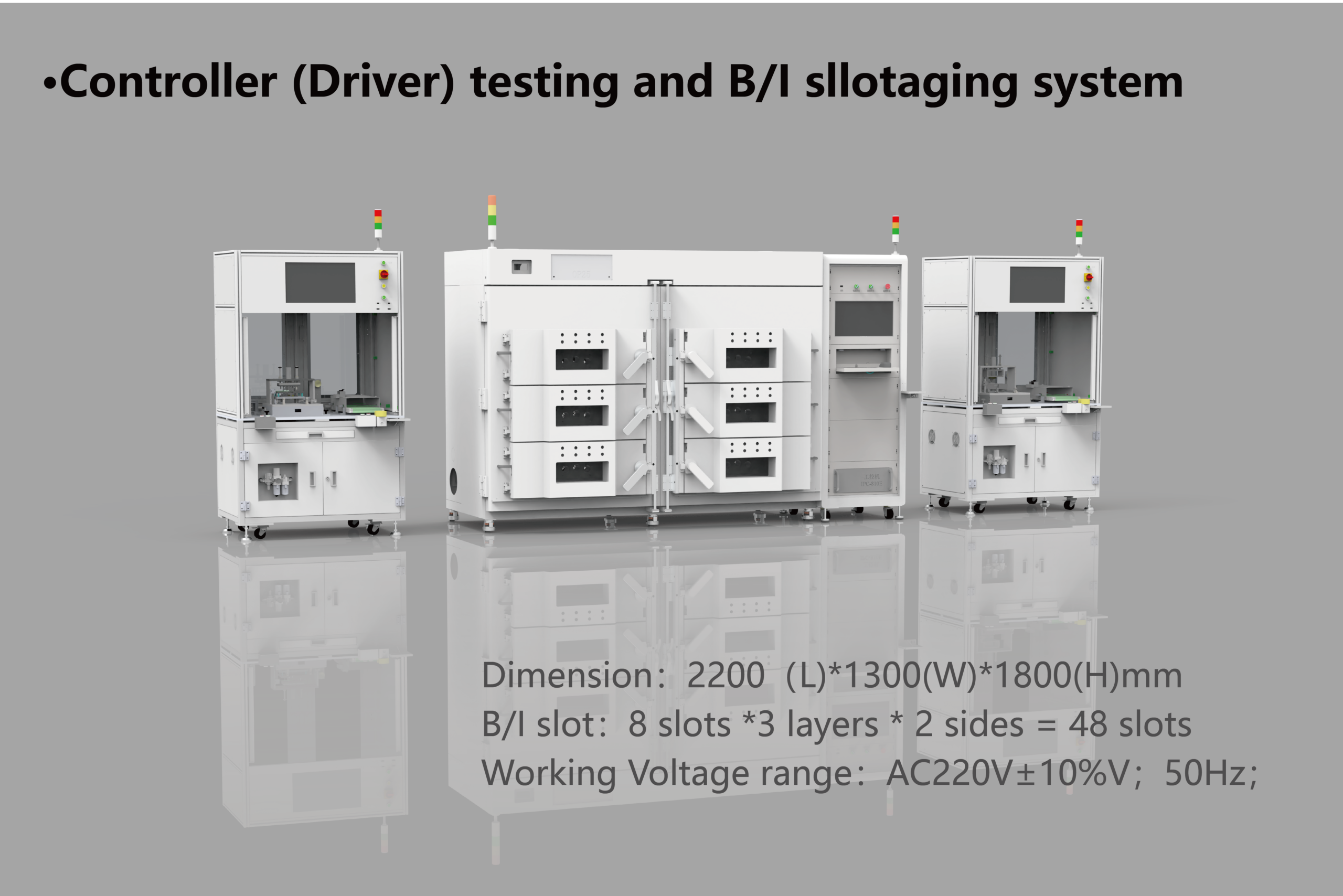

| Dimension(L*W*H) | 2200*1300*1800(mm) |
|---|---|
| B/I slot | 8 slots *3 layers * 2 sides = 48 slots |
| Applicable Products | Motor Control Unit (MCU) |
| Working Voltage range | AC220V±10%V；50Hz； |
Product Overview
This equipment is a specialized testing and aging system for automotive controllers, capable of simultaneously processing 48 units through temperature-controlled aging and load testing. With precise temperature control and continuous load operation, it verifies controller stability in high-temperature environments, ensuring compliance with automotive electronics reliability standards.
Technical Specifications

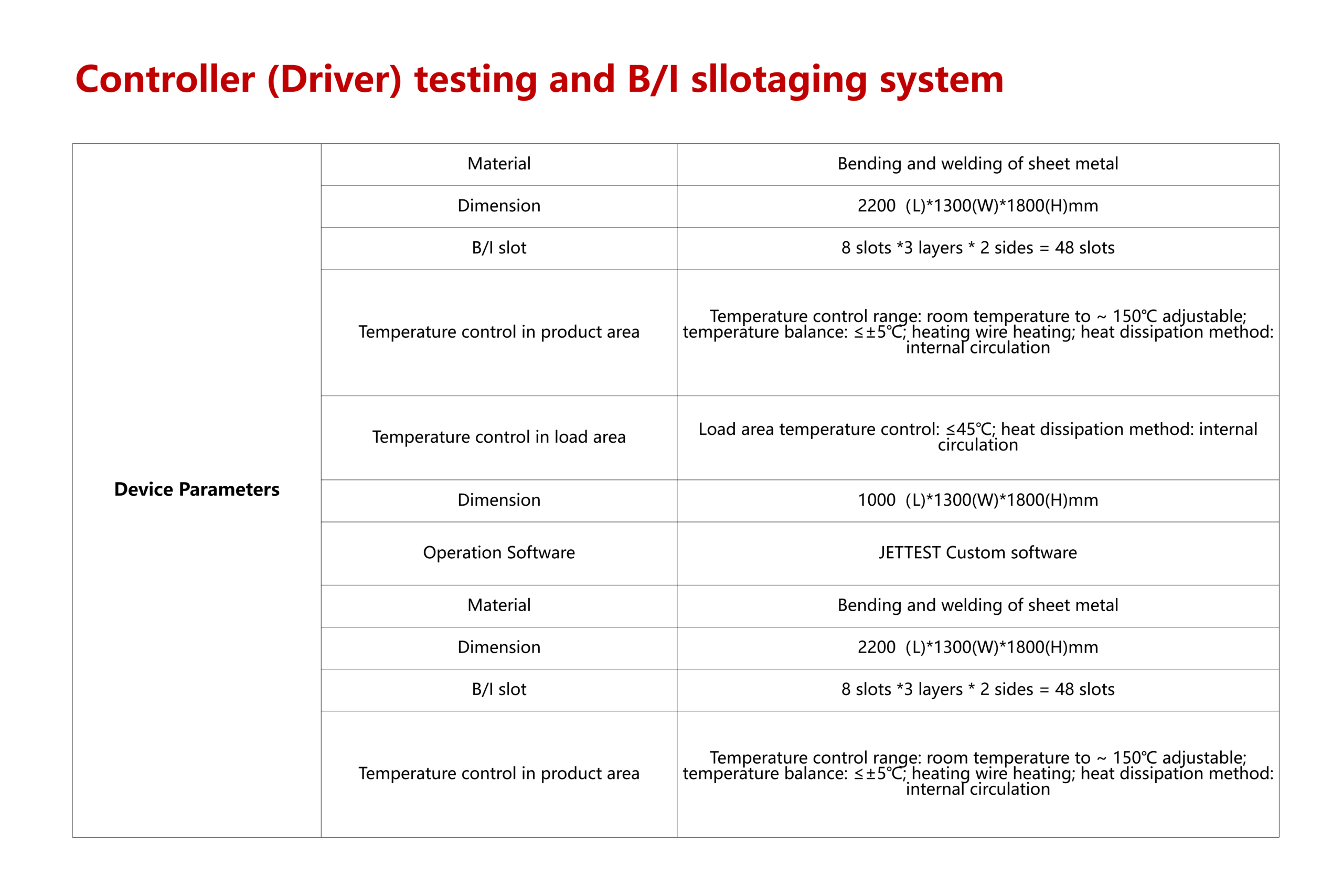

Device Parameters
| Material | Bending and welding of sheet metal |
|---|---|
| Dimension | 2200 (L)*1300(W)*1800(H)mm |
| B/I slot | 8 slots *3 layers * 2 sides = 48 slots |
| Temperature control in product area | Temperature control range: room temperature to ~ 150℃ adjustable; temperature balance: ≤±5℃; heating wire heating; heat dissipation method: internal circulation |
| Temperature control in load area | Load area temperature control: ≤45℃; heat dissipation method: internal circulation |
| Dimension | 1000 (L)*1300(W)*1800(H)mm |
| Operation Software | JETTEST Custom software |
| Material | Bending and welding of sheet metal |
| Dimension | 2200 (L)*1300(W)*1800(H)mm |
| B/I slot | 8 slots *3 layers * 2 sides = 48 slots |
| Temperature control in product area | Temperature control range: room temperature to ~ 150℃ adjustable; temperature balance: ≤±5℃; heating wire heating; heat dissipation method: internal circulation |
Operating Procedure
- Fixture inspection is at the loading position, and the material is loaded manually. After completion, use both hands to press “start”.
- The push cylinder pulls the product to the inspection station.
- The downward cylinder drives the pressing plate to press the product and start testing.
- The indicator light will notify the operator after the test is completed,
- The pushing cylinder pushes the product to the loading position.
- According to the indicator light, NG products are temporarily stored on the belt line, and OK products flow to the next station.；
