Automatic film capacitor test line
Automatic film capacitor test line

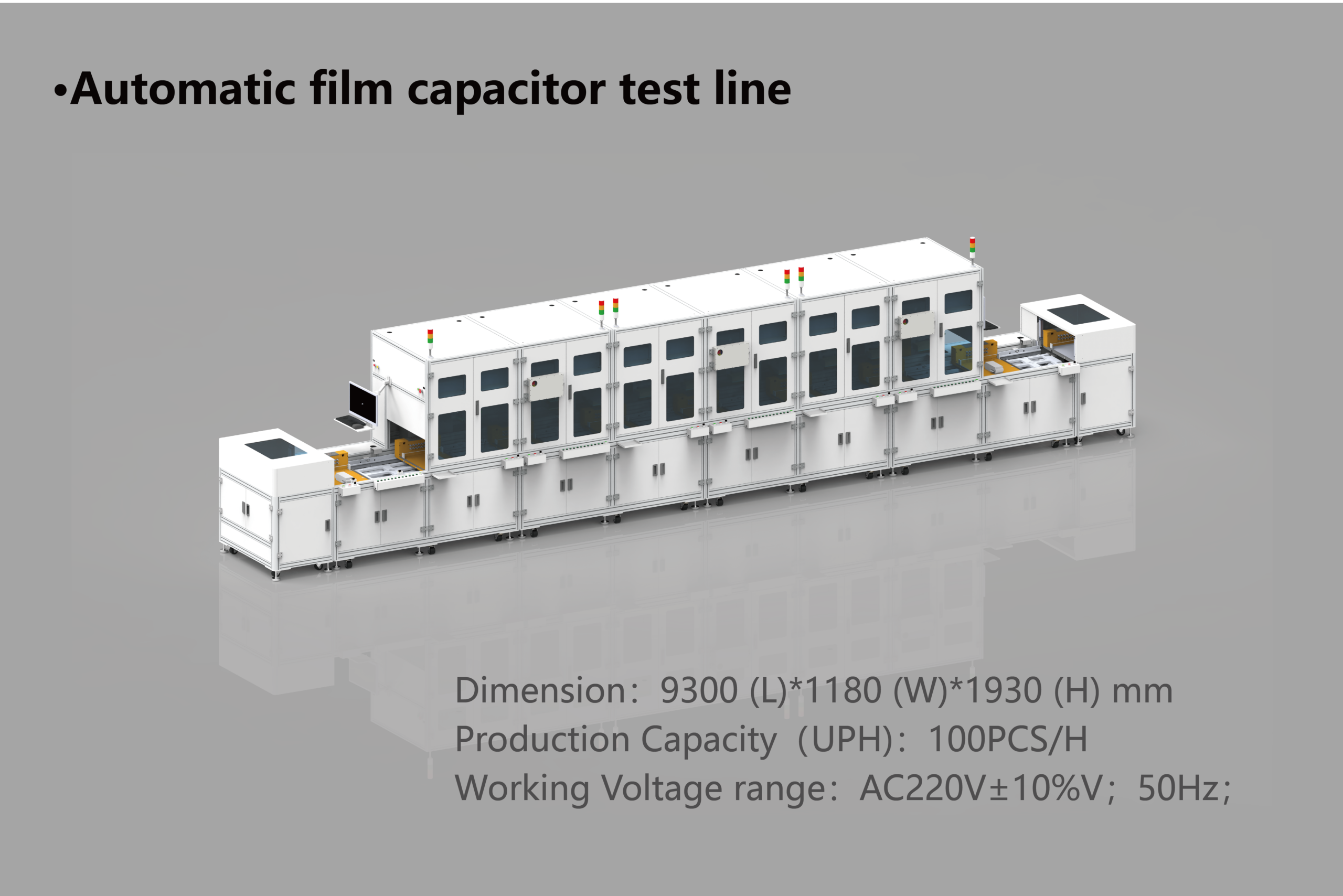

This equipment is a fully automated test line for film capacitors, specifically designed for performance detection and quality verification of automotive-grade capacitors. Integrating multiple tests including withstand voltage, insulation, and capacitance, it can process 100 pieces per hour, ensuring each capacitor meets automotive quality standards.
| Dimension(L*W*H) | 9300*1180*1930 (mm) |
|---|---|
| Production Capacity | 100PCS/H |
| Applicable Products | Automotive-Grade Film Capacitor |
| Working Voltage range | AC220V±10%V；50Hz； |
Product Features
Automatic flow operation
automatic flow operation mode, saving time, labor and cost.
Modular unit design
modular unit design, flexible combination, easy to disassemble and transpose.
Safety protection
high level of safety protection, intelligent stop and power off for safe production.
Technical Specifications
Device Parameters

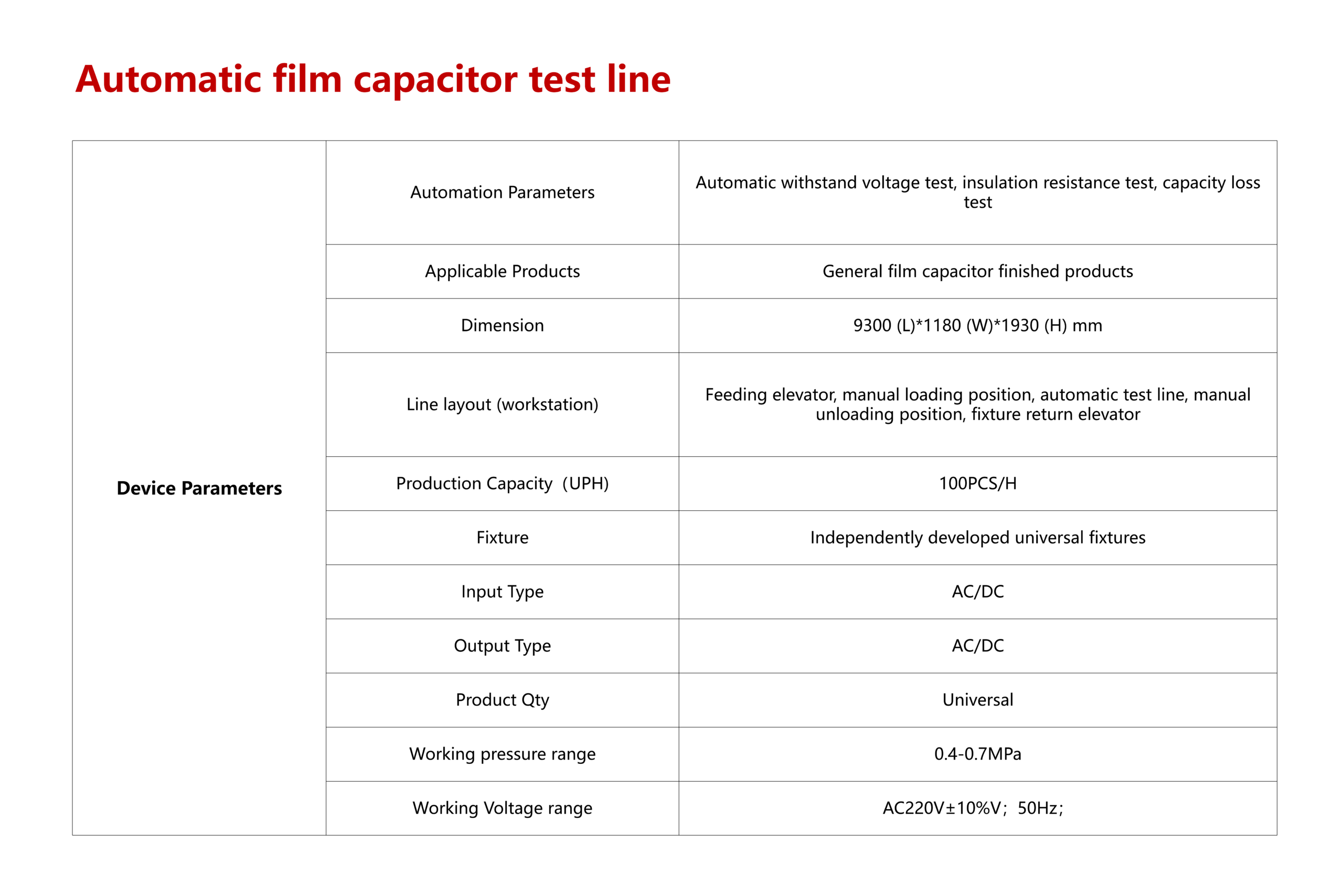

| Parameter | Specification |
|---|---|
| Automation Parameters | Automatic withstand voltage test, insulation resistance test, capacity loss test |
| Applicable Products | General film capacitor finished products |
| Dimension | 9300 (L)*1180 (W)*1930 (H) mm |

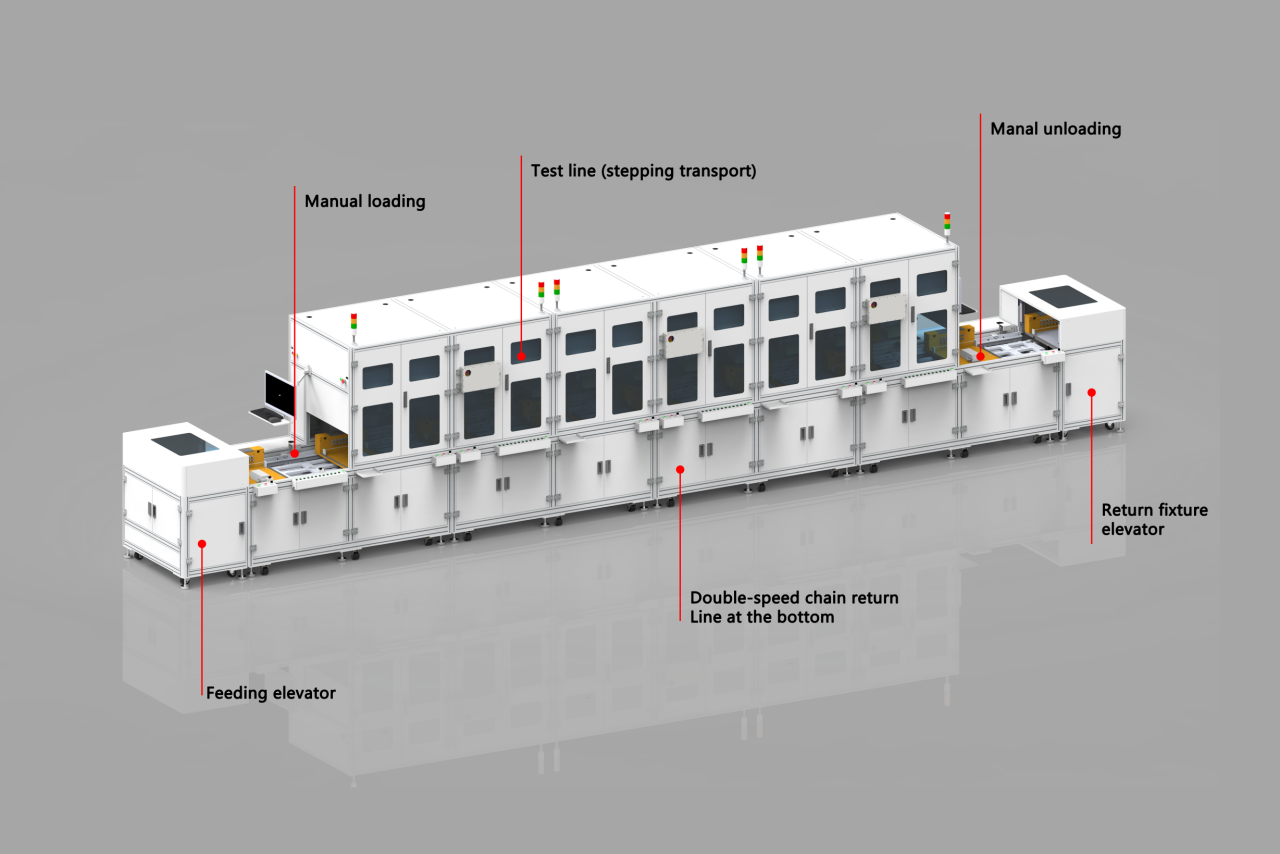

| Line layout (workstation) | Feeding elevator, manual loading position, automatic test line, manual unloading position, fixture return elevator |
| Production Capacity (UPH) | 100PCS/H |
| Fixture | Independently developed universal fixtures |
| Input Type | AC/DC |
| Output Type | AC/DC |
| Product Qty | Universal |
| Working pressure range | 0.4-0.7MPa |
| Working Voltage range | AC220V±10%V；50Hz; |

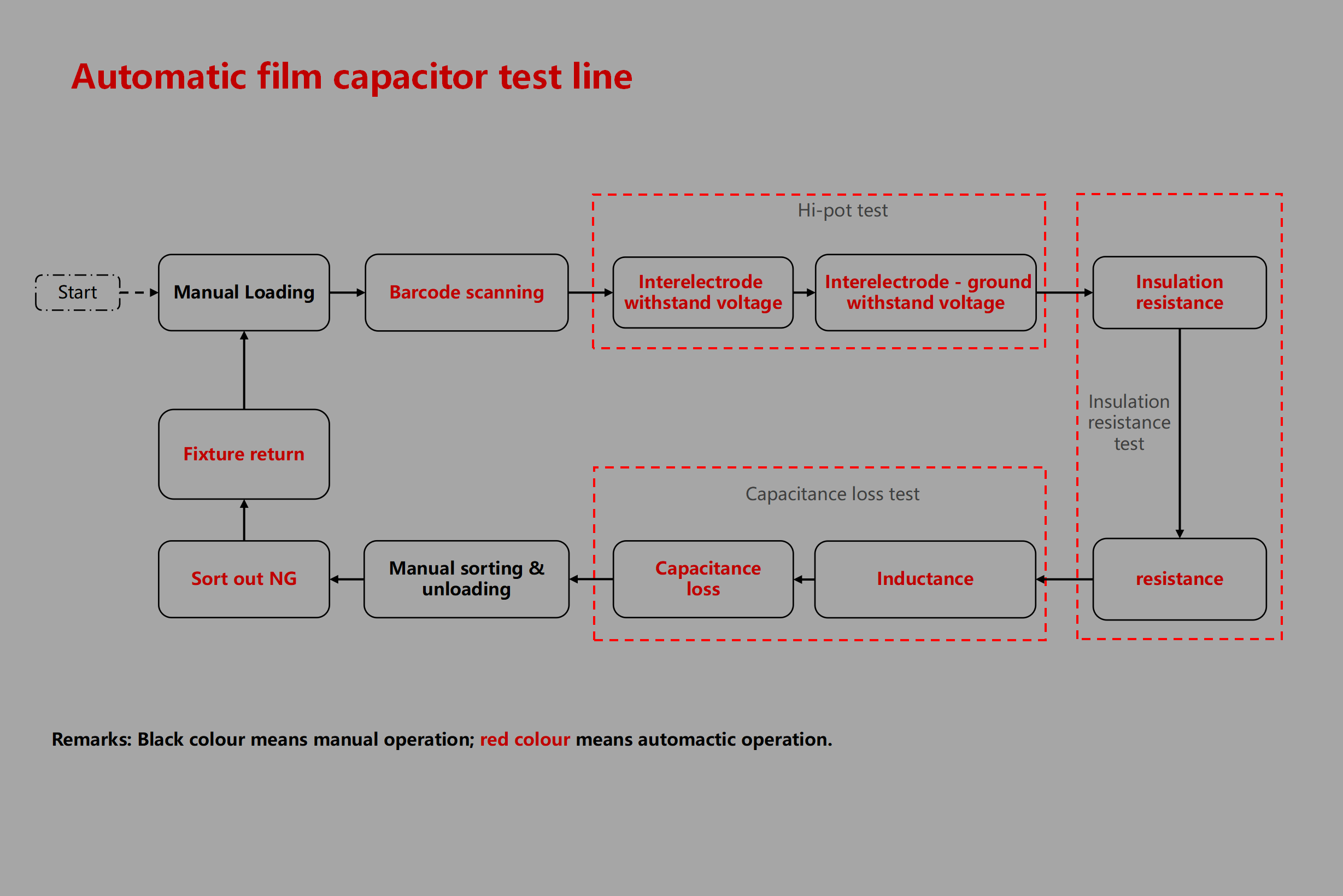

Process Procedure
- Manual Loading
- Barcode Scanning
- Withstand Voltage Test (Inter-Electrode Withstand Voltage → Electrode-to-Ground Withstand Voltage)
- Insulation Resistance Test (Insulation Resistance → Resistance)
- Power Loss Test (Inductance → Capacity Loss)
- Manual Sorting & Unloading
- NG Unit Sorting
- Fixture Board Return (Return to Initial Manual Loading Station);
