Automatic Domain Controller B/I Line
Automatic Domain Controller B/I Line

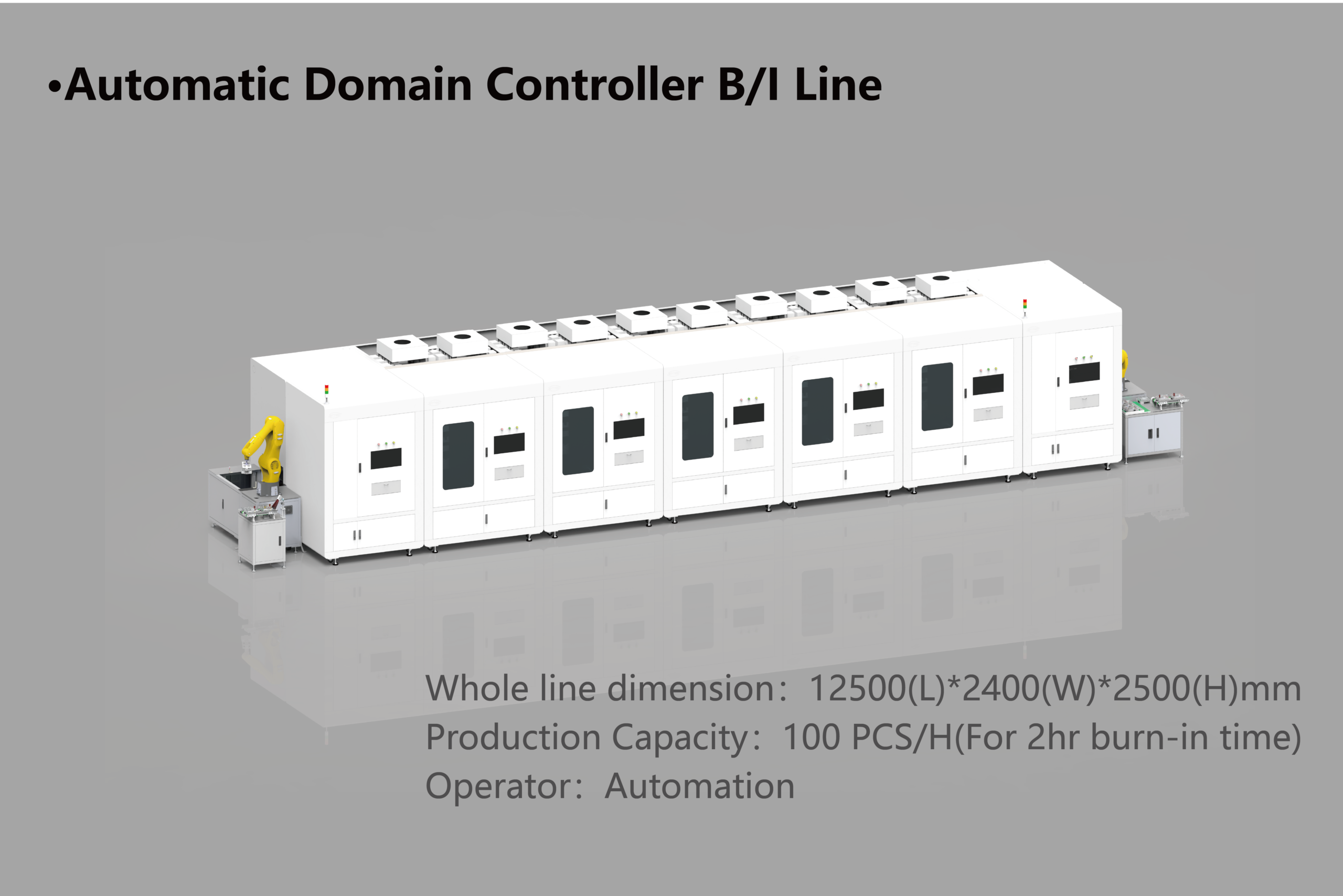

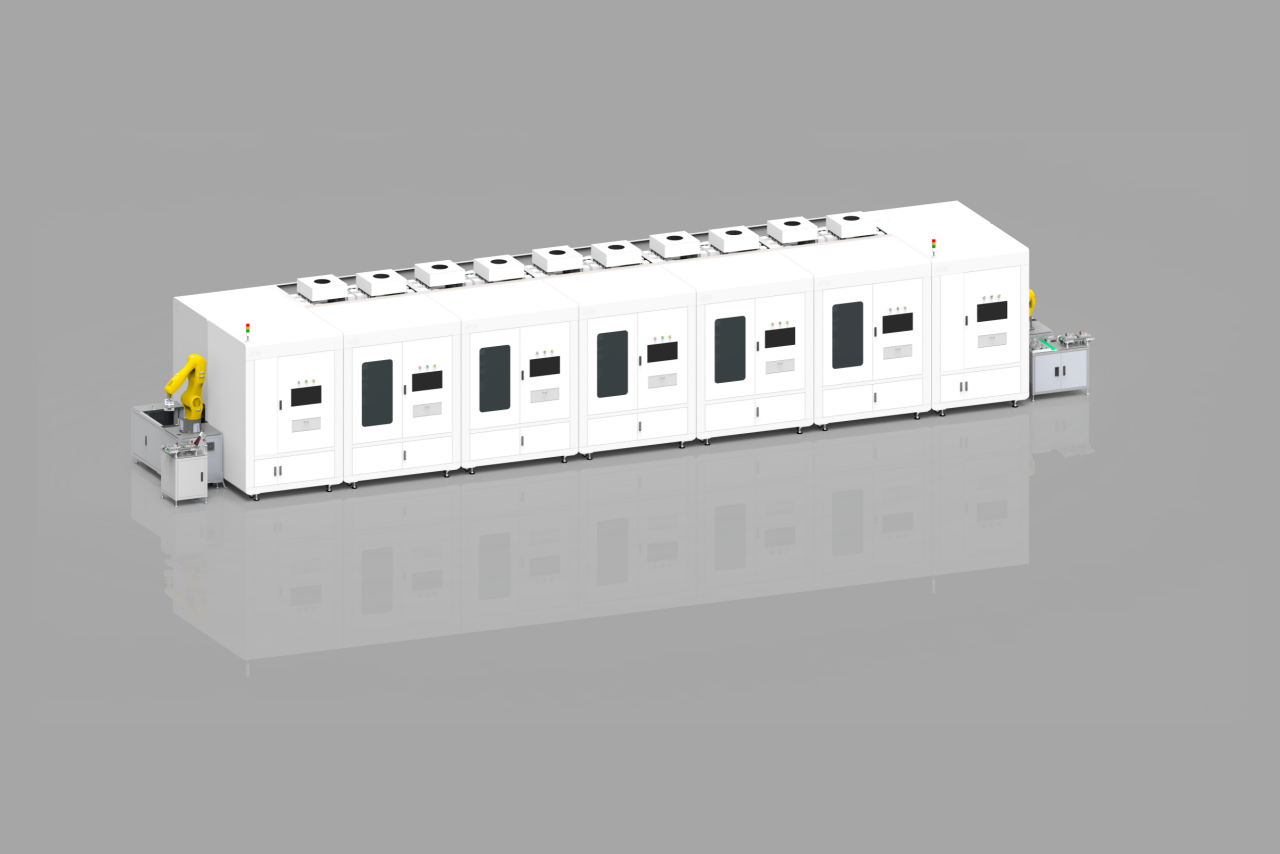

This equipment is a specialized aging test system for new energy vehicle domain controllers, verifying long-term operational reliability of core automotive control units. The system can simultaneously test 200 products, ensuring stable performance in vehicle applications through continuous load operation and functional monitoring.
| Whole line dimension | 12500(L)*2400(W)*2500(H)mm |
|---|---|
| Production Capacity | 100 PCS/H(For 2hr burn-in time) |
| Applicable Products | Domain Control Unit (DCU) |
| Operator | Automation |
Product Features
- Individually temperature control, heating up and ventilation for each aging warehouse, it will not affect the temperature control system of other warehouses.
- PC+PLC automatically monitor aging without personnel on duty。
- MES tracking the process for easy traceability.
- Feely to set the voltage, current and temperature.

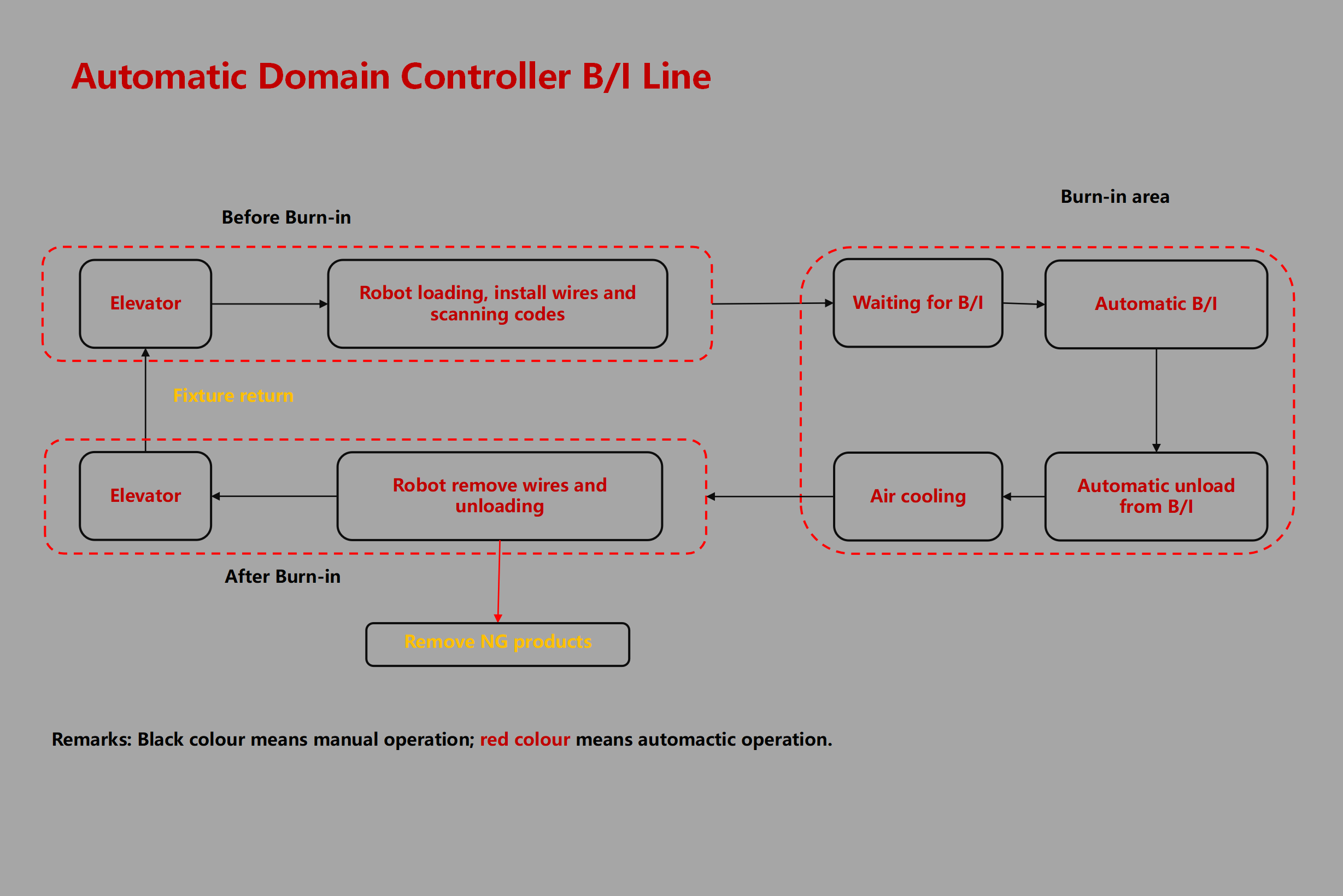

Process Flow
-
Burn-in Front End
(Return Board Elevator →
Robot Loading, Mating & Scanning) -
Burn-in Zone
(Pending Burn-in Area →
Automatic Burn-in →
Automatic Unloading →
Cooling Station (Air Cooling)) -
Burn-in Back End
(Robot Unclamping & Unloading (NG Rejection) →
Elevator (Fixture Return to Front End))
Technical Specifications

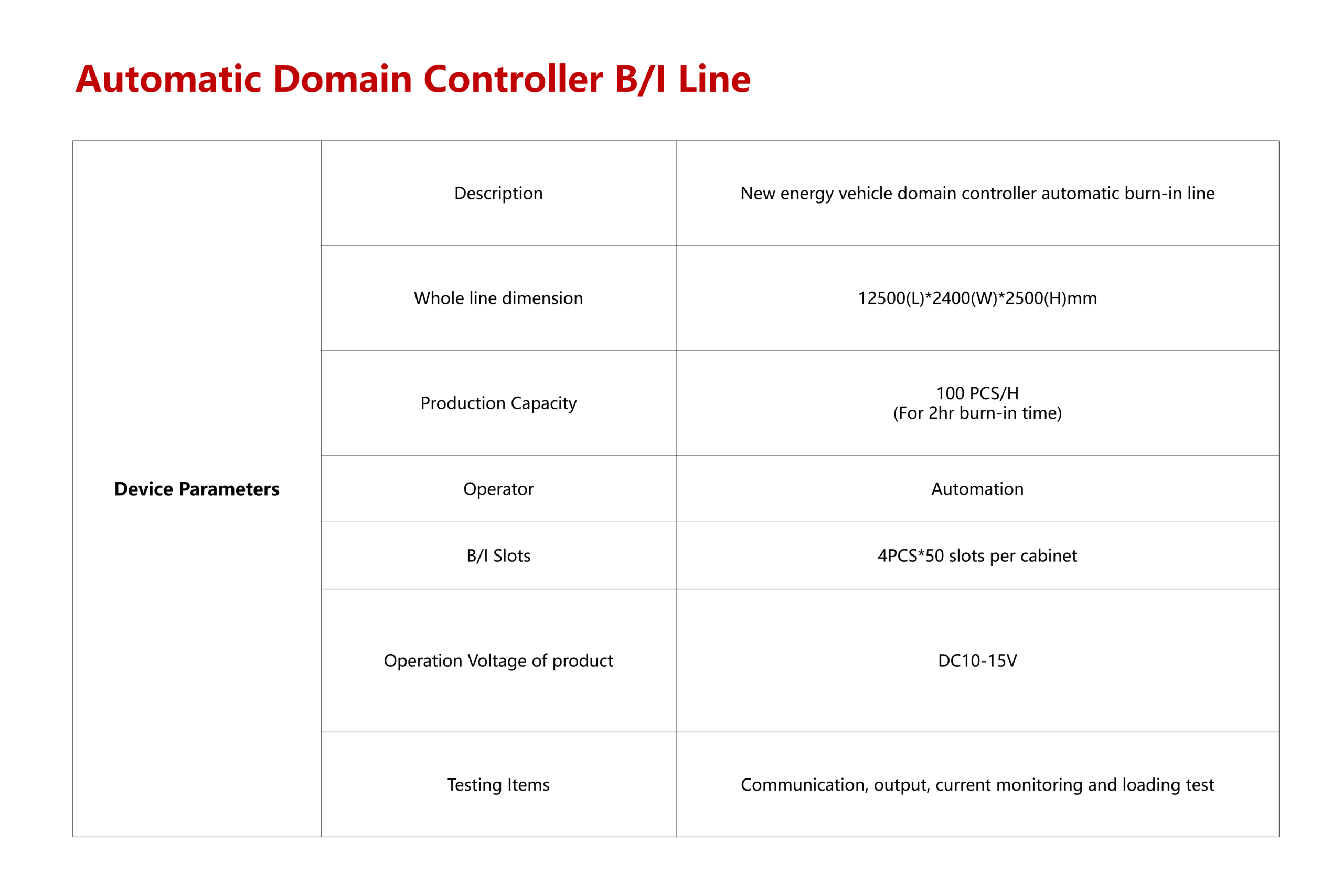

Device Parameters
| Description | New energy vehicle domain controller automatic burn-in line |
|---|---|
| Whole line dimension | 12500(L)*2400(W)*2500(H)mm |
| Production Capacity | 100 PCS/H (For 2hr burn-in time) |
| Operator | Automation |
| B/I Slots | 4PCS*50 slots per cabinet |
| Operation Voltage of product | DC10-15V |
| Testing Items | Communication, output, current monitoring and loading test |
