Automatic Motor Driver Burn-in Line
This equipment is a specialized aging test system for new energy vehicle motor drivers, verifying product reliability by simulating long-term operating conditions. It can simultaneously conduct continuous aging tests on multiple high-power drivers, ensuring their stability and durability in demanding environments.

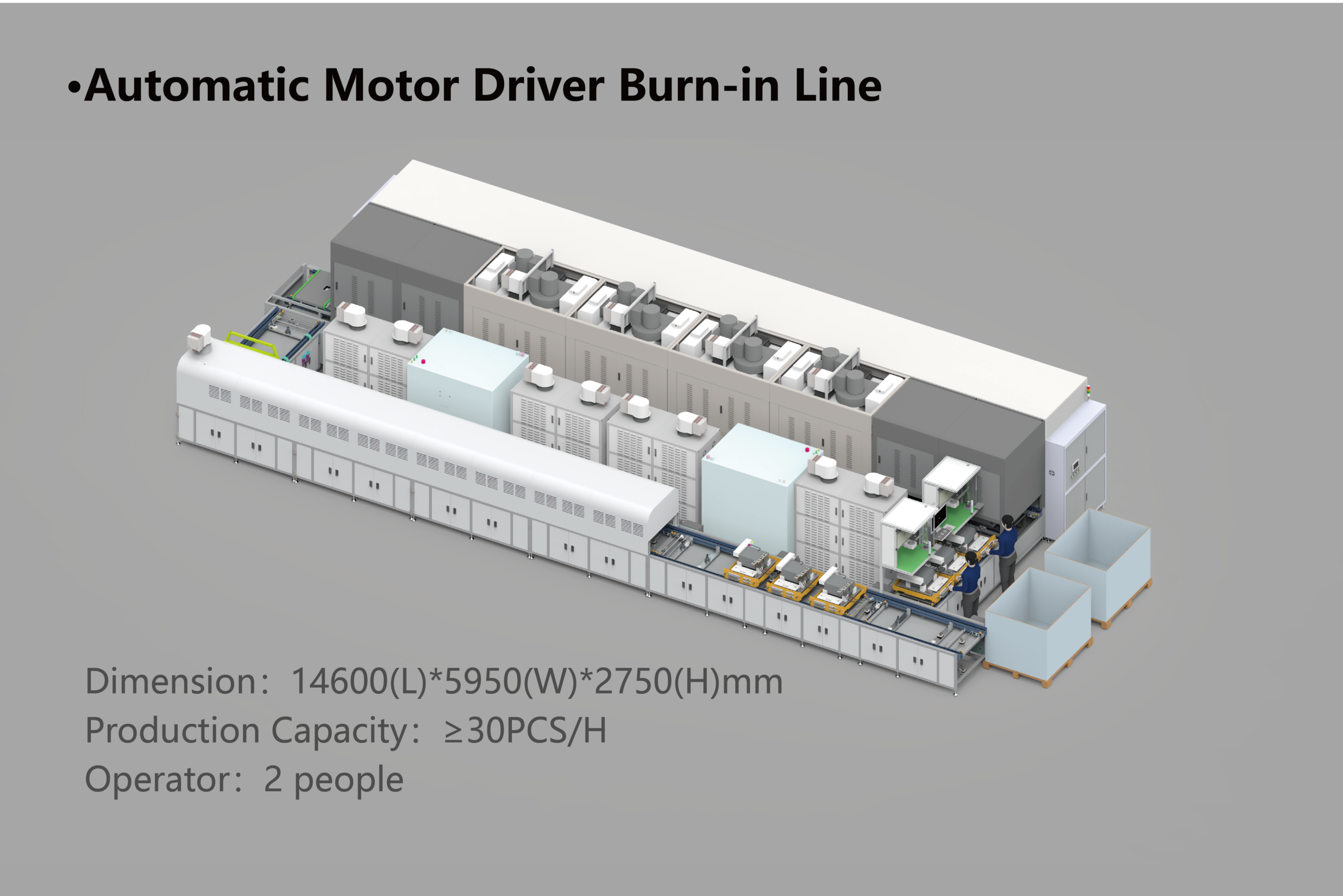

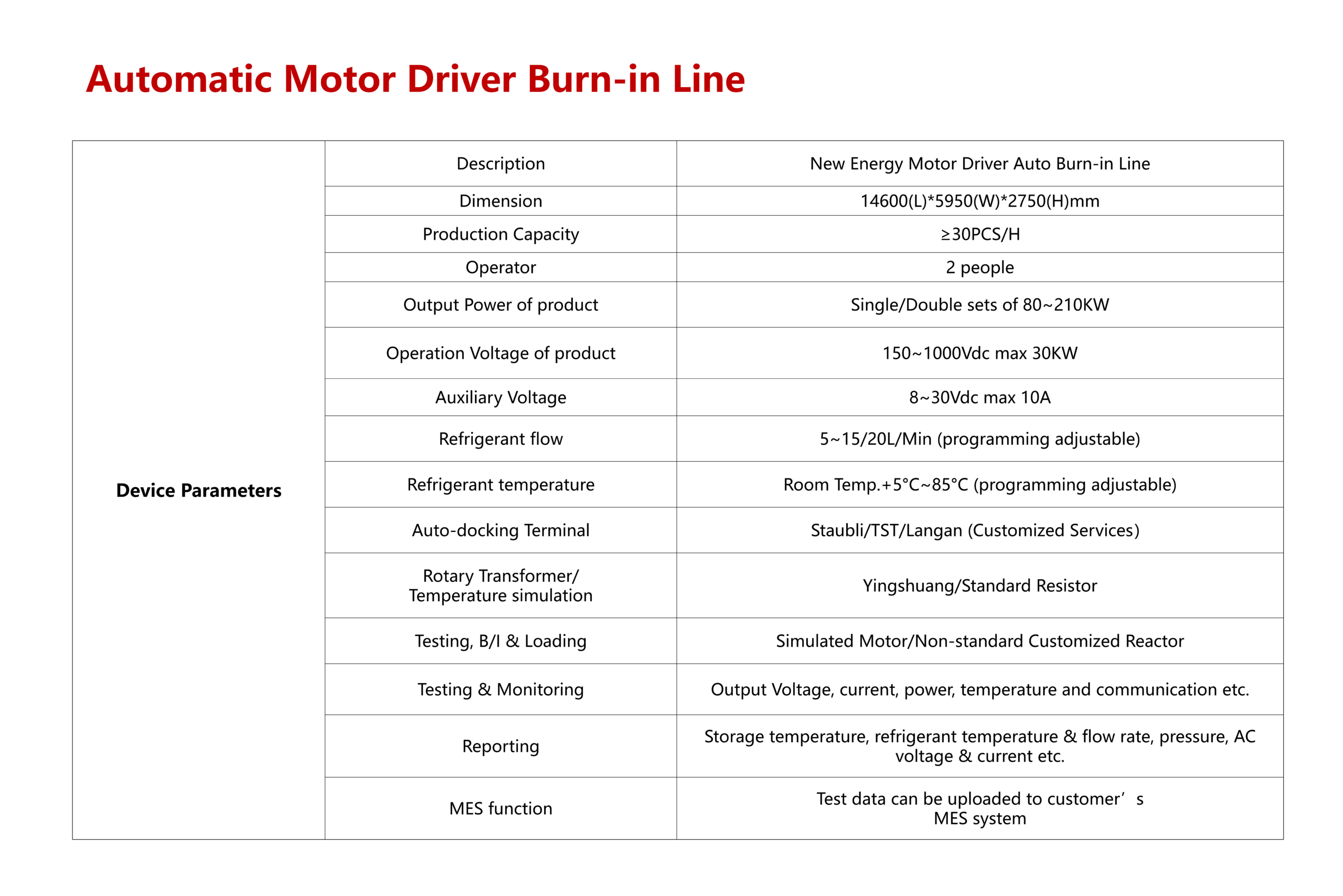

| Dimension(L*W*H) | 14600*5950*2750(mm) |
|---|---|
| Production Capacity | ≥30PCS/H |
| Applicable Products | Motor Driver for New Energy Vehicles |
| Operator | 2 people |
●Double speed chain mode: automatic cycle, simple structure, easy maintenance, reliable action, speed can be segmented control, error control;
● line control: reserved segment control, according to the testing requirements of each process; can also carry pallets to make automatic circulation transport;
● modular design, flexible combination, easy to disassemble and transpose;
● high level of safety protection, intelligent stop and power off for safe production;

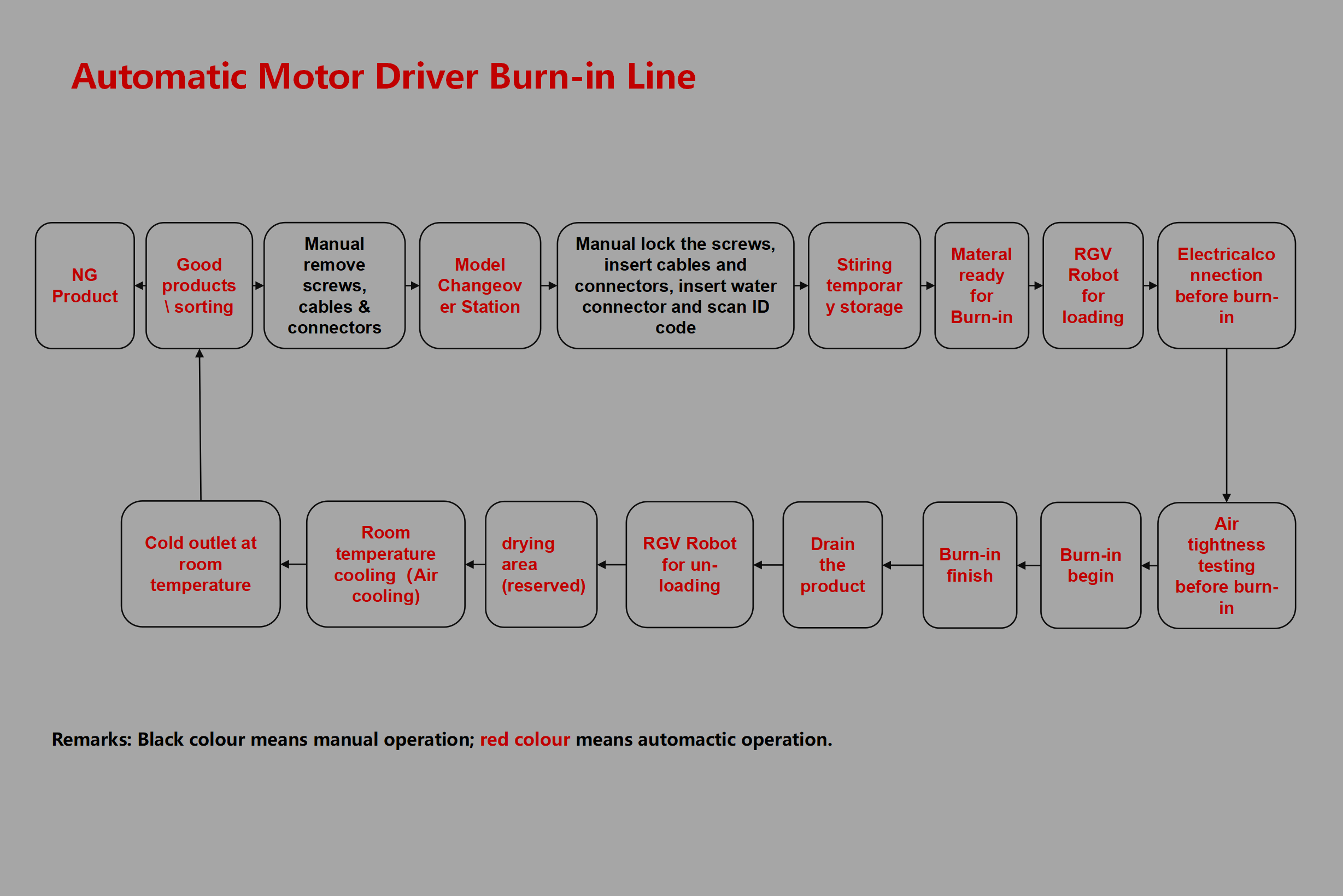

Process Procedure:

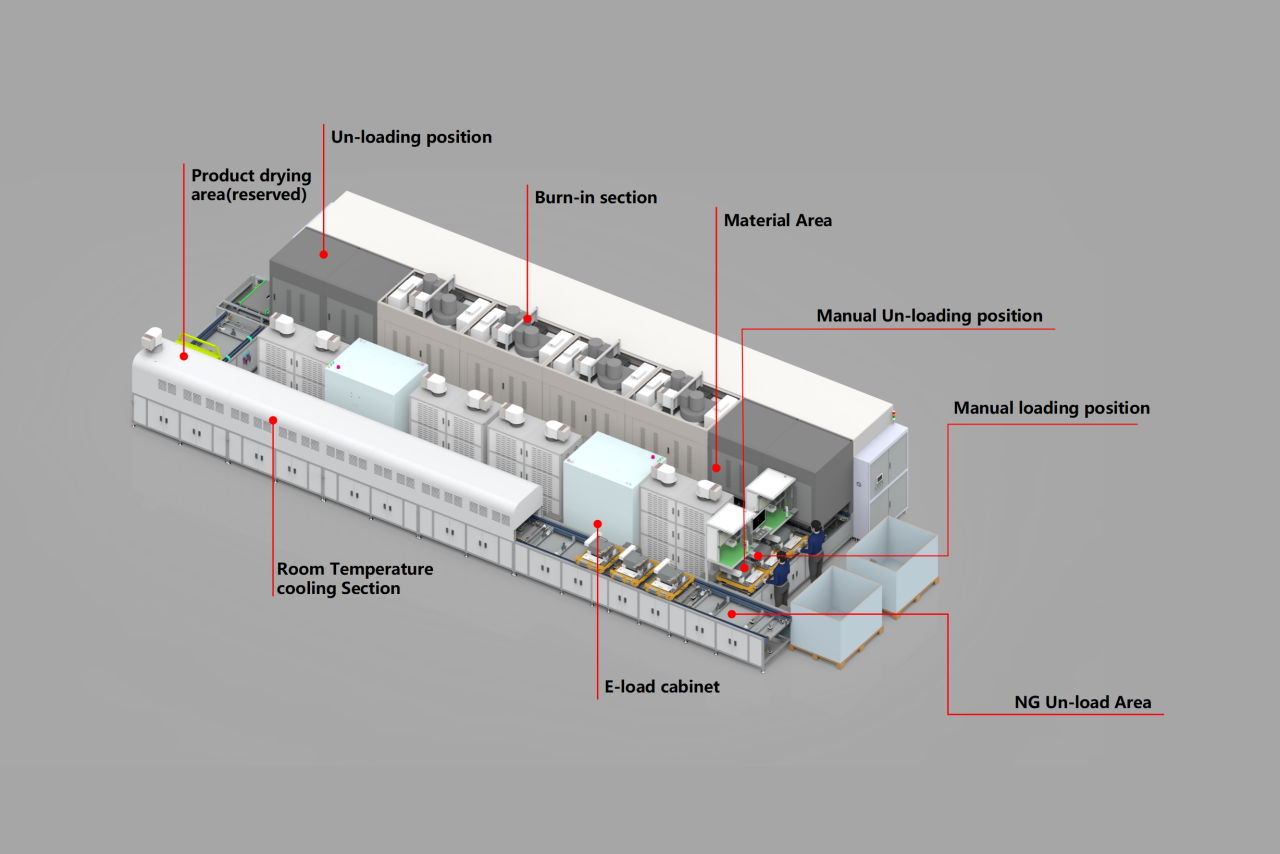

Non-defective Product Sorting (with NG Product Sorting Capability) → Manual Screw Removal, Cable Disconnection & Connector Disassembly → Model Changeover Station → Manual Screw Fastening, Cable Insertion, Water Connector Plug-in, Scanning & ID Binding → Steering Buffering Station → Burn-in Chamber Material Pick-up Waiting Station → RGV Manipulator Handling & Loading → Pre-Burn-in Electrical Connection → Pre-Burn-in Air Tightness Test → Burn-in Test → Product Draining → RGV Manipulator Handling & Unloading → Reserved Drying Station (Water Removal) → Temperature-Controlled Cooling Chamber (Air Cooling) → Room Temperature Cooling Zone → Return to (Non-defective Product Sorting)
