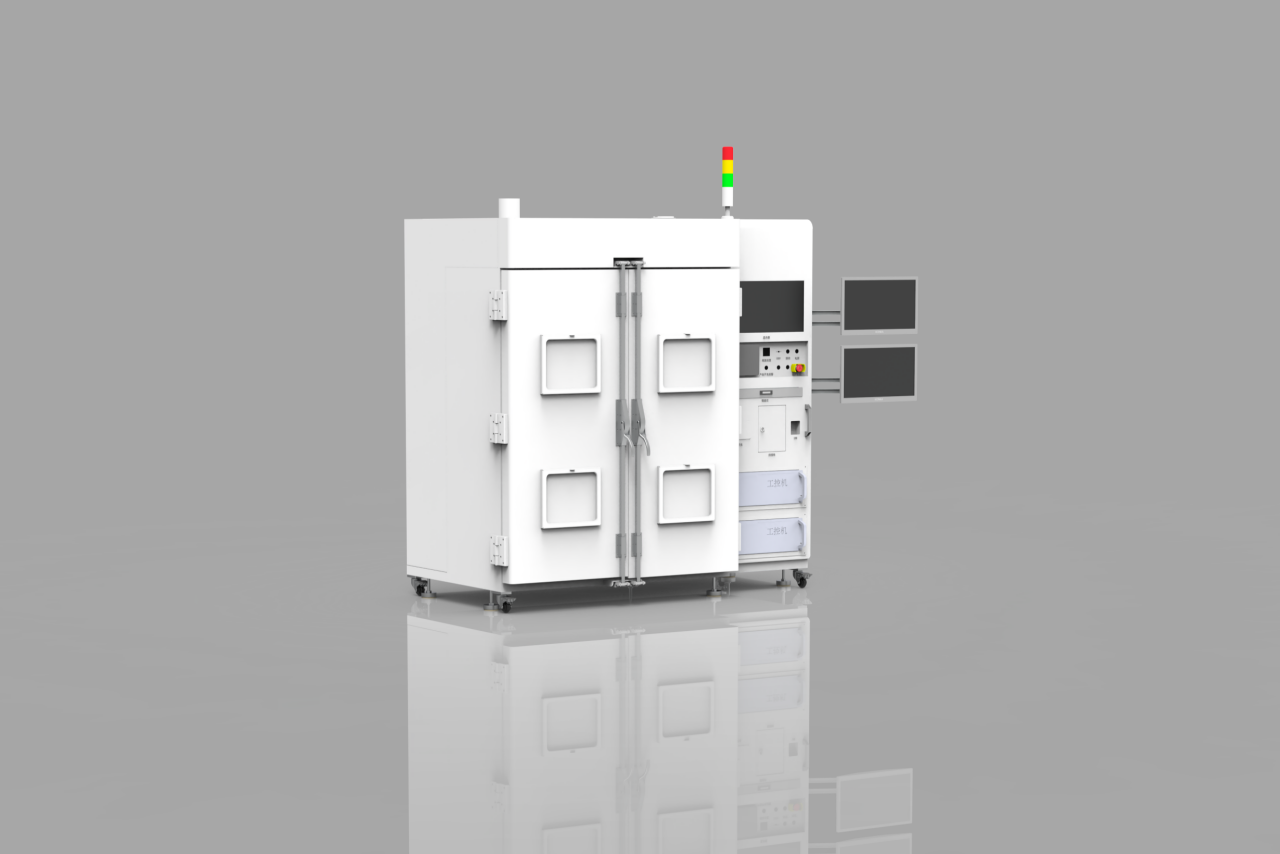

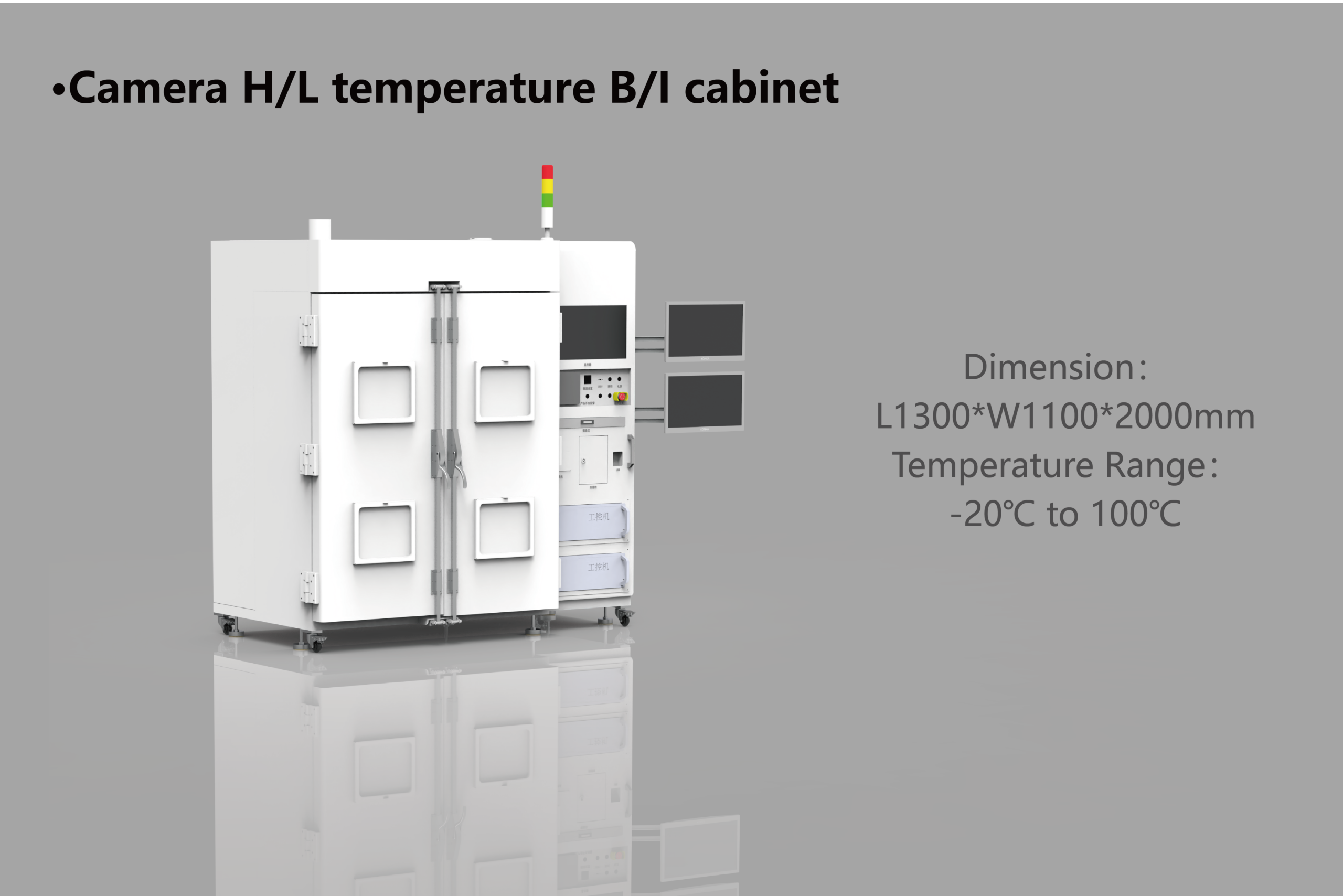

A camera high/low-temperature burn-in cabinet with a temperature range of -20°C to 100°C. It supports current and sensor temperature monitoring, correct/error frame statistics, Pass/Lock signal detection, real-time image display and test report output.
| Dimension(L*W*H) | 1300*1100*2000mm |
|---|---|
| Temperature Range | -20℃ to 100℃ |
| Applicable Products | Automotive Camera |
Product Features
Testing and monitoring
- Correct/error frame statistics monitoring;
- Current monitoring;
- Output test report;
- Custom testing time;
Signal and sensor monitoring
- Pass/Lock signal detection;
- Specific register monitoring;
- Sensor temperature monitoring;
Image and video output
- Real time display of images;
- Video output format: Supports coaxial;
Technical Specifications
Device Parameters

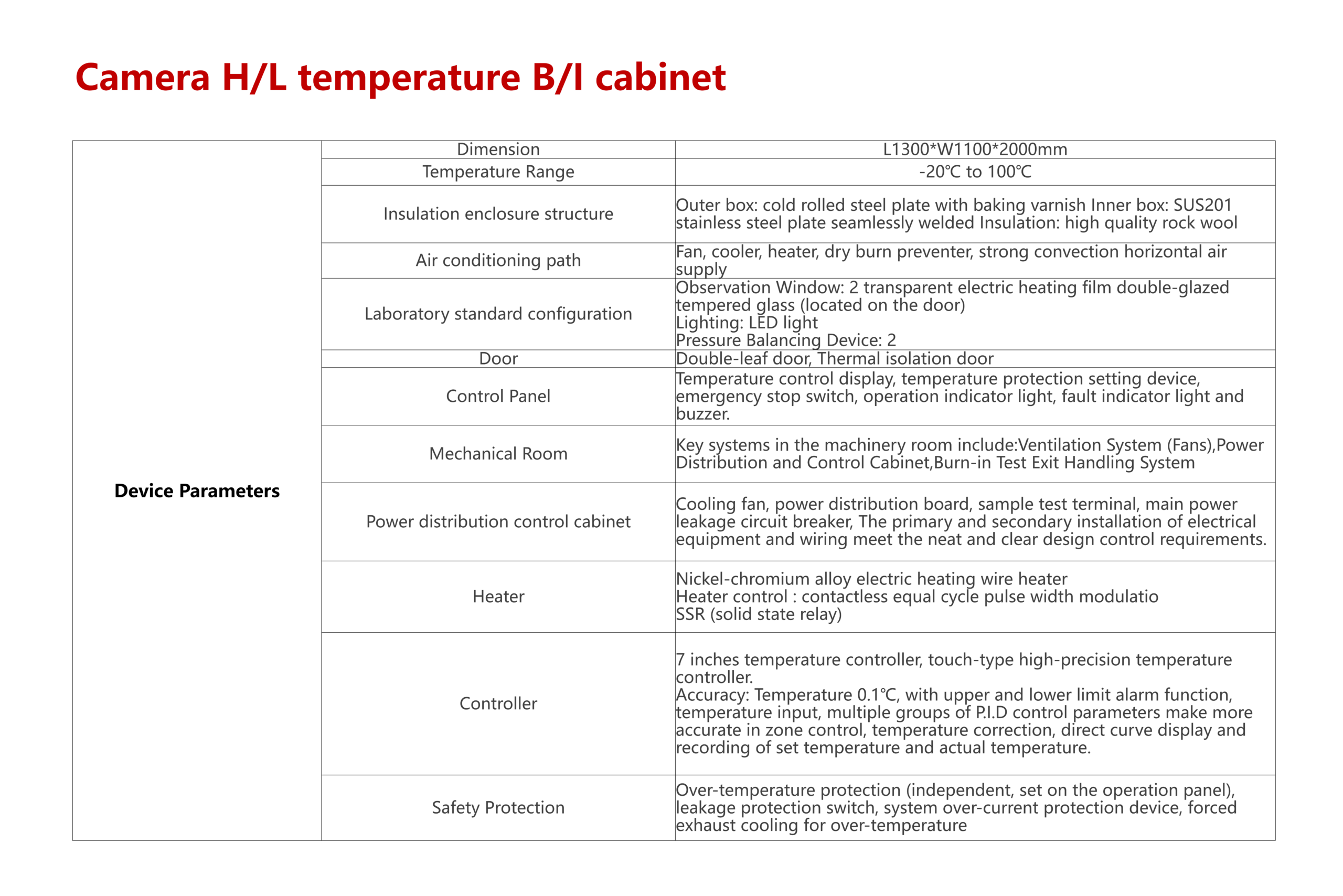

| Parameter | Specification |
|---|---|
| Dimension | L1300*W1100*2000mm |
| Temperature Range | -20°C to 100°C |
| Insulation enclosure structure | Outer box: cold rolled steel plate with baking varnish Inner box: SUS201 stainless steel plate seamlessly welded Insulation: high quality rock wool |
| Air conditioning path | Fan, cooler, heater, dry burn preventer, strong convection horizontal air supply |
| Laboratory standard configuration | Observation Window: 2 transparent electric heating film double-glazed tempered glass (located on the door) Lighting: LED light Pressure Balancing Device: 2 |
| Door | Double-leaf door, Thermal isolation door |
| Control Panel | Temperature control display, temperature protection setting device, emergency stop switch, operation indicator light, fault indicator light and buzzer. |
| Mechanical Room | Key systems in the machinery room include:Ventilation System (Fans),Power Distribution and Control Cabinet,Burn-in Test Exit Handling System |
| Power distribution control cabinet | Cooling fan, power distribution board, sample test terminal, main power leakage circuit breaker, The primary and secondary installation of electrical equipment and wiring meet the neat and clear design control requirements. |
| Heater | Nickel-chromium alloy electric heating wire heater Heater control : contactless equal cycle pulse width modulatio SSR (solid state relay) |
| Controller | 7 inches temperature controller, touch-type high-precision temperature controller. Accuracy: Temperature 0.1°C, with upper and lower limit alarm function, temperature input, multiple groups of P.I.D control parameters make more accurate in zone control, temperature correction, direct curve display and recording of set temperature and actual temperature. |
| Safety Protection | Over-temperature protection (independent, set on the operation panel), leakage protection switch, system over-current protection device, forced exhaust cooling for over-temperature |
