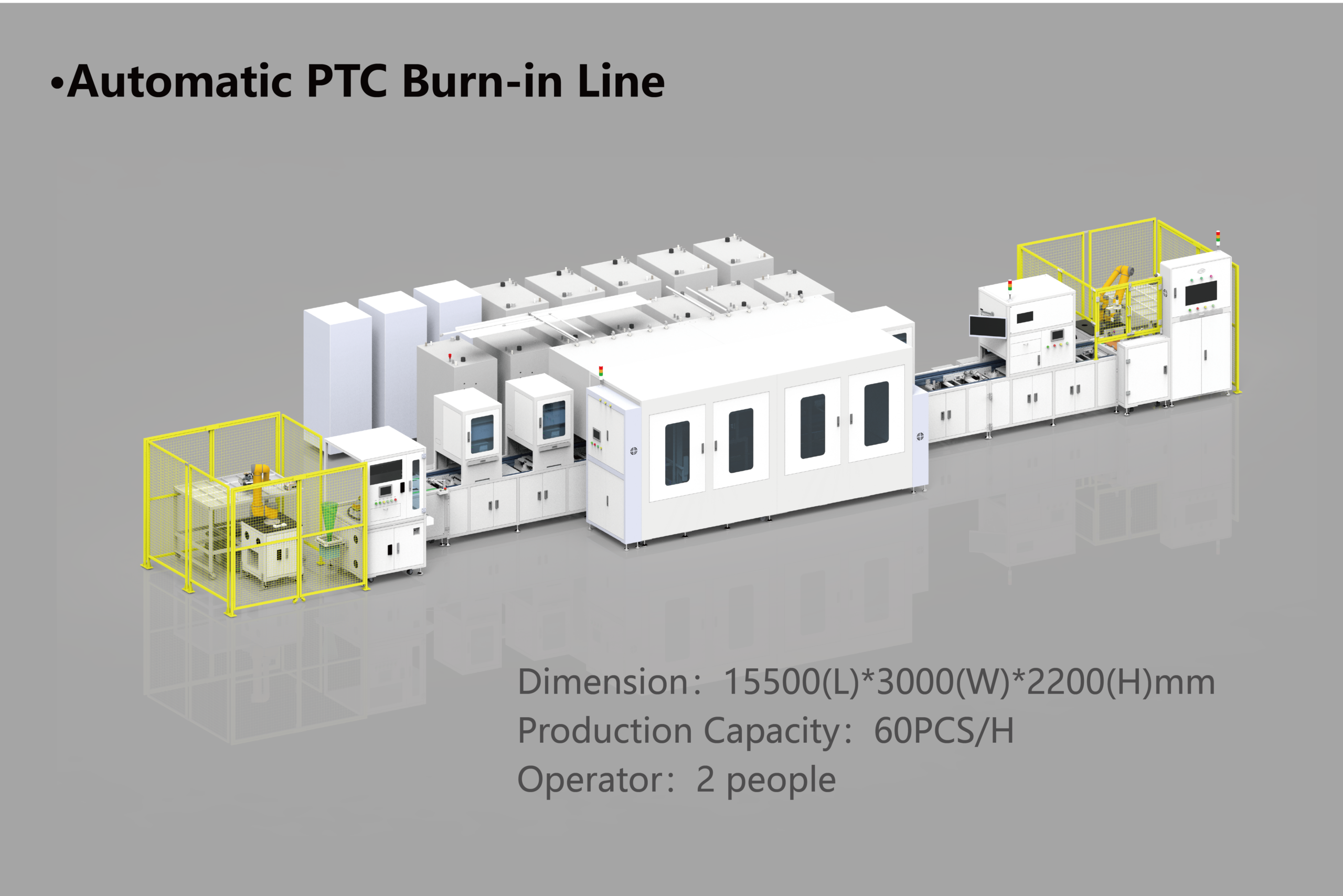

This equipment is a specialized aging test line for automotive PTC heaters, verifying reliability by simulating real working conditions. The system can simultaneously test 12 products, automatically checking electrical performance, sealing, and safety indicators to ensure long-term operational safety and reliability.
| Dimension(L*W*H) | 15500*3000*2200(mm） |
|---|---|
| Production Capacity | 60PCS/H |
| Applicable Products | Positive Temperature Coefficient Heater for NEVs |
| Operator | 2 people |
Product Features
- Double speed chain mode: automatic cycle, simple structure, easy maintenance, reliable action, speed can be segmented control, error control;
- line control: reserved segment control, according to the testing requirements of each process; can also carry pallets to make automatic circulation transport;
- modular design, flexible combination, easy to disassemble and transpose;
- high level of safety protection, intelligent stop and power off for safe production;

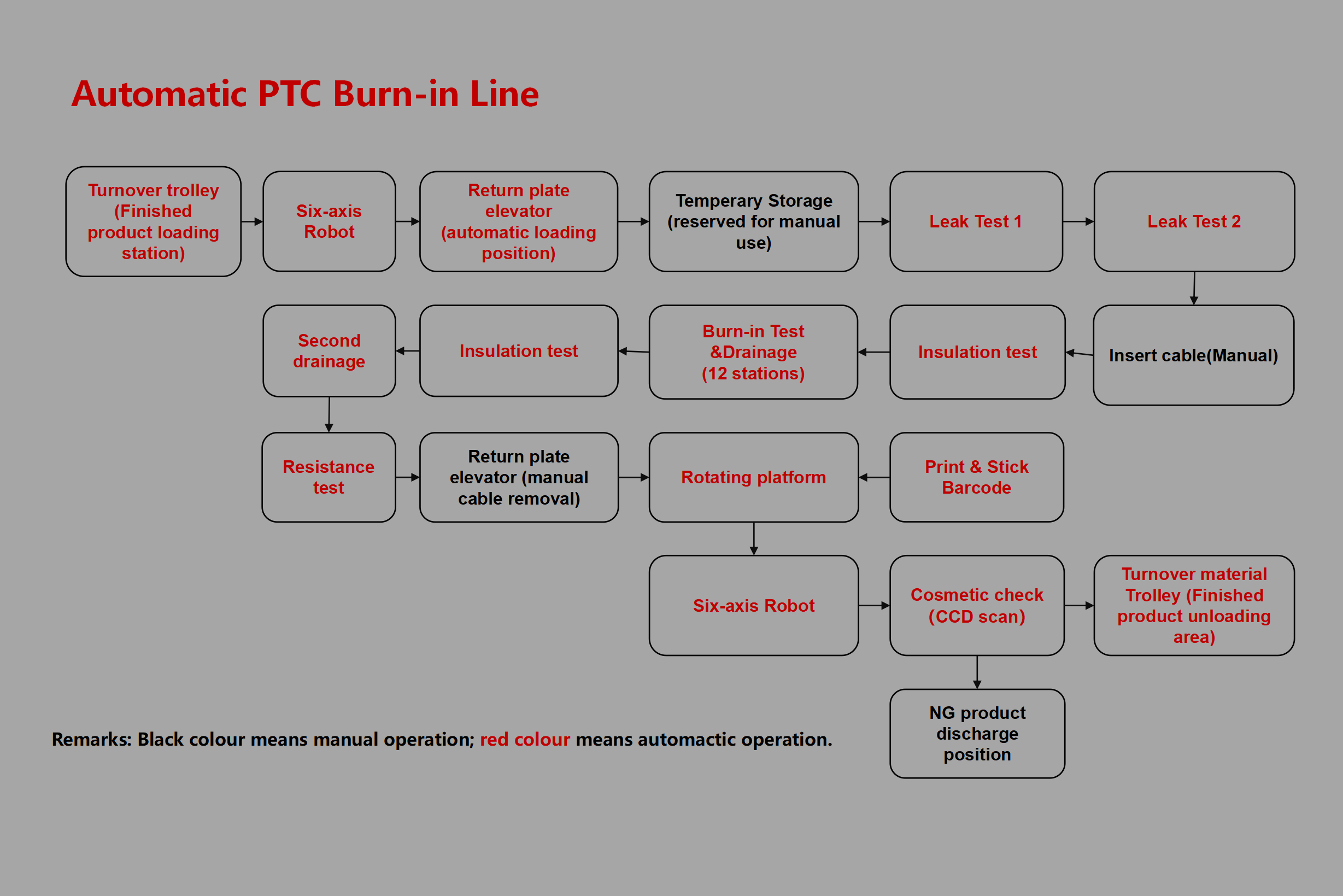

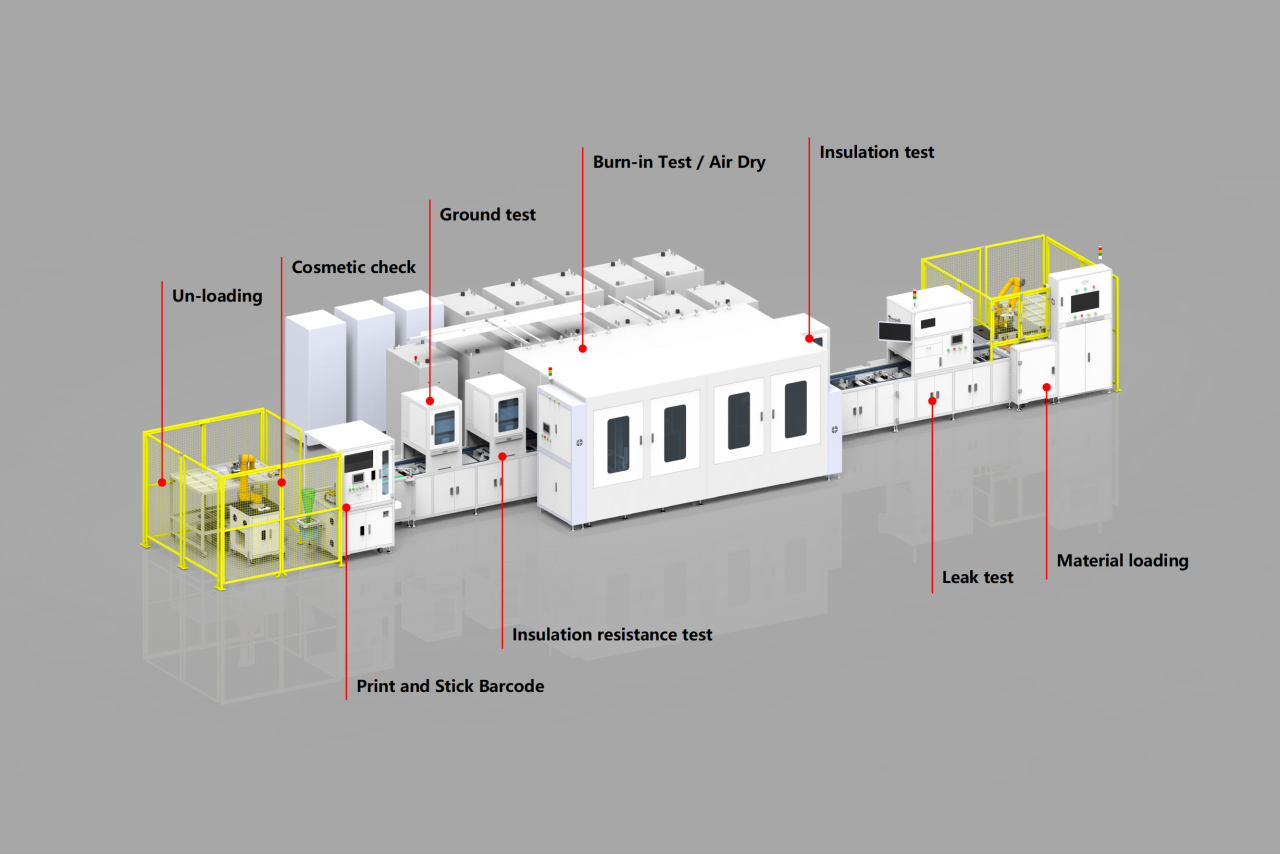

Process Procedure
- Turnover Material Cart (Finished Product Loading Station)
- 6-Axis Robot
- Return Board Elevator (Automatic Loader)
- Buffering Station (Reserved Manual Station)
- Air Tightness Test 1
- Air Tightness Test 2
- Manual Wiring Station
- Insulation & Withstand Voltage Test
- Burn-in Test & Draining
- Insulation & Withstand Voltage Test
- Secondary Product Draining
- Resistance Test
- Return Board Elevator (Manual Cable Disconnection)
- (Additional Insert: Printing & Barcode Labeling)
- Rotary Platform
- 6-Axis Robot
- Appearance Inspection (CCD Scanning)
- (① Turnover Material Cart (Finished Product Unloading Station))
/ (② NG Product Unloading Station)
Technical Specifications

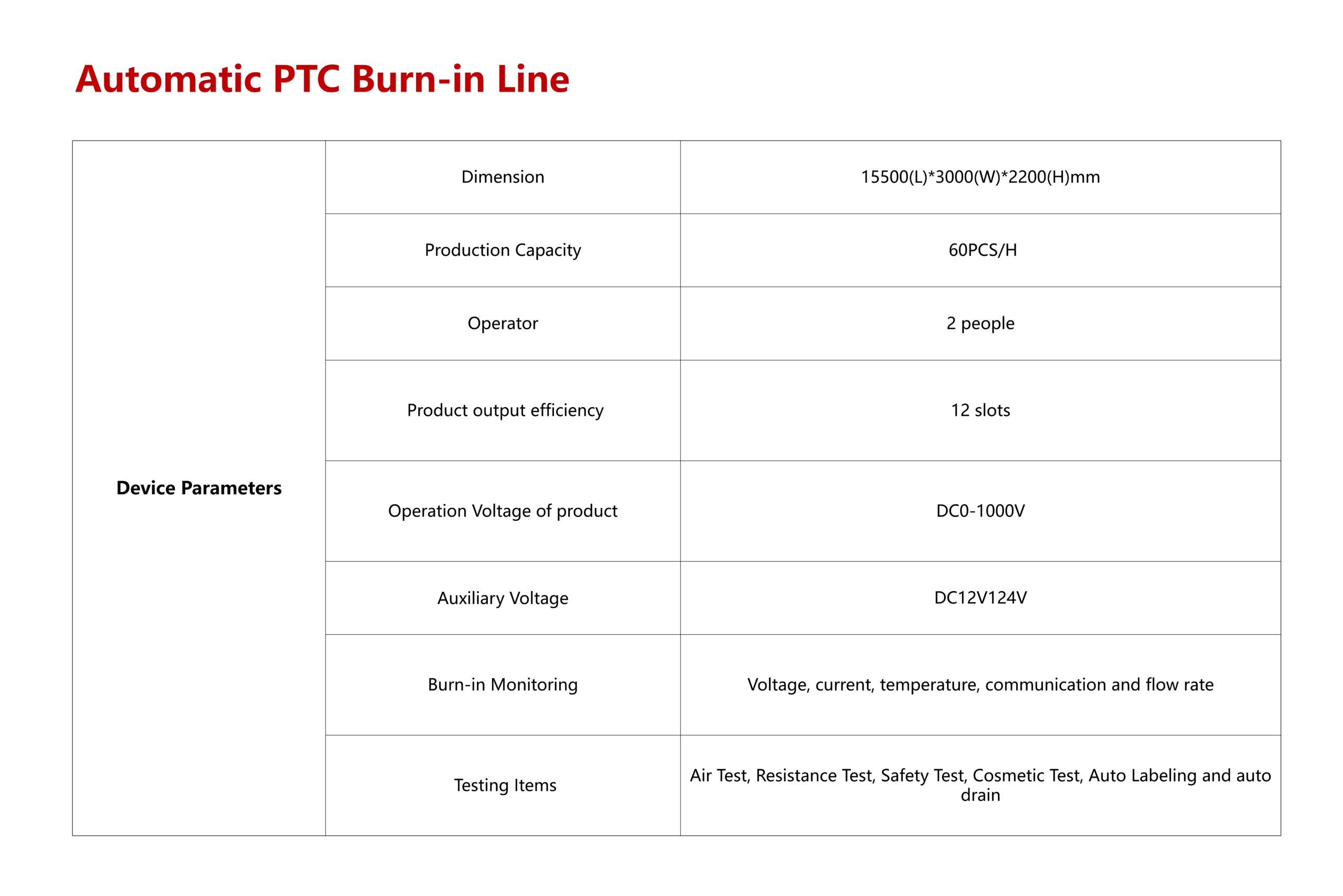

Device Parameters
| Dimension | 15500(L)*3000(W)*2200(H)mm |
|---|---|
| Production Capacity | 60PCS/H |
| Operator | 2 people |
| Product output efficiency | 12 slots |
| Operation Voltage of product | DC0-1000V |
| Auxiliary Voltage | DC12V124V |
| Burn-in Monitoring | Voltage, current, temperature, communication and flow rate |
| Testing Items | Air Test, Resistance Test, Safety Test, Cosmetic Test, Auto Labeling and auto drain |
