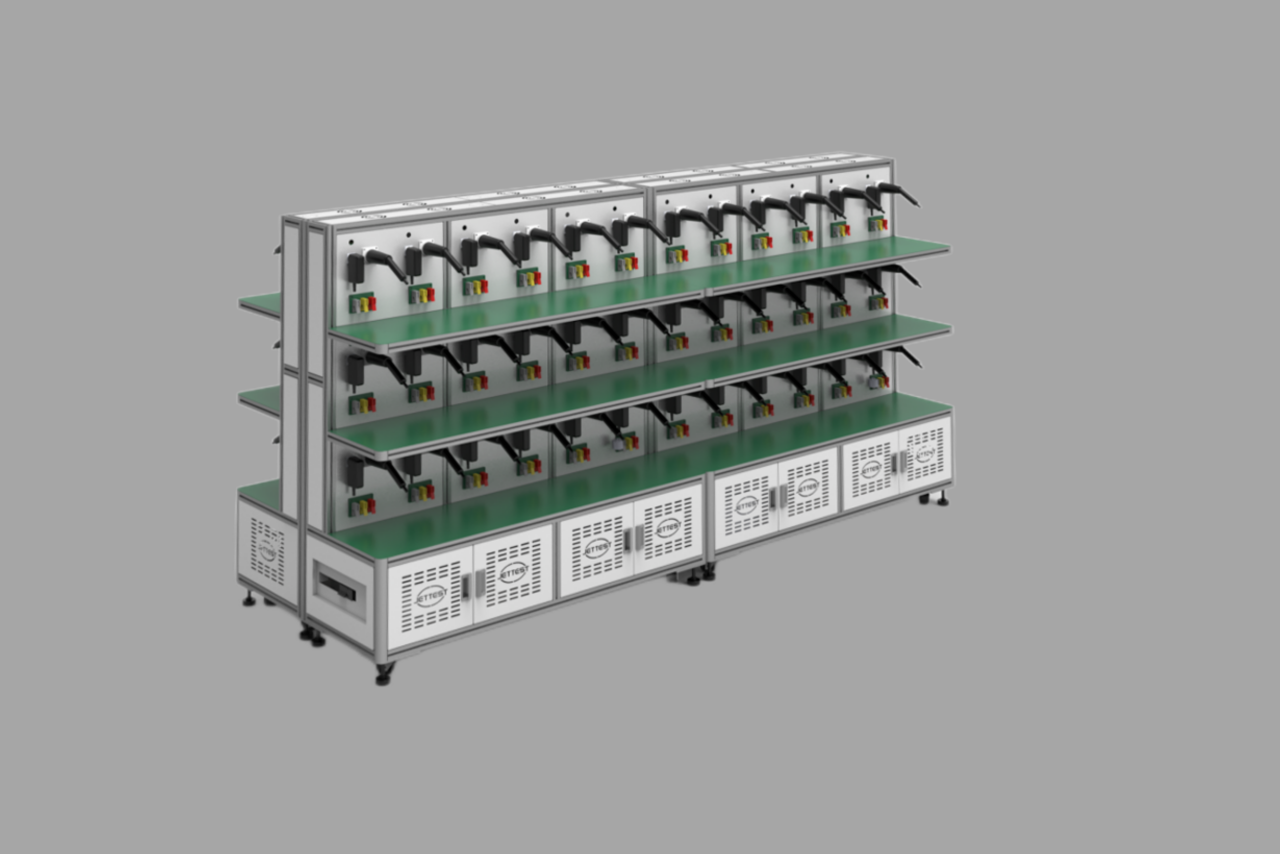

AC Charging Gun Burn-in Test Equipment
AC Charging Gun Burn-in Test Equipment
This system performs simulated power burn-in tests on national standard AC charging guns, effectively identifying early failures to ensure product durability and safety.
| Dimension(L*W*H) | 3600*1200*1850(mm) |
|---|---|
| B/I slot | 72 slots |
| Applicable Products | AC Charging Gun |
| Power (single channel) | 7KW(Max. Current 40A) |
Product Features
- Suitable for AC charging gun aging test
- Use recycle load to save energy and electricity
- Support MES system connection, barcode management and product traceability
- Support ON/OFF aging test
- Support 8A/16A/32 national standard AC charging gun
- Each aging station can be started individually
- Multi-station series connection, high cost-performance ratio
Technical Specifications
Device Parameters
| Dimension | 3600*1200*1850mm |
|---|---|
| Height of layer | 440mm |
| Distance between products | 300mm |
| Type of Load | Energy saving load |
| B/I Slots | 72 slots |
| Power (single channel) | 7KW (Max. Current 40A) |
| Loading mode | cc/cp |
| Current reading accuracy | ± (1%+0.5%fps) |
| Voltage reading accuracy | ± (1%+0.5%fps) |
| Product input interface | Universal socket |
| Product output interface | National standard AC charging pile dedicated socket 32A |
| Energy efficiency | 80% |
| Applicable Products | National standard AC charging gun 8-32A |
