Automatic outdoor mobile power production line
Automatic outdoor mobile power production line

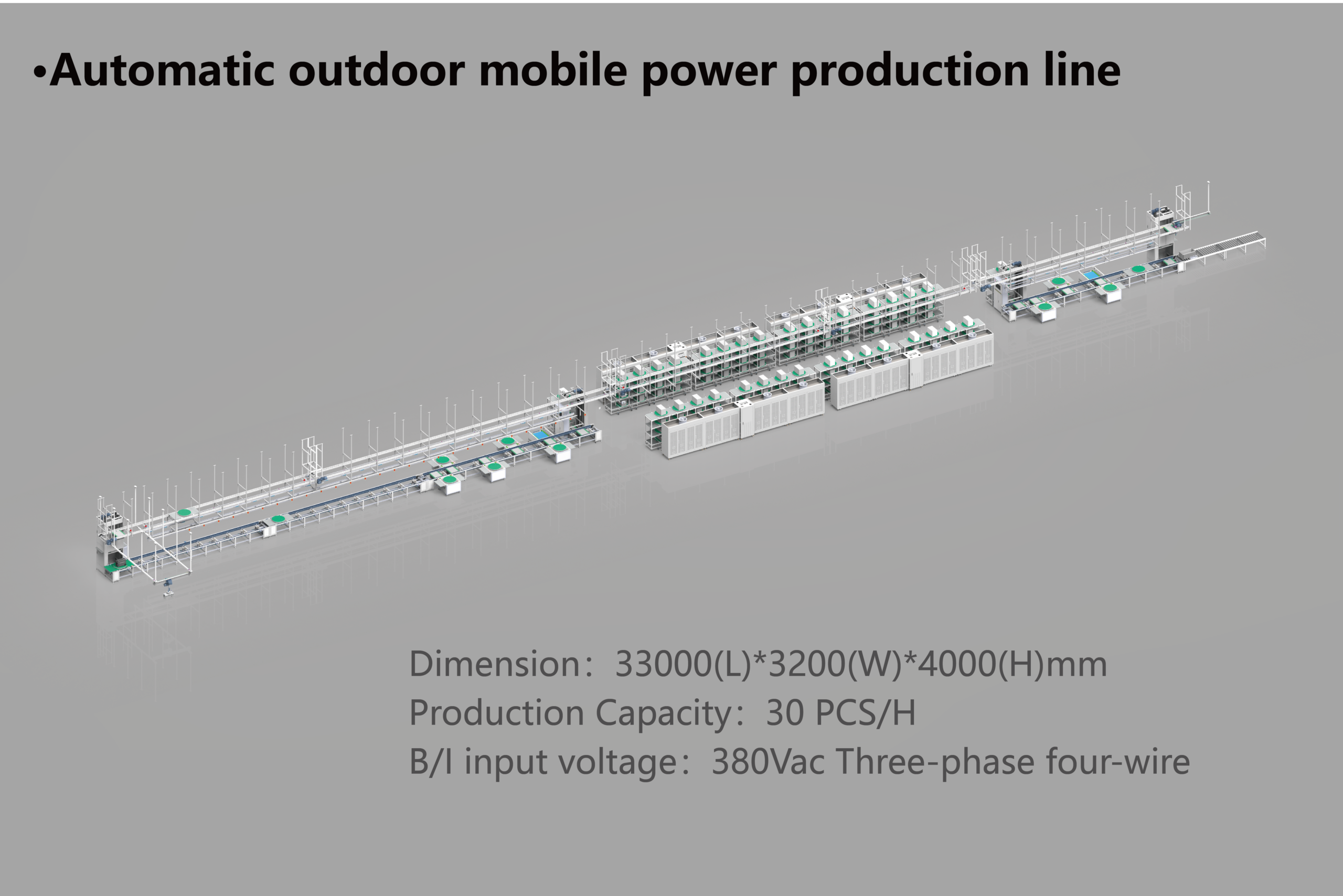

This automated production line is designed for outdoor mobile power stations. It integrates assembly, testing, and burn-in processes to comprehensively validate electrical performance and charge-discharge reliability, ensuring stable and durable product quality.
| Dimension(L*W*H) | 33000*3200*4000(mm) |
|---|---|
| Production Capacity | 30 PCS/H |
| B/I input voltage | 380Vac Three-phase four-wire |
Product Features
- Modular unit, easy installation and maintenance, simple and safe operation, flexible combinations according to user requirements
- Whole-line product process data control with traceability support and MES protocol compatibility.
- Human–machine integrated, with intelligent key units, strong suitability for demonstration.
Technical Specifications

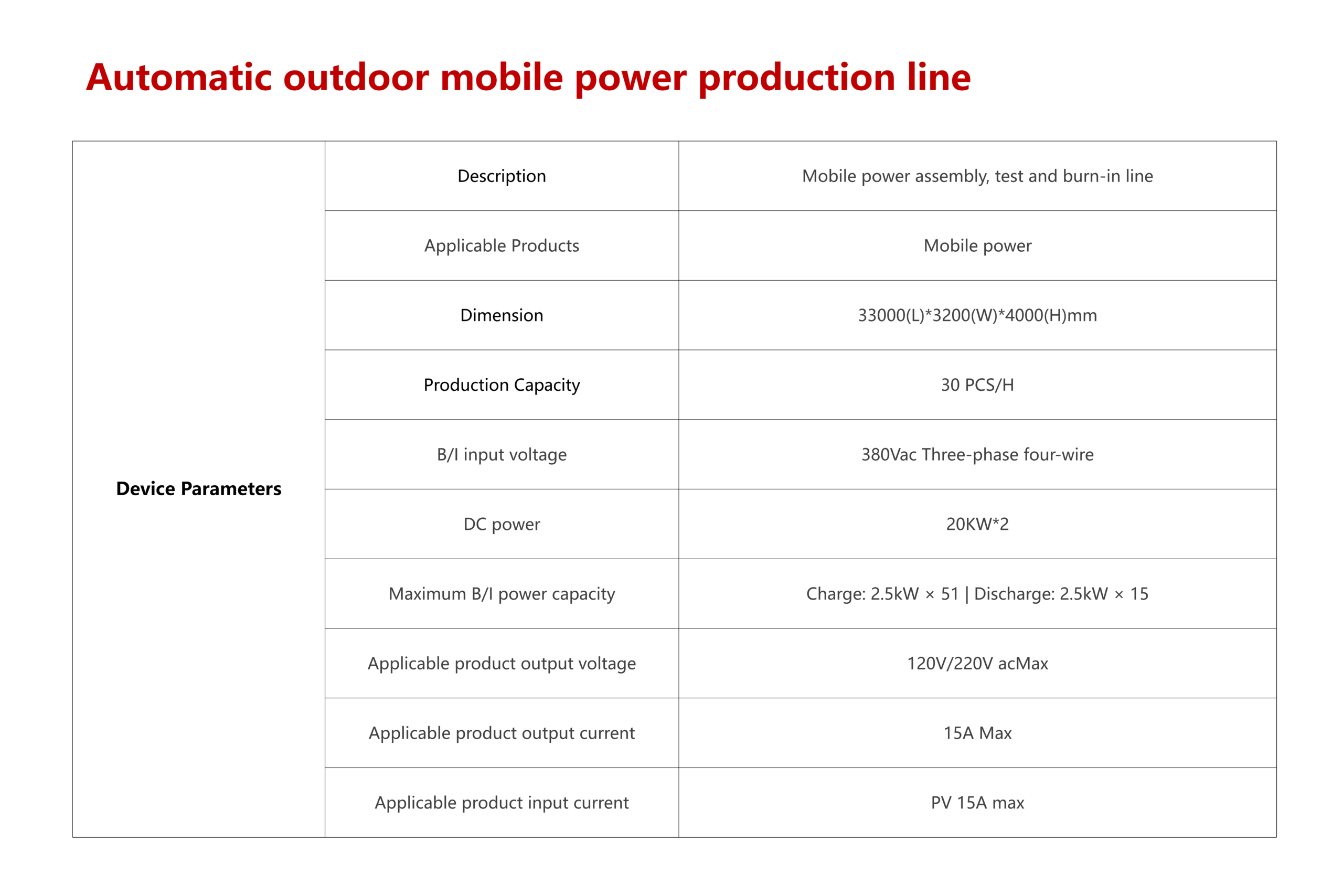

Device Parameters
| Parameter | Specification |
|---|---|
| Description | Mobile power assembly, test and burn-in line |
| Applicable Products | Mobile power |
| Dimension | 33000(L)*3200(W)*4000(H)mm |
| Production Capacity | 30 PCS/H |
| B/I input voltage | 380Vac Three-phase four-wire |
| DC power | 20KW*2 |
| Maximum B/I power capacity | Charge: 2.5kW × 51 | Discharge: 2.5kW × 15 |
| Applicable product output voltage | 120V/220V acMax |
| Applicable product output current | 15A Max |
| Applicable product input current | PV 15A max |

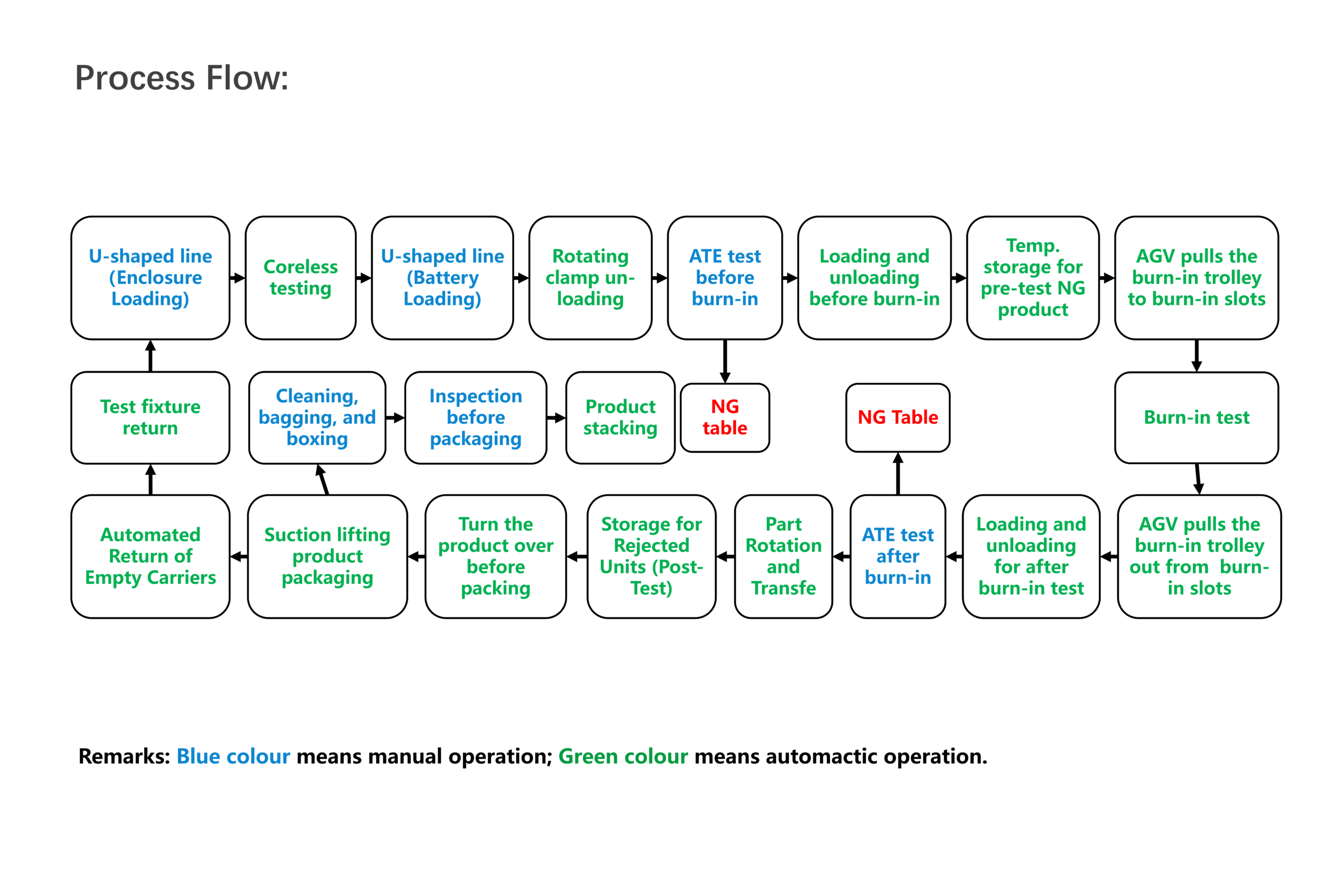

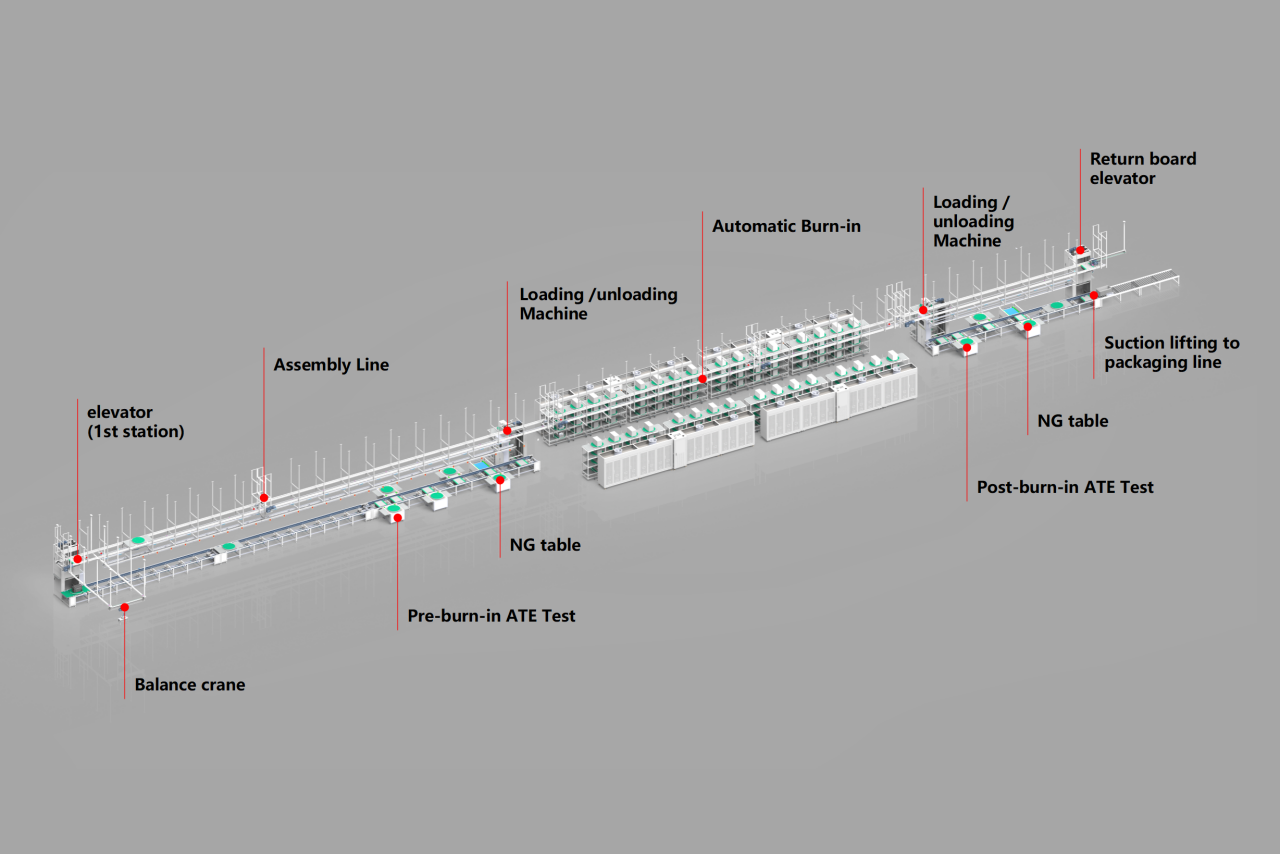

Process Procedure
- Return Board Elevator
- Manual Base Loading (Assembly Line)
- Clamping & Gripping Cell Loading (Balance Crane)
- Manual Assembly Line (3~20 Stations)
- Manual ATE Test (Pre-Test)
- Board Loader
- Manual Wiring (Burn-in Cart)
- Burn-in Test
- Manual Unwiring (Burn-in Cart)
- Board Unloader
- Manual ATE Test (Post-Test)
- Manual Cable Disconnection (Double Speed Chain)
- Manual Labeling (Double Speed Chain)
- Manual Cleaning (Double Speed Chain)
- Suction Lifting, Bagging & Carton Insertion
- ①
- Manual Product Weighing
- Manual Product Sealing & Banding
- Product Palletizing
AND
②
- Return Board Elevator
- Tooling Return Flow (Overhead Return Board Line)
