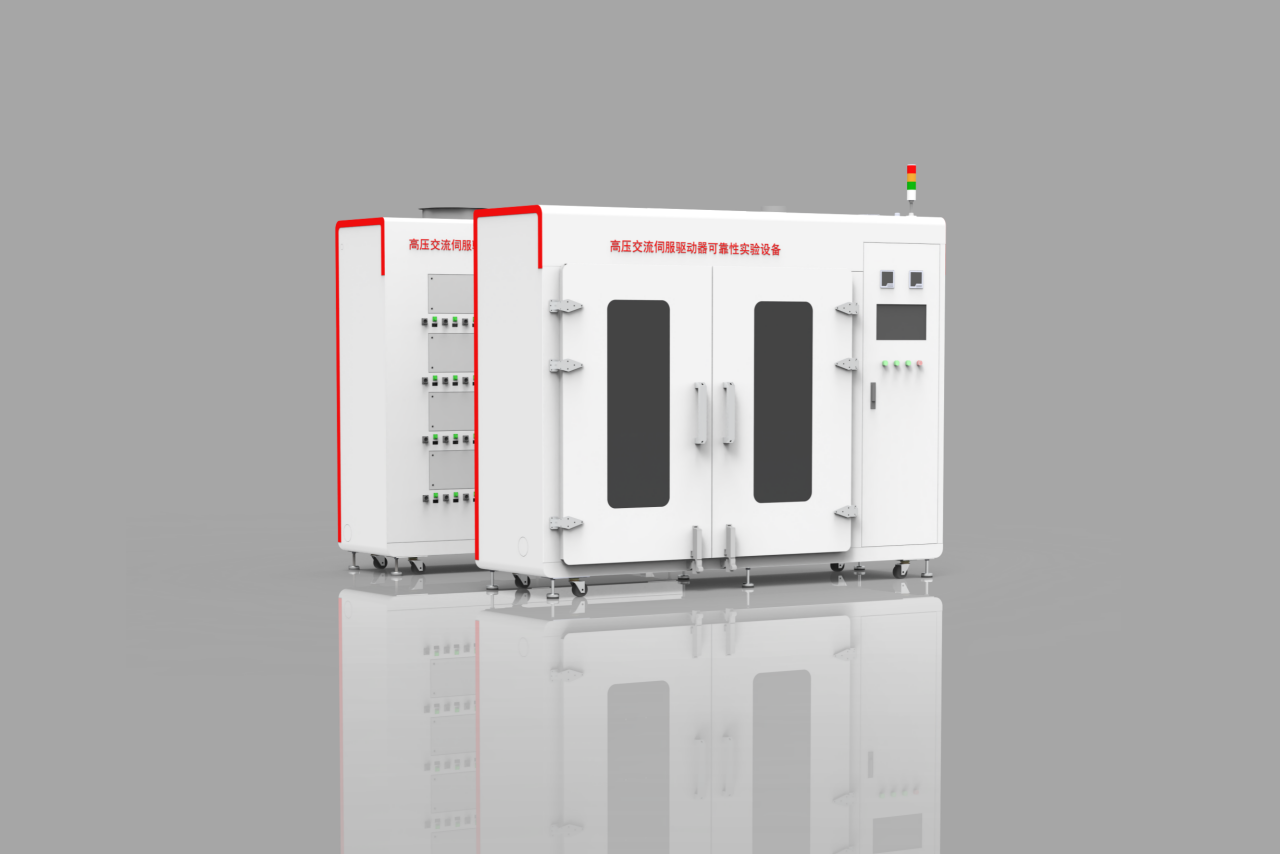

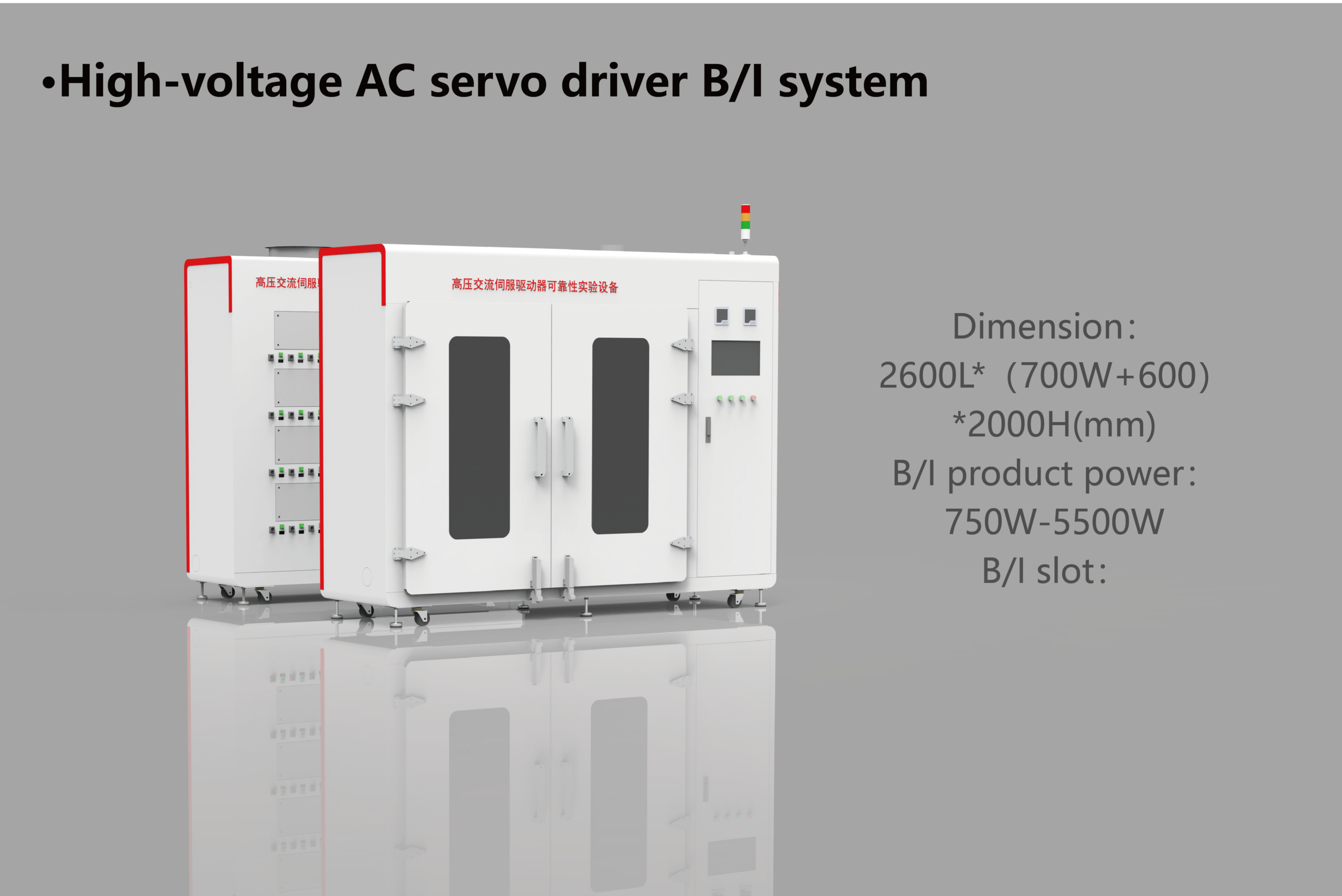

High-voltage AC servo driver B/I system
High-voltage AC servo driver B/I system
This system is designed for high-voltage AC servo drivers. It conducts loaded burn-in tests on 48 units simultaneously at temperatures up to 70°C, comprehensively evaluating performance and stability under continuous full-load operation.
| Dimension(L*W*H) | 2600*(700+600)*2000(mm) |
|---|---|
| B/I slot | 48 slots |
| Applicable Products | Servo Drive |
| B/I product power | 750W-5500W |
Product Features
- Electric leakage protection: Automatically cuts off when leakage is detected
- Over temperature: Automatically cuts off product power and activates alarm
- Smoke detection: Automatically cuts off product power and triggers alarm device
- Fault alarm: Automatically identifies faulty unit and activates alarm
- Emergency shutdown: Used for emergency cut-off of system power
Technical Specifications

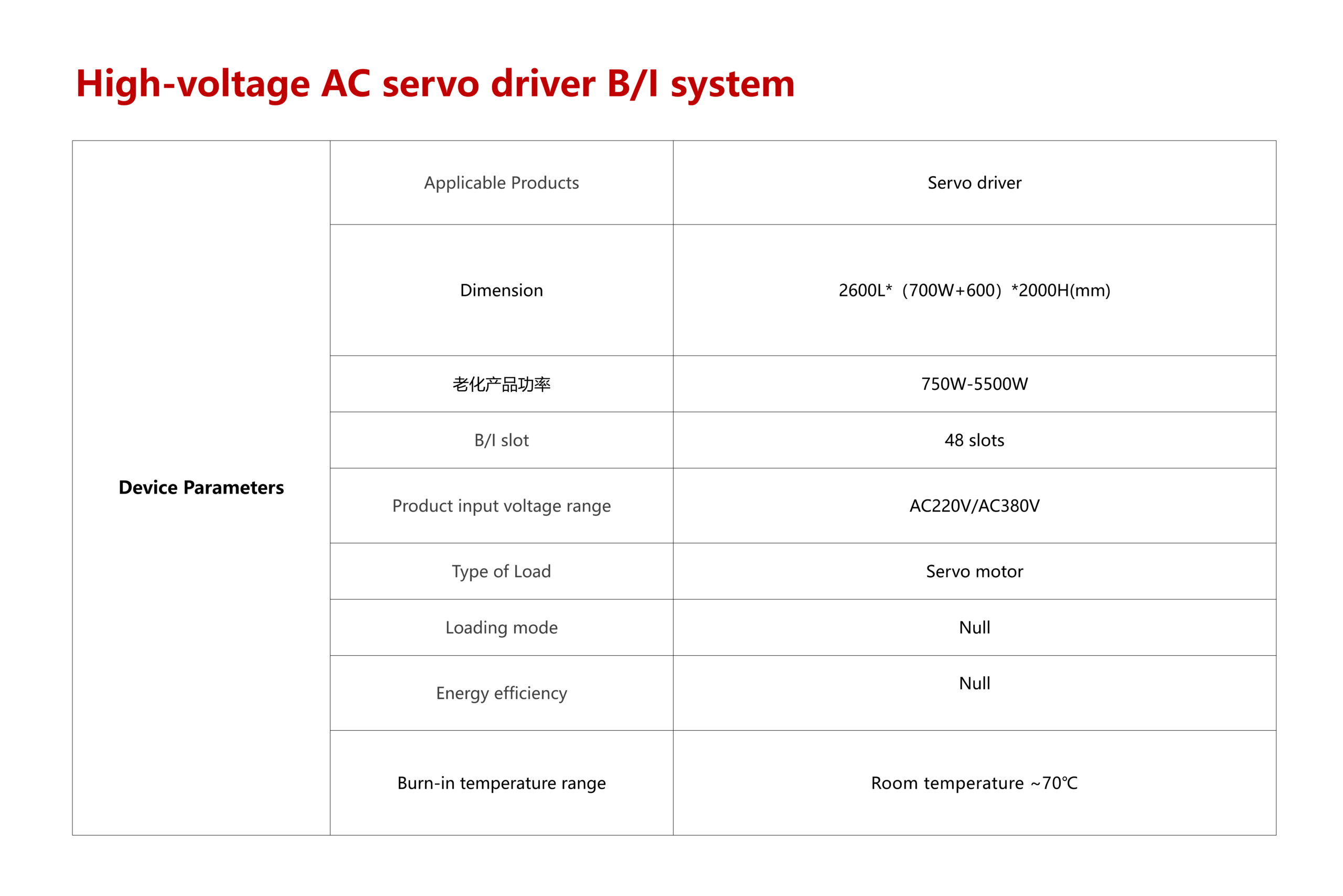

Device Parameters
| Parameter | Specification |
|---|---|
| Applicable Products | Servo driver |
| Dimension | 2600L* (700W+600) *2000H(mm) |
| 老化产品功率 | 750W-5500W |
| B/I slot | 48 slots |
| Product input voltage range | AC220V/AC380V |
| Type of Load | Servo motor |
| Loading mode | Null |
| Energy efficiency | Null |
| Burn-in temperature range | Room temperature ~70°C |
