This burn-in line is designed for off-grid photovoltaic energy storage systems. It simulates real PV input and battery charge-discharge conditions to conduct continuous operation tests, effectively verifying long-term operational stability and output performance.

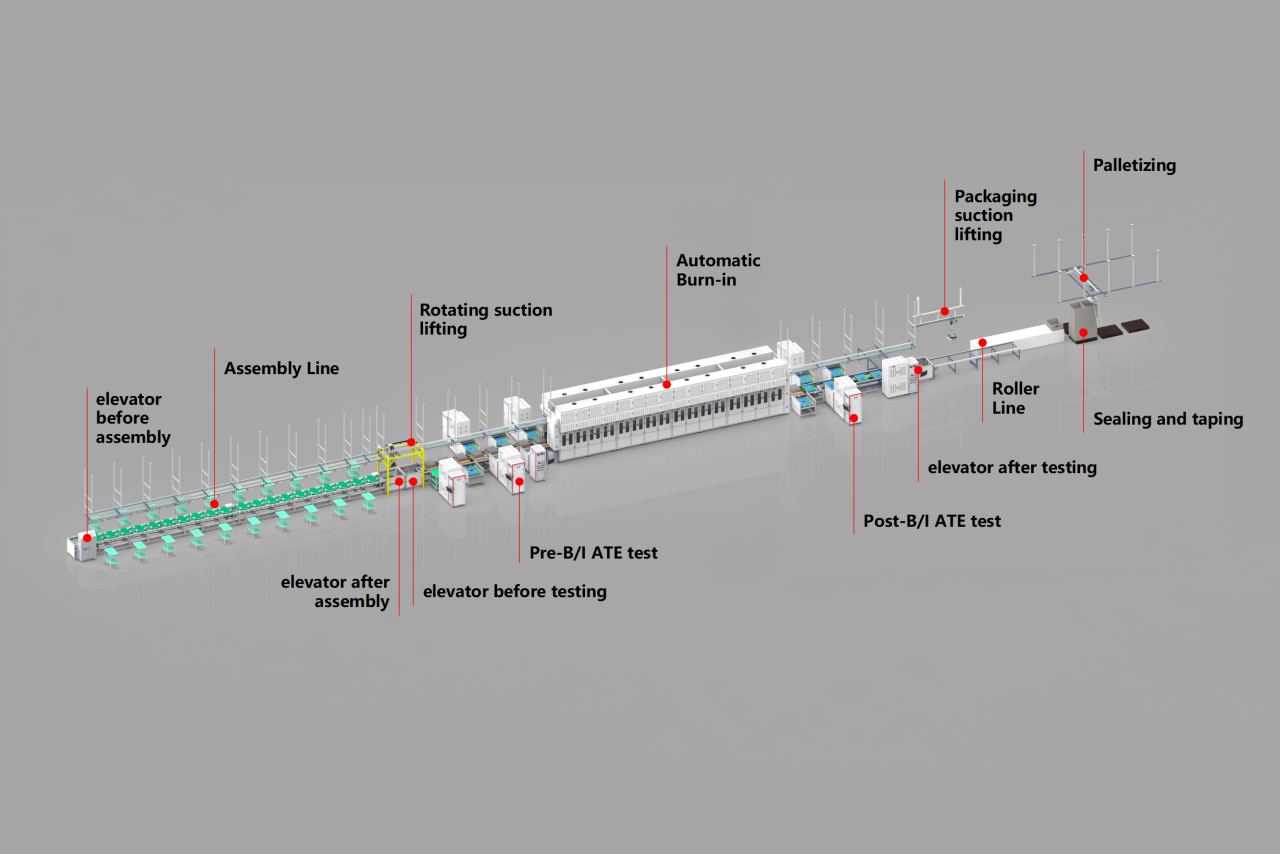

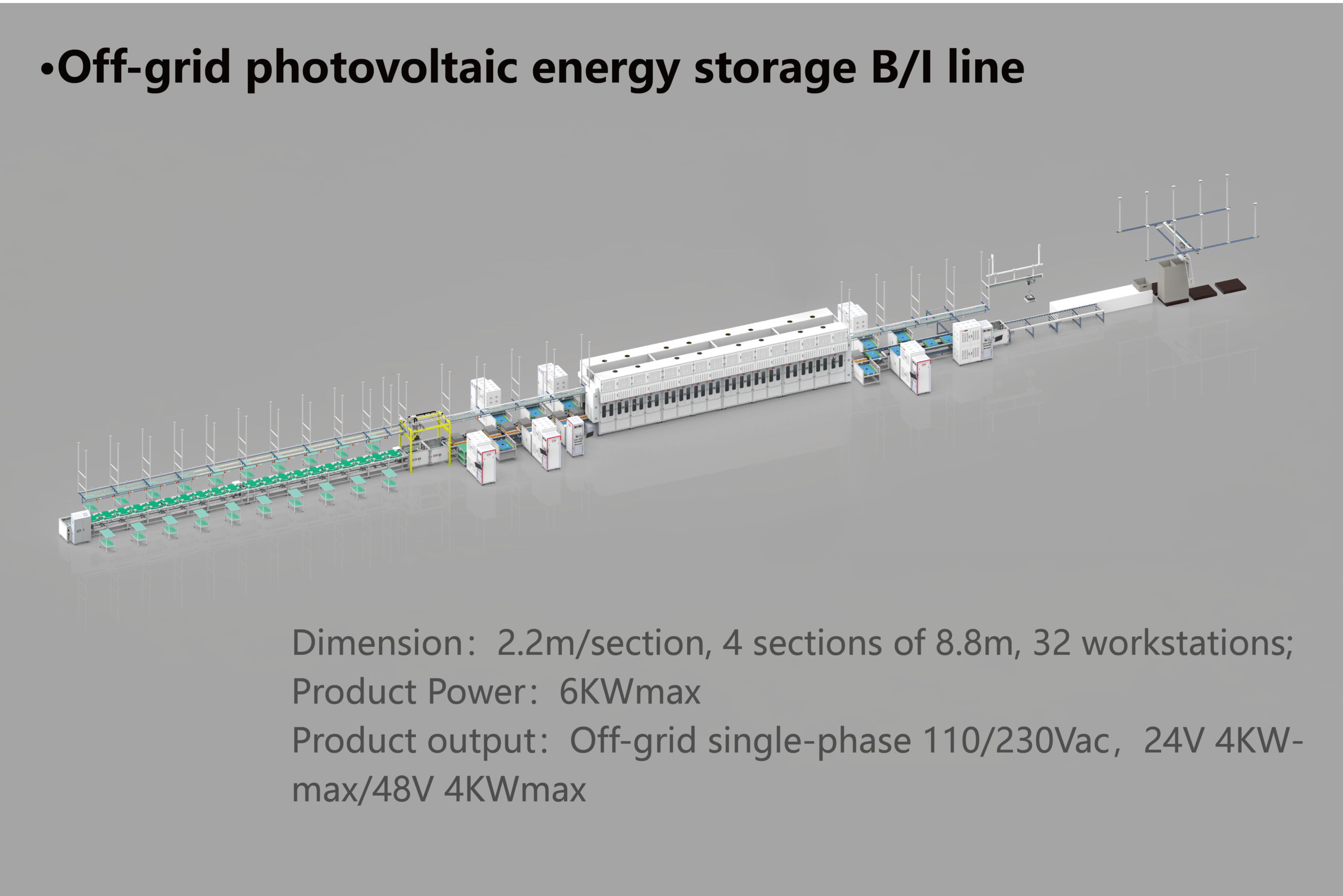

| Dimension(L*W*H) | 2.2m/section, 4 sections of 8.8m, 32 workstations; |
|---|---|
| Product output | Off-grid single-phase 110/230Vac，24V 4KWmax/48V 4KWmax |
| Applicable Products | Servo Drives, Stepper Drives, etc |
| Product Power | 6KWmax |
Product Features
- Modular unit, easy installation and maintenance, simple and safe operation, flexible combinations according to user requirements
- Whole-line product process data control with traceability support and MES protocol compatibility.
- Human–machine integrated, with intelligent key units, strong suitability for demonstration.
Technical Specifications
Device Parameters

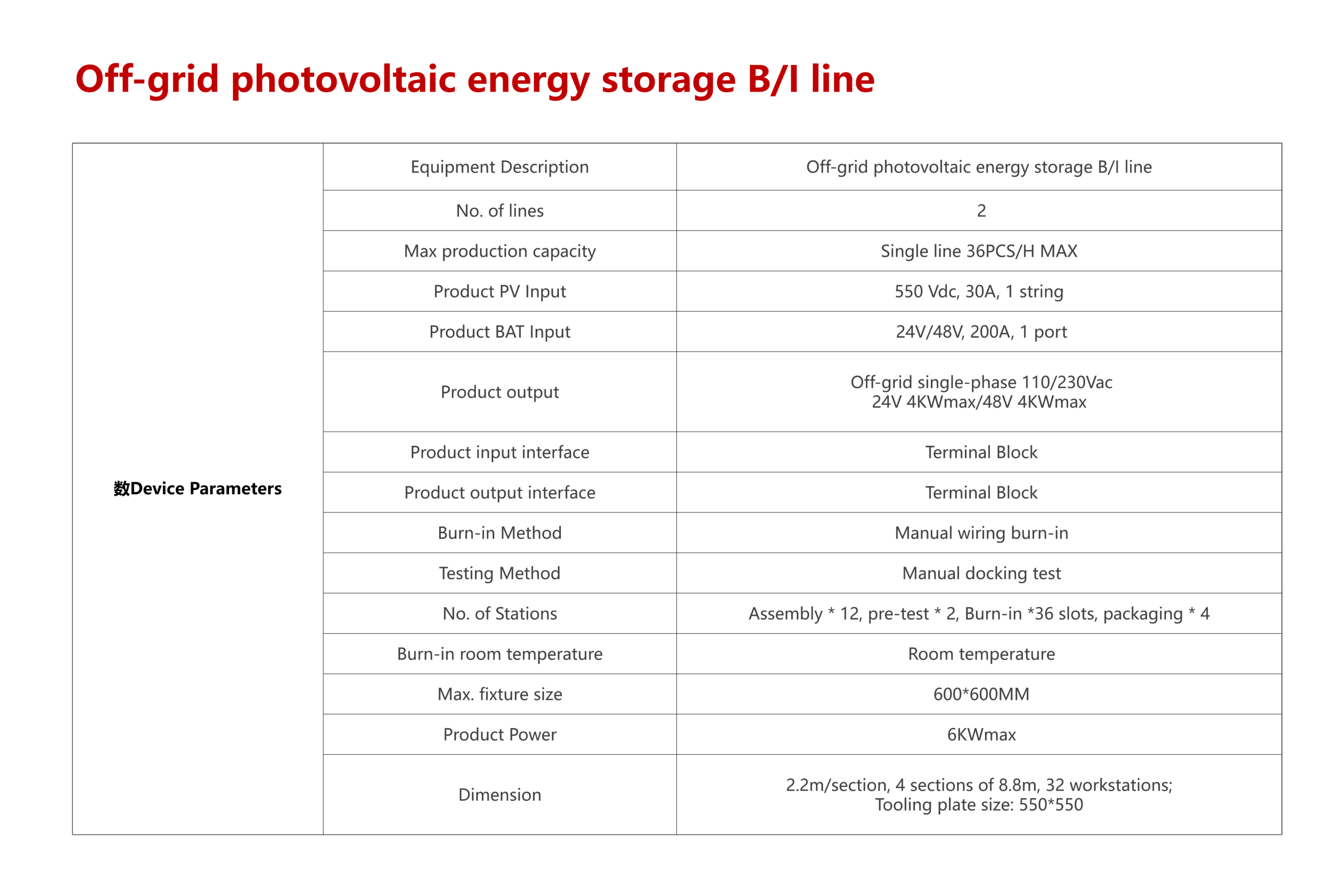

| Parameter | Specification |
|---|---|
| Equipment Description | Off-grid photovoltaic energy storage B/I line |
| No. of lines | 2 |
| Max production capacity | Single line 36PCS/H MAX |
| Product PV Input | 550 Vdc, 30A, 1 string |
| Product BAT Input | 24V/48V, 200A, 1 port |
| Product output | Off-grid single-phase 110/230Vac 24V 4KWmax/48V 4KWmax |
| Product input interface | Terminal Block |
| Product output interface | Terminal Block |
| Burn-in Method | Manual wiring burn-in |
| Testing Method | Manual docking test |
| No. of Stations | Assembly * 12, pre-test * 2, Burn-in *36 slots, packaging * 4 |
| Burn-in room temperature | Room temperature |
| Max. fixture size | 600*600MM |
| Product Power | 6KWmax |
| Dimension | 2.2m/section, 4 sections of 8.8m, 32 workstations; Tooling plate size: 550*550 |
