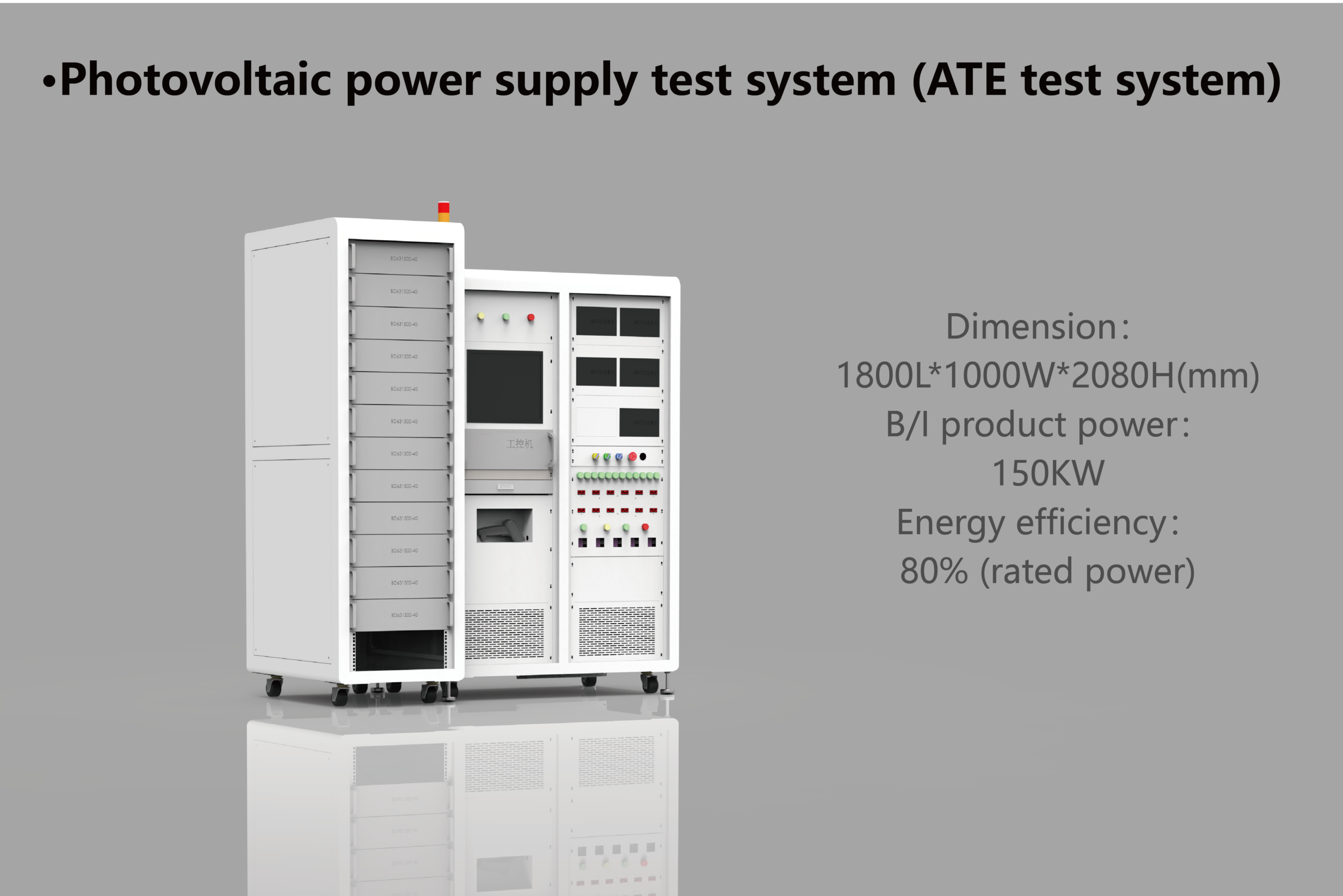

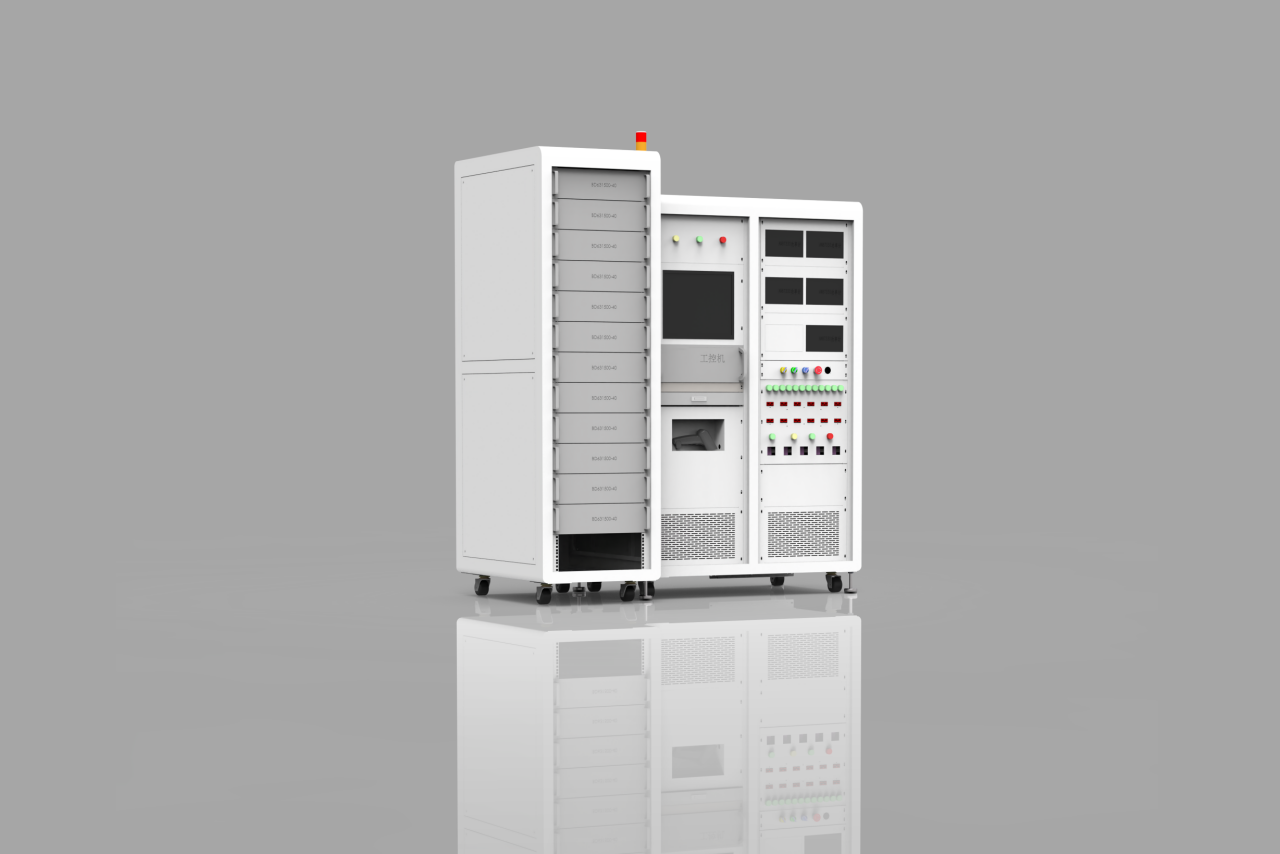

Photovoltaic power supply test system (ATE test system)
Photovoltaic power supply test system (ATE test system)
This system is designed for high-power photovoltaic inverters. It simulates 0-1500V DC input and AC load conditions to verify conversion efficiency and operational reliability under rated conditions, ensuring performance meets design specifications.
| Dimension(L*W*H) | 1800*1000*2080(mm) |
|---|---|
| B/I product power | 150KW |
| Applicable Products | PV, Energy Storage, and Inverters |
| Energy efficiency | 80%(Rated power) |
Product Features
- Modular unit, easy installation and maintenance, simple and safe operation, flexible combinations according to user requirements.
- Whole-line product process data control with traceability support and MES protocol compatibility.
- Human–machine integrated, with intelligent key units, strong suitability for demonstration.
Technical Specifications

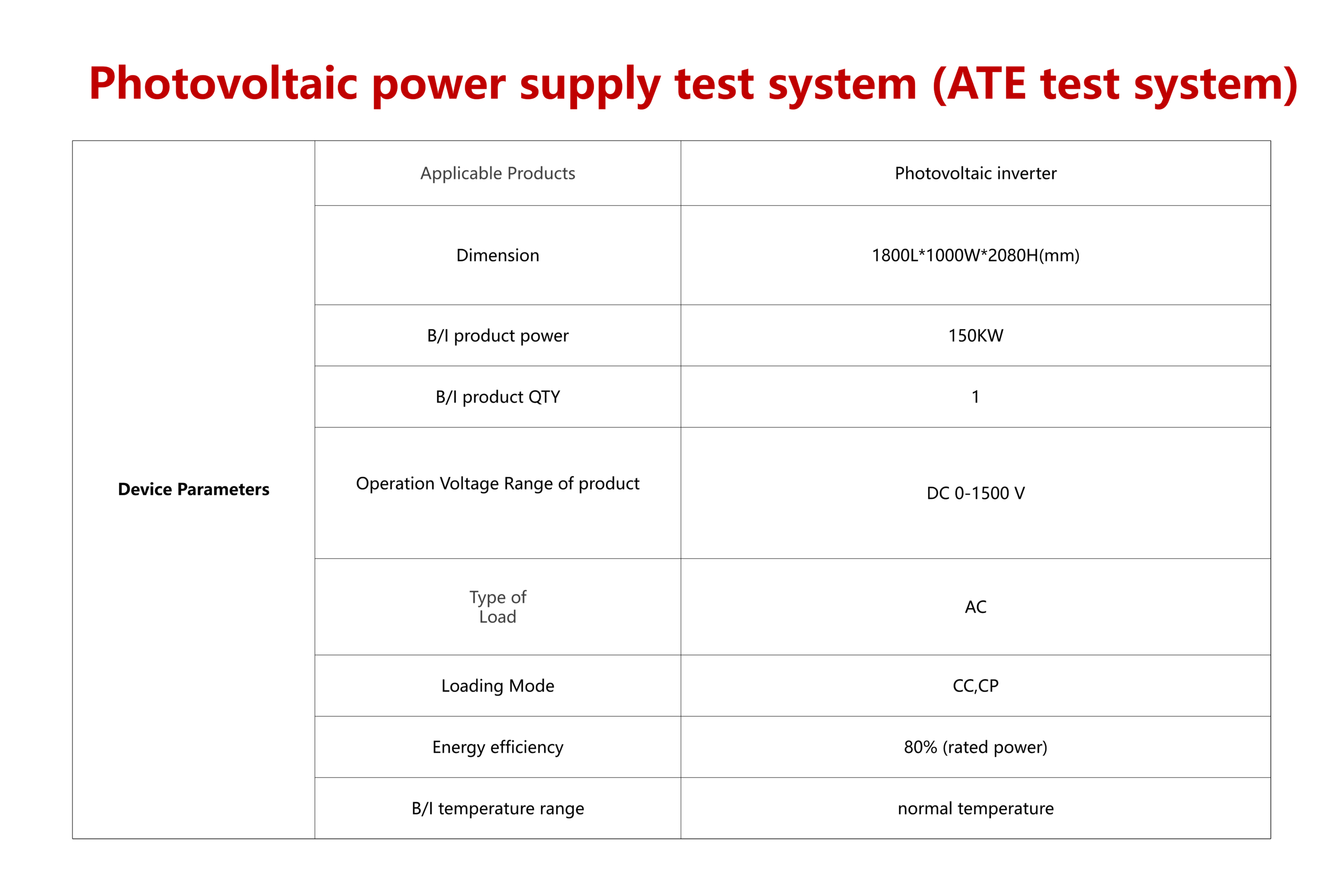

Device Parameters
| Parameter | Specification |
|---|---|
| Applicable Products | Photovoltaic inverter |
| Dimension | 1800L*1000W*2080H(mm) |
| B/I product power | 150KW |
| B/I product QTY | 1 |
| Operation Voltage Range of product | DC 0-1500 V |
| Type of Load | AC |
| Loading Mode | CC,CP |
| Energy efficiency | 80% (rated power) |
| B/I temperature range | normal temperature |
