Testing and Packaging Line for PV Energy Storage Inverters
Testing and Packaging Line for PV Energy Storage Inverters

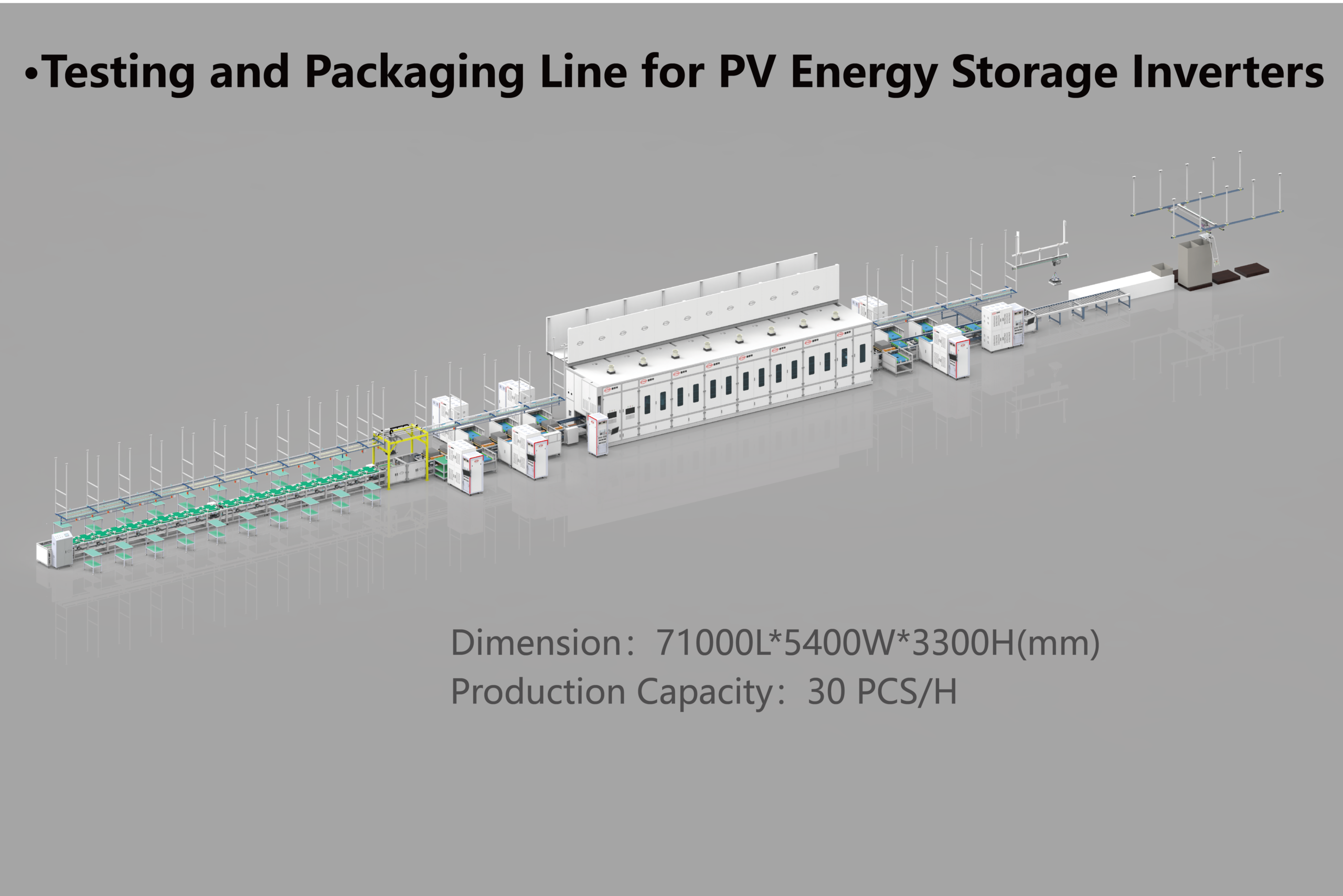

This automated line is designed for household photovoltaic inverters. It integrates assembly, testing, and aging processes to comprehensively verify electrical performance and grid-connection stability across a wide 24-800V voltage range, ensuring reliable product quality.
| Dimension(L*W*H) | 71000*5400*3300(mm) |
|---|---|
| Production Capacity | 30 PCS/H |
| Applicable Products | PV, Energy Storage, and Inverters |
Product Features
- Modular unit, easy installation and maintenance, simple and safe operation, flexible combinations according to user requirements
- Whole-line product process data control with traceability support and MES protocol compatibility.
- Human–machine integrated, with intelligent key units, strong suitability for demonstration.
Technical Specifications
Device Parameters

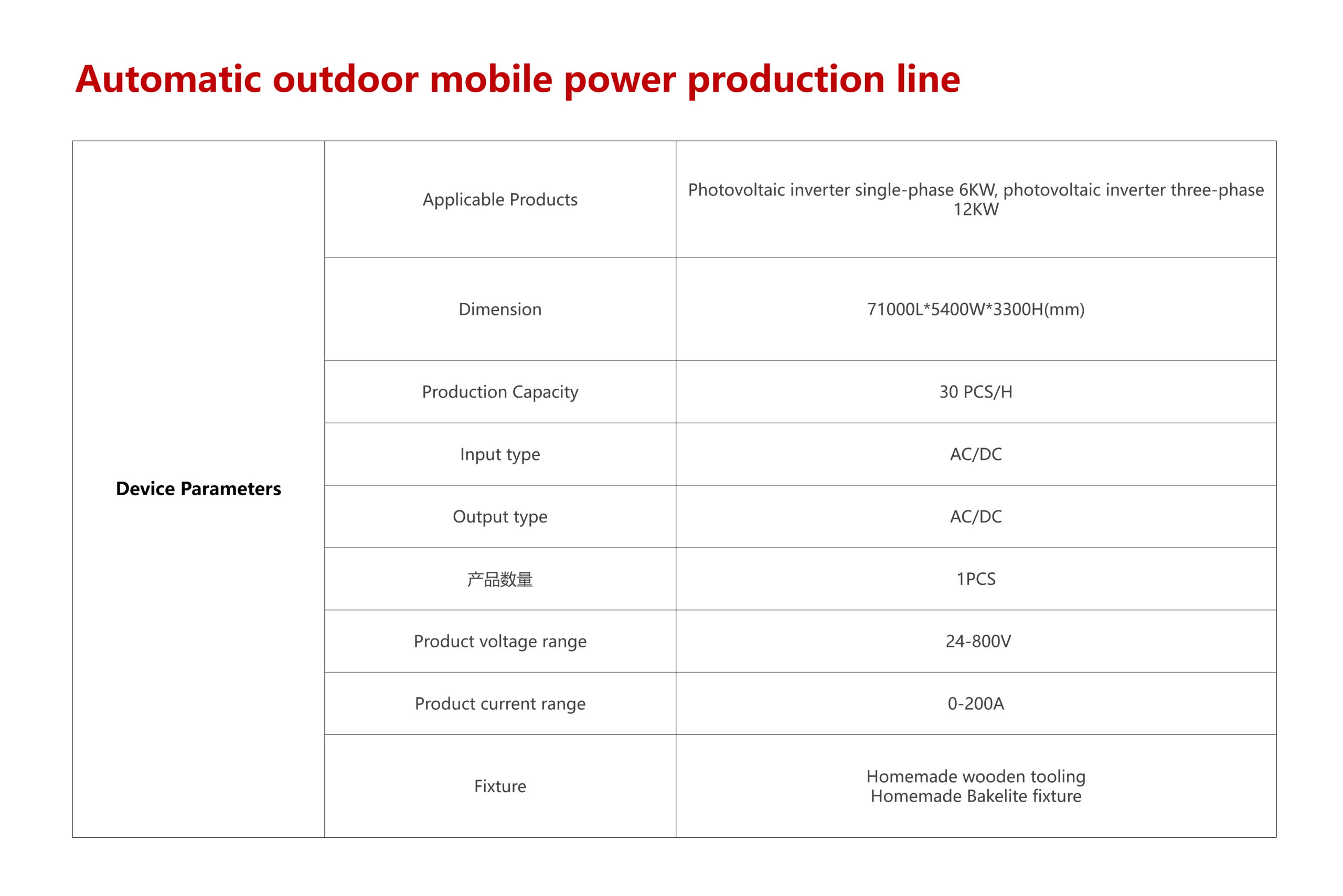

| Parameter | Specification |
|---|---|
| Applicable Products | Photovoltaic inverter single-phase 6KW, photovoltaic inverter three-phase 12KW |
| Dimension | 71000L*5400W*3300H(mm) |
| Production Capacity | 30 PCS/H |
| Input type | AC/DC |
| Output type | AC/DC |
| 产品数量 | 1PCS |
| Product voltage range | 24-800V |
| Product current range | 0-200A |
| Fixture | Homemade wooden tooling Homemade Bakelite fixture |

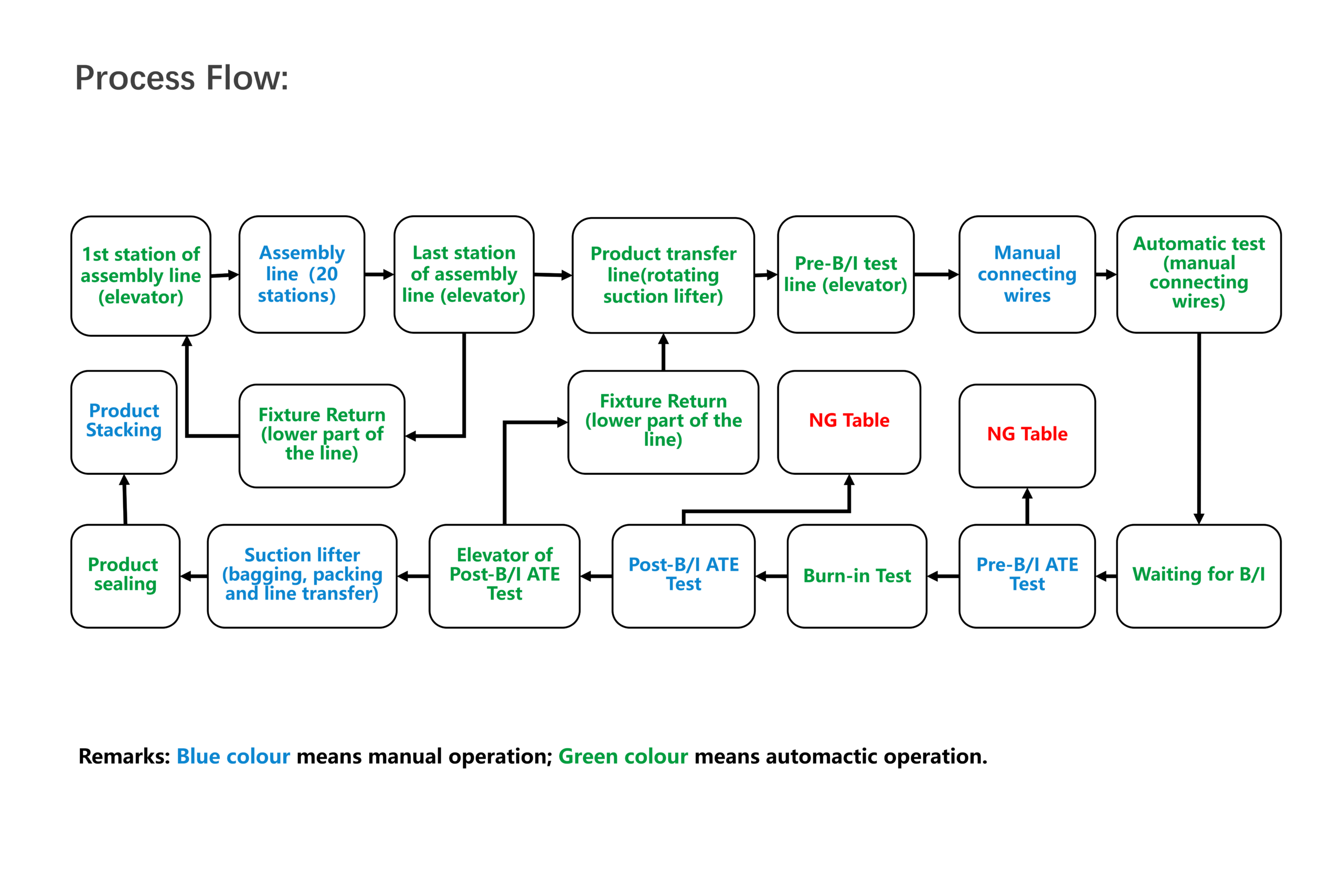

Process Procedure

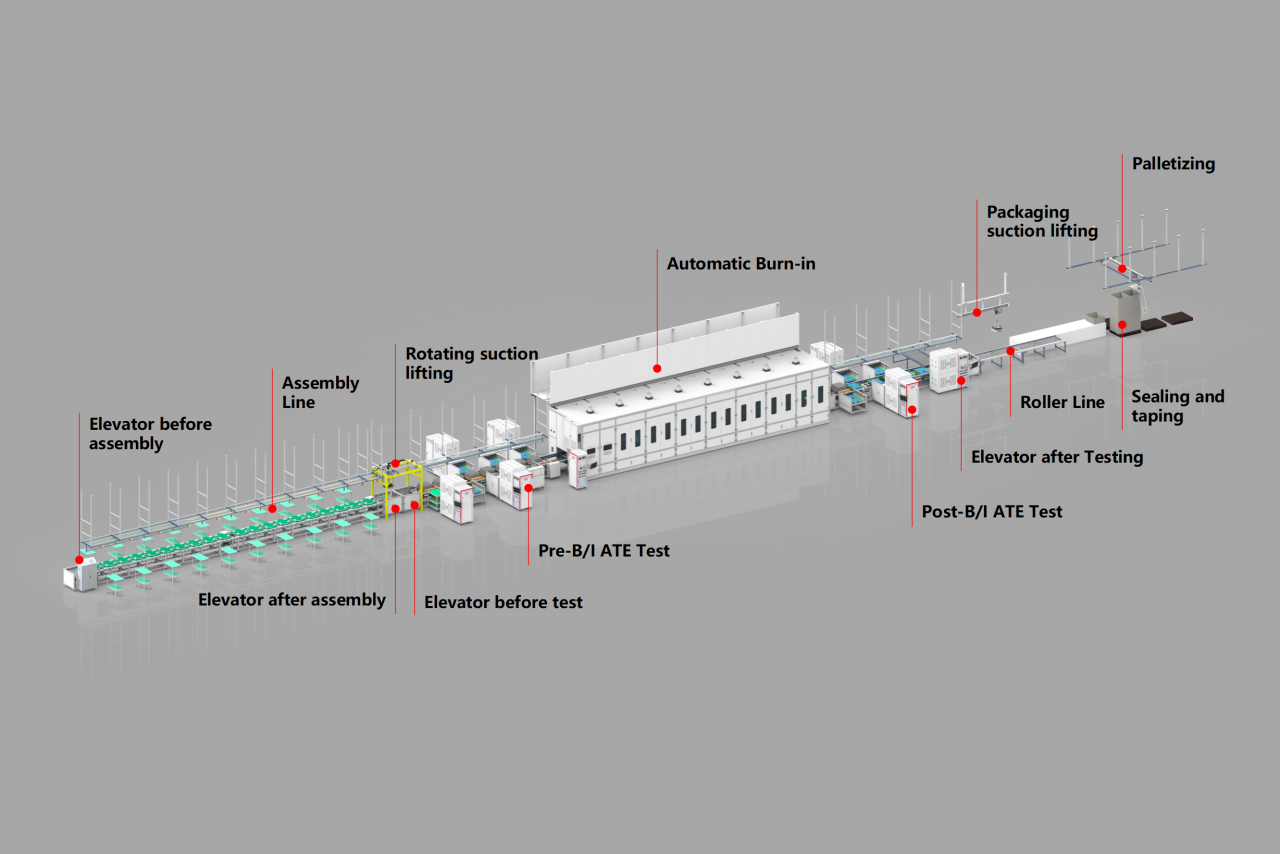

- Assembly Line Head (Elevator Station)
- Assembly Line
- Assembly Line Tail (Elevator Station) (Tooling Return from Assembly Line Bottom to Line Head)
- Product Line Transfer (Rotary Suction Crane)
- Pre-Burn-in Test Line (Elevator)
- Manual Wiring
- Test Station (Manual Wiring Station)
- Pending Burn-in Test Buffering Station
- Pre-Burn-in ATE Test
- Burn-in Test
- Post-Burn-in ATE Test
- Post-Burn-in Test Line Elevator Station (Tooling Return from Assembly Line Bottom to Pre-Burn-in Test Line)
- Suction Crane (Bagging, Carton Insertion & Line Transfer)
- Product Sealing
- Product Palletizing;
