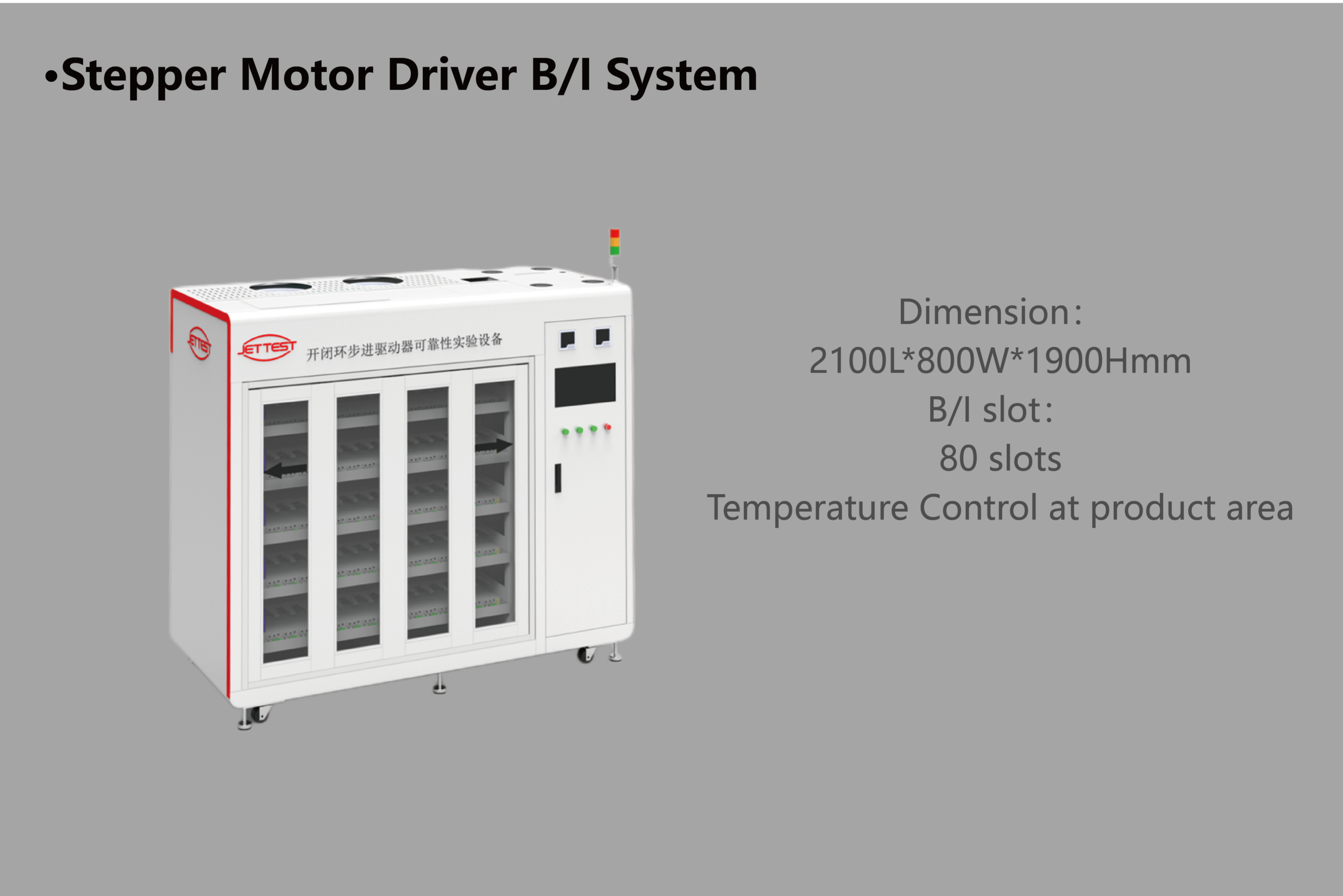

Stepper Motor Driver B/I System
Stepper Motor Driver B/I System

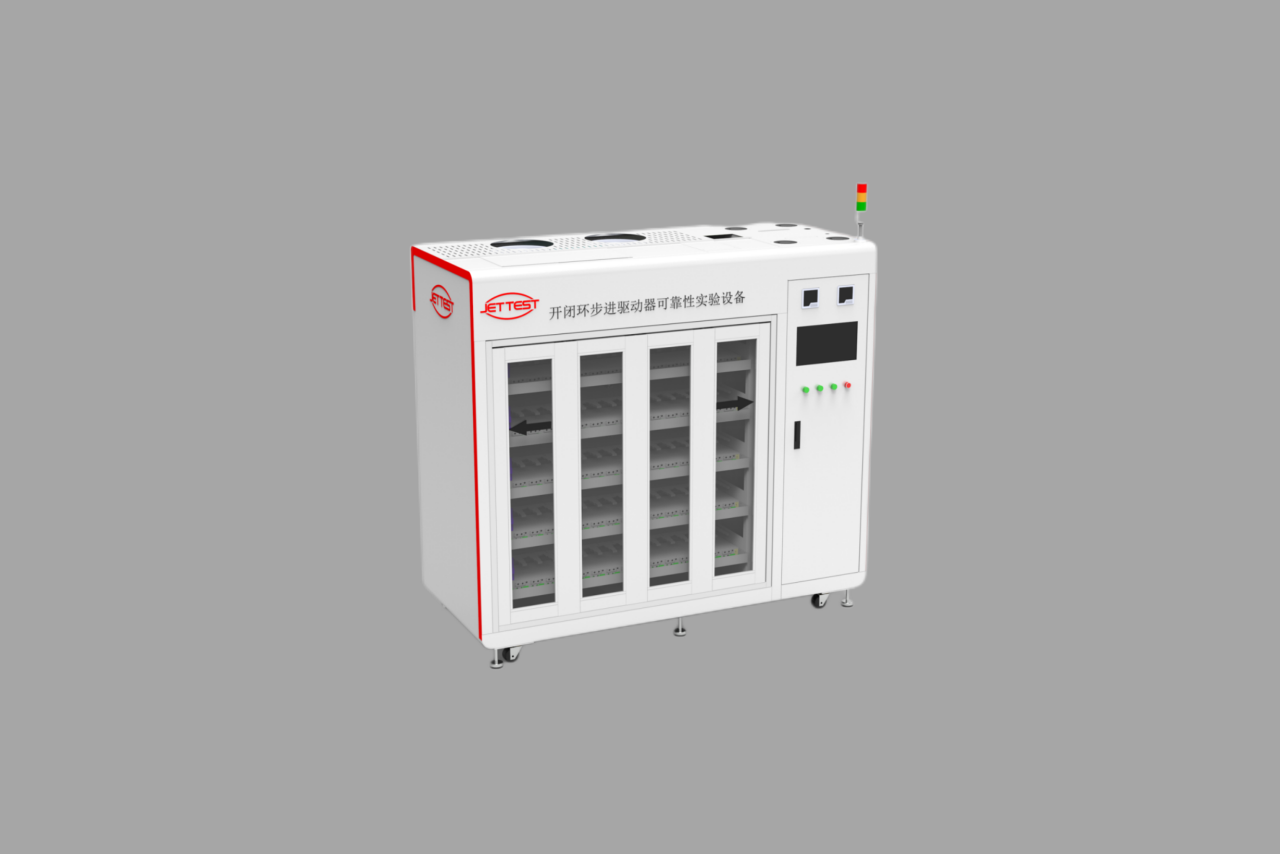

This system is designed for stepper and servo motor drivers. It conducts prolonged burn-in testing under load with precise temperature control to simulate real-world conditions, effectively verifying long-term operational stability and reliability.
| Dimension(L*W*H) | 2100*800*1900(mm) |
|---|---|
| B/I slot | 80 slots |
| Applicable Products | Servo Drive |
| Temperature Control at product area | (Room temperature + 10℃)~60℃ |
Product Features
- Electric leakage protection: Automatically cuts off when leakage is detected
- Over temperature: Automatically cuts off product power and activates alarm
- Smoke detection: Automatically cuts off product power and triggers alarm device
- Fault alarm: Automatically identifies faulty unit and activates alarm
- Emergency shutdown: Used for emergency cut-off of system power

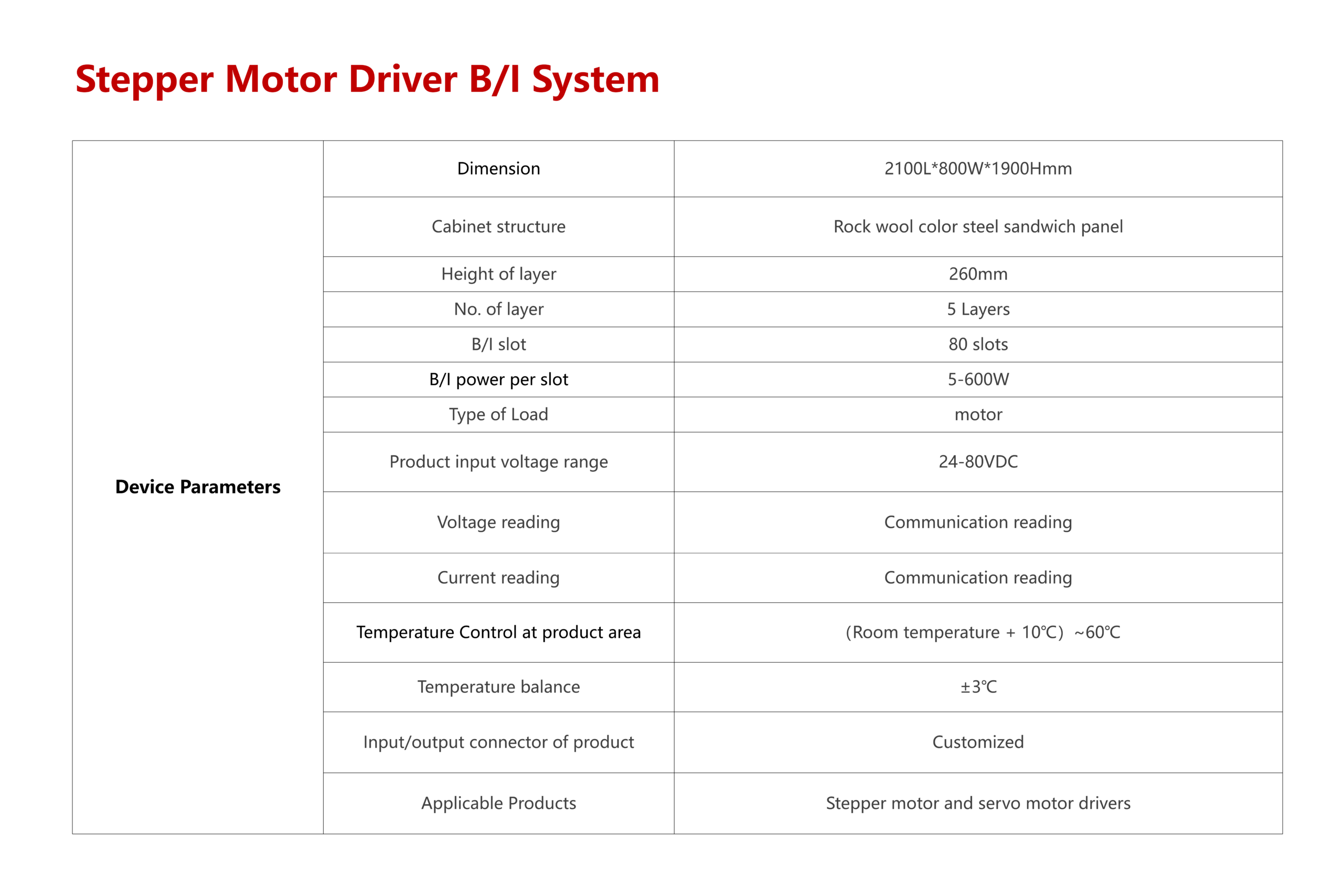

Technical Specifications
Device Parameters
| Parameter | Specification |
|---|---|
| Dimension | 2100L*800W*1900Hmm |
| Cabinet structure | Rock wool color steel sandwich panel |
| Height of layer | 260mm |
| No. of layer | 5 Layers |
| B/I slot | 80 slots |
| B/I power per slot | 5-600W |
| Type of Load | motor |
| Product input voltage range | 24-80VDC |
| Voltage reading | Communication reading |
| Current reading | Communication reading |
| Temperature Control at product area | (Room temperature + 10°C) ~60°C |
| Temperature balance | ±3°C |
| Input/output connector of product | Customized |
| Applicable Products | Stepper motor and servo motor drivers |
