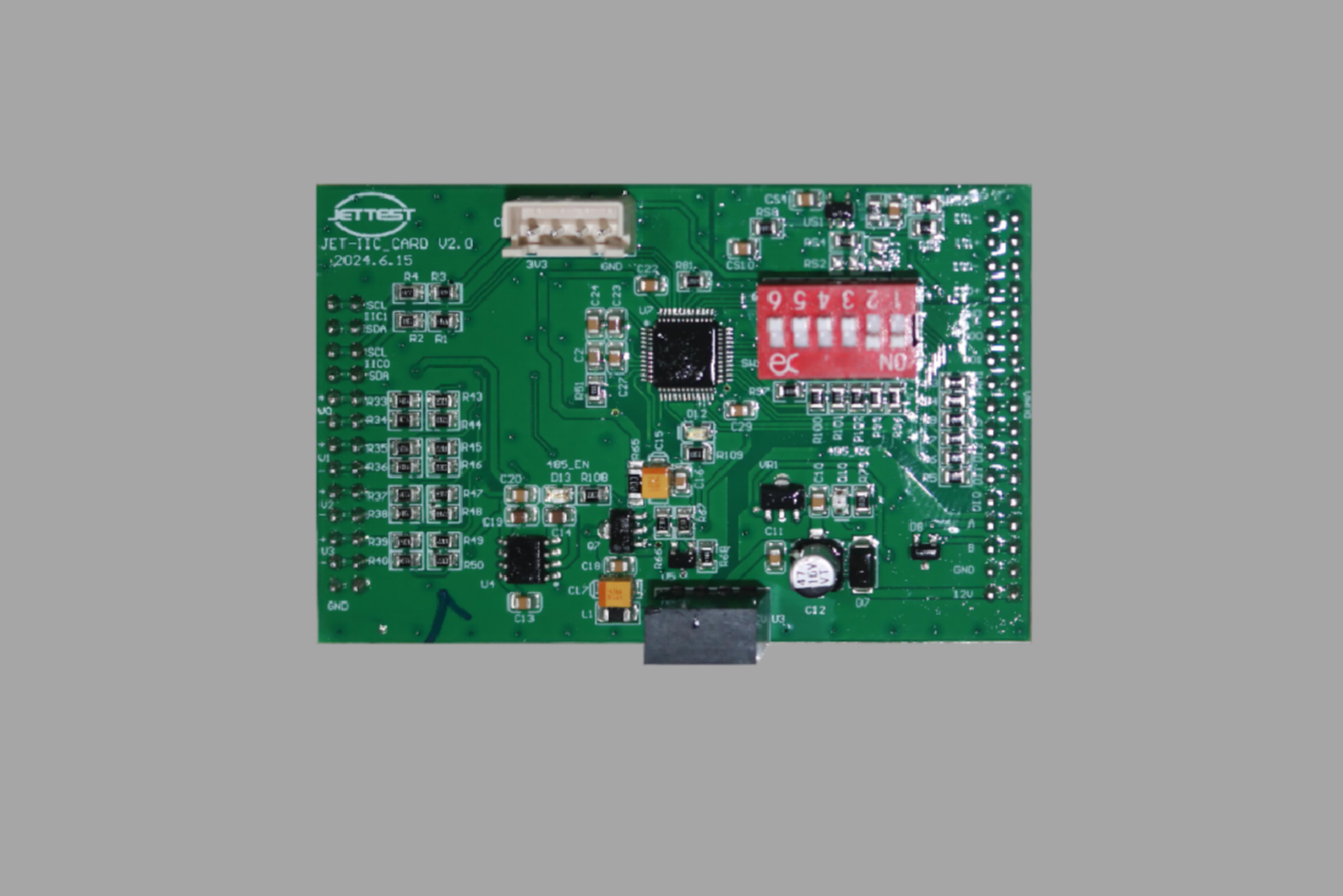

Communication Card JET-P6006
Communication Card JET-P6006
¥150.00
JET-P6006 is a multifunctional communication and acquisition card. It integrates 4-channel voltage sampling and 2-channel non-isolated current sampling, supporting 0~130VDC voltage and 0~10ADC current acquisition. Equipped with 1-channel RS485 (115200bps) and 2-channel standard I2C communication, it also includes 2-channel PWM and digital I/O interfaces. It operates at 12V/0.15A with dimensions of 77×50×19mm.
| Mechanical Dimensions(mm) | 77*51*19 |
|---|---|
| Delivery Time | To Be Negotiated |
Product Features
Performance Specification
- 4-channel voltage sampling, 2-channel current sampling, non-isolated;
- Input voltage range: 0~130VDC;
- Input current range: 0~10ADC;
- Communication mode: 1-channel RS485 (baud rate: 115200bps, no parity bit, 1 stop bit), 2-channel IIC (standard I2C);
- Sampling accuracy: Current 5%*FS±0.1%*A, Voltage 0.5%*FS±0.1%*A (FS: Full Scale, A: Current value);

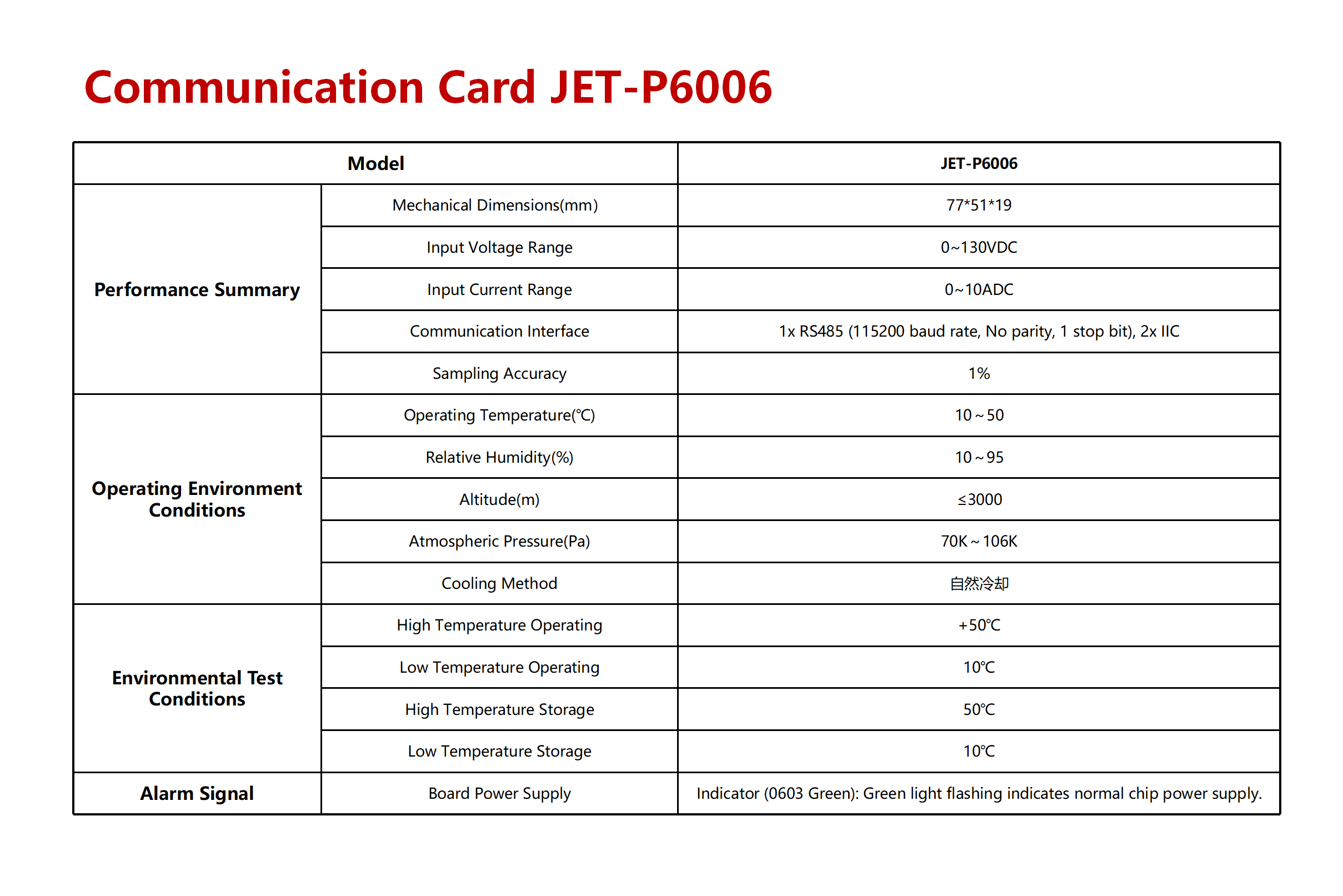

Product Summary
Performance Summary
| Model | JET-P6006 |
|---|---|
| Mechanical Dimensions (mm) | 77*51*19 |
| Input Voltage Range | 0~130VDC |
| Input Current Range | 0~10ADC |
| Communication Interface | 1x RS485 (115200 baud rate, No parity, 1 stop bit), 2x IIC |
| Sampling Accuracy | 1% |
Operating Environment Conditions
| Operating Temperature (°C) | 10~50 |
|---|---|
| Relative Humidity (%) | 10~95 |
| Altitude (m) | ≤3000 |
| Atmospheric Pressure (Pa) | 70K ~ 106K |
| Cooling Method | 自然冷却 |
Environmental Test Conditions
| High Temperature Operating | +50°C |
|---|---|
| Low Temperature Operating | 10°C |
| High Temperature Storage | 50°C |
| Low Temperature Storage | 10°C |
Alarm Signal
| Board Power Supply | Indicator (0603 Green): Green light flashing indicates normal chip power supply. |
|---|
Technical Specifications
Power Supply and Measurement
| Parameter | Specification |
|---|---|
| Power Supply Parameters: Voltage | 12 V |
| Power Supply Parameters: Current | 0.15 A |
| Measurement Range: Voltage | 0~130 VDC |
| Measurement Range: Current | 0~10 ADC |
| Measurement Accuracy: Voltage | 0.5%*FS±0.1%*A(FS：Full Scale, A: Current value) VDC |
| Measurement Accuracy: Current | 5%*FS±0.1%*A(FS：Full Scale, A: Current value) ADC |
RS485 Parameters
| Parameter | Specification |
|---|---|
| Baud Rate | 115200 bps |
| Data Length | 8 bit |
| Stop Bit | 1 bit |
| Parity Bit | None |
I2C, PWM and Digital I/O
| Parameter | Specification |
|---|---|
| 2-channel I2C: Frequency | 100 Khz |
| 2-channel I2C: Level | 3.3 V |
| 2-channel PWM: Frequency | 4-400 KhZ |
| 2-channel PWM: Duty Cycle | 0-100 % |
| 2-channel PWM: Level | 3.3 V |
| 4-channel Input: Low Level | ＜0.4 V |
| 4-channel Input: High Level | ＞3 V |
| 2-channel Output: Low Level | ＜0.4 V |
| 2-channel Output: High Level | Open-drain output, max 24V, 10mA |

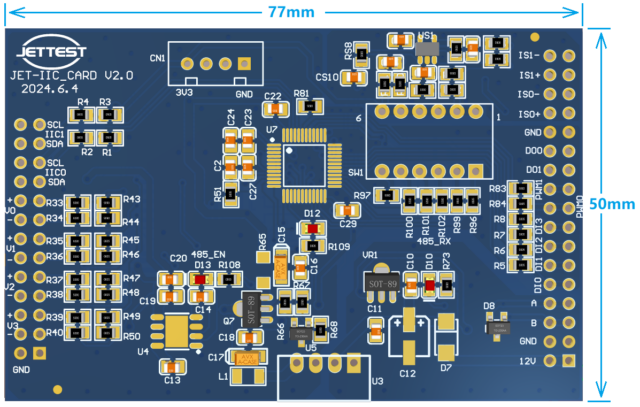

Dimensions
Length×Width×Height: 77×50×19 mm

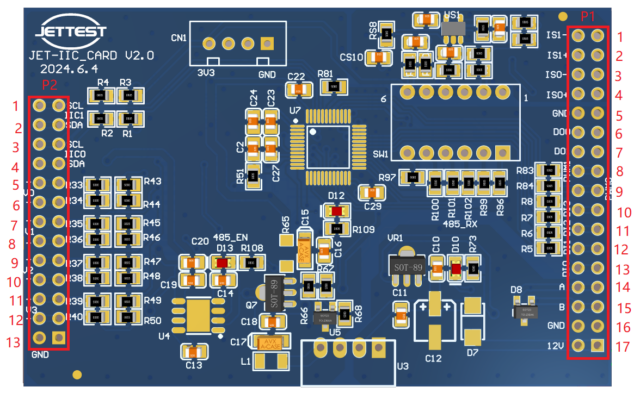

Port Definition and Pinout
Header P1
| Pin and Silkscreen | Function and Remarks |
|---|---|
| Pin 1 IS1- |
Function: Channel 1 current input negative Remarks: Connect to current input negative |
| Pin 2 IS1+ |
Function: Channel 1 current input positive Remarks: Connect to current input positive |
| Pin 3 IS0- |
Function: Channel 0 current input negative Remarks: Connect to current input negative |
| Pin 4 IS0+ |
Function: Channel 0 current input positive Remarks: Connect to current input positive |
| Pin 5 GND |
Function: Ground Remarks: |
| Pin 6 DO0 |
Function: Channel 0 digital output Remarks: Control channel 0 output level |
| Pin 7 DO1 |
Function: Channel 1 digital output Remarks: Control channel 1 output level |
| Pin 8 PWM1 |
Function: Channel 1 PWM Remarks: Frequency range: 4~400KHz |
| Pin 9 PWM0 |
Function: Channel 0 PWM Remarks: Frequency range: 4~400KHz |
| Pin 10 DI3 |
Function: Channel 3 digital input Remarks: Read channel 3 input level |
| Pin 11 DI2 |
Function: Channel 2 digital input Remarks: Read channel 2 input level |
| Pin 12 DI1 |
Function: Channel 1 digital input Remarks: Read channel 1 input level |
| Pin 13 DI0 |
Function: Channel 0 digital input Remarks: Read channel 0 input level |
| Pin 14 A |
Function: RS485 communication Remarks: RS485 positive signal, align with RS485 communicator interface |
| Pin 15 B |
Function: RS485 communication Remarks: RS485 negative signal, align with RS485 communicator interface |
| Pin 16 GND |
Function: Power ground Remarks: |
| Pin 17 12V |
Function: 12V power supply Remarks: Connect 12V voltage for board power supply |
Header P2
| Pin and Silkscreen | Function and Remarks |
|---|---|
| Pin 1 IIC1/SCL |
Function: IIC1/SCL (I2C1 Clock Line) Remarks: Connect to communication device clock line |
| Pin 2 IIC1/SDA |
Function: IIC1/SDA (I2C1 Data Line) Remarks: Connect to communication device data line |
| Pin 3 IIC0/SCL |
Function: IIC0/SCL (I2C0 Clock Line) Remarks: Connect to communication device clock line |
| Pin 4 IIC0/SDA |
Function: IIC0/SDA (I2C0 Data Line) Remarks: Connect to communication device data line |
| Pin 5 V0+ |
Function: Channel 0 voltage input positive Remarks: Connect to voltage input positive |
| Pin 6 V0- |
Function: Channel 0 voltage input negative Remarks: Connect to voltage input negative |
| Pin 7 V1+ |
Function: Channel 1 voltage input positive Remarks: Connect to voltage input positive |
| Pin 8 V1- |
Function: Channel 1 voltage input negative Remarks: Connect to voltage input negative |
| Pin 9 V2+ |
Function: Channel 2 voltage input positive Remarks: Connect to voltage input positive |
| Pin 10 V2- |
Function: Channel 2 voltage input negative Remarks: Connect to voltage input negative |
| Pin 11 V3+ |
Function: Channel 3 voltage input positive Remarks: Connect to voltage input positive |
| Pin 12 V3- |
Function: Channel 3 voltage input negative Remarks: Connect to voltage input negative |
| Pin 13 GND |
Function: Ground Remarks: |
