Acquisition Card JET-P6001
Acquisition Card JET-P6001
¥230.00

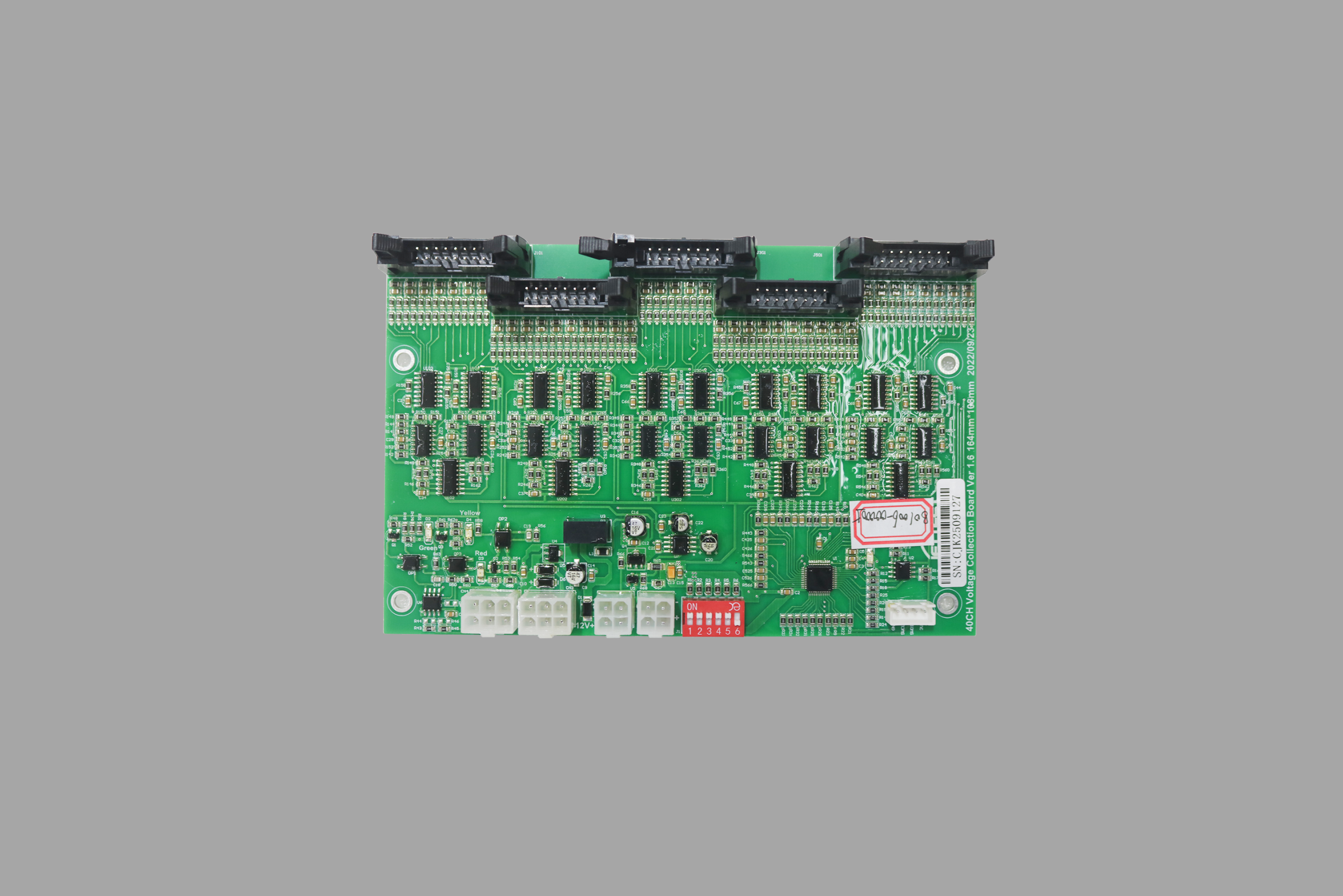

JET-P6001 is a 40-channel voltage acquisition card. It supports 3~70V DC voltage input, adopts RS485 communication (9600bps, 8 data bits, 1 stop bit, no parity), with sampling accuracy of 0.1%*FS+0.5%*A. It operates at 12V/0.03A with dimensions of 169×112×29mm.
| Mechanical Dimensions(mm) | 164*108*1.6 |
|---|---|
| Delivery Time | To Be Negotiated |

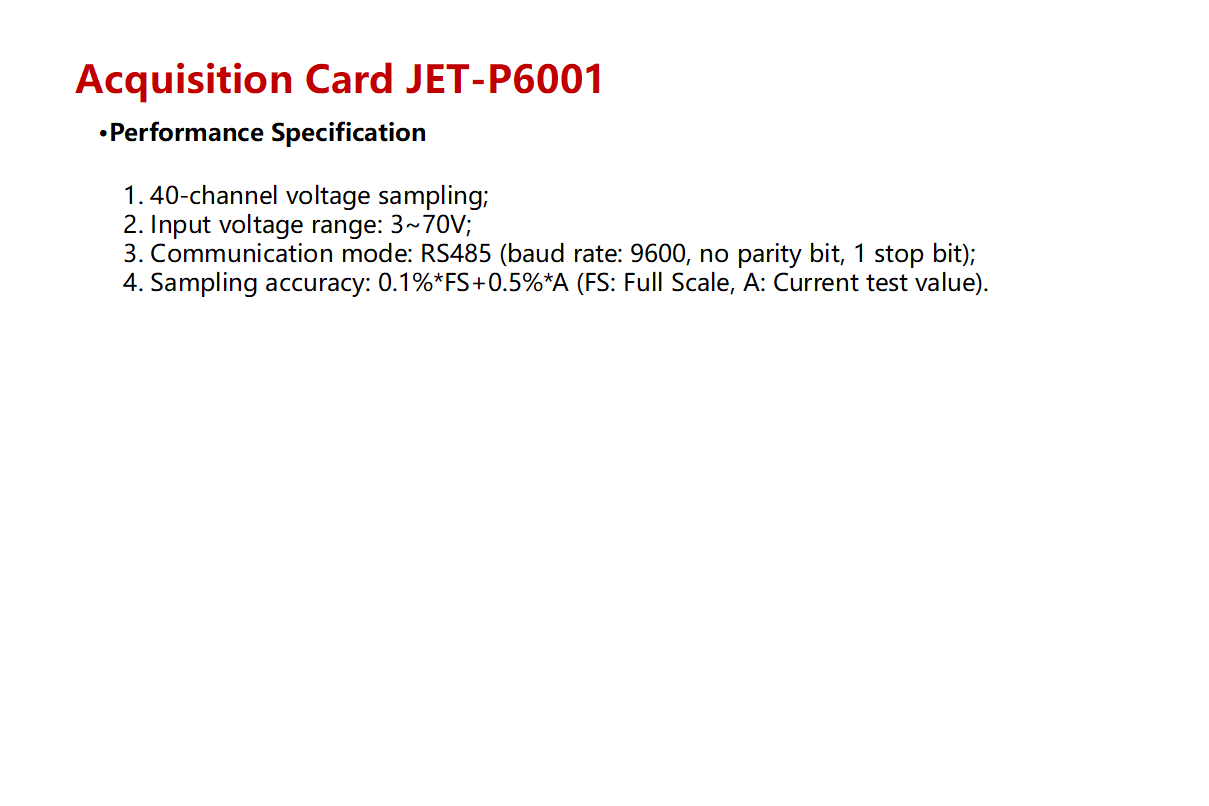

- Performance Specification
1. 40-channel voltage sampling;
2. Input voltage range: 3~70V;
3. Communication mode: RS485 (baud rate: 9600, no parity bit, 1 stop bit);
4. Sampling accuracy: 0.1%*FS+0.5%*A (FS: Full Scale, A: Current test value). - Product Technical Specifications

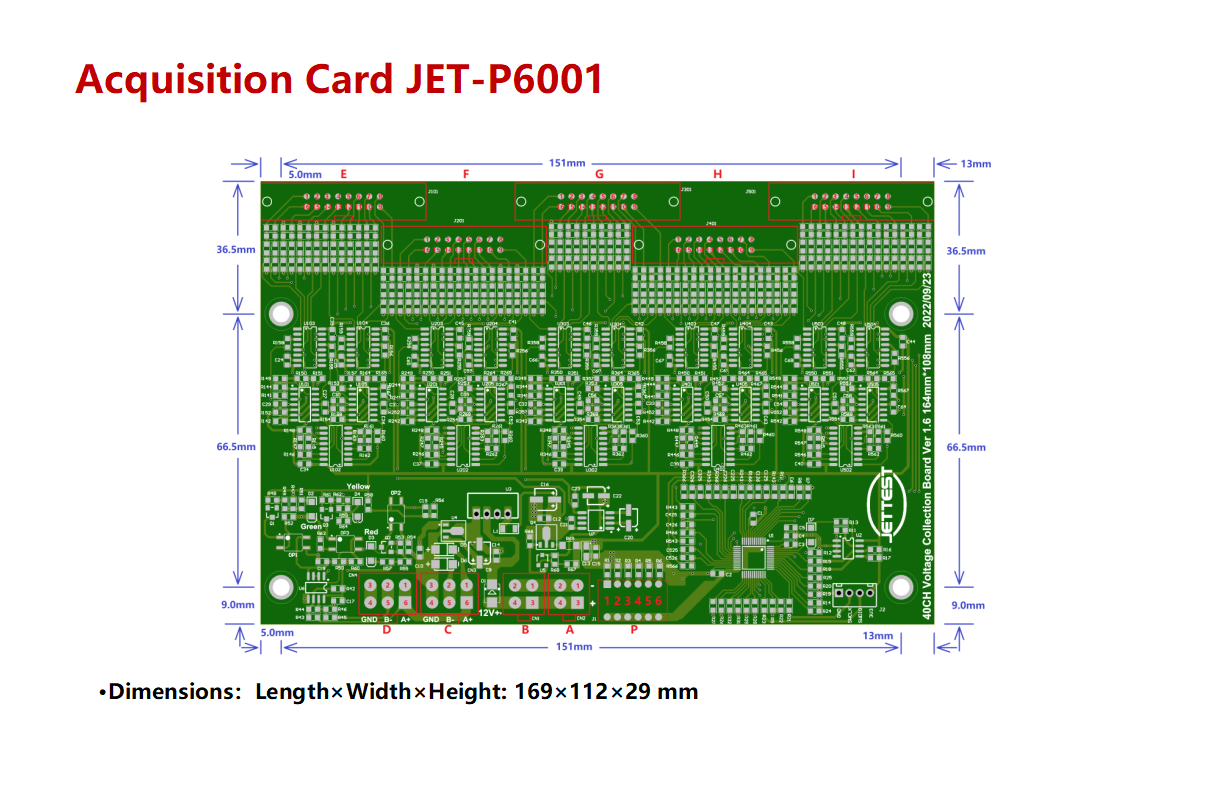

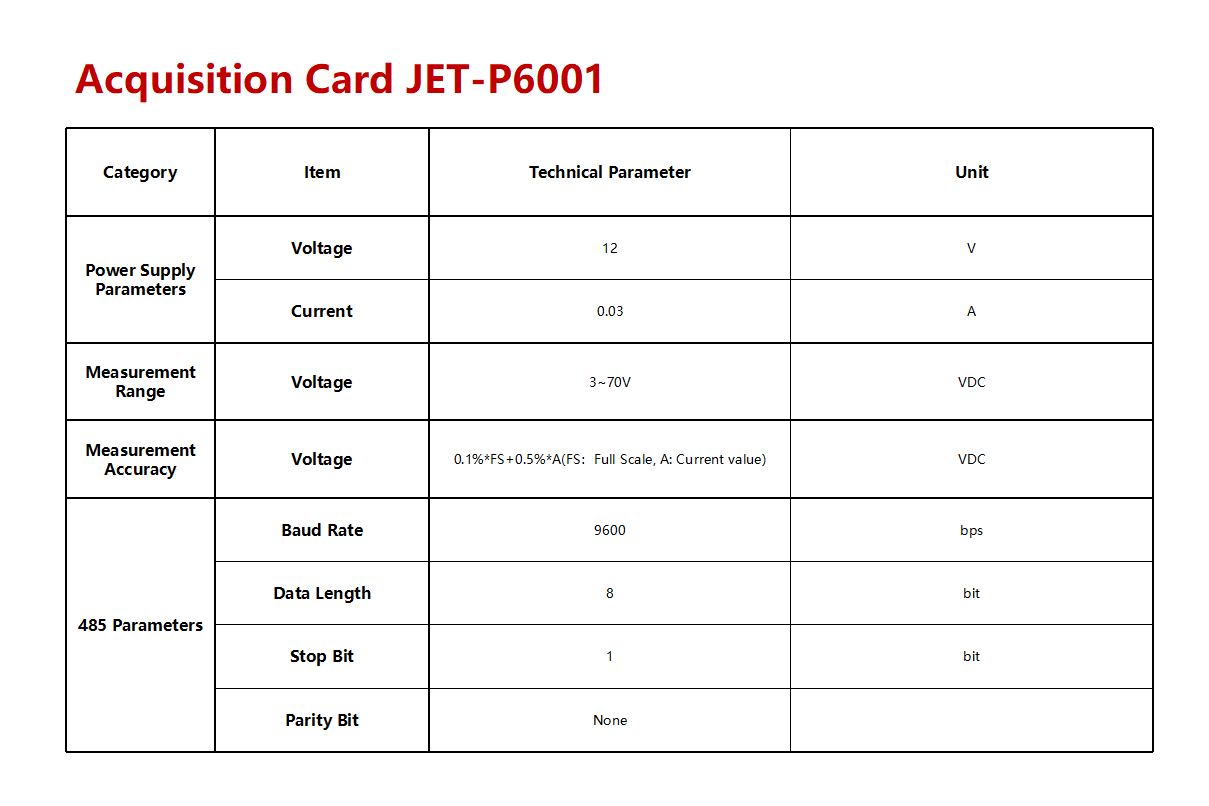

Category Item Technical Parameter Unit Power Supply Parameters Voltage 12 V Current 0.03 A Measurement Range Voltage 3~70V VDC Measurement Accuracy Voltage 0.1%*FS+0.5%*A(FS：Full Scale, A: Current value) VDC 485 Parameters Baud Rate 9600 bps Data Length 8 bit Stop Bit 1 bit Parity Bit None - Dimensions：Length×Width×Height: 169×112×29 mm
- Port Definition and Pinout

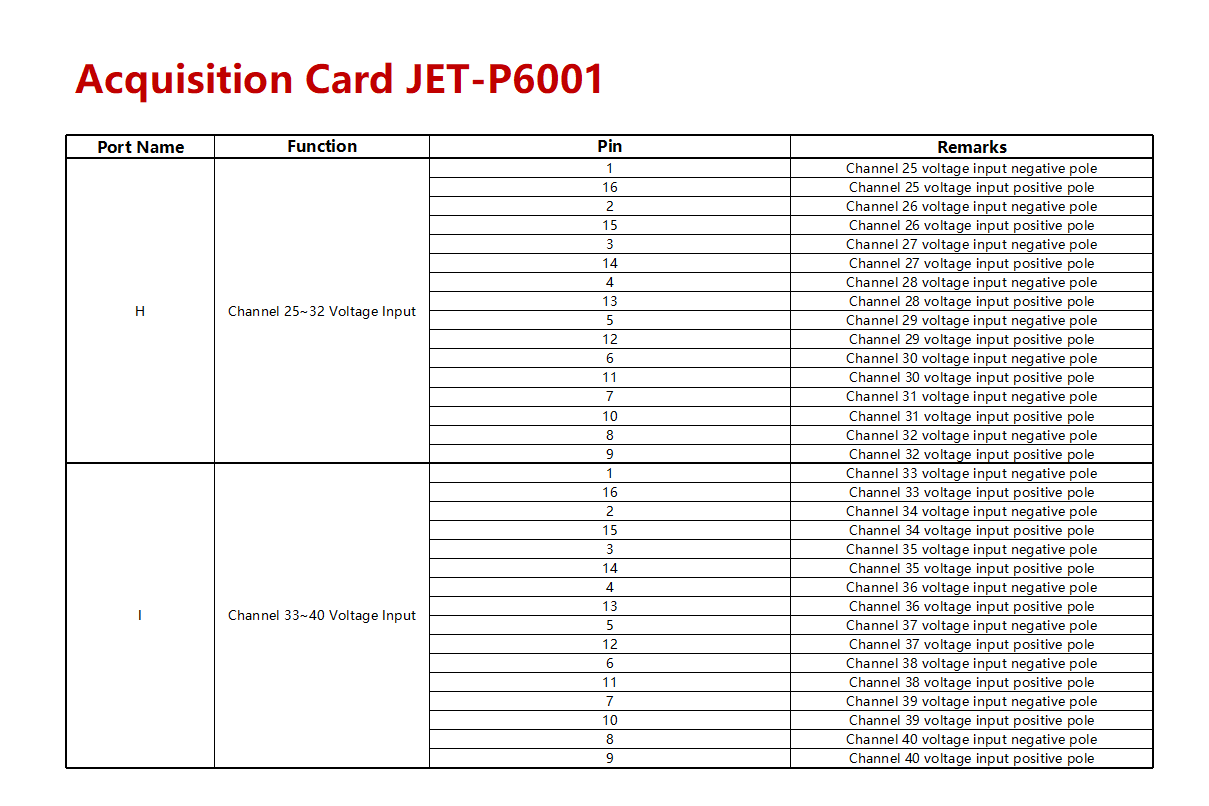

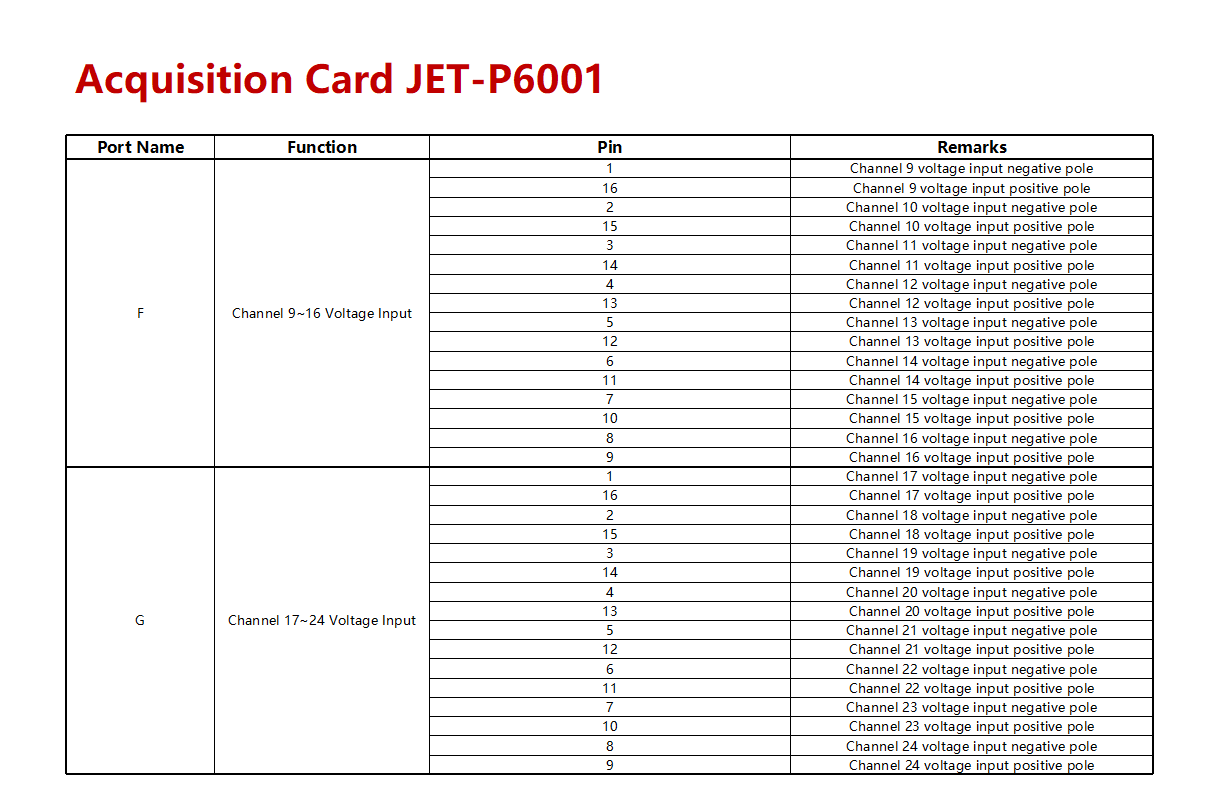

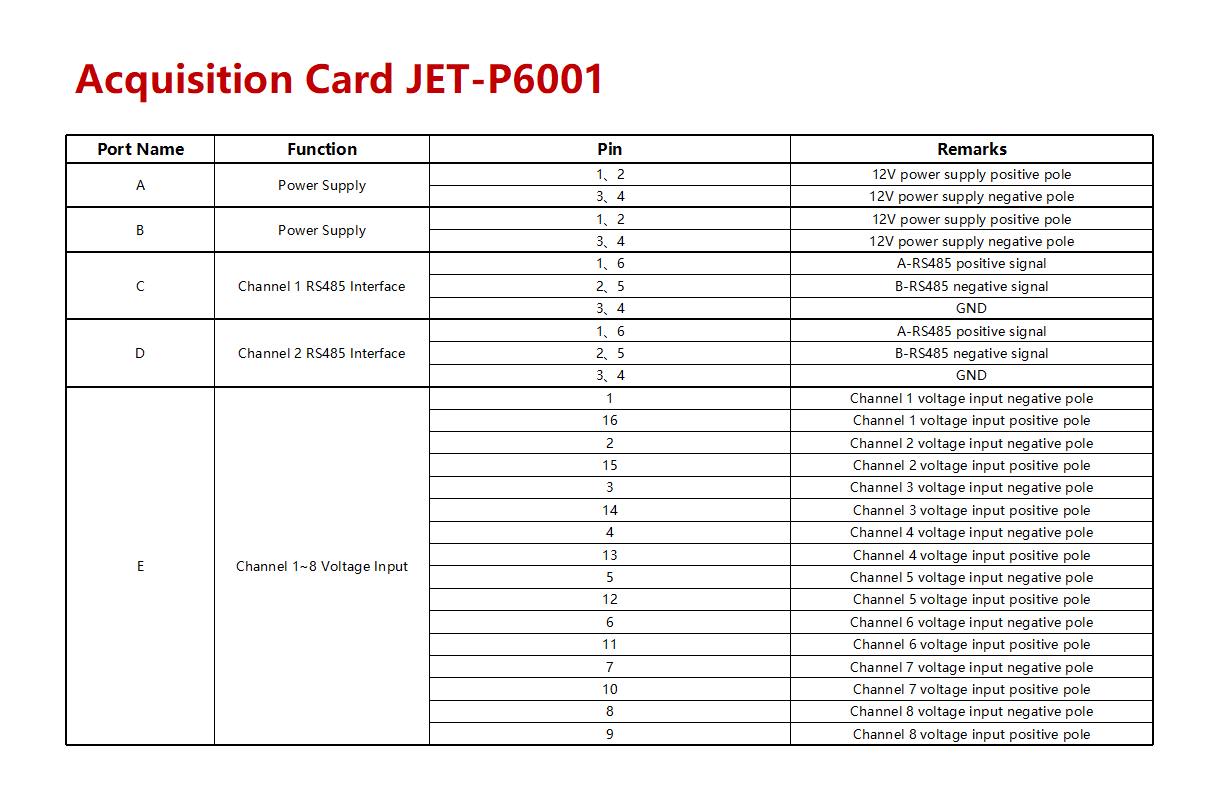

Port Name Function Pin Remarks A Power Supply 1、2 12V power supply positive pole 3、4 12V power supply negative pole B Power Supply 1、2 12V power supply positive pole 3、4 12V power supply negative pole C Channel 1 RS485 Interface 1、6 A-RS485 positive signal 2、5 B-RS485 negative signal 3、4 GND D Channel 2 RS485 Interface 1、6 A-RS485 positive signal 2、5 B-RS485 negative signal 3、4 GND E Channel 1~8 Voltage Input 1 Channel 1 voltage input negative pole 16 Channel 1 voltage input positive pole 2 Channel 2 voltage input negative pole 15 Channel 2 voltage input positive pole 3 Channel 3 voltage input negative pole 14 Channel 3 voltage input positive pole 4 Channel 4 voltage input negative pole 13 Channel 4 voltage input positive pole 5 Channel 5 voltage input negative pole 12 Channel 5 voltage input positive pole 6 Channel 6 voltage input negative pole 11 Channel 6 voltage input positive pole 7 Channel 7 voltage input negative pole 10 Channel 7 voltage input positive pole 8 Channel 8 voltage input negative pole 9 Channel 8 voltage input positive pole F Channel 9~16 Voltage Input 1 Channel 9 voltage input negative pole 16 Channel 9 voltage input positive pole 2 Channel 10 voltage input negative pole 15 Channel 10 voltage input positive pole 3 Channel 11 voltage input negative pole 14 Channel 11 voltage input positive pole 4 Channel 12 voltage input negative pole 13 Channel 12 voltage input positive pole 5 Channel 13 voltage input negative pole 12 Channel 13 voltage input positive pole 6 Channel 14 voltage input negative pole 11 Channel 14 voltage input positive pole 7 Channel 15 voltage input negative pole 10 Channel 15 voltage input positive pole 8 Channel 16 voltage input negative pole 9 Channel 16 voltage input positive pole G Channel 17~24 Voltage Input 1 Channel 17 voltage input negative pole 16 Channel 17 voltage input positive pole 2 Channel 18 voltage input negative pole 15 Channel 18 voltage input positive pole 3 Channel 19 voltage input negative pole 14 Channel 19 voltage input positive pole 4 Channel 20 voltage input negative pole 13 Channel 20 voltage input positive pole 5 Channel 21 voltage input negative pole 12 Channel 21 voltage input positive pole 6 Channel 22 voltage input negative pole 11 Channel 22 voltage input positive pole 7 Channel 23 voltage input negative pole 10 Channel 23 voltage input positive pole 8 Channel 24 voltage input negative pole 9 Channel 24 voltage input positive pole H Channel 25~32 Voltage Input 1 Channel 25 voltage input negative pole 16 Channel 25 voltage input positive pole 2 Channel 26 voltage input negative pole 15 Channel 26 voltage input positive pole 3 Channel 27 voltage input negative pole 14 Channel 27 voltage input positive pole 4 Channel 28 voltage input negative pole 13 Channel 28 voltage input positive pole 5 Channel 29 voltage input negative pole 12 Channel 29 voltage input positive pole 6 Channel 30 voltage input negative pole 11 Channel 30 voltage input positive pole 7 Channel 31 voltage input negative pole 10 Channel 31 voltage input positive pole 8 Channel 32 voltage input negative pole 9 Channel 32 voltage input positive pole I Channel 33~40 Voltage Input 1 Channel 33 voltage input negative pole 16 Channel 33 voltage input positive pole 2 Channel 34 voltage input negative pole 15 Channel 34 voltage input positive pole 3 Channel 35 voltage input negative pole 14 Channel 35 voltage input positive pole 4 Channel 36 voltage input negative pole 13 Channel 36 voltage input positive pole 5 Channel 37 voltage input negative pole 12 Channel 37 voltage input positive pole 6 Channel 38 voltage input negative pole 11 Channel 38 voltage input positive pole 7 Channel 39 voltage input negative pole 10 Channel 39 voltage input positive pole 8 Channel 40 voltage input negative pole 9 Channel 40 voltage input positive pole
