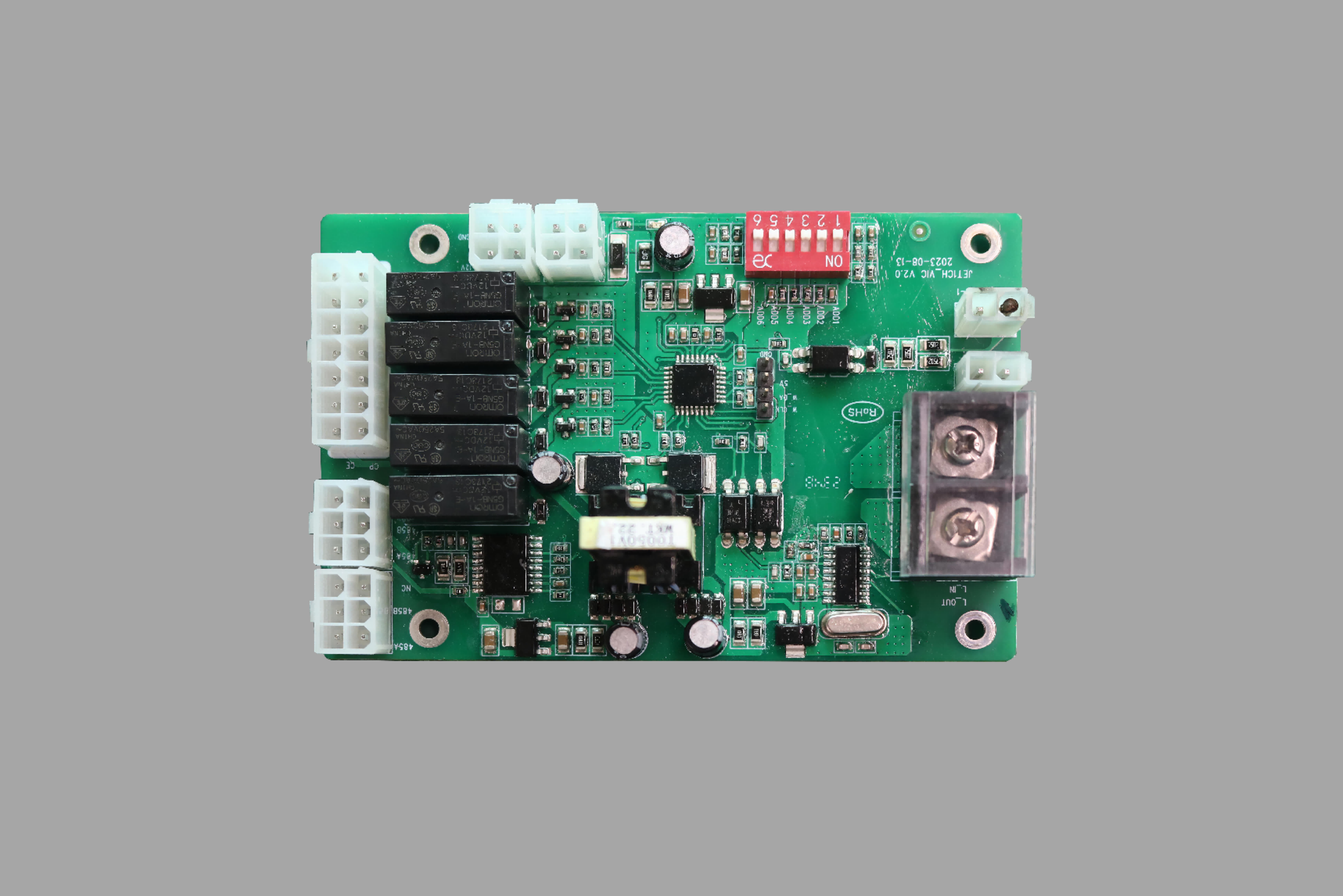

Acquisition Card JET-P6004
Acquisition Card JET-P6004
¥150.00
JET-P6004 is a single-channel AC voltage and current acquisition card, powered by 12V. It supports 0~300VAC voltage and 0~10AAC current sampling, transmits data via RS485 communication (baud rate 115200bps) with specified sampling accuracy. With dimensions of 115×76×35mm, it also integrates relay control function, suitable for various AC acquisition scenarios.
| Mechanical Dimensions(mm) | 115×76 |
|---|---|
| Delivery Time | To Be Negotiated |
Product Features

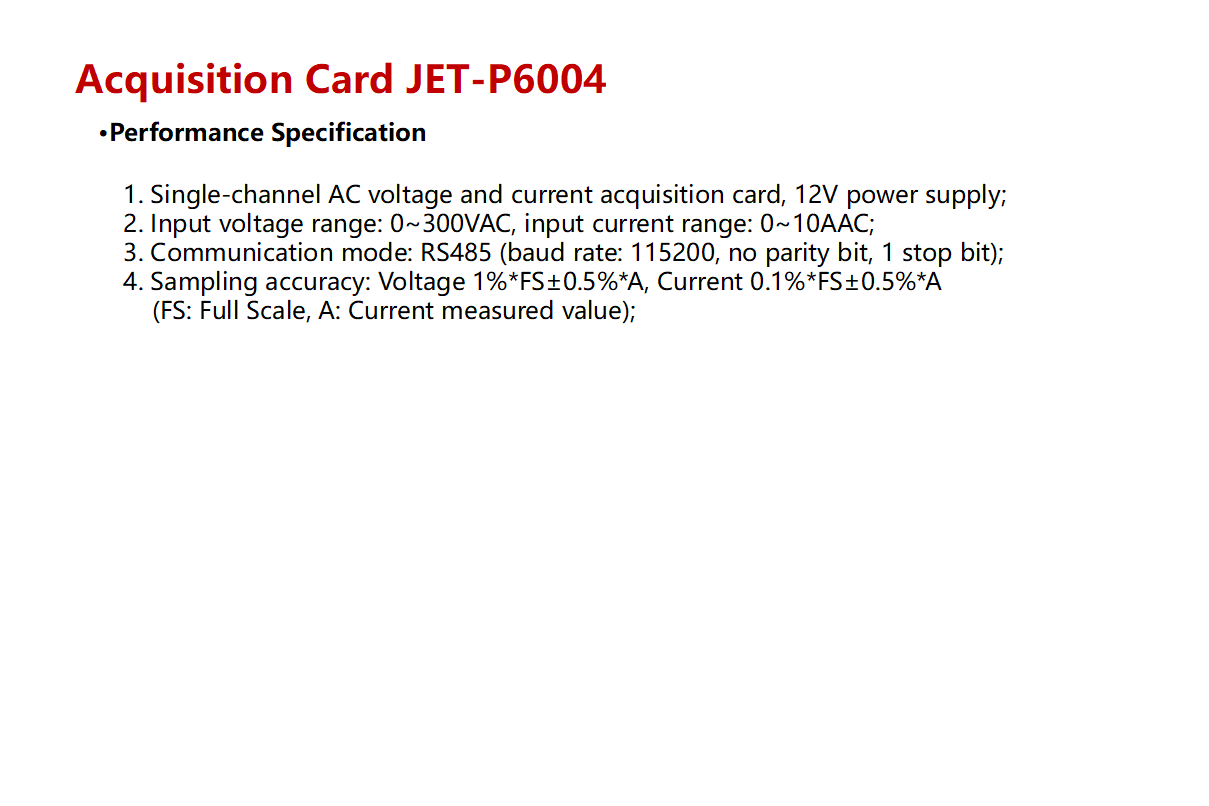

Performance Specification
- Single-channel AC voltage and current acquisition card, 12V power supply;
- Input voltage range: 0~300VAC, input current range: 0~10AAC;
- Communication mode: RS485 (baud rate: 115200, no parity bit, 1 stop bit);
- Sampling accuracy: Voltage 1%*FS±0.5%*A, Current 0.1%*FS±0.5%*A (FS: Full Scale, A: Current measured value);

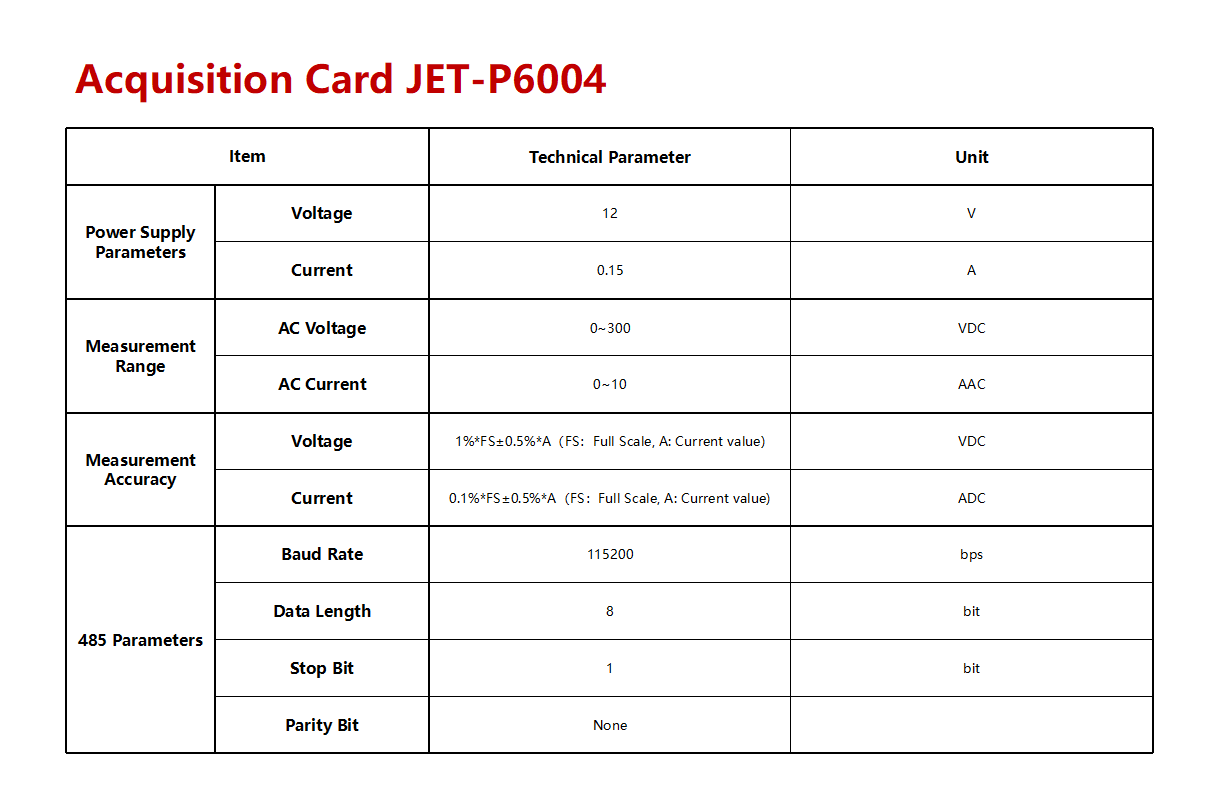

Technical Specifications
Power Supply and Measurement
| Parameter | Specification |
|---|---|
| Power Supply Parameters: Voltage | 12 V |
| Power Supply Parameters: Current | 0.15 A |
| Measurement Range: AC Voltage | 0~300 VDC |
| Measurement Range: AC Current | 0~10 AAC |
| Measurement Accuracy: Voltage | 1%*FS±0.5%*A（FS：Full Scale, A: Current value) VDC |
| Measurement Accuracy: Current | 0.1%*FS±0.5%*A（FS：Full Scale, A: Current value) ADC |
RS485 Parameters
| Parameter | Specification |
|---|---|
| Baud Rate | 115200 bps |
| Data Length | 8 bit |
| Stop Bit | 1 bit |
| Parity Bit | None |

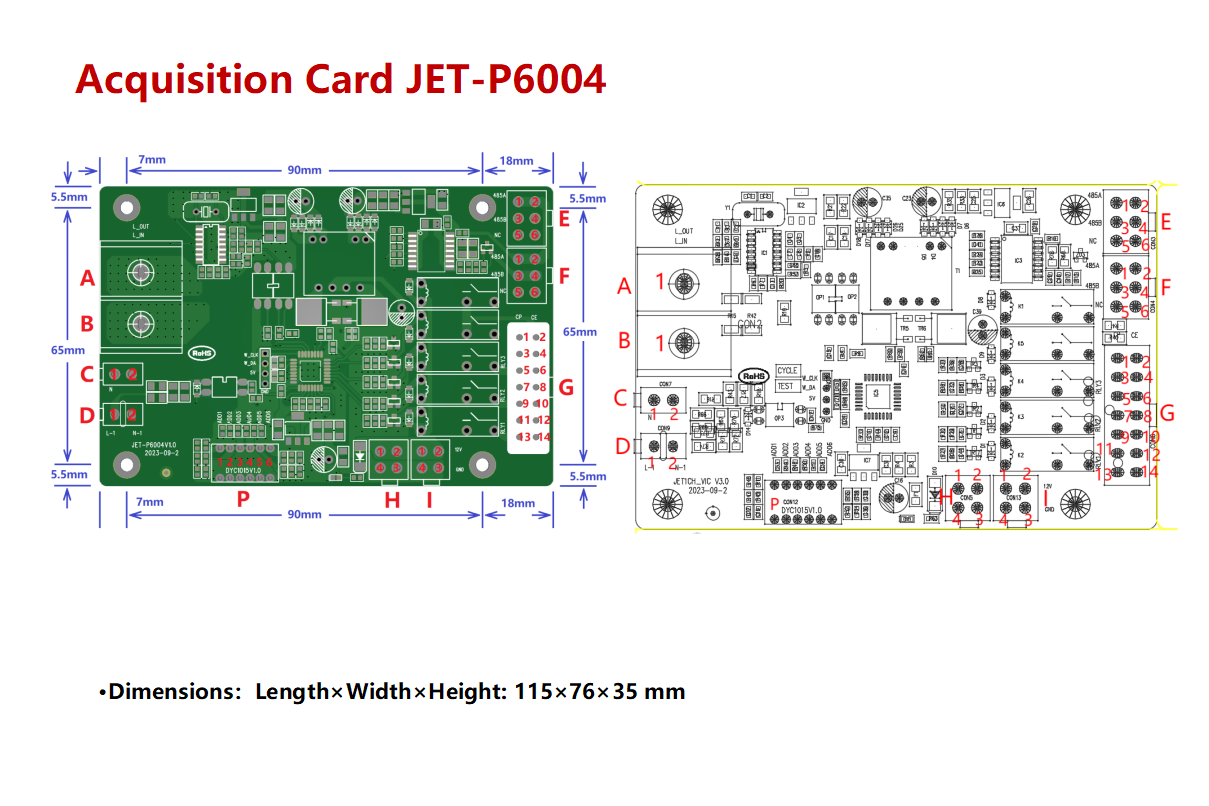

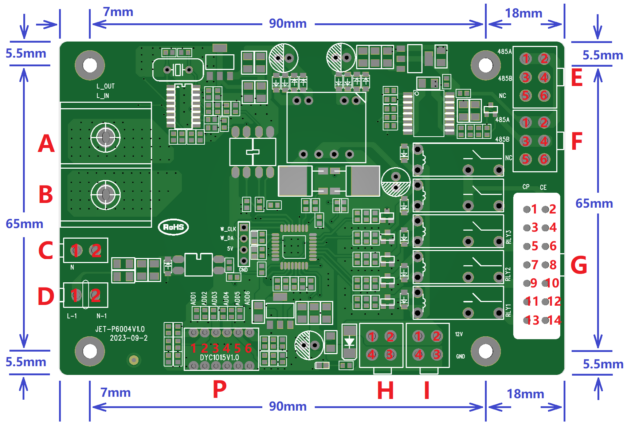

Dimensions
Length×Width×Height: 115×76×35 mm

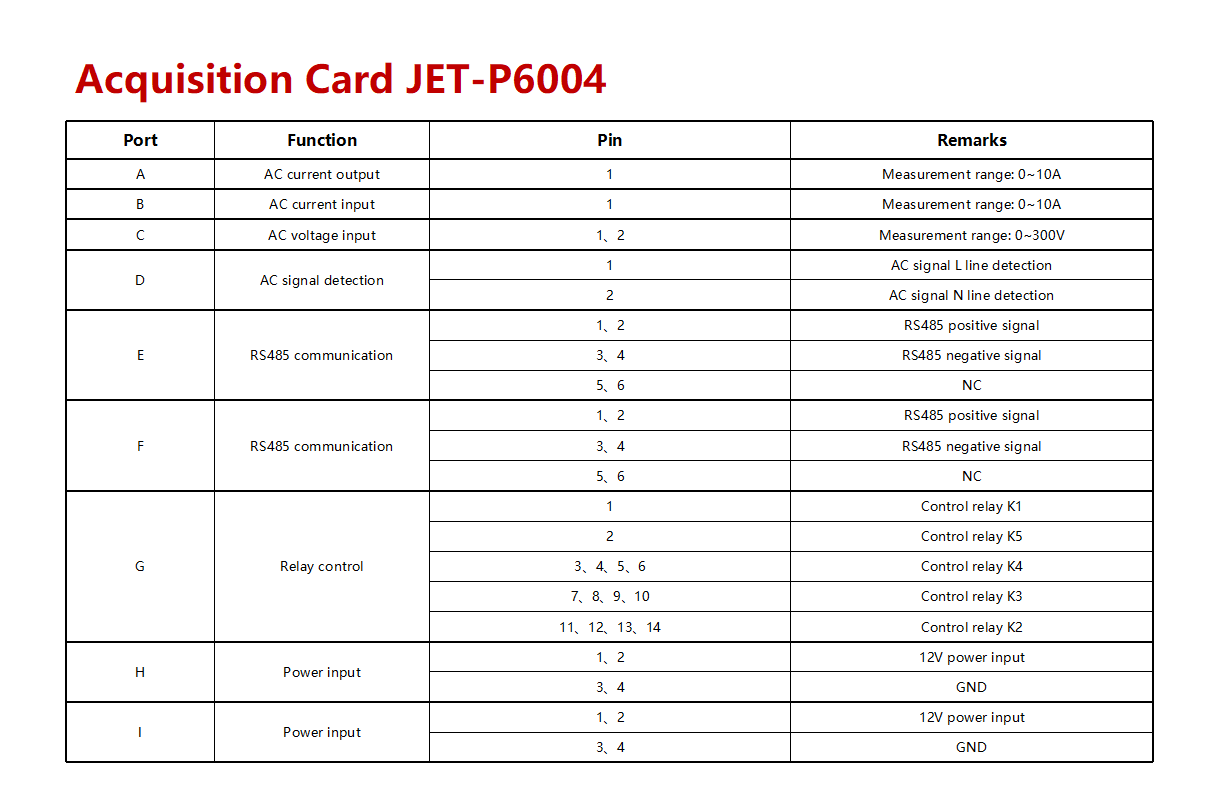

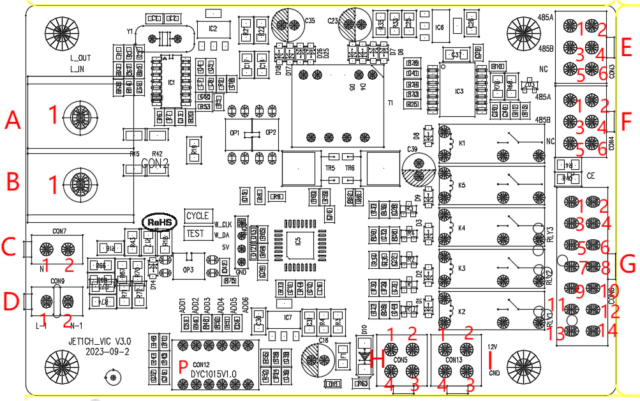

Port Definition and Pinout
| Port and Function | Pin and Remarks |
|---|---|
| Port A AC current output |
|
| Port B AC current input |
|
| Port C AC voltage input |
|
| Port D AC signal detection |
|
| Port E RS485 communication |
|
| Port F RS485 communication |
|
| Port G Relay control |
|
| Port H Power input |
|
| Port I Power input |
|
