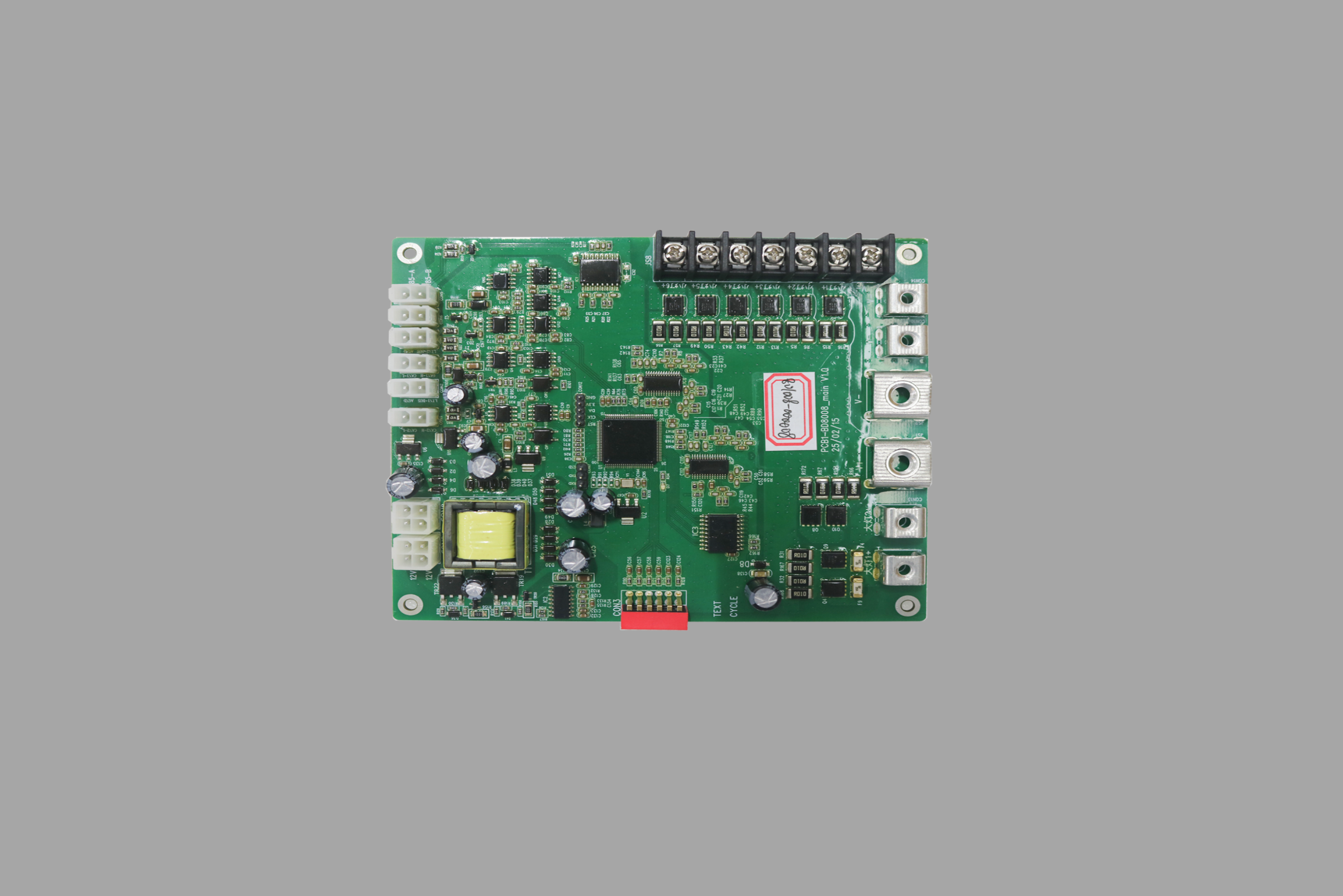

Control Card JET-P4001
Control Card JET-P4001
¥380.00
This is a high-precision multi-channel current sampling module integrating current measurement and multi-protocol communication functions, providing stable and reliable performance for industrial and automotive lighting control systems.
| Mechanical Dimensions(mm) | 120*140 |
|---|---|
| Delivery Time | To Be Negotiated |
Product Features

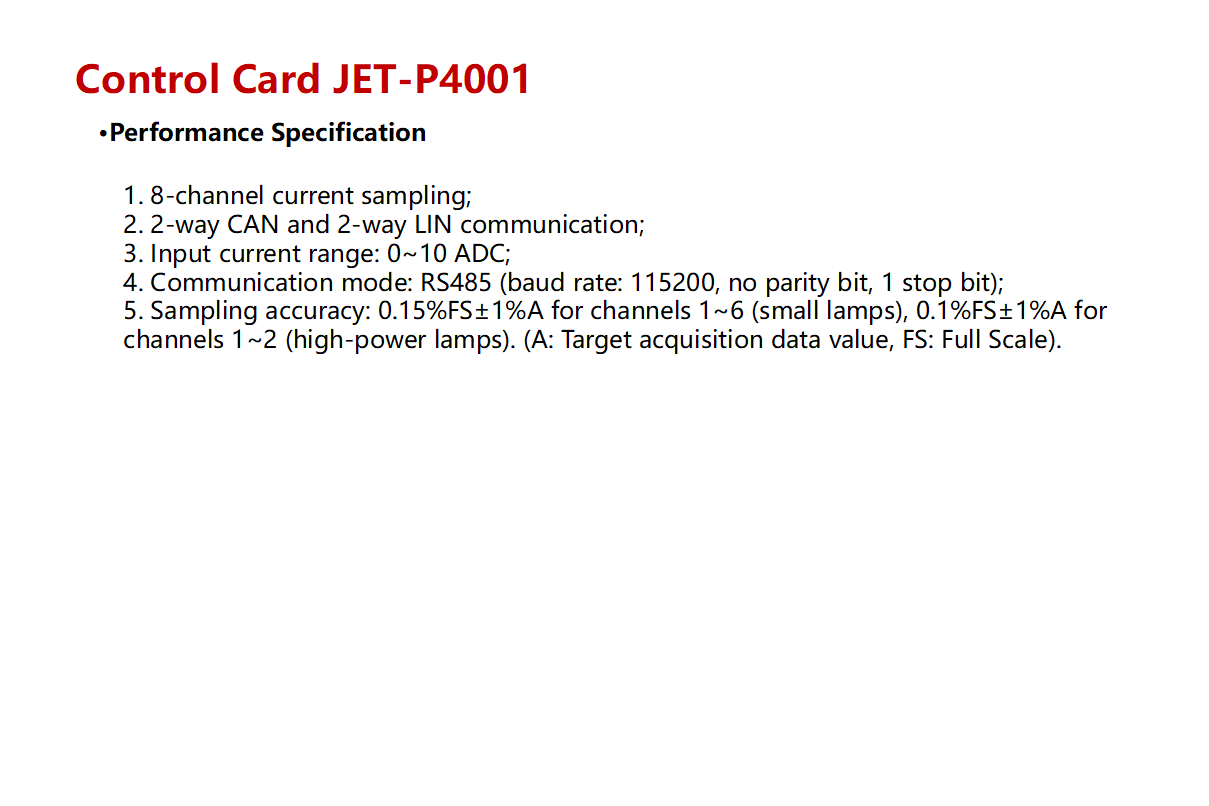

Performance Specification
- 8-channel current sampling;
- 2-way CAN and 2-way LIN communication;
- Input current range: 0~10 ADC;
- Communication mode: RS485 (baud rate: 115200, no parity bit, 1 stop bit);
- Sampling accuracy: 0.15%FS±1%A for channels 1~6 (small lamps), 0.1%FS±1%A for channels 1~2 (high-power lamps). (A: Target acquisition data value, FS: Full Scale).

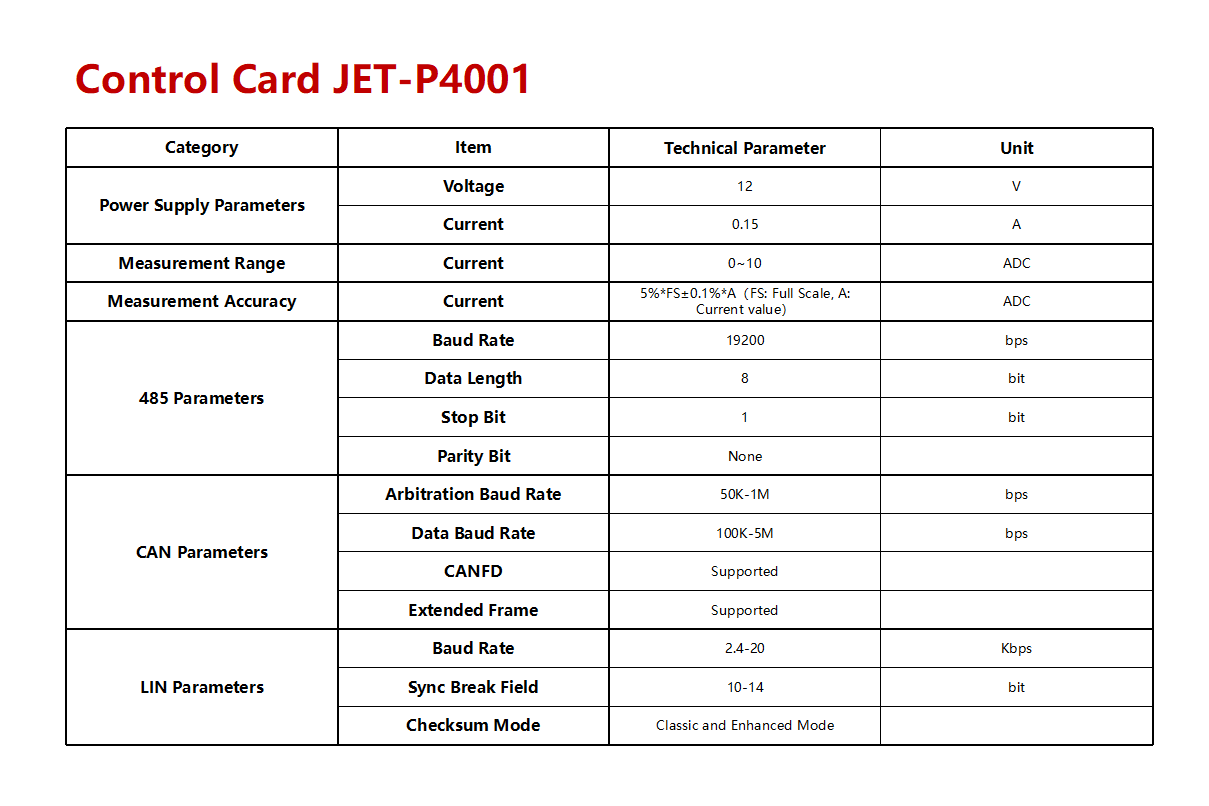

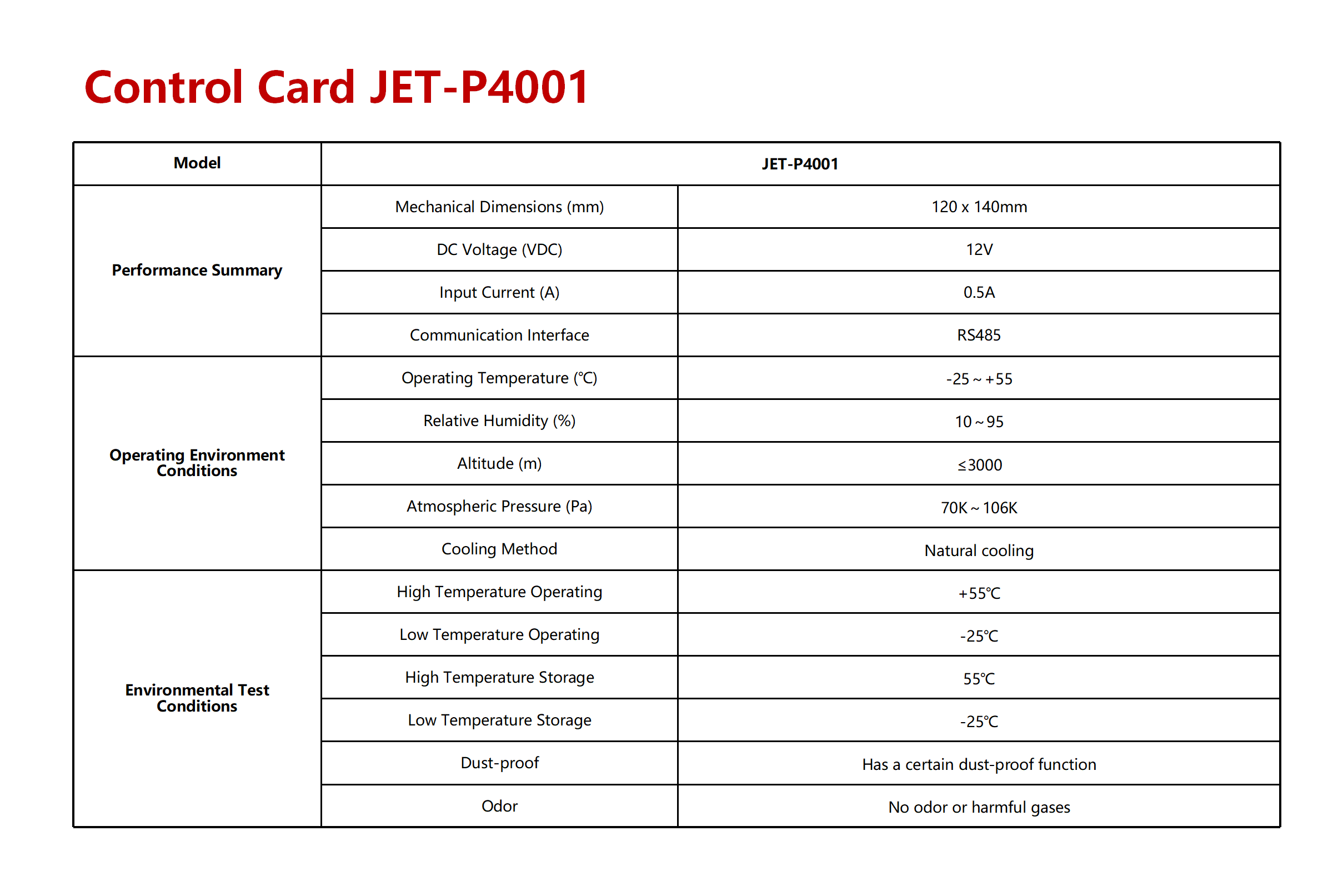

Technical Specifications
Power Supply and Measurement
| Parameter | Specification |
|---|---|
| Power Supply Parameters: Voltage | 12 V |
| Power Supply Parameters: Current | 0.15 A |
| Measurement Range: Current | 0~10 ADC |
| Measurement Accuracy: Current | 5%*FS±0.1%*A（FS: Full Scale, A: Current value） ADC |
RS485 Parameters
| Parameter | Specification |
|---|---|
| Baud Rate | 19200 bps |
| Data Length | 8 bit |
| Stop Bit | 1 bit |
| Parity Bit | None |
CAN Parameters
| Parameter | Specification |
|---|---|
| Arbitration Baud Rate | 50K-1M bps |
| Data Baud Rate | 100K-5M bps |
| CANFD | Supported |
| Extended Frame | Supported |
LIN Parameters
| Parameter | Specification |
|---|---|
| Baud Rate | 2.4-20 Kbps |
| Sync Break Field | 10-14 bit |
| Checksum Mode | Classic and Enhanced Mode |

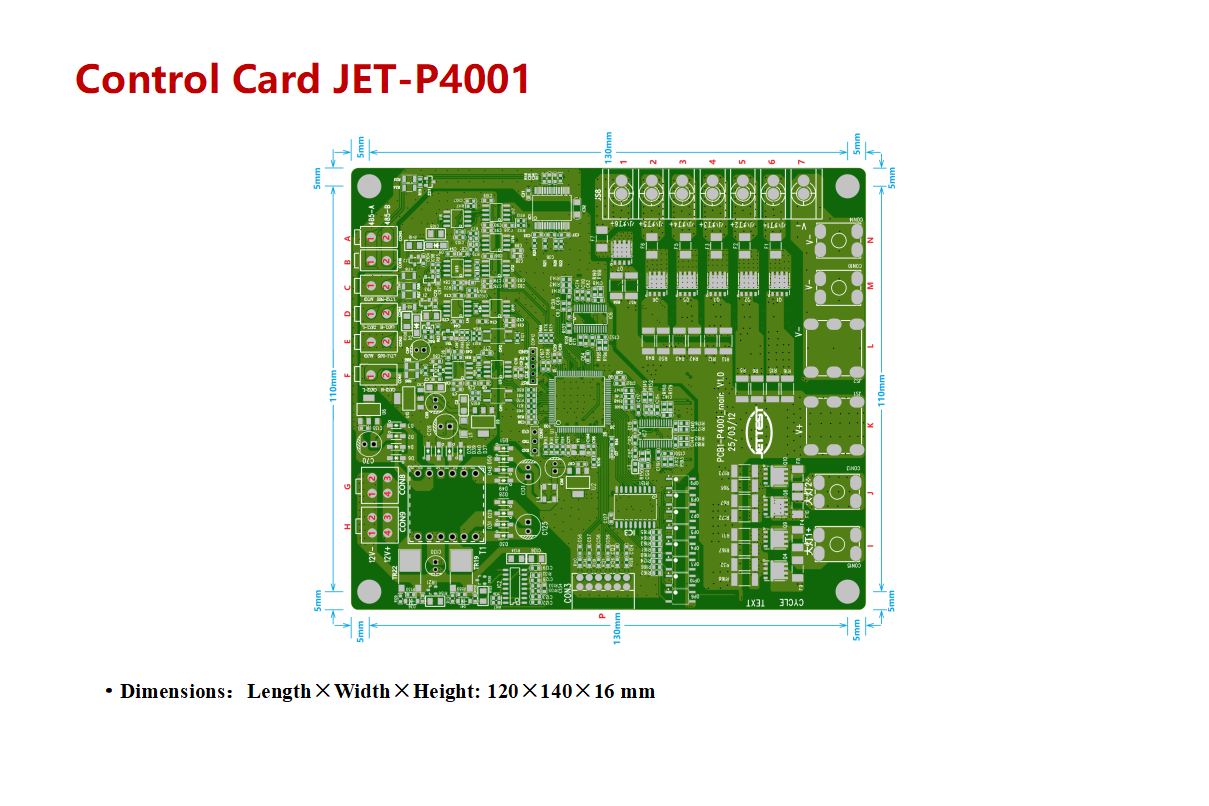

Dimensions
Length×Width×Height: 120×140×16 mm

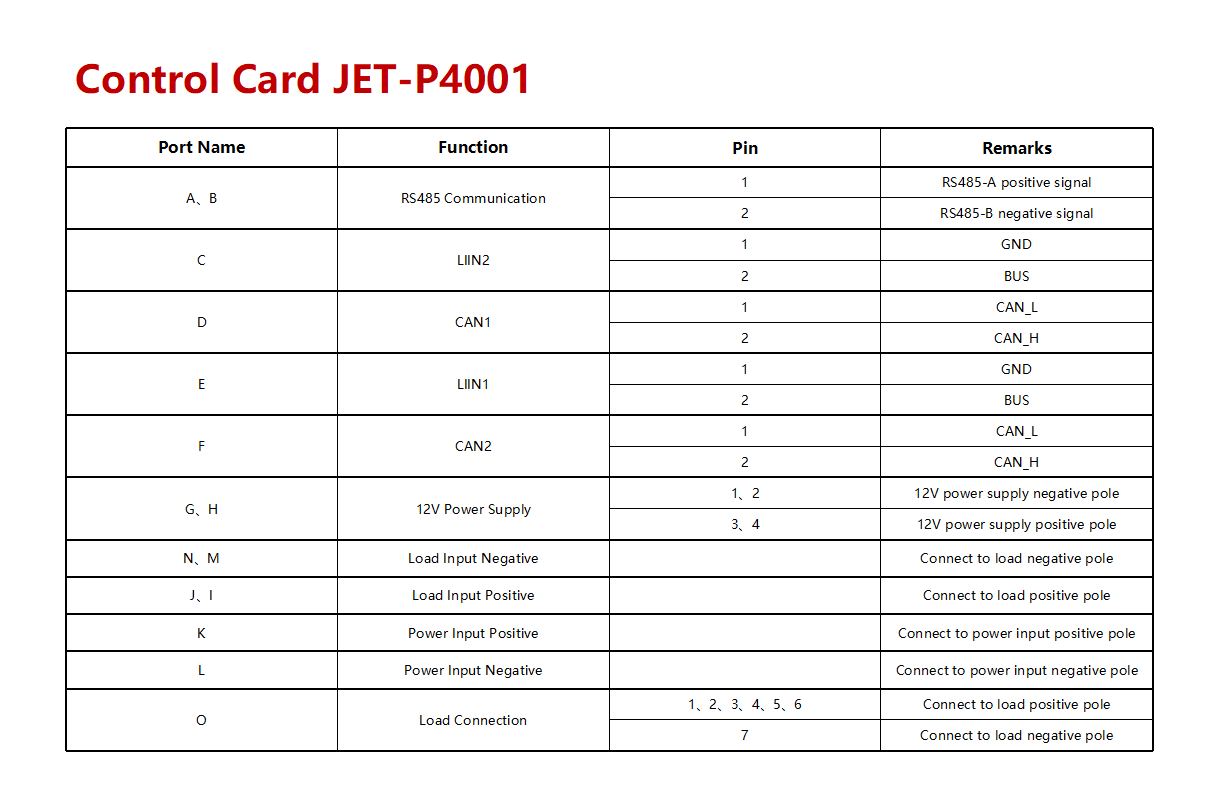

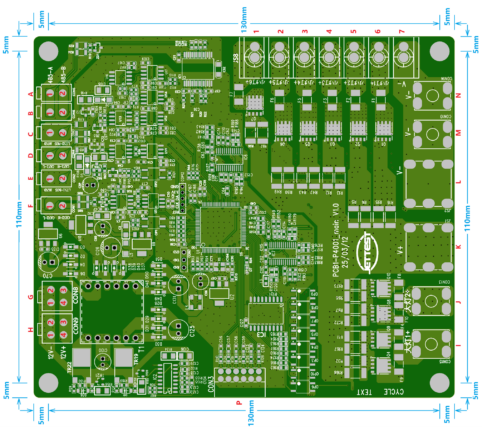

Port Definition and Pinout
| Port and Function | Pin and Remarks |
|---|---|
| Port A、B RS485 Communication |
|
| Port C LIIN2 |
|
| Port D CAN1 |
|
| Port E LIIN1 |
|
| Port F CAN2 |
|
| Port G、H 12V Power Supply |
|
| Port N、M Load Input Negative |
|
| Port J、I Load Input Positive |
|
| Port K Power Input Positive |
|
| Port L Power Input Negative |
|
| Port O Load Connection |
|
