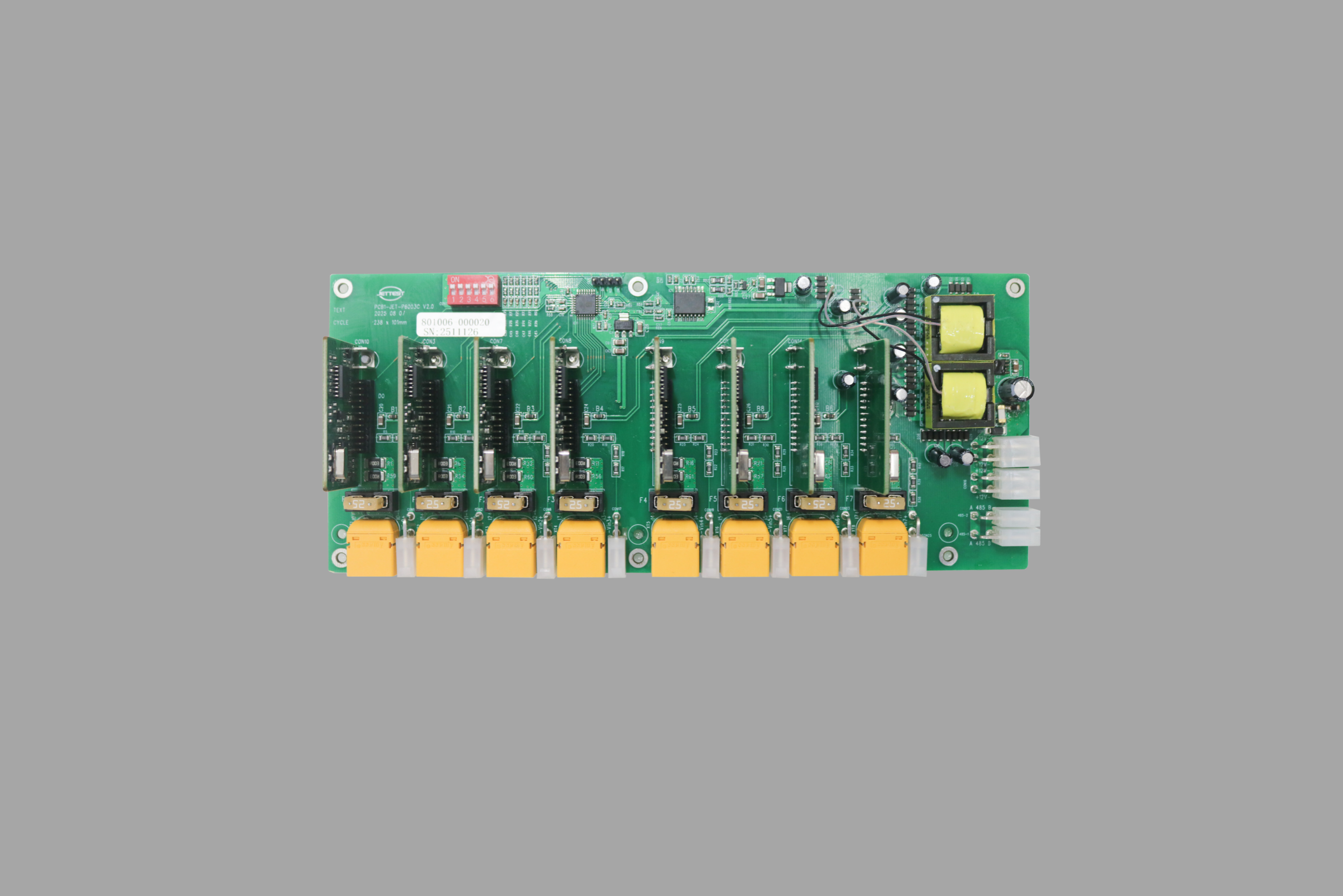

Capture Card JET-P6003E
Capture Card JET-P6003E
¥400.00

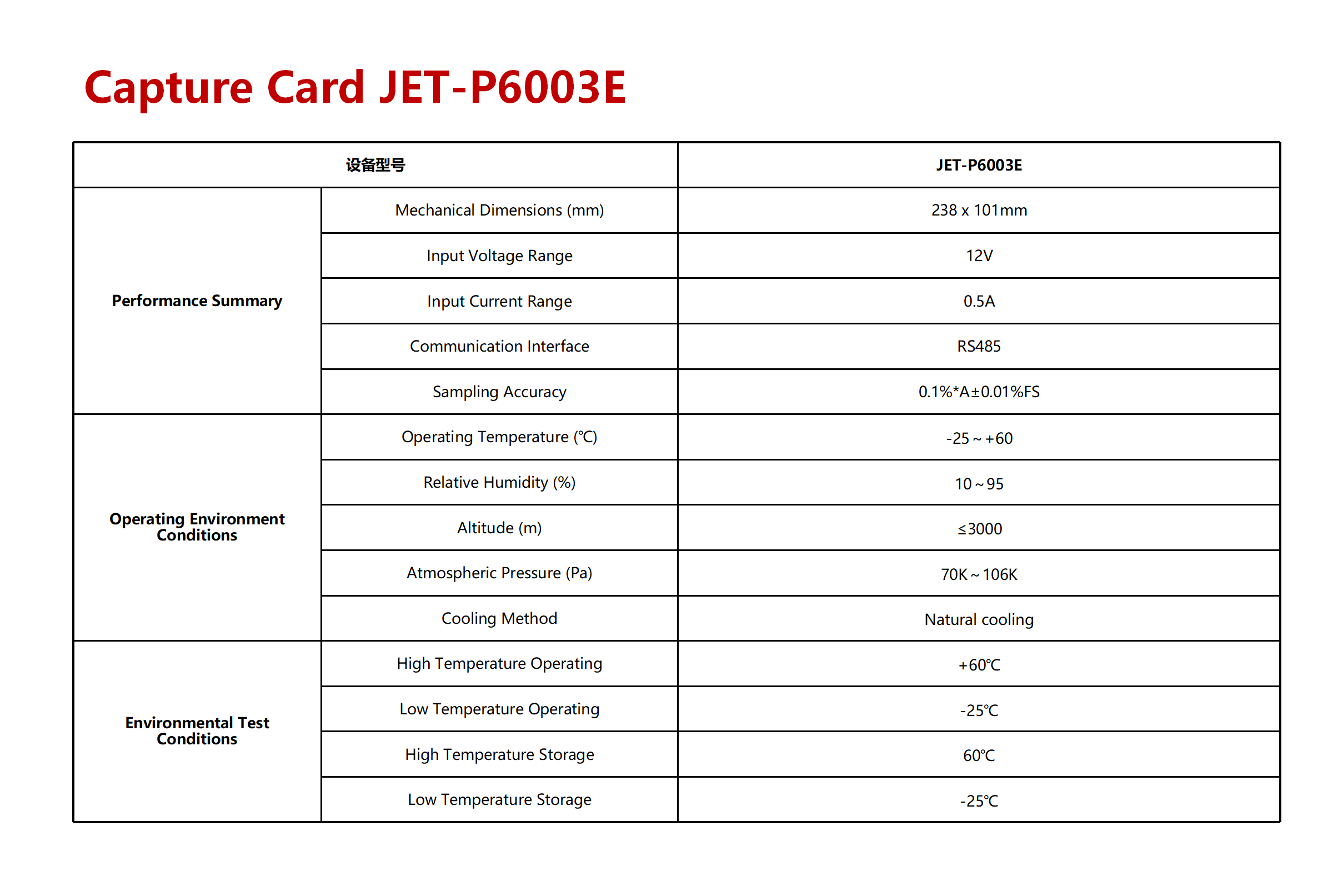

JET-P6003E is an acquisition card integrating 8-channel voltage sampling and 8-channel isolated current sampling. It supports 0~500VDC voltage and 0~20A AC/DC current sampling, adopts RS485 communication (baud rate 115200bps) with high voltage and current sampling accuracy. It operates at 12V/0.15A, with dimensions of 238×101×20mm, suitable for various industrial acquisition scenarios.
| Mechanical Dimensions(mm) | 238 x 101 |
|---|---|
| Delivery Time | To Be Negotiated |
Product Features

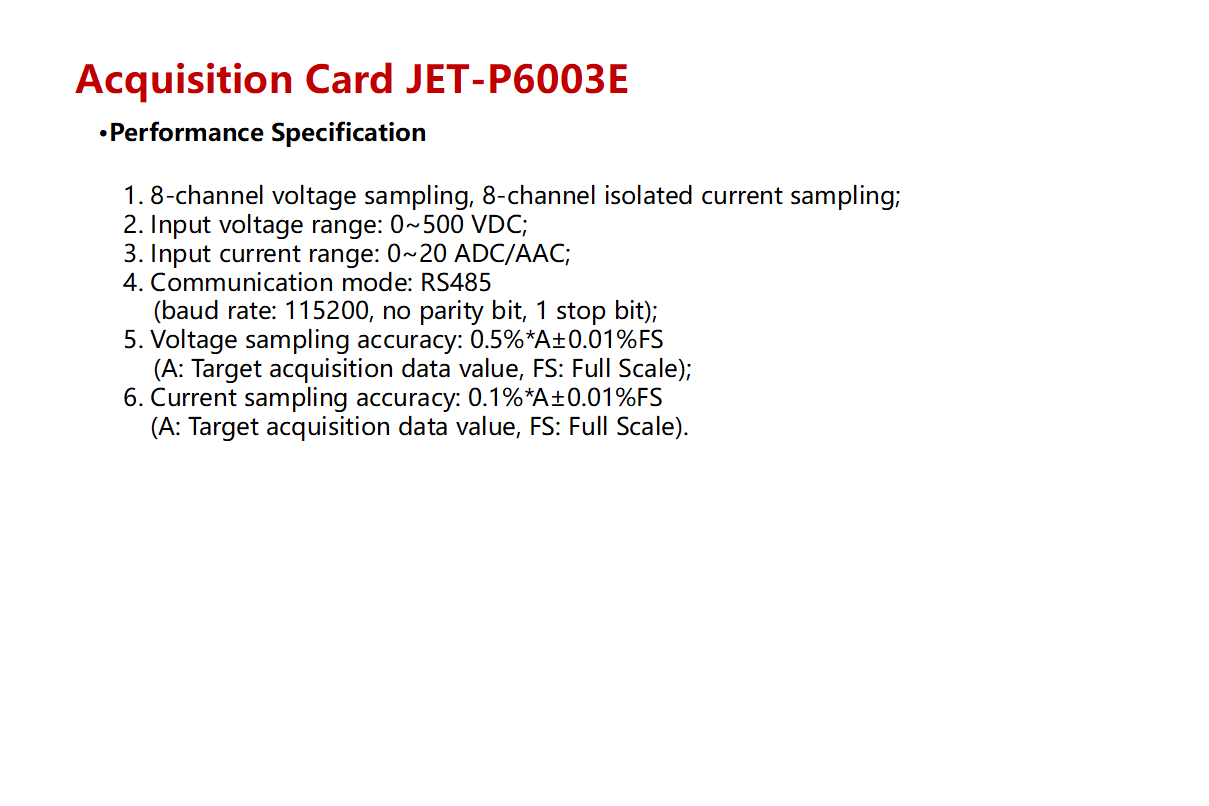

Performance Specification
- 8-channel voltage sampling, 8-channel isolated current sampling;
- Input voltage range: 0~500 VDC;
- Input current range: 0~20 ADC/AAC;
- Communication mode: RS485 (baud rate: 115200, no parity bit, 1 stop bit);
- Voltage sampling accuracy: 0.5%*A±0.01%FS (A: Target acquisition data value, FS: Full Scale);
- Current sampling accuracy: 0.1%*A±0.01%FS (A: Target acquisition data value, FS: Full Scale).

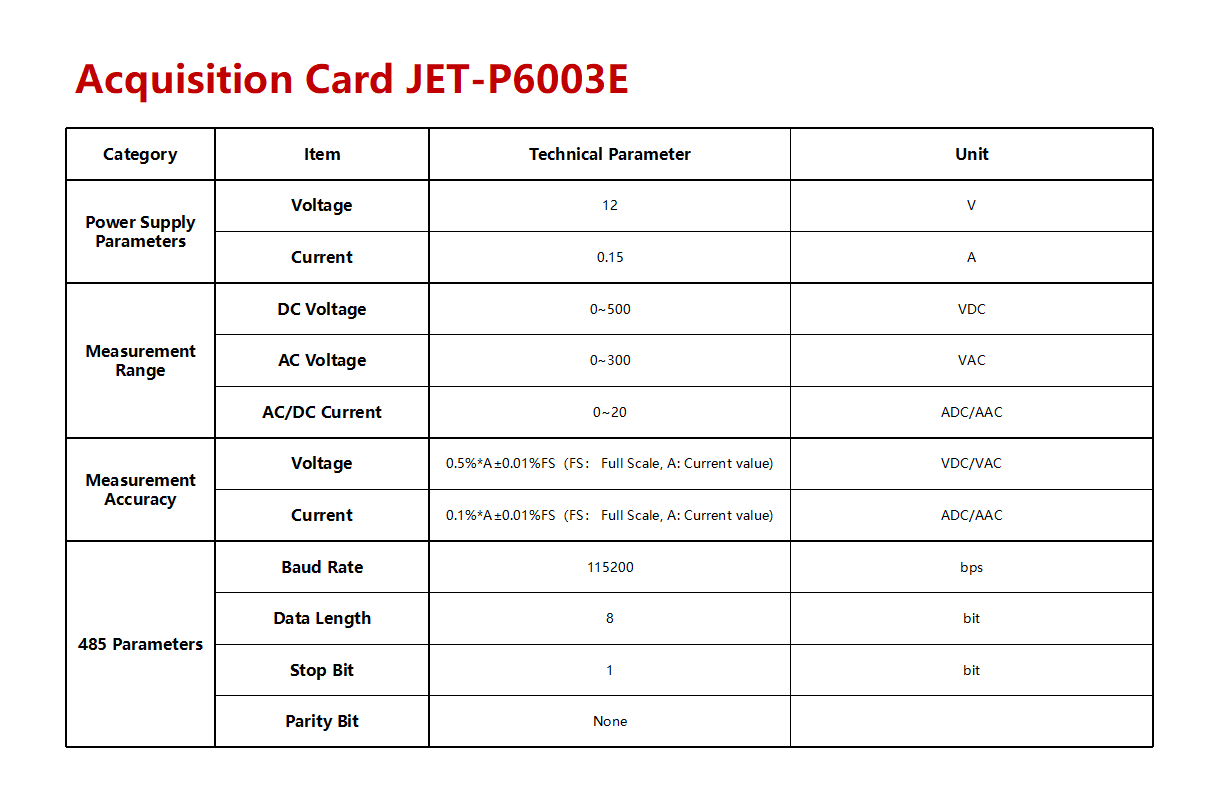

Technical Specifications
Power Supply and Measurement
| Parameter | Specification |
|---|---|
| Power Supply Parameters: Voltage | 12 V |
| Power Supply Parameters: Current | 0.15 A |
| Measurement Range: DC Voltage | 0~500 VDC |
| Measurement Range: AC Voltage | 0~300 VAC |
| Measurement Range: AC/DC Current | 0~20 ADC/AAC |
| Measurement Accuracy: Voltage | 0.5%*A±0.01%FS（FS： Full Scale, A: Current value) VDC/VAC |
| Measurement Accuracy: Current | 0.1%*A±0.01%FS（FS： Full Scale, A: Current value) ADC/AAC |
RS485 Parameters
| Parameter | Specification |
|---|---|
| Baud Rate | 115200 bps |
| Data Length | 8 bit |
| Stop Bit | 1 bit |
| Parity Bit | None |

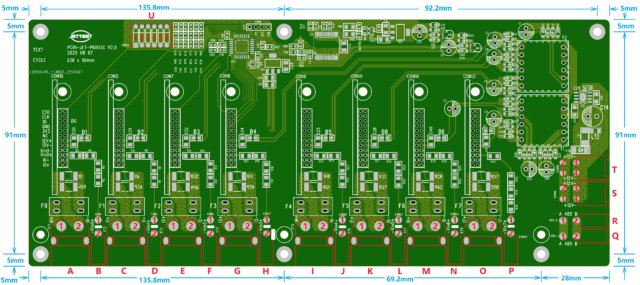

Dimensions
Length×Width×Height: 238×101×20 mm

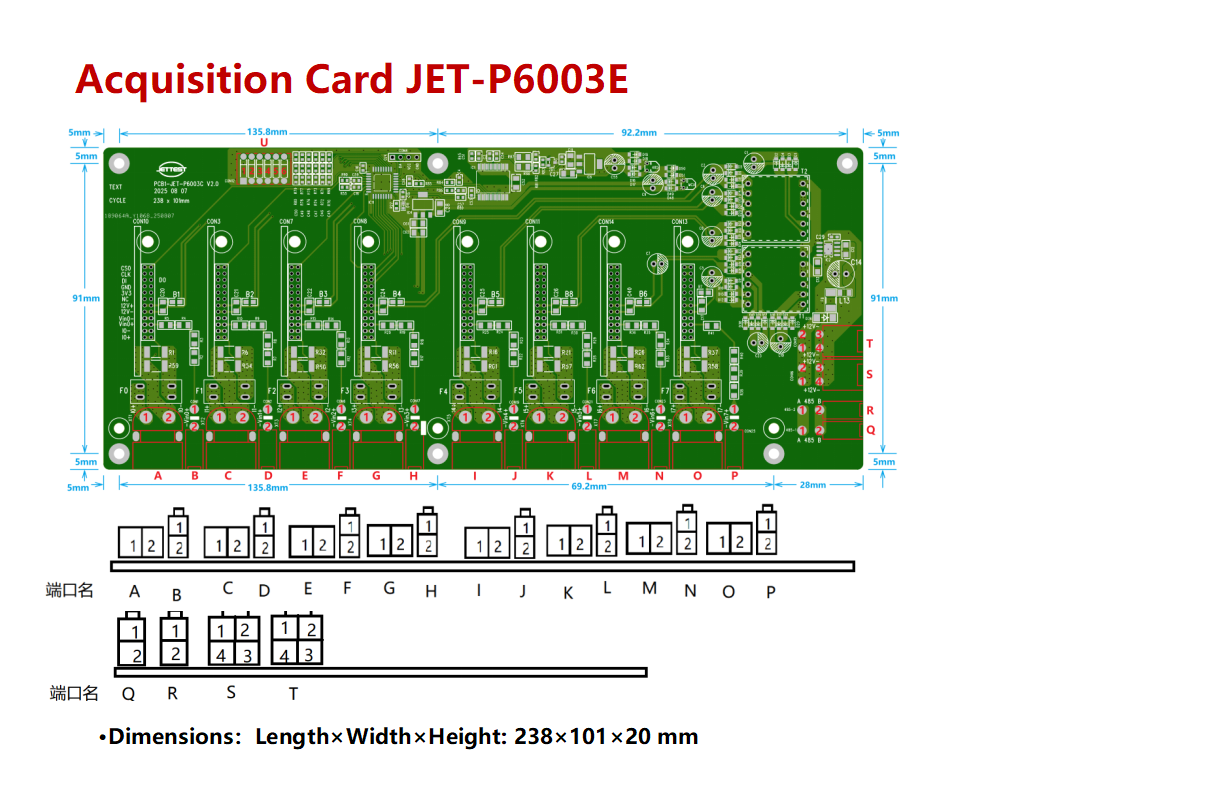

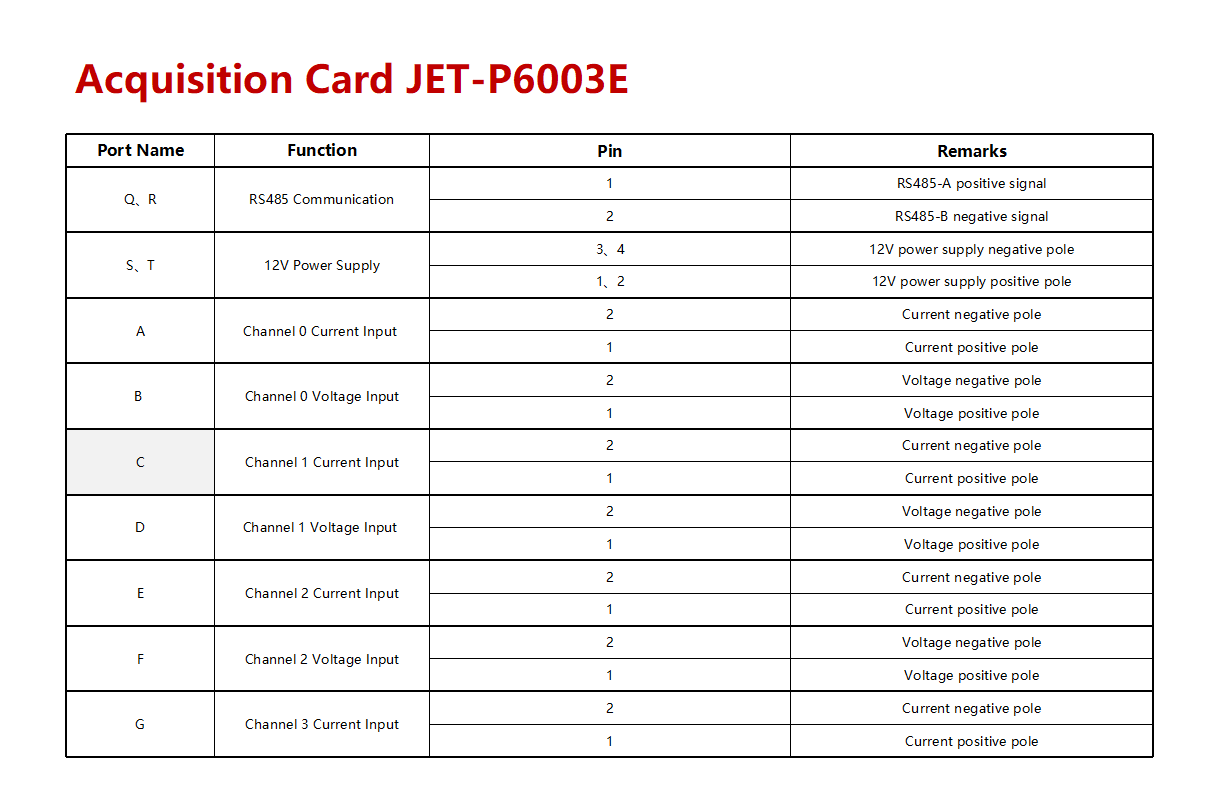

Port Definition and Pinout
| Port and Function | Pin and Remarks |
|---|---|
| Port Q、R RS485 Communication |
|
| Port S、T 12V Power Supply |
|
| Port A Channel 0 Current Input |
|
| Port B Channel 0 Voltage Input |
|
| Port C Channel 1 Current Input |
|
| Port D Channel 1 Voltage Input |
|
| Port E Channel 2 Current Input |
|
| Port F Channel 2 Voltage Input |
|
| Port G Channel 3 Current Input |
|

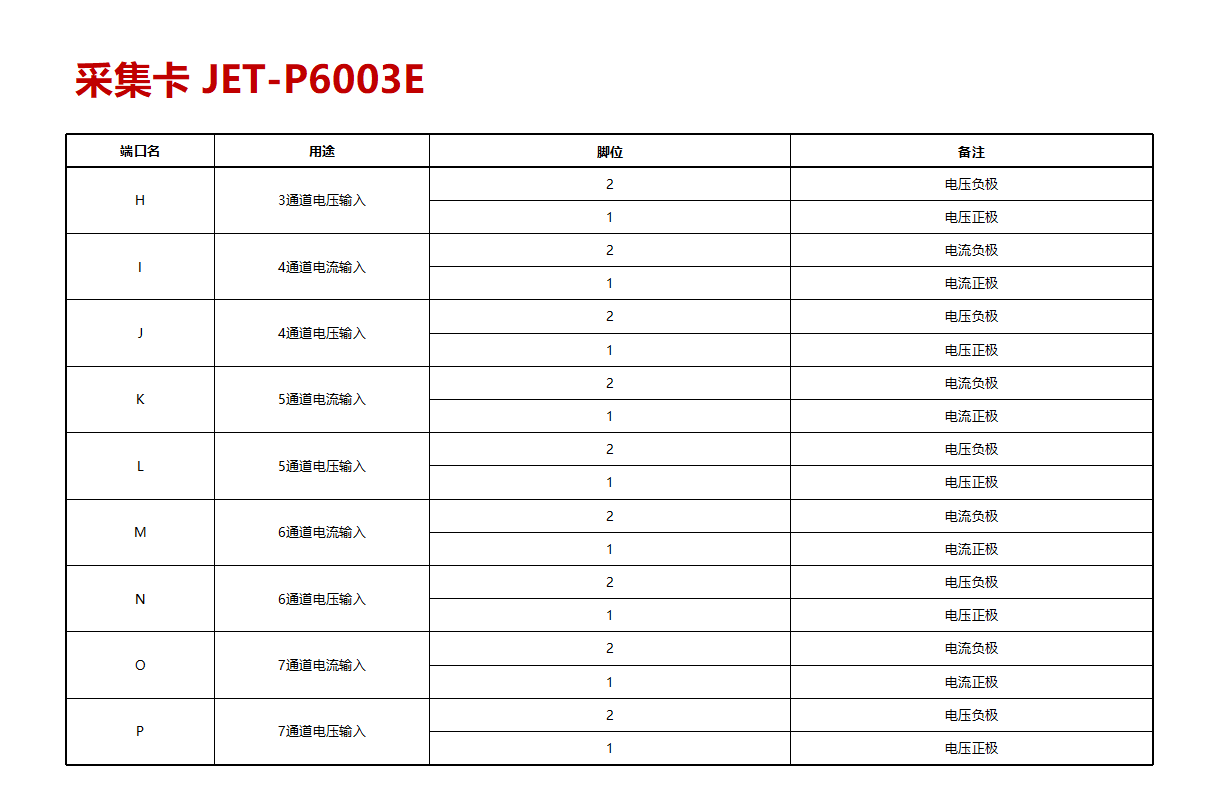

| Port H Channel 3 Voltage Input |
|
| Port I Channel 4 Current Input |
|
| Port J Channel 4 Voltage Input |
|
| Port K Channel 5 Current Input |
|
| Port L Channel 5 Voltage Input |
|
| Port M Channel 6 Current Input |
|
| Port N Channel 6 Voltage Input |
|
| Port O Channel 7 Current Input |
|
| Port P Channel 7 Voltage Input |
|
