High-Precision Aluminum Alloy Motorized Stage
High-Precision Aluminum Alloy Motorized Stage
Price range: ¥1.00 through ¥9.00

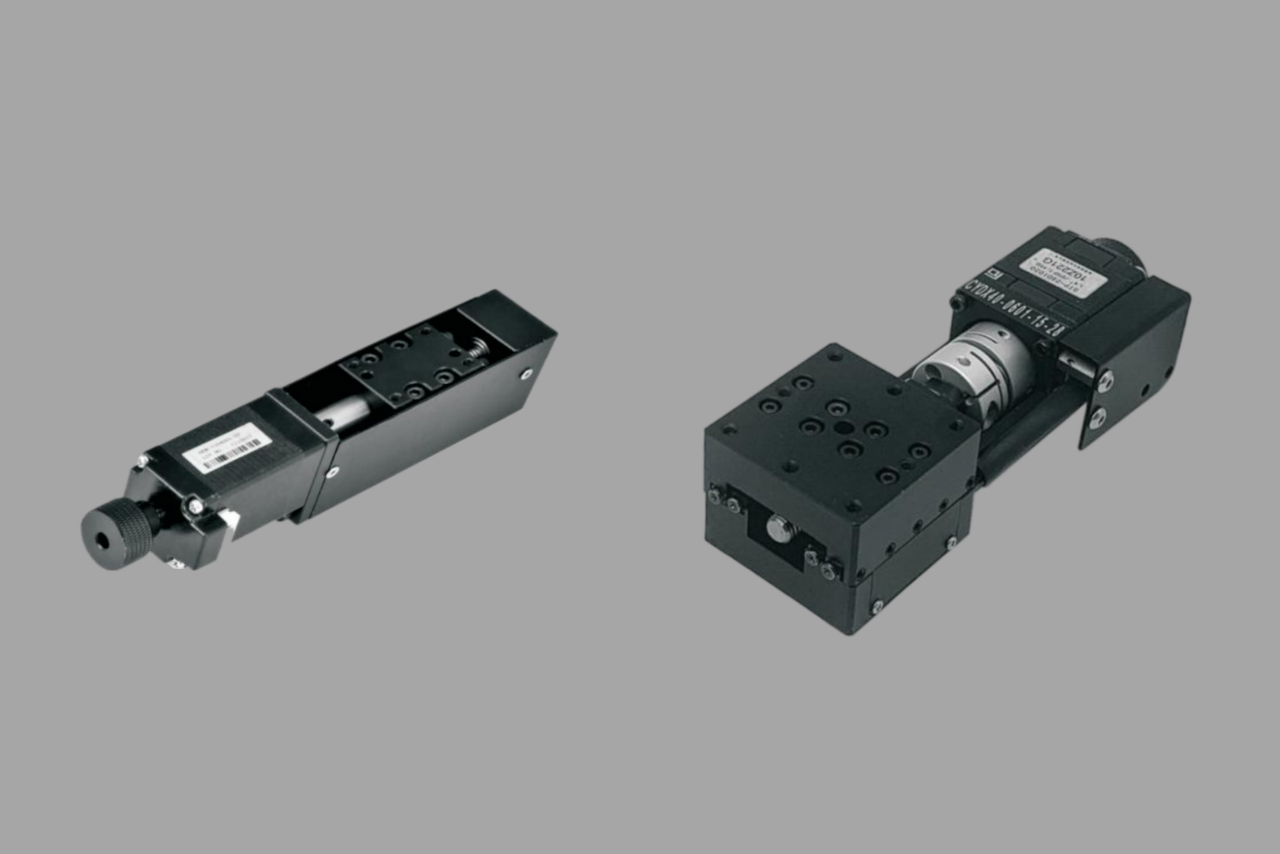

The CYDX series high-precision motorized stages deliver ±1μm to ±5μm repeatability, support linear and rotary motion modes with aluminum alloy or stainless steel construction, meeting core positioning requirements for precision manufacturing, inspection and automation equipment.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Repeatability: ±1μm to ±5μm, depending on the model.
- Material options: Aluminum alloy or stainless steel construction, depending on the model.
- Applications: Positioning for precision manufacturing, inspection, and automation equipment.

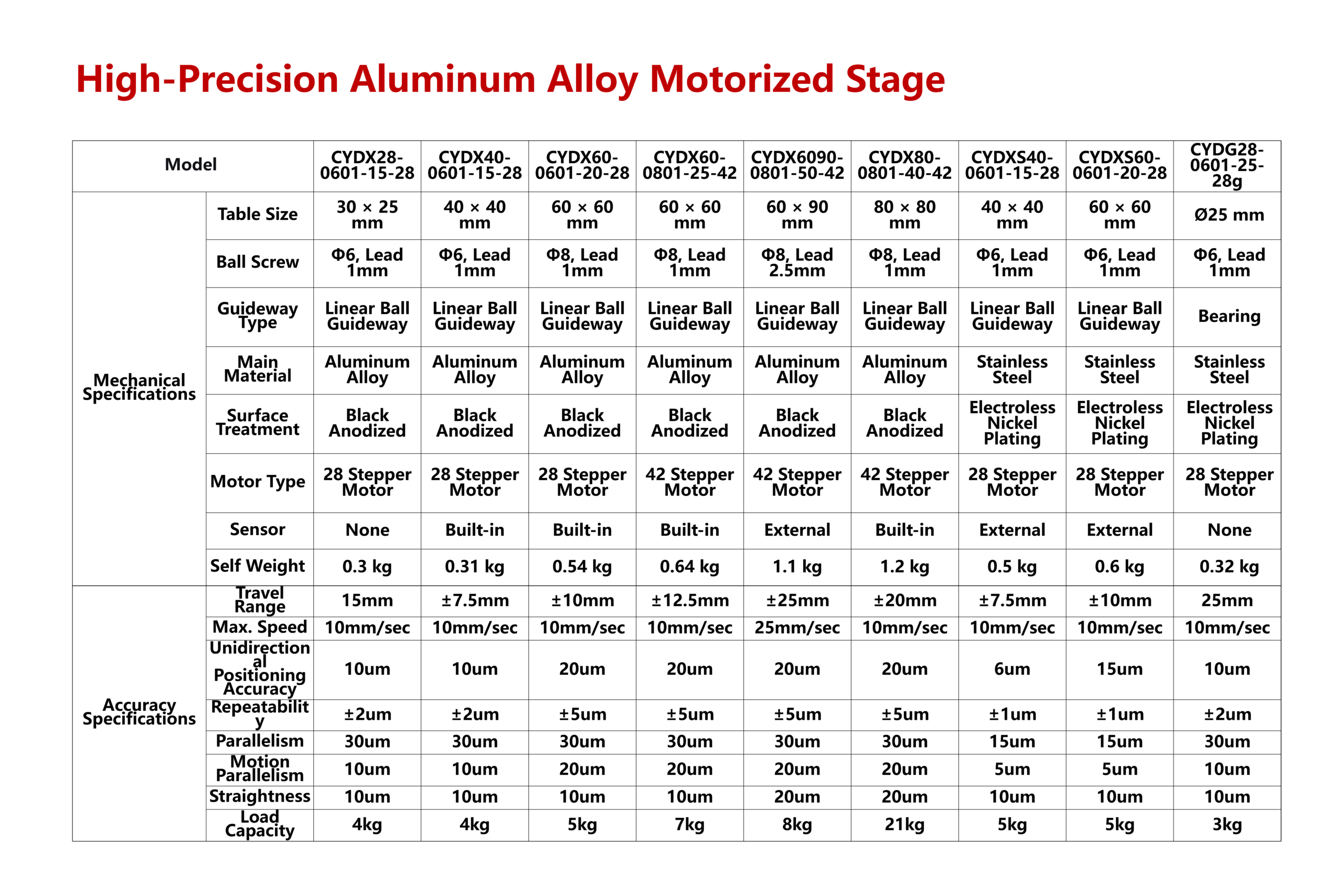

Technical Specifications
CYDX28-0601-15-28
| Parameter | Specification |
|---|---|
| Table Size | 30 × 25 mm |
| Ball Screw | Φ6, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | None |
| Self Weight | 0.3 kg |
| Travel Range | 15 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 10 um |
| Repeatability | ±2 um |
| Parallelism | 30 um |
| Motion Parallelism | 10 um |
| Straightness | 10 um |
| Load Capacity | 4 kg |
CYDX40-0601-15-28
| Parameter | Specification |
|---|---|
| Table Size | 40 × 40 mm |
| Ball Screw | Φ6, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | Built-in |
| Self Weight | 0.31 kg |
| Travel Range | ±7.5 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 10 um |
| Repeatability | ±2 um |
| Parallelism | 30 um |
| Motion Parallelism | 10 um |
| Straightness | 10 um |
| Load Capacity | 4 kg |
CYDX60-0601-20-28
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ8, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | Built-in |
| Self Weight | 0.54 kg |
| Travel Range | ±10 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 20 um |
| Repeatability | ±5 um |
| Parallelism | 30 um |
| Motion Parallelism | 20 um |
| Straightness | 10 um |
| Load Capacity | 5 kg |
CYDX60-0801-25-42
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ8, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 42 Stepper Motor |
| Sensor | Built-in |
| Self Weight | 0.64 kg |
| Travel Range | ±12.5 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 20 um |
| Repeatability | ±5 um |
| Parallelism | 30 um |
| Motion Parallelism | 20 um |
| Straightness | 10 um |
| Load Capacity | 7 kg |
CYDX6090-0801-50-42
| Parameter | Specification |
|---|---|
| Table Size | 60 × 90 mm |
| Ball Screw | Φ8, Lead 2.5 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 42 Stepper Motor |
| Sensor | External |
| Self Weight | 1.1 kg |
| Travel Range | ±25 mm |
| Max. Speed | 25 mm/sec |
| Unidirectional Positioning Accuracy | 20 um |
| Repeatability | ±5 um |
| Parallelism | 30 um |
| Motion Parallelism | 20 um |
| Straightness | 20 um |
| Load Capacity | 8 kg |
CYDX80-0801-40-42
| Parameter | Specification |
|---|---|
| Table Size | 80 × 80 mm |
| Ball Screw | Φ8, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 42 Stepper Motor |
| Sensor | Built-in |
| Self Weight | 1.2 kg |
| Travel Range | ±20 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 20 um |
| Repeatability | ±5 um |
| Parallelism | 30 um |
| Motion Parallelism | 20 um |
| Straightness | 20 um |
| Load Capacity | 21 kg |
CYDXS40-0601-15-28
| Parameter | Specification |
|---|---|
| Table Size | 40 × 40 mm |
| Ball Screw | Φ6, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Stainless Steel |
| Surface Treatment | Electroless Nickel Plating |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.5 kg |
| Travel Range | ±7.5 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 6 um |
| Repeatability | ±1 um |
| Parallelism | 15 um |
| Motion Parallelism | 5 um |
| Straightness | 10 um |
| Load Capacity | 5 kg |
CYDXS60-0601-20-28
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ6, Lead 1 mm |
| Guideway Type | Linear Ball Guideway |
| Main Material | Stainless Steel |
| Surface Treatment | Electroless Nickel Plating |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.6 kg |
| Travel Range | ±10 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 15 um |
| Repeatability | ±1 um |
| Parallelism | 15 um |
| Motion Parallelism | 5 um |
| Straightness | 10 um |
| Load Capacity | 5 kg |
CYDG28-0601-25-28g
| Parameter | Specification |
|---|---|
| Table Size | Ø25 mm |
| Ball Screw | Φ6, Lead 1 mm |
| Guideway Type | Bearing |
| Main Material | Stainless Steel |
| Surface Treatment | Electroless Nickel Plating |
| Motor Type | 28 Stepper Motor |
| Sensor | None |
| Self Weight | 0.32 kg |
| Travel Range | 25 mm |
| Max. Speed | 10 mm/sec |
| Unidirectional Positioning Accuracy | 10 um |
| Repeatability | ±2 um |
| Parallelism | 30 um |
| Motion Parallelism | 10 um |
| Straightness | 10 um |
| Load Capacity | 3 kg |
