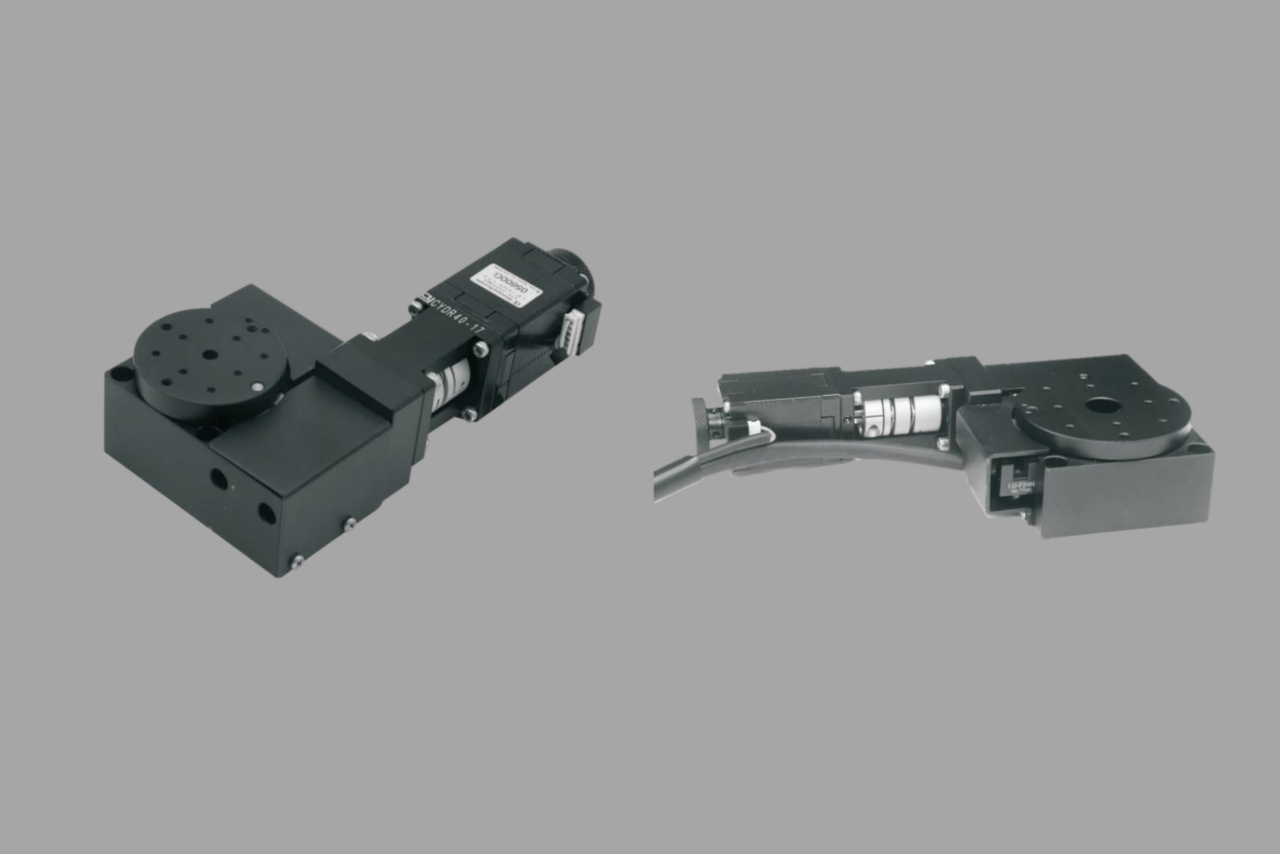

Product Features
- Repeatability: ±0.001° to ±0.01°, depending on the model.
- Travel options: 360° continuous rotation or limited angular travel, depending on the model.
- Applications: Precision alignment, indexing, and automated inspection.

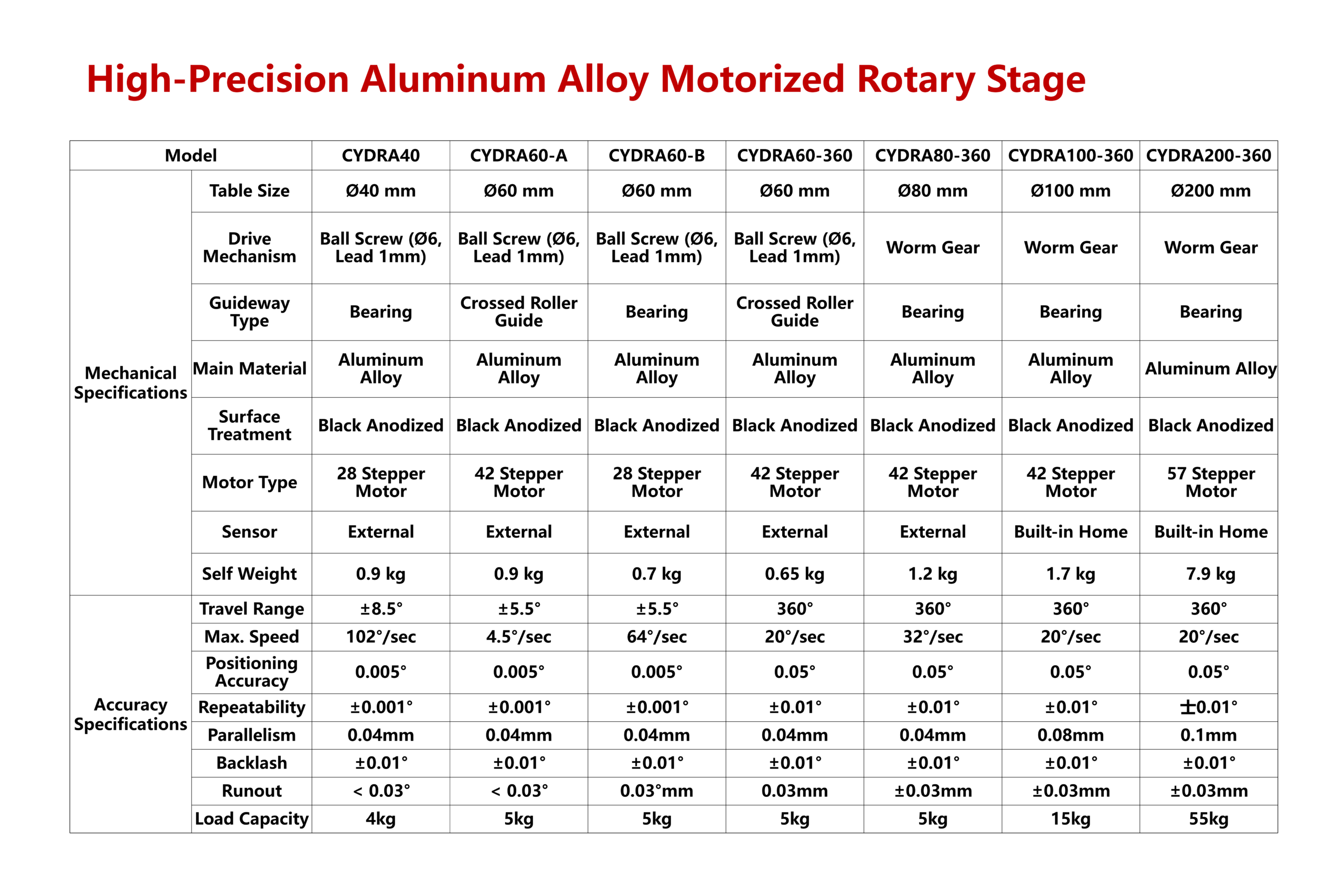

Technical Specifications
CYDRA40
| Parameter |
Specification |
| Table Size |
Ø40 mm |
| Drive Mechanism |
Ball Screw (Ø6, Lead 1 mm) |
| Guideway Type |
Bearing |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
28 Stepper Motor |
| Sensor |
External |
| Self Weight |
0.9 kg |
| Travel Range |
±8.5° |
| Max. Speed |
102°/sec |
| Positioning Accuracy |
0.005° |
| Repeatability |
±0.001° |
| Parallelism |
0.04 mm |
| Backlash |
±0.01° |
| Runout |
< 0.03° |
| Load Capacity |
4 kg |
CYDRA60-A
| Parameter |
Specification |
| Table Size |
Ø60 mm |
| Drive Mechanism |
Ball Screw (Ø6, Lead 1 mm) |
| Guideway Type |
Crossed Roller Guide |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
42 Stepper Motor |
| Sensor |
External |
| Self Weight |
0.9 kg |
| Travel Range |
±5.5° |
| Max. Speed |
4.5°/sec |
| Positioning Accuracy |
0.005° |
| Repeatability |
±0.001° |
| Parallelism |
0.04 mm |
| Backlash |
±0.01° |
| Runout |
< 0.03° |
| Load Capacity |
5 kg |
CYDRA60-B
| Parameter |
Specification |
| Table Size |
Ø60 mm |
| Drive Mechanism |
Ball Screw (Ø6, Lead 1 mm) |
| Guideway Type |
Bearing |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
28 Stepper Motor |
| Sensor |
External |
| Self Weight |
0.7 kg |
| Travel Range |
±5.5° |
| Max. Speed |
64°/sec |
| Positioning Accuracy |
0.005° |
| Repeatability |
±0.001° |
| Parallelism |
0.04 mm |
| Backlash |
±0.01° |
| Runout |
0.03°mm |
| Load Capacity |
5 kg |
CYDRA60-360
| Parameter |
Specification |
| Table Size |
Ø60 mm |
| Drive Mechanism |
Ball Screw (Ø6, Lead 1 mm) |
| Guideway Type |
Crossed Roller Guide |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
42 Stepper Motor |
| Sensor |
External |
| Self Weight |
0.65 kg |
| Travel Range |
360° |
| Max. Speed |
20°/sec |
| Positioning Accuracy |
0.05° |
| Repeatability |
±0.01° |
| Parallelism |
0.04 mm |
| Backlash |
±0.01° |
| Runout |
0.03 mm |
| Load Capacity |
5 kg |
CYDRA80-360
| Parameter |
Specification |
| Table Size |
Ø80 mm |
| Drive Mechanism |
Worm Gear |
| Guideway Type |
Bearing |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
42 Stepper Motor |
| Sensor |
External |
| Self Weight |
1.2 kg |
| Travel Range |
360° |
| Max. Speed |
32°/sec |
| Positioning Accuracy |
0.05° |
| Repeatability |
±0.01° |
| Parallelism |
0.04 mm |
| Backlash |
±0.01° |
| Runout |
±0.03 mm |
| Load Capacity |
5 kg |
CYDRA100-360
| Parameter |
Specification |
| Table Size |
Ø100 mm |
| Drive Mechanism |
Worm Gear |
| Guideway Type |
Bearing |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
42 Stepper Motor |
| Sensor |
Built-in Home |
| Self Weight |
1.7 kg |
| Travel Range |
360° |
| Max. Speed |
20°/sec |
| Positioning Accuracy |
0.05° |
| Repeatability |
±0.01° |
| Parallelism |
0.08 mm |
| Backlash |
±0.01° |
| Runout |
±0.03 mm |
| Load Capacity |
15 kg |
CYDRA200-360
| Parameter |
Specification |
| Table Size |
Ø200 mm |
| Drive Mechanism |
Worm Gear |
| Guideway Type |
Bearing |
| Main Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Motor Type |
57 Stepper Motor |
| Sensor |
Built-in Home |
| Self Weight |
7.9 kg |
| Travel Range |
360° |
| Max. Speed |
20°/sec |
| Positioning Accuracy |
0.05° |
| Repeatability |
±0.01° |
| Parallelism |
0.1 mm |
| Backlash |
±0.01° |
| Runout |
±0.03 mm |
| Load Capacity |
55 kg |
Runout units for CYDRA40, CYDRA60-A, and CYDRA60-B are reproduced as shown in the original specification sheet and require confirmation.
