Motorized Linear Slide
Motorized Linear Slide
Price range: ¥1.00 through ¥2.00

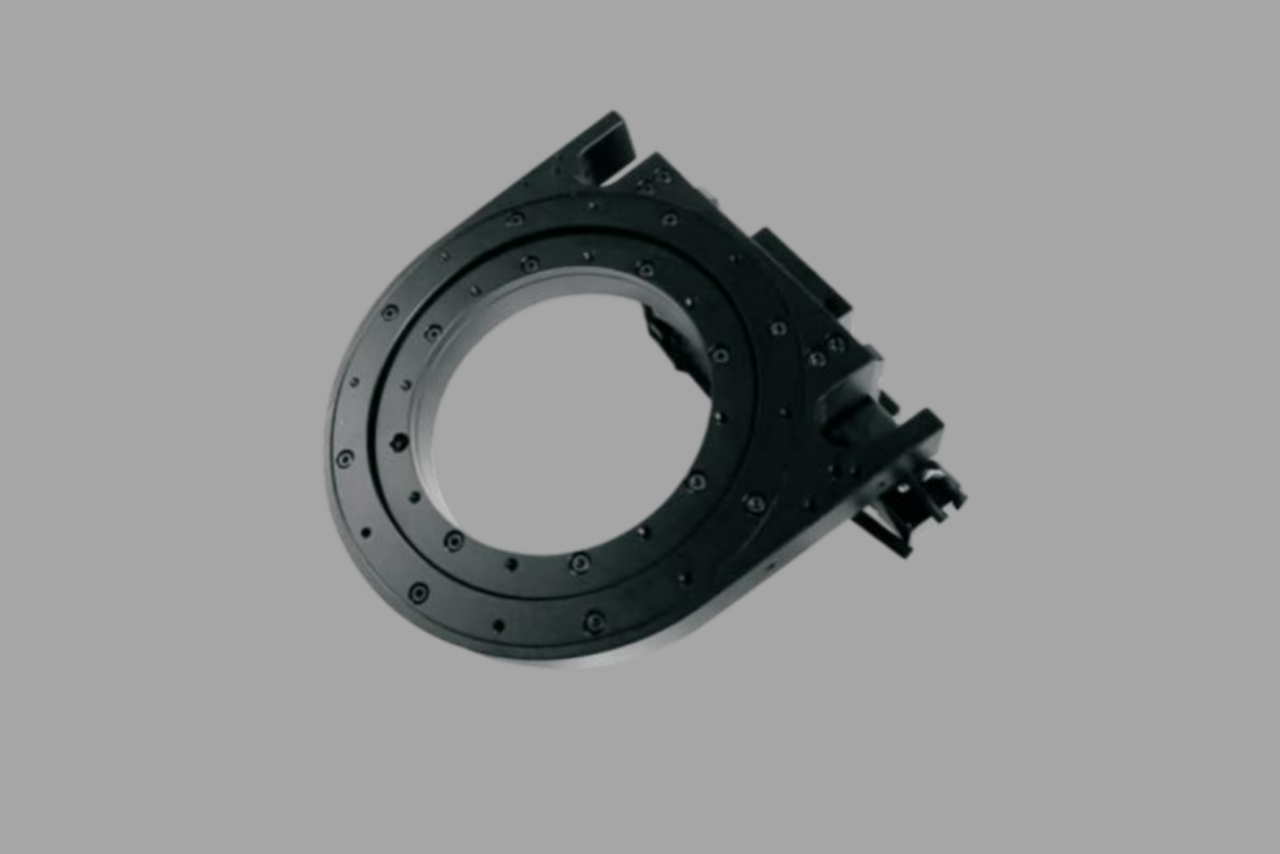

The CYDY series includes R-axis rotary and XY-axis linear slides with crossed roller guides and a 20 kg load capacity. Repeatability is ±0.01° for the R-axis model and ±0.005 mm for the XY-axis model.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Two motion configurations: The CYDY series offers rotational and linear motion modes for automation positioning.
- Crossed roller guidance: Crossed roller guide structures support precision positioning requirements.
- Load capacity: Both listed configurations support a 20 kg load.
Technical Specifications

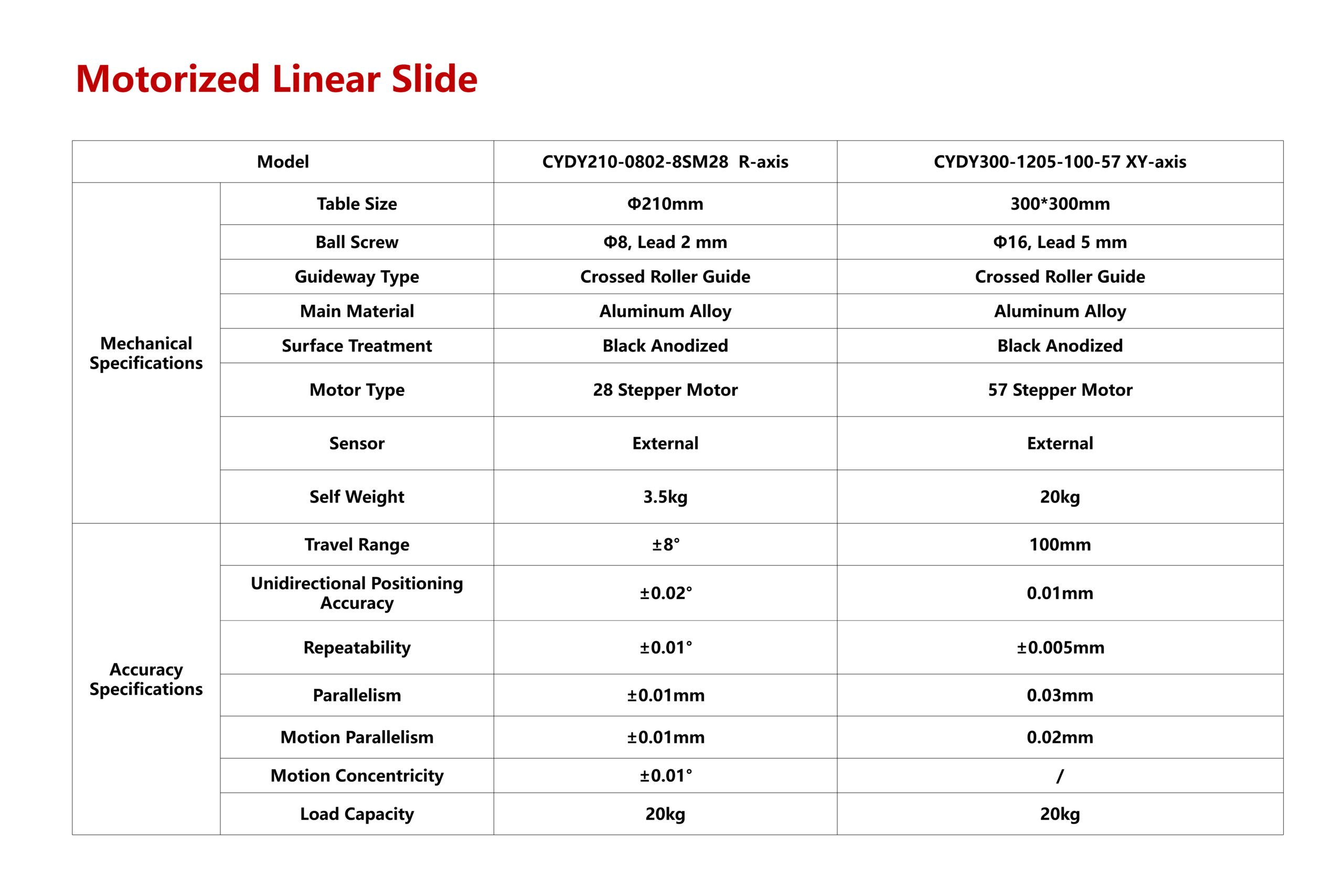

Specifications are grouped by model and axis configuration. Angular and linear accuracy values are listed separately.
CYDY210-0802-8SM28 · R-axis
| Parameter | Specification |
|---|---|
| Table size | Φ210 mm |
| Ball screw | Φ8, Lead 2 mm |
| Guideway type | Crossed Roller Guide |
| Main material | Aluminum Alloy |
| Surface treatment | Black Anodized |
| Motor type | 28 Stepper Motor |
| Sensor | External |
| Self weight | 3.5 kg |
| Travel range | ±8° |
| Unidirectional positioning accuracy | ±0.02° |
| Repeatability | ±0.01° |
| Parallelism | ±0.01 mm |
| Motion parallelism | ±0.01 mm |
| Motion concentricity | ±0.01° |
| Load capacity | 20 kg |
CYDY300-1205-100-57 · XY-axis
| Parameter | Specification |
|---|---|
| Table size | 300 × 300 mm |
| Ball screw | Φ16, Lead 5 mm |
| Guideway type | Crossed Roller Guide |
| Main material | Aluminum Alloy |
| Surface treatment | Black Anodized |
| Motor type | 57 Stepper Motor |
| Sensor | External |
| Self weight | 20 kg |
| Travel range | 100 mm |
| Unidirectional positioning accuracy | 0.01 mm |
| Repeatability | ±0.005 mm |
| Parallelism | 0.03 mm |
| Motion parallelism | 0.02 mm |
| Motion concentricity | / |
| Load capacity | 20 kg |
