Ball Screw Actuator
Ball Screw Actuator
Price range: ¥1.00 through ¥6.00

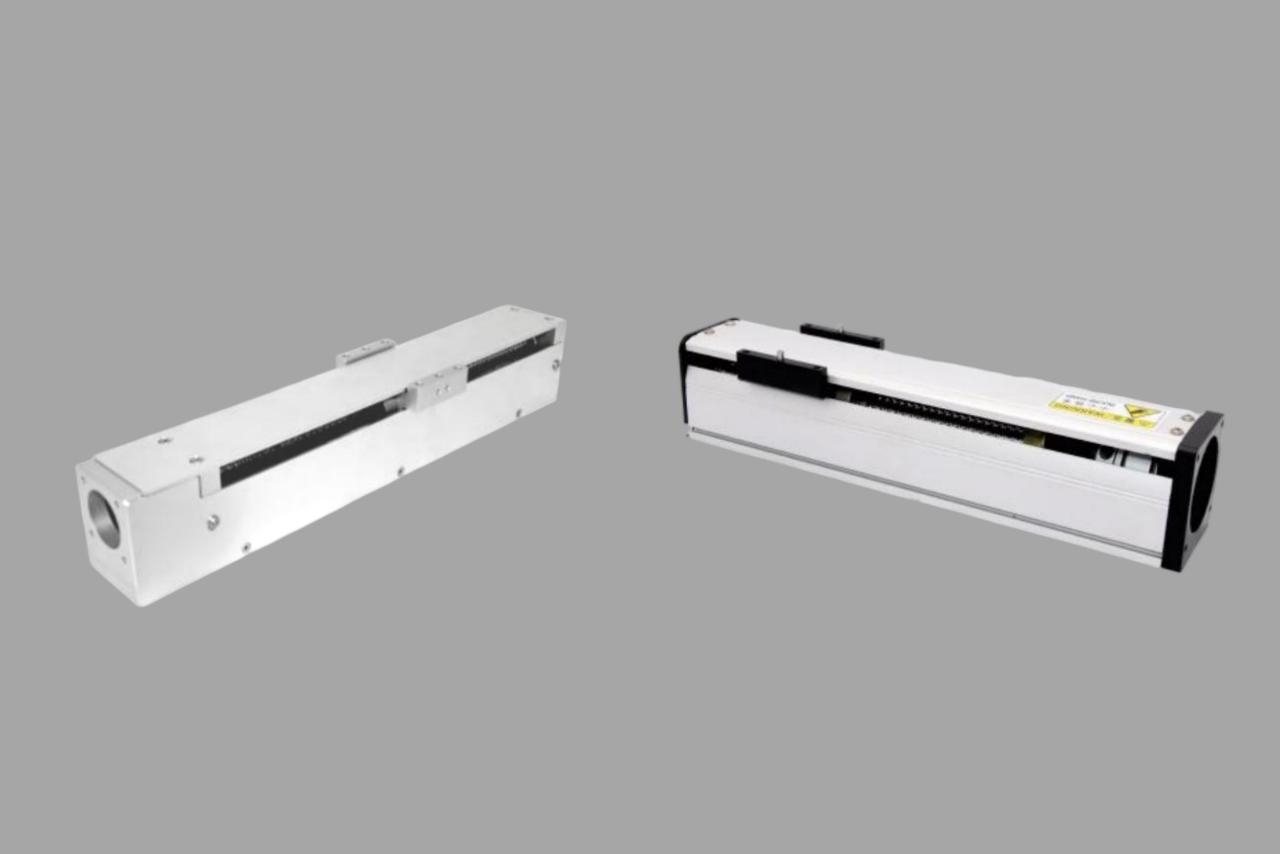

The KA Series ball screw actuators integrate high-precision ball screws and linear guides, delivering ±0.01mm repeatability and multiple load capacities to achieve stable and precise linear motion control for automation equipment.
| Dimensions(mm) | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Integrated linear motion: High-precision ball screws and linear guides provide stable, precise motion for automation equipment.
- Repeatable positioning: The KA Series provides ±0.01 mm repeatability.
- Multiple load capacities: Select the model and lead according to the horizontal, side-mounted or vertical load requirements listed below.
Technical Specifications
Specifications are grouped by model. Values in each row are identified by the corresponding lead.

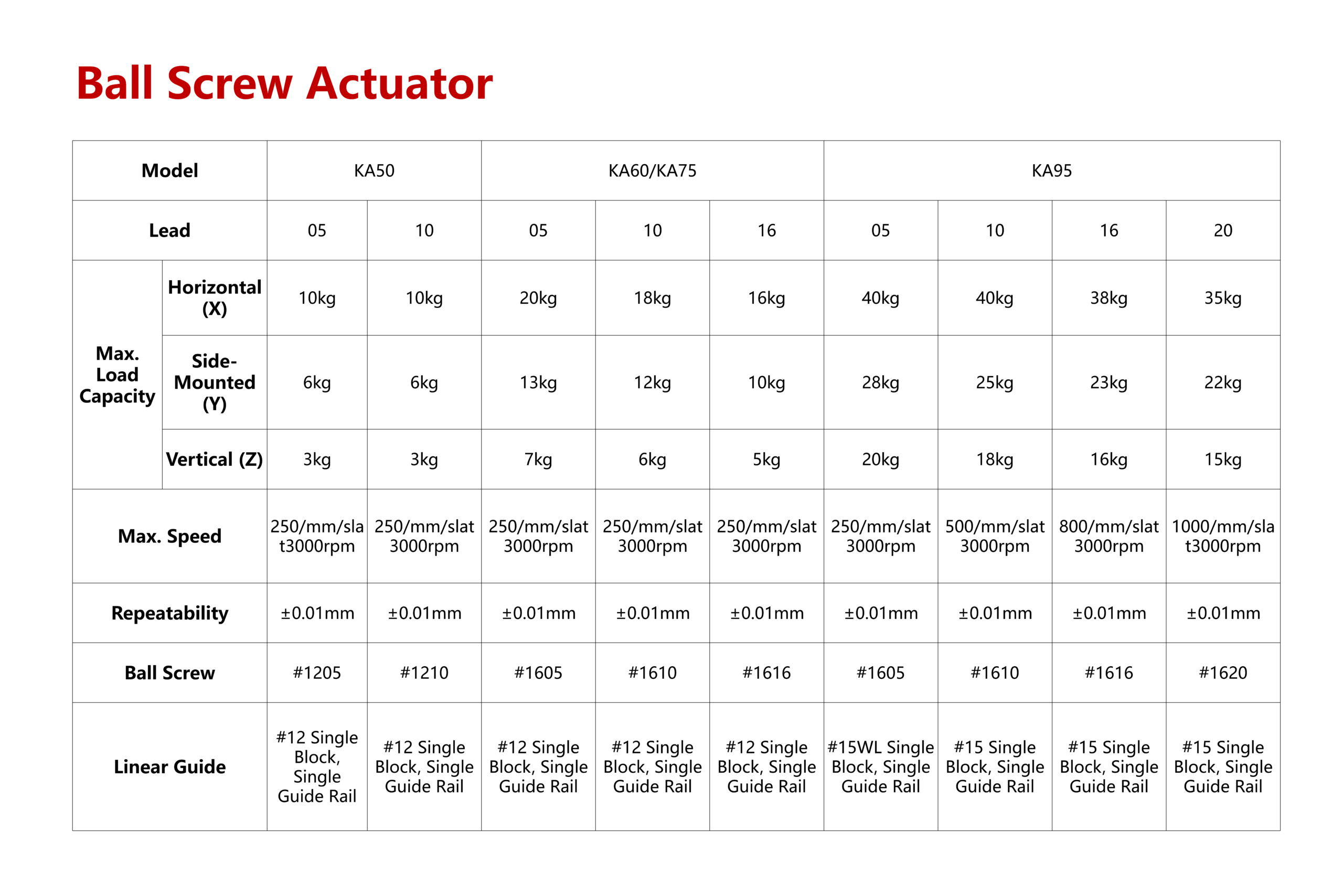

KA50
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 |
| Maximum horizontal load (X) | Lead 05: 10 kg Lead 10: 10 kg |
| Maximum side-mounted load (Y) | Lead 05: 6 kg Lead 10: 6 kg |
| Maximum vertical load (Z) | Lead 05: 3 kg Lead 10: 3 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 250 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #1205 Lead 10: #1210 |
| Linear guide | Lead 05: #12 Single Block, Single Guide Rail Lead 10: #12 Single Block, Single Guide Rail |
KA60 / KA75
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 / 16 |
| Maximum horizontal load (X) | Lead 05: 20 kg Lead 10: 18 kg Lead 16: 16 kg |
| Maximum side-mounted load (Y) | Lead 05: 13 kg Lead 10: 12 kg Lead 16: 10 kg |
| Maximum vertical load (Z) | Lead 05: 7 kg Lead 10: 6 kg Lead 16: 5 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 250 mm/s Lead 16: 250 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #1605 Lead 10: #1610 Lead 16: #1616 |
| Linear guide | Lead 05: #12 Single Block, Single Guide Rail Lead 10: #12 Single Block, Single Guide Rail Lead 16: #12 Single Block, Single Guide Rail |
KA95
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 / 16 / 20 |
| Maximum horizontal load (X) | Lead 05: 40 kg Lead 10: 40 kg Lead 16: 38 kg Lead 20: 35 kg |
| Maximum side-mounted load (Y) | Lead 05: 28 kg Lead 10: 25 kg Lead 16: 23 kg Lead 20: 22 kg |
| Maximum vertical load (Z) | Lead 05: 20 kg Lead 10: 18 kg Lead 16: 16 kg Lead 20: 15 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 500 mm/s Lead 16: 800 mm/s Lead 20: 1000 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #1605 Lead 10: #1610 Lead 16: #1616 Lead 20: #1620 |
| Linear guide | Lead 05: #15WL Single Block, Single Guide Rail Lead 10: #15 Single Block, Single Guide Rail Lead 16: #15 Single Block, Single Guide Rail Lead 20: #15 Single Block, Single Guide Rail |

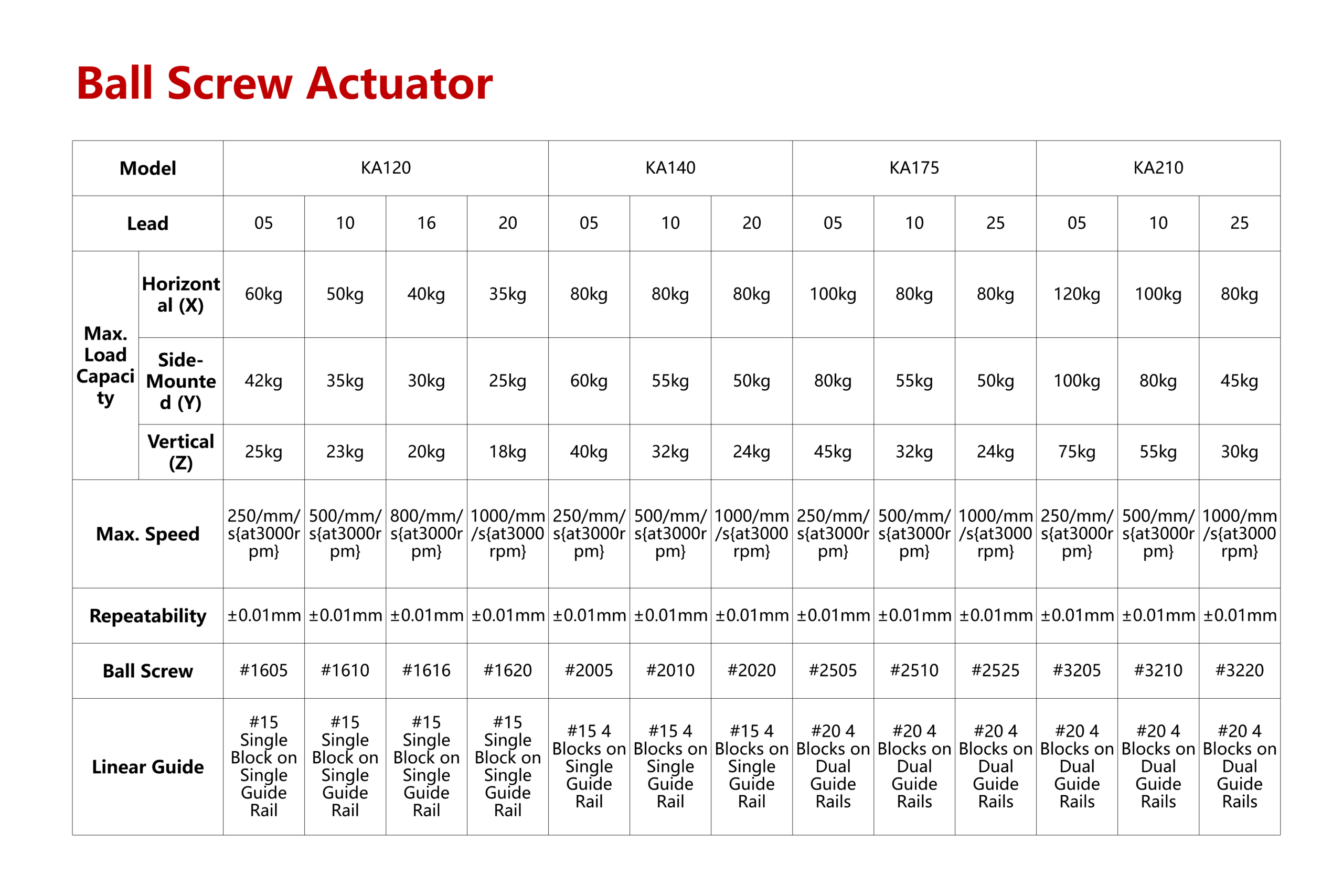

KA120
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 / 16 / 20 |
| Maximum horizontal load (X) | Lead 05: 60 kg Lead 10: 50 kg Lead 16: 40 kg Lead 20: 35 kg |
| Maximum side-mounted load (Y) | Lead 05: 42 kg Lead 10: 35 kg Lead 16: 30 kg Lead 20: 25 kg |
| Maximum vertical load (Z) | Lead 05: 25 kg Lead 10: 23 kg Lead 16: 20 kg Lead 20: 18 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 500 mm/s Lead 16: 800 mm/s Lead 20: 1000 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #1605 Lead 10: #1610 Lead 16: #1616 Lead 20: #1620 |
| Linear guide | Lead 05: #15 Single Block on Single Guide Rail Lead 10: #15 Single Block on Single Guide Rail Lead 16: #15 Single Block on Single Guide Rail Lead 20: #15 Single Block on Single Guide Rail |
KA140
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 / 20 |
| Maximum horizontal load (X) | Lead 05: 80 kg Lead 10: 80 kg Lead 20: 80 kg |
| Maximum side-mounted load (Y) | Lead 05: 60 kg Lead 10: 55 kg Lead 20: 50 kg |
| Maximum vertical load (Z) | Lead 05: 40 kg Lead 10: 32 kg Lead 20: 24 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 500 mm/s Lead 20: 1000 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #2005 Lead 10: #2010 Lead 20: #2020 |
| Linear guide | Lead 05: #15 4 Blocks on Single Guide Rail Lead 10: #15 4 Blocks on Single Guide Rail Lead 20: #15 4 Blocks on Single Guide Rail |
KA175
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 / 25 |
| Maximum horizontal load (X) | Lead 05: 100 kg Lead 10: 80 kg Lead 25: 80 kg |
| Maximum side-mounted load (Y) | Lead 05: 80 kg Lead 10: 55 kg Lead 25: 50 kg |
| Maximum vertical load (Z) | Lead 05: 45 kg Lead 10: 32 kg Lead 25: 24 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 500 mm/s Lead 25: 1000 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #2505 Lead 10: #2510 Lead 25: #2525 |
| Linear guide | Lead 05: #20 4 Blocks on Dual Guide Rails Lead 10: #20 4 Blocks on Dual Guide Rails Lead 25: #20 4 Blocks on Dual Guide Rails |
KA210
| Parameter | Specification |
|---|---|
| Lead | 05 / 10 / 25 |
| Maximum horizontal load (X) | Lead 05: 120 kg Lead 10: 100 kg Lead 25: 80 kg |
| Maximum side-mounted load (Y) | Lead 05: 100 kg Lead 10: 80 kg Lead 25: 45 kg |
| Maximum vertical load (Z) | Lead 05: 75 kg Lead 10: 55 kg Lead 25: 30 kg |
| Maximum speed at 3000 rpm | Lead 05: 250 mm/s Lead 10: 500 mm/s Lead 25: 1000 mm/s |
| Repeatability | ±0.01 mm |
| Ball screw | Lead 05: #3205 Lead 10: #3210 Lead 25: #3220 |
| Linear guide | Lead 05: #20 4 Blocks on Dual Guide Rails Lead 10: #20 4 Blocks on Dual Guide Rails Lead 25: #20 4 Blocks on Dual Guide Rails |
