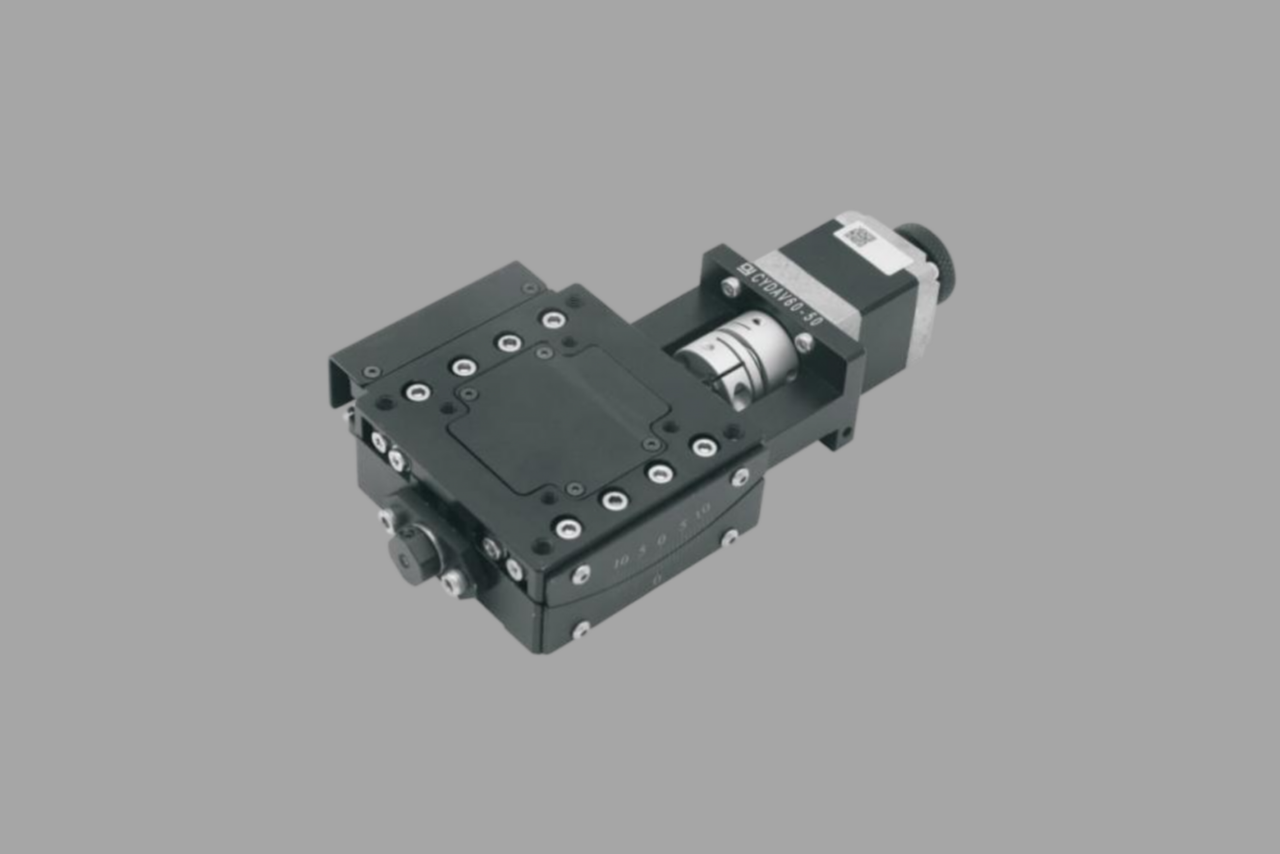

High-Precision Aluminum Alloy Motorized Angular Stage
High-Precision Aluminum Alloy Motorized Angular Stage
Price range: ¥1.00 through ¥9.00
The CYDAV series high-precision motorized angular stages feature a crossed roller guide structure, achieving ±0.001° ultra-high repeatability, and are designed for applications requiring precise angular adjustment such as optical alignment and automated inspection.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Guide structure: Crossed roller guide.
- Repeatability: ±0.001°.
- Applications: Precise angular adjustment for optical alignment and automated inspection.

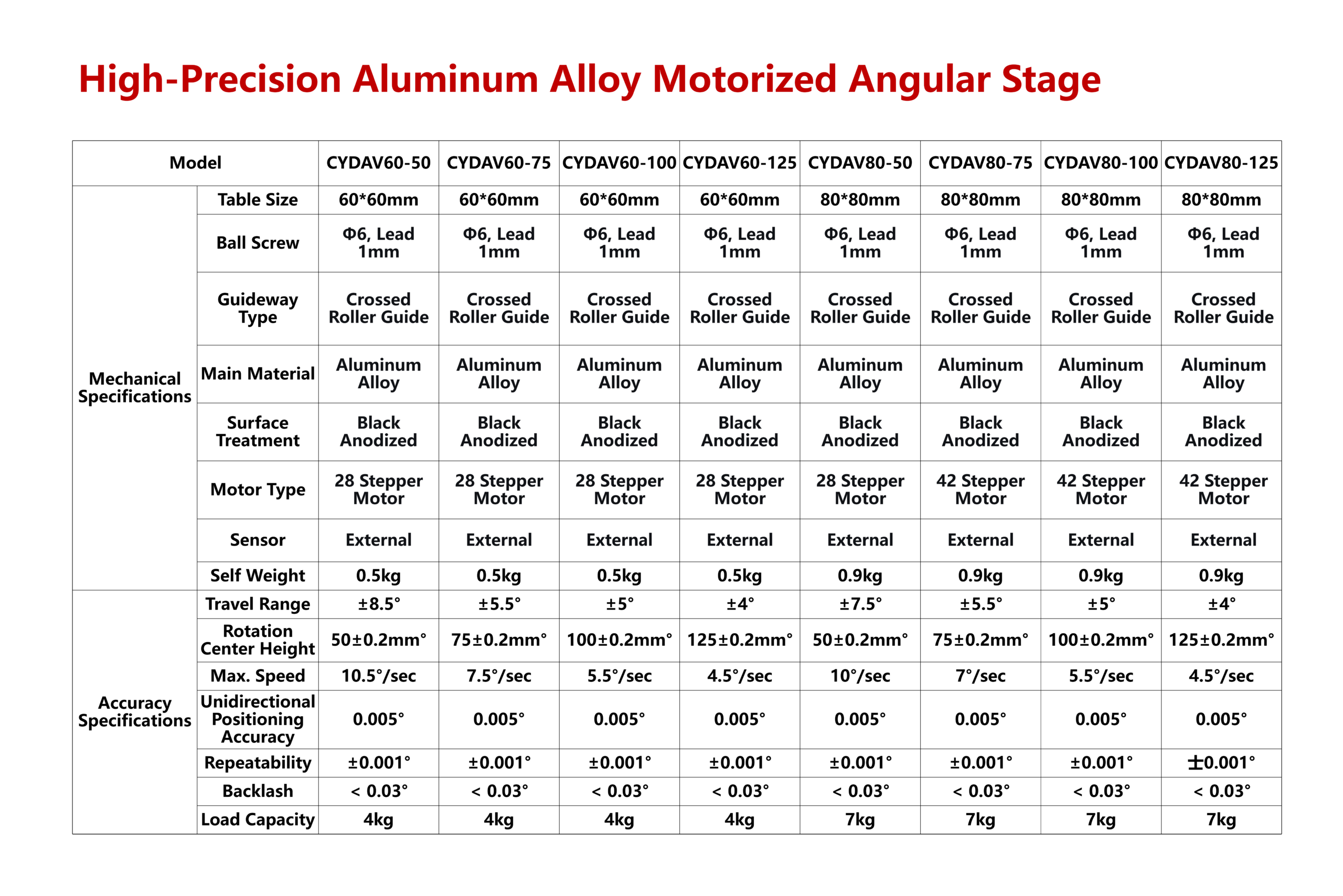

Technical Specifications
CYDAV60-50
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.5 kg |
| Travel Range | ±8.5° |
| Rotation Center Height | 50 ± 0.2 mm° |
| Max. Speed | 10.5°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 4 kg |
CYDAV60-75
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.5 kg |
| Travel Range | ±5.5° |
| Rotation Center Height | 75 ± 0.2 mm° |
| Max. Speed | 7.5°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 4 kg |
CYDAV60-100
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.5 kg |
| Travel Range | ±5° |
| Rotation Center Height | 100 ± 0.2 mm° |
| Max. Speed | 5.5°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 4 kg |
CYDAV60-125
| Parameter | Specification |
|---|---|
| Table Size | 60 × 60 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.5 kg |
| Travel Range | ±4° |
| Rotation Center Height | 125 ± 0.2 mm° |
| Max. Speed | 4.5°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 4 kg |
CYDAV80-50
| Parameter | Specification |
|---|---|
| Table Size | 80 × 80 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 28 Stepper Motor |
| Sensor | External |
| Self Weight | 0.9 kg |
| Travel Range | ±7.5° |
| Rotation Center Height | 50 ± 0.2 mm° |
| Max. Speed | 10°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 7 kg |
CYDAV80-75
| Parameter | Specification |
|---|---|
| Table Size | 80 × 80 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 42 Stepper Motor |
| Sensor | External |
| Self Weight | 0.9 kg |
| Travel Range | ±5.5° |
| Rotation Center Height | 75 ± 0.2 mm° |
| Max. Speed | 7°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 7 kg |
CYDAV80-100
| Parameter | Specification |
|---|---|
| Table Size | 80 × 80 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 42 Stepper Motor |
| Sensor | External |
| Self Weight | 0.9 kg |
| Travel Range | ±5° |
| Rotation Center Height | 100 ± 0.2 mm° |
| Max. Speed | 5.5°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 7 kg |
CYDAV80-125
| Parameter | Specification |
|---|---|
| Table Size | 80 × 80 mm |
| Ball Screw | Φ6, lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Motor Type | 42 Stepper Motor |
| Sensor | External |
| Self Weight | 0.9 kg |
| Travel Range | ±4° |
| Rotation Center Height | 125 ± 0.2 mm° |
| Max. Speed | 4.5°/sec |
| Unidirectional Positioning Accuracy | 0.005° |
| Repeatability | ±0.001° |
| Backlash | < 0.03° |
| Load Capacity | 7 kg |
Rotation center height units are reproduced as shown in the original specification sheet and require confirmation.
