Micro Electric Cylinder
Micro Electric Cylinder
Price range: ¥1.00 through ¥3.00

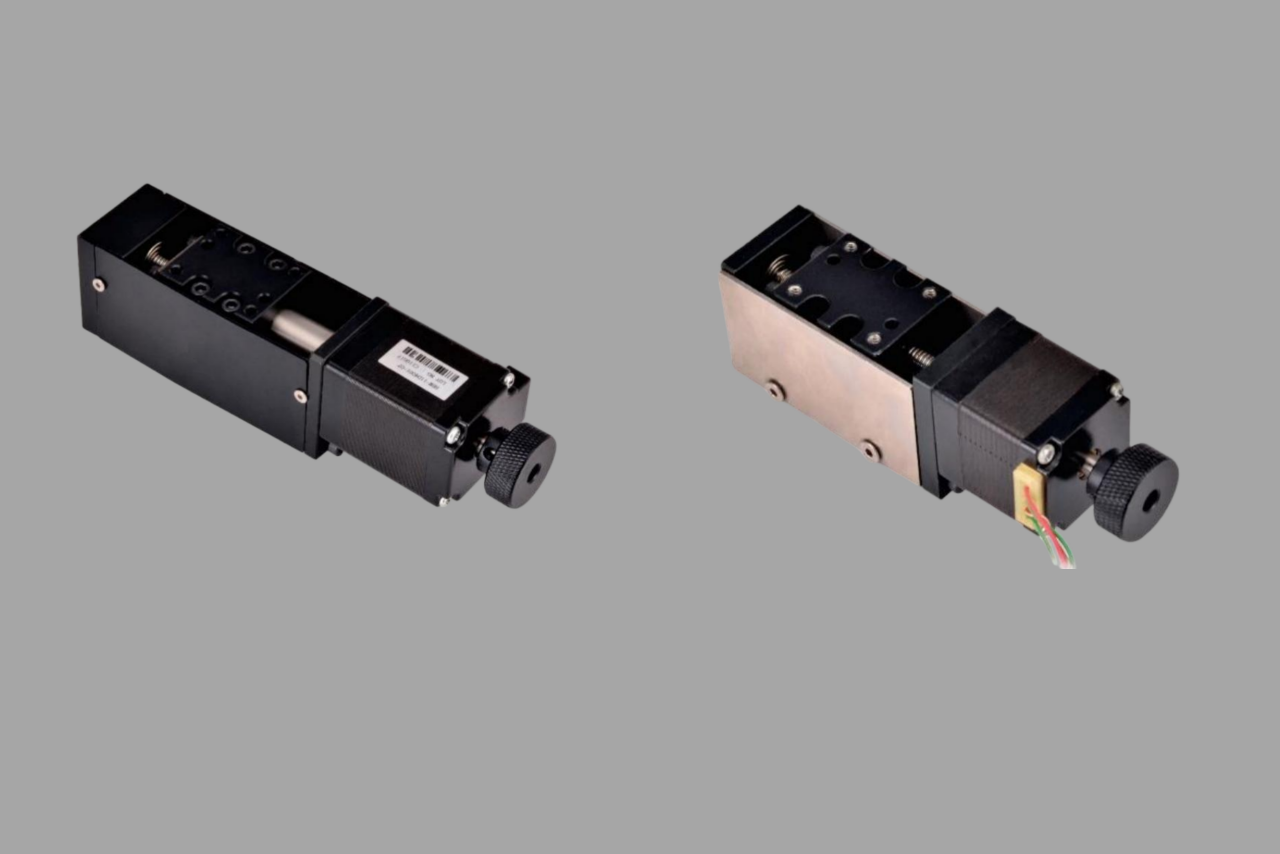

The CYDG28 series micro electric cylinders feature a compact design with piston, slider, and integrated motor-screw configurations. Delivering ±20μm repeatability, they provide precise thrust solutions for precision instruments and compact automation systems with space constraints.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Configurations: Piston-type, slide-type, and integrated motor-screw designs.
- Repeatability: ±20μm.
- Applications: Precision instruments and compact automation systems with space constraints.
Technical Specifications

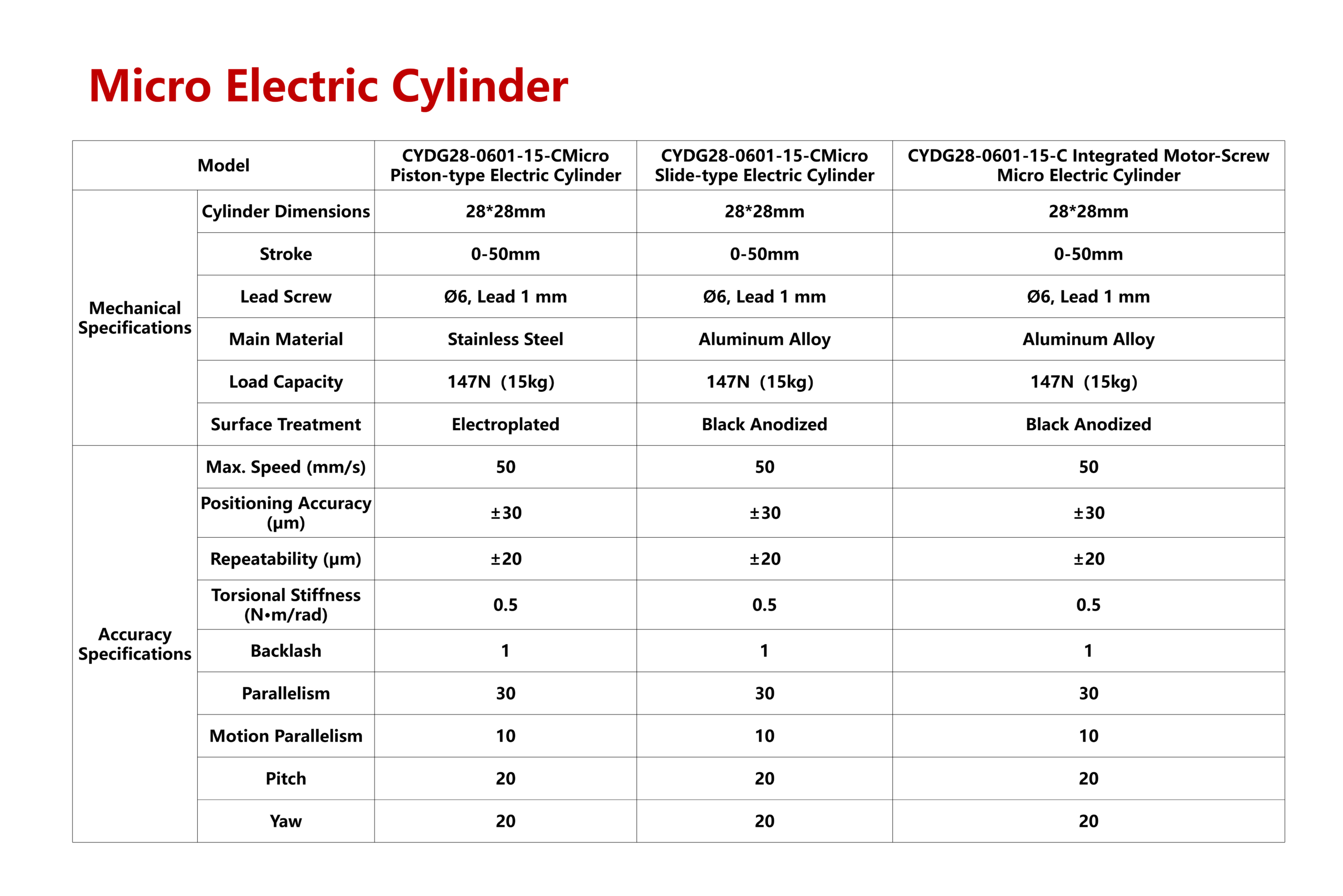

CYDG28-0601-15-C Micro Piston-type Electric Cylinder
| Parameter | Specification |
|---|---|
| Cylinder Dimensions | 28 × 28 mm |
| Stroke | 0–50 mm |
| Lead Screw | Ø6, Lead 1 mm |
| Main Material | Stainless Steel |
| Load Capacity | 147 N (15 kg) |
| Surface Treatment | Electroplated |
| Max. Speed (mm/s) | 50 |
| Positioning Accuracy (μm) | ±30 |
| Repeatability (μm) | ±20 |
| Torsional Stiffness (N·m/rad) | 0.5 |
| Backlash | 1 |
| Parallelism | 30 |
| Motion Parallelism | 10 |
| Pitch | 20 |
| Yaw | 20 |
CYDG28-0601-15-C Micro Slide-type Electric Cylinder
| Parameter | Specification |
|---|---|
| Cylinder Dimensions | 28 × 28 mm |
| Stroke | 0–50 mm |
| Lead Screw | Ø6, Lead 1 mm |
| Main Material | Aluminum Alloy |
| Load Capacity | 147 N (15 kg) |
| Surface Treatment | Black Anodized |
| Max. Speed (mm/s) | 50 |
| Positioning Accuracy (μm) | ±30 |
| Repeatability (μm) | ±20 |
| Torsional Stiffness (N·m/rad) | 0.5 |
| Backlash | 1 |
| Parallelism | 30 |
| Motion Parallelism | 10 |
| Pitch | 20 |
| Yaw | 20 |
CYDG28-0601-15-C Integrated Motor-Screw Micro Electric Cylinder
| Parameter | Specification |
|---|---|
| Cylinder Dimensions | 28 × 28 mm |
| Stroke | 0–50 mm |
| Lead Screw | Ø6, Lead 1 mm |
| Main Material | Aluminum Alloy |
| Load Capacity | 147 N (15 kg) |
| Surface Treatment | Black Anodized |
| Max. Speed (mm/s) | 50 |
| Positioning Accuracy (μm) | ±30 |
| Repeatability (μm) | ±20 |
| Torsional Stiffness (N·m/rad) | 0.5 |
| Backlash | 1 |
| Parallelism | 30 |
| Motion Parallelism | 10 |
| Pitch | 20 |
| Yaw | 20 |
Units for Backlash, Parallelism, Motion Parallelism, Pitch, and Yaw are not specified in the original specification sheet.
