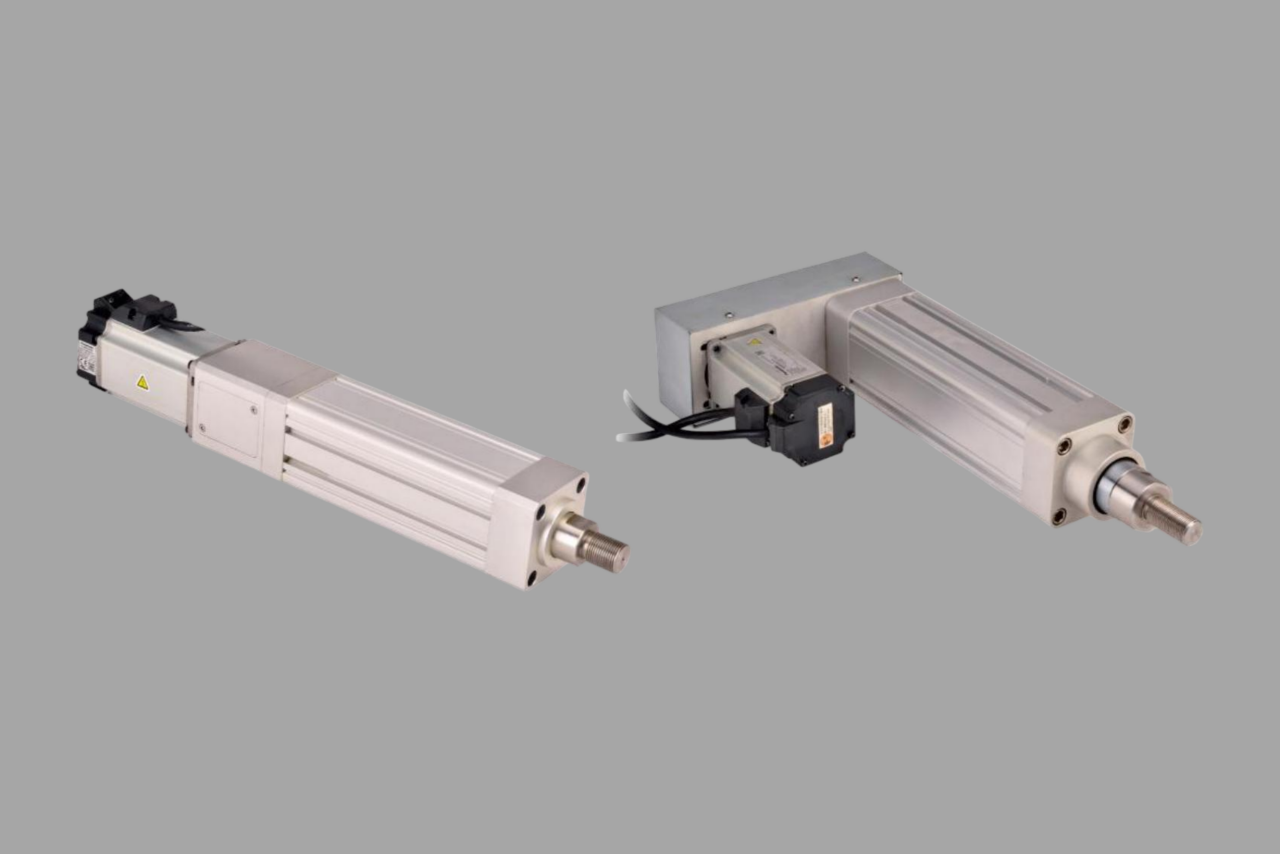

The CYDG series combines servo motors and precision ball screws for industrial linear motion. The listed configurations provide 400–10210 N rated thrust and up to 1200 mm travel, with repeatability of ±0.01 mm or ±0.02 mm depending on the model.

Dimensions(mm）	Depending on model
Delivery Time	7day

Product Model

CYDG-100
CYDG-35
CYDG-50
CYDG-63
CYDG-80

Clear

Description

Product Features

Servo-driven linear motion: The CYDG series combines servo motors and precision ball screws for industrial automation.
Thrust options: Rated thrust ranges from 400 N to 10210 N across the listed motor and screw configurations.
Travel and repeatability: Maximum travel reaches 1200 mm, with repeatability down to ±0.01 mm on the CYDG-50 and CYDG-63 models.

Technical Specifications

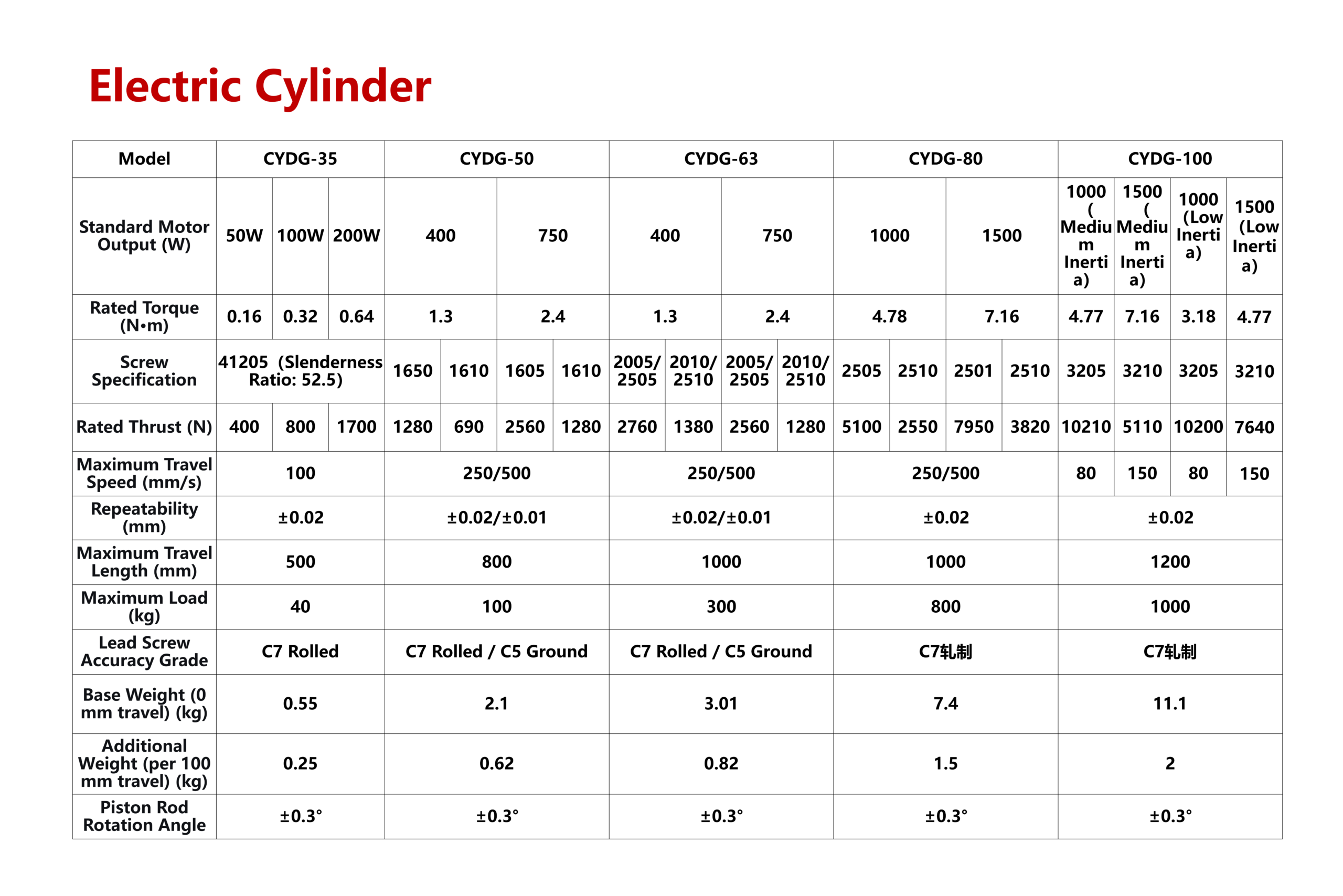

Specifications are grouped by model. Motor output, screw specification and rated thrust are mapped to each listed configuration.

CYDG-35

Parameter	Specification
Standard motor output	50 W 100 W 200 W
Rated torque	50 W: 0.16 N·m 100 W: 0.32 N·m 200 W: 0.64 N·m
Screw specification	41205 (Slenderness Ratio: 52.5)
Rated thrust	50 W: 400 N 100 W: 800 N 200 W: 1700 N
Maximum travel speed	100 mm/s
Repeatability	±0.02 mm
Maximum travel length	500 mm
Maximum load	40 kg
Lead screw accuracy grade	C7 Rolled
Base weight (0 mm travel)	0.55 kg
Additional weight (per 100 mm travel)	0.25 kg
Piston rod rotation angle	±0.3°

CYDG-50

Parameter	Specification
Standard motor output	400 W 750 W
Rated torque	400 W: 1.3 N·m 750 W: 2.4 N·m
Screw specification	400 W · screw 1650 400 W · screw 1610 750 W · screw 1605 750 W · screw 1610
Rated thrust	400 W · screw 1650: 1280 N 400 W · screw 1610: 690 N 750 W · screw 1605: 2560 N 750 W · screw 1610: 1280 N
Maximum travel speed	250 / 500 mm/s
Repeatability	±0.02 / ±0.01 mm
Maximum travel length	800 mm
Maximum load	100 kg
Lead screw accuracy grade	C7 Rolled / C5 Ground
Base weight (0 mm travel)	2.1 kg
Additional weight (per 100 mm travel)	0.62 kg
Piston rod rotation angle	±0.3°

CYDG-63

Parameter	Specification
Standard motor output	400 W 750 W
Rated torque	400 W: 1.3 N·m 750 W: 2.4 N·m
Screw specification	400 W · screw 2005 / 2505 400 W · screw 2010 / 2510 750 W · screw 2005 / 2505 750 W · screw 2010 / 2510
Rated thrust	400 W · screw 2005 / 2505: 2760 N 400 W · screw 2010 / 2510: 1380 N 750 W · screw 2005 / 2505: 2560 N 750 W · screw 2010 / 2510: 1280 N
Maximum travel speed	250 / 500 mm/s
Repeatability	±0.02 / ±0.01 mm
Maximum travel length	1000 mm
Maximum load	300 kg
Lead screw accuracy grade	C7 Rolled / C5 Ground
Base weight (0 mm travel)	3.01 kg
Additional weight (per 100 mm travel)	0.82 kg
Piston rod rotation angle	±0.3°

CYDG-80

Parameter	Specification
Standard motor output	1000 W 1500 W
Rated torque	1000 W: 4.78 N·m 1500 W: 7.16 N·m
Screw specification	1000 W · screw 2505 1000 W · screw 2510 1500 W · screw 2501 1500 W · screw 2510
Rated thrust	1000 W · screw 2505: 5100 N 1000 W · screw 2510: 2550 N 1500 W · screw 2501: 7950 N 1500 W · screw 2510: 3820 N
Maximum travel speed	250 / 500 mm/s
Repeatability	±0.02 mm
Maximum travel length	1000 mm
Maximum load	800 kg
Lead screw accuracy grade	C7 Rolled
Base weight (0 mm travel)	7.4 kg
Additional weight (per 100 mm travel)	1.5 kg
Piston rod rotation angle	±0.3°

CYDG-100

Parameter	Specification
Standard motor output	1000 W (Medium Inertia) 1500 W (Medium Inertia) 1000 W (Low Inertia) 1500 W (Low Inertia)
Rated torque	1000 W (Medium Inertia): 4.77 N·m 1500 W (Medium Inertia): 7.16 N·m 1000 W (Low Inertia): 3.18 N·m 1500 W (Low Inertia): 4.77 N·m
Screw specification	1000 W (Medium Inertia) · screw 3205 1500 W (Medium Inertia) · screw 3210 1000 W (Low Inertia) · screw 3205 1500 W (Low Inertia) · screw 3210
Rated thrust	1000 W (Medium Inertia) · screw 3205: 10210 N 1500 W (Medium Inertia) · screw 3210: 5110 N 1000 W (Low Inertia) · screw 3205: 10200 N 1500 W (Low Inertia) · screw 3210: 7640 N
Maximum travel speed	1000 W (Medium Inertia) · screw 3205: 80 mm/s 1500 W (Medium Inertia) · screw 3210: 150 mm/s 1000 W (Low Inertia) · screw 3205: 80 mm/s 1500 W (Low Inertia) · screw 3210: 150 mm/s
Repeatability	±0.02 mm
Maximum travel length	1200 mm
Maximum load	1000 kg
Lead screw accuracy grade	C7 Rolled
Base weight (0 mm travel)	11.1 kg
Additional weight (per 100 mm travel)	2 kg
Piston rod rotation angle	±0.3°
