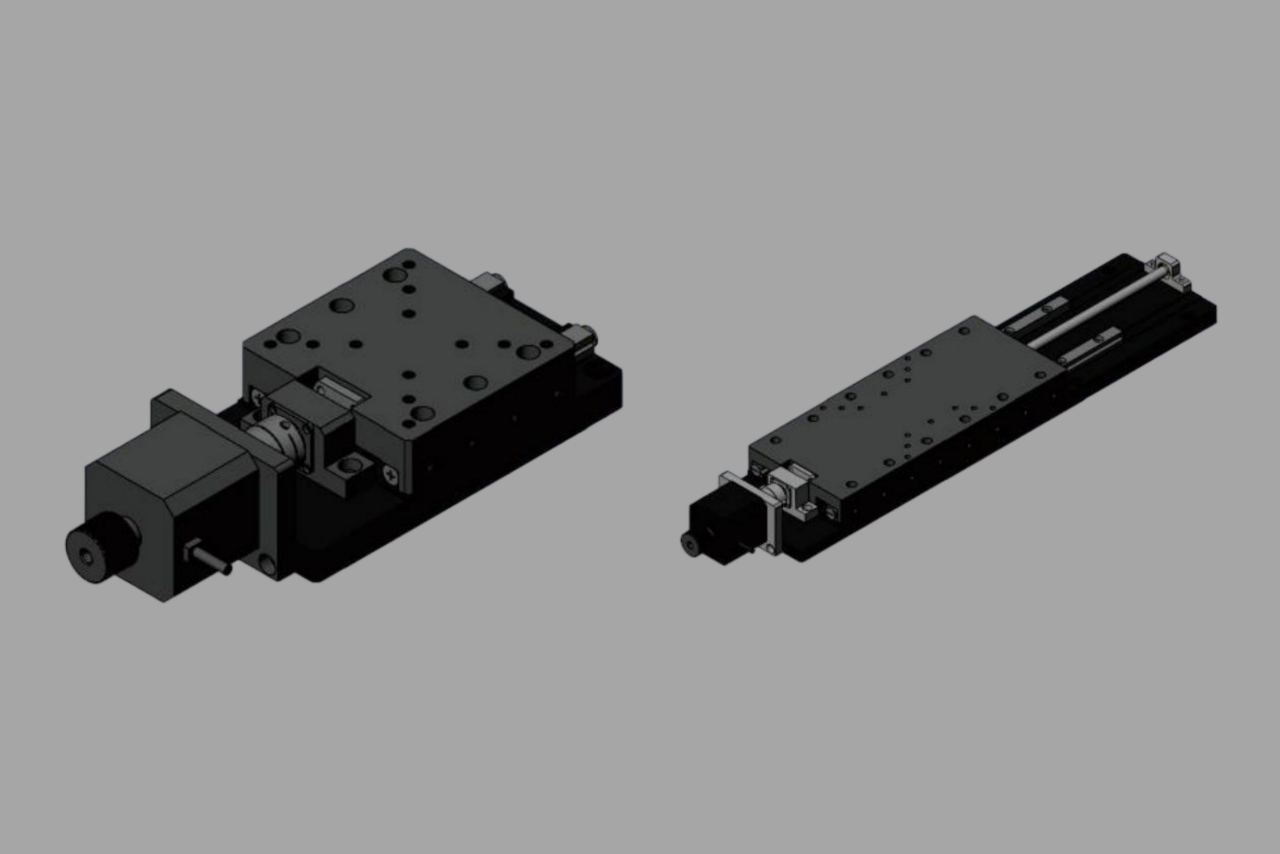

High-Precision Motorized Stage
High-Precision Motorized Stage
Price range: ¥1.00 through ¥9.00
Motorized stages with crossed roller guides, aluminum alloy construction, and 1μm repeatability for optical inspection, precision alignment, and micro-machining.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Guide structure: Crossed roller guides.
- Repeatability: 1μm across the listed models.
- Applications: Optical inspection, precision alignment, and micro-machining.

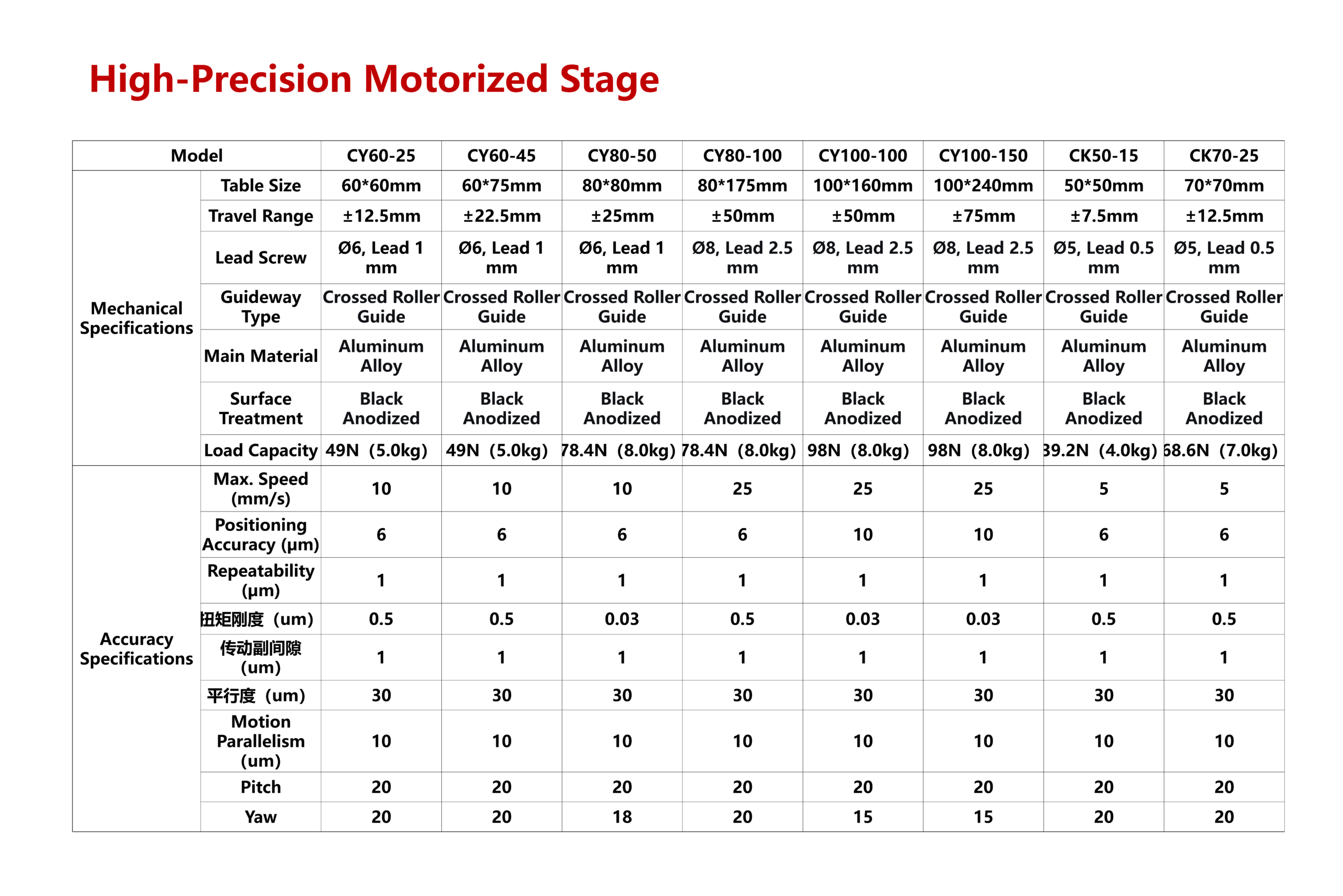

Technical Specifications
CY60-25
| Parameter | Specification |
|---|---|
| Table Size | 60*60mm |
| Travel Range | ±12.5mm |
| Lead Screw | Ø6, Lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 49N (5.0kg) |
| Max. Speed (mm/s) | 10 |
| Positioning Accuracy (μm) | 6 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.5 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 20 |
CY60-45
| Parameter | Specification |
|---|---|
| Table Size | 60*75mm |
| Travel Range | ±22.5mm |
| Lead Screw | Ø6, Lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 49N (5.0kg) |
| Max. Speed (mm/s) | 10 |
| Positioning Accuracy (μm) | 6 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.5 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 20 |
CY80-50
| Parameter | Specification |
|---|---|
| Table Size | 80*80mm |
| Travel Range | ±25mm |
| Lead Screw | Ø6, Lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 78.4N (8.0kg) |
| Max. Speed (mm/s) | 10 |
| Positioning Accuracy (μm) | 6 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.03 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 18 |
CY80-100
| Parameter | Specification |
|---|---|
| Table Size | 80*175mm |
| Travel Range | ±50mm |
| Lead Screw | Ø8, Lead 2.5 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 78.4N (8.0kg) |
| Max. Speed (mm/s) | 25 |
| Positioning Accuracy (μm) | 6 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.5 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 20 |
CY100-100
| Parameter | Specification |
|---|---|
| Table Size | 100*160mm |
| Travel Range | ±50mm |
| Lead Screw | Ø8, Lead 2.5 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 98N (8.0kg) |
| Max. Speed (mm/s) | 25 |
| Positioning Accuracy (μm) | 10 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.03 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 15 |
CY100-150
| Parameter | Specification |
|---|---|
| Table Size | 100*240mm |
| Travel Range | ±75mm |
| Lead Screw | Ø8, Lead 2.5 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 98N (8.0kg) |
| Max. Speed (mm/s) | 25 |
| Positioning Accuracy (μm) | 10 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.03 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 15 |
CK50-15
| Parameter | Specification |
|---|---|
| Table Size | 50*50mm |
| Travel Range | ±7.5mm |
| Lead Screw | Ø5, Lead 0.5 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 39.2N (4.0kg) |
| Max. Speed (mm/s) | 5 |
| Positioning Accuracy (μm) | 6 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.5 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 20 |
CK70-25
| Parameter | Specification |
|---|---|
| Table Size | 70*70mm |
| Travel Range | ±12.5mm |
| Lead Screw | Ø5, Lead 0.5 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity | 68.6N (7.0kg) |
| Max. Speed (mm/s) | 5 |
| Positioning Accuracy (μm) | 6 |
| Repeatability (μm) | 1 |
| Torsional Stiffness (um) | 0.5 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 30 |
| Motion Parallelism (um) | 10 |
| Pitch | 20 |
| Yaw | 20 |
