Screw-Driven Actuator

Name: Screw-Driven Actuator
SKU: 103140
Availability: InStock

Screw-Driven Actuator

Price range: ¥1.00 through ¥6.00

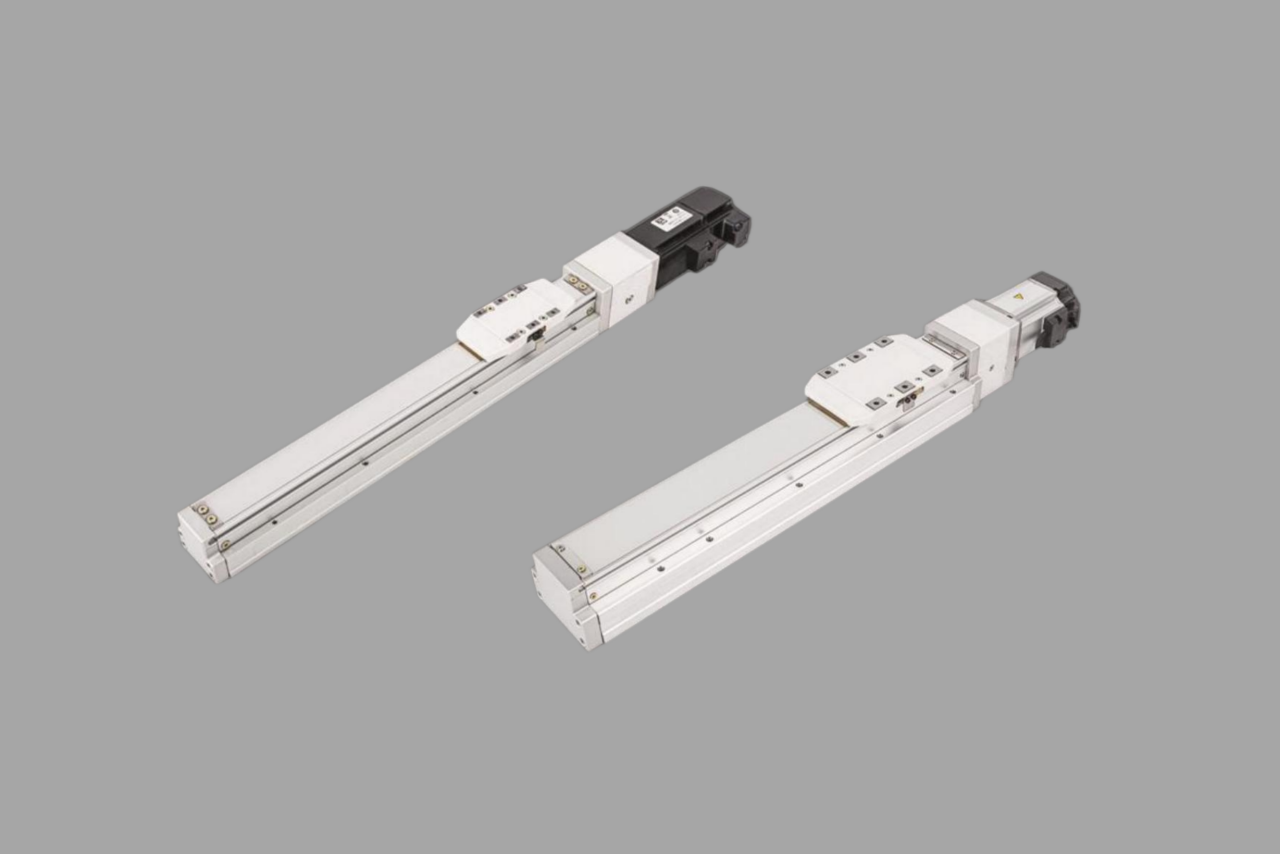

The GTHA/BTHA series screw-driven actuators deliver high repeatability of ±0.01mm~±0.02mm, with rated thrust up to 1388N and speeds to 1000mm/s, meeting stringent requirements for precision motion in industrial automation.

Delivery Time	7day
Dimensions(mm）	Depending on model

Product Model

BTHA120
BTHA80
GTH120
GTH40
GTH50
GTH80
GTHA120
GTHA80

Clear

Description

Product Features

Precision motion: The GTHA/BTHA series offers position repeat accuracy of ±0.01 mm to ±0.02 mm for industrial automation.
Speed and thrust: Rated thrust reaches 1388 N, with maximum speed up to 1000 mm/s, depending on model and screw lead.
Model selection: Compare eight models and their screw-lead configurations below.

Technical Specifications

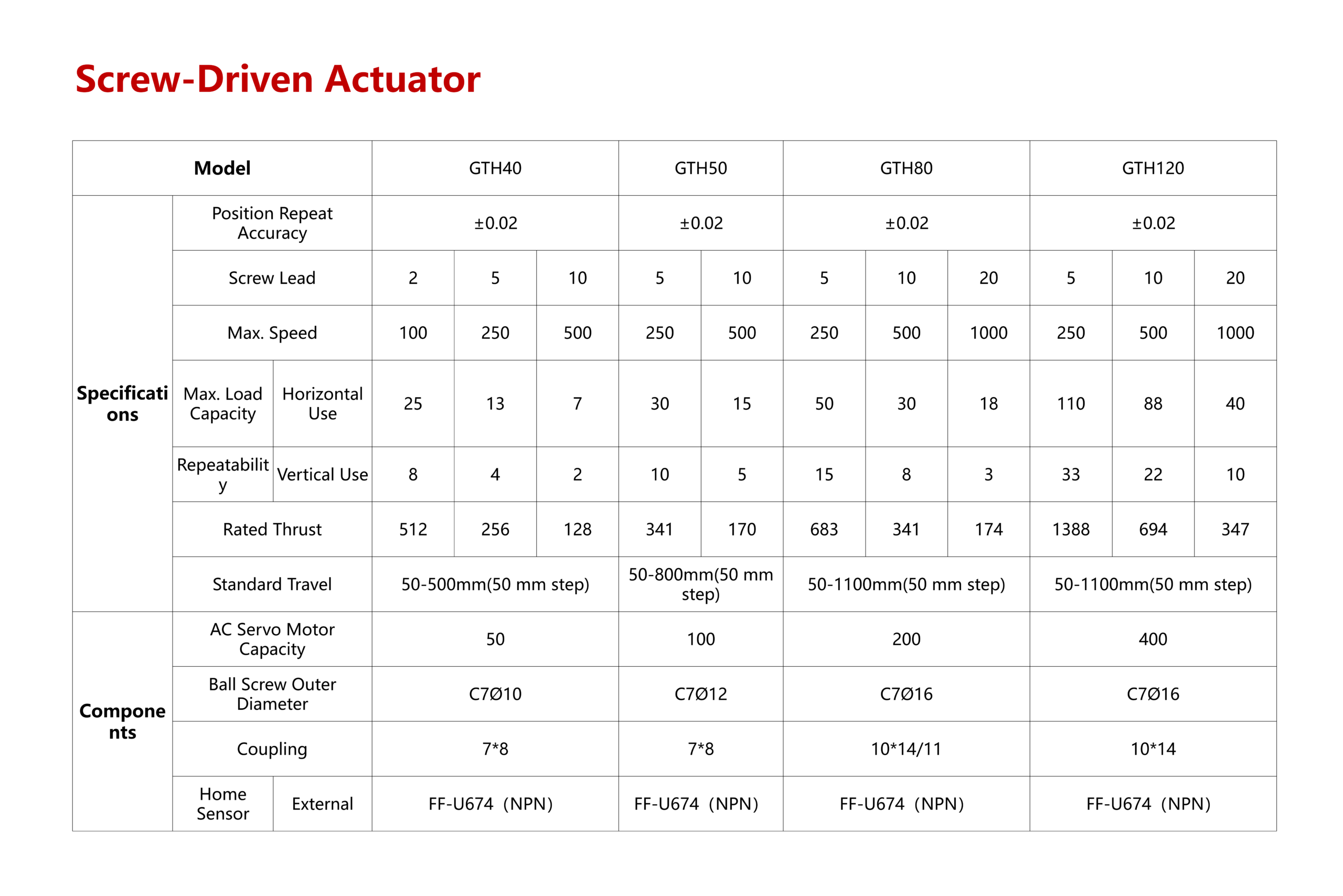

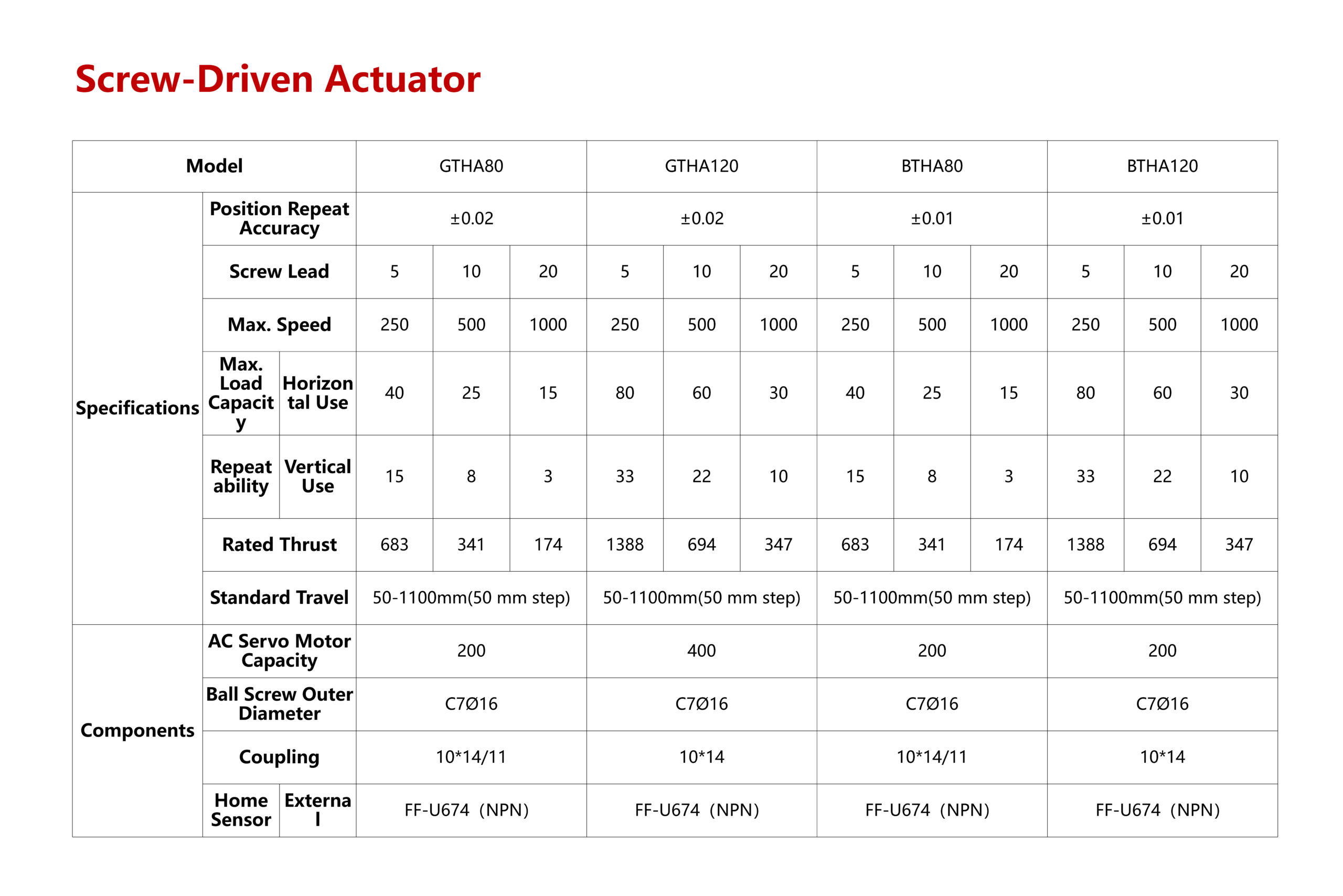

Specifications are grouped by model. Speed, horizontal-use, vertical-use and thrust values correspond to the screw leads listed, in the same order.

GTH40

Parameter	Specification
Position repeat accuracy	±0.02
Screw lead	2 / 5 / 10
Max. speed	100 / 250 / 500
Max. load capacity — horizontal use	25 / 13 / 7
Vertical use / Repeatability	8 / 4 / 2
Rated thrust	512 / 256 / 128
Standard travel	50–500 mm (50 mm step)
AC servo motor capacity	50
Ball screw outer diameter	C7Ø10
Coupling	7*8
Home sensor — external	FF-U674 (NPN)

GTH50

Parameter	Specification
Position repeat accuracy	±0.02
Screw lead	5 / 10
Max. speed	250 / 500
Max. load capacity — horizontal use	30 / 15
Vertical use / Repeatability	10 / 5
Rated thrust	341 / 170
Standard travel	50–800 mm (50 mm step)
AC servo motor capacity	100
Ball screw outer diameter	C7Ø12
Coupling	7*8
Home sensor — external	FF-U674 (NPN)

GTH80

Parameter	Specification
Position repeat accuracy	±0.02
Screw lead	5 / 10 / 20
Max. speed	250 / 500 / 1000
Max. load capacity — horizontal use	50 / 30 / 18
Vertical use / Repeatability	15 / 8 / 3
Rated thrust	683 / 341 / 174
Standard travel	50–1100 mm (50 mm step)
AC servo motor capacity	200
Ball screw outer diameter	C7Ø16
Coupling	10*14/11
Home sensor — external	FF-U674 (NPN)

GTH120

Parameter	Specification
Position repeat accuracy	±0.02
Screw lead	5 / 10 / 20
Max. speed	250 / 500 / 1000
Max. load capacity — horizontal use	110 / 88 / 40
Vertical use / Repeatability	33 / 22 / 10
Rated thrust	1388 / 694 / 347
Standard travel	50–1100 mm (50 mm step)
AC servo motor capacity	400
Ball screw outer diameter	C7Ø16
Coupling	10*14
Home sensor — external	FF-U674 (NPN)

GTHA80

Parameter	Specification
Position repeat accuracy	±0.02
Screw lead	5 / 10 / 20
Max. speed	250 / 500 / 1000
Max. load capacity — horizontal use	40 / 25 / 15
Vertical use / Repeatability	15 / 8 / 3
Rated thrust	683 / 341 / 174
Standard travel	50–1100 mm (50 mm step)
AC servo motor capacity	200
Ball screw outer diameter	C7Ø16
Coupling	10*14/11
Home sensor — external	FF-U674 (NPN)

GTHA120

Parameter	Specification
Position repeat accuracy	±0.02
Screw lead	5 / 10 / 20
Max. speed	250 / 500 / 1000
Max. load capacity — horizontal use	80 / 60 / 30
Vertical use / Repeatability	33 / 22 / 10
Rated thrust	1388 / 694 / 347
Standard travel	50–1100 mm (50 mm step)
AC servo motor capacity	400
Ball screw outer diameter	C7Ø16
Coupling	10*14
Home sensor — external	FF-U674 (NPN)

BTHA80

Parameter	Specification
Position repeat accuracy	±0.01
Screw lead	5 / 10 / 20
Max. speed	250 / 500 / 1000
Max. load capacity — horizontal use	40 / 25 / 15
Vertical use / Repeatability	15 / 8 / 3
Rated thrust	683 / 341 / 174
Standard travel	50–1100 mm (50 mm step)
AC servo motor capacity	200
Ball screw outer diameter	C7Ø16
Coupling	10*14/11
Home sensor — external	FF-U674 (NPN)

BTHA120

Parameter	Specification
Position repeat accuracy	±0.01
Screw lead	5 / 10 / 20
Max. speed	250 / 500 / 1000
Max. load capacity — horizontal use	80 / 60 / 30
Vertical use / Repeatability	33 / 22 / 10
Rated thrust	1388 / 694 / 347
Standard travel	50–1100 mm (50 mm step)
AC servo motor capacity	200
Ball screw outer diameter	C7Ø16
Coupling	10*14
Home sensor — external	FF-U674 (NPN)
