Belt Actuator
Belt Actuator
Price range: ¥1.00 through ¥9.00

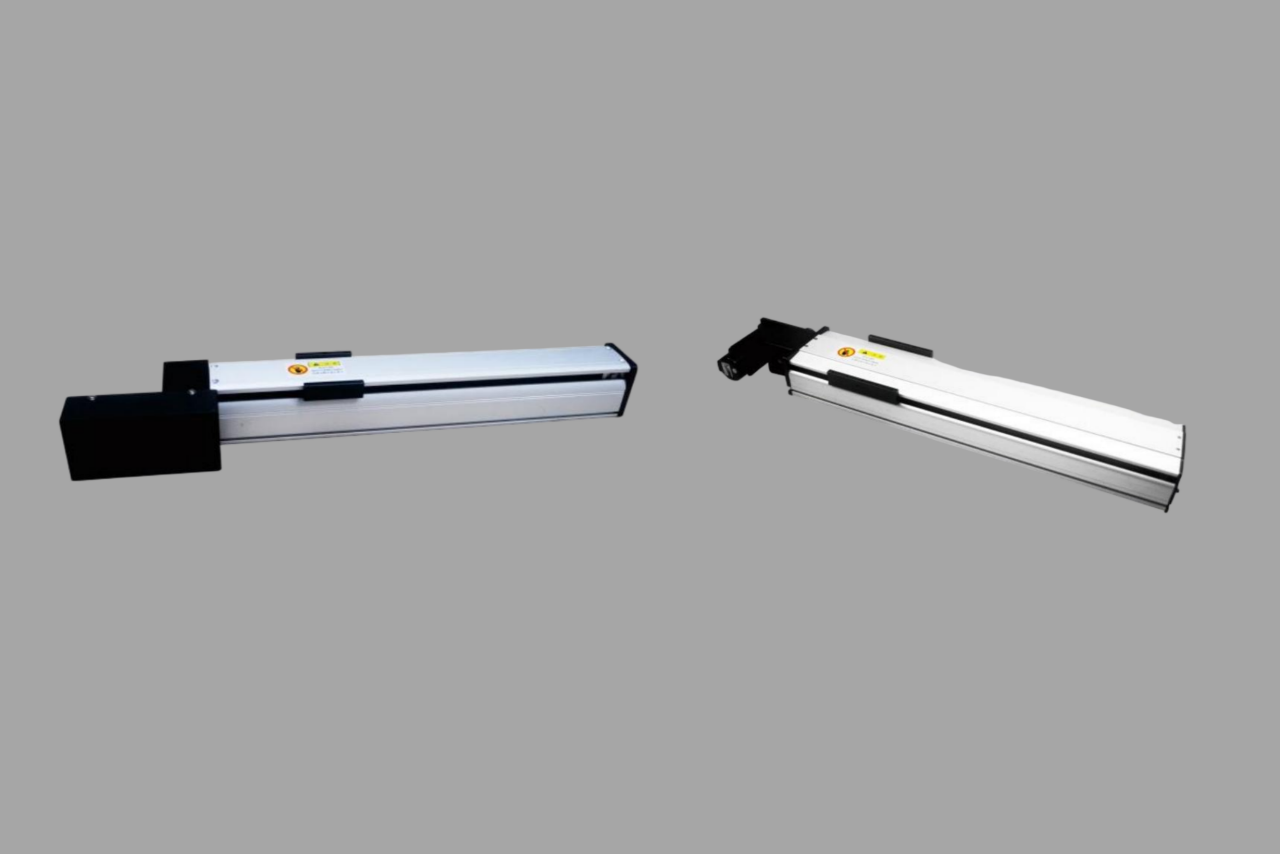

The KB Series belt actuators utilize timing belt drive mechanisms, offering high-speed motion and multi-load capacity to deliver efficient and stable long-stroke linear transmission solutions for automation equipment.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |

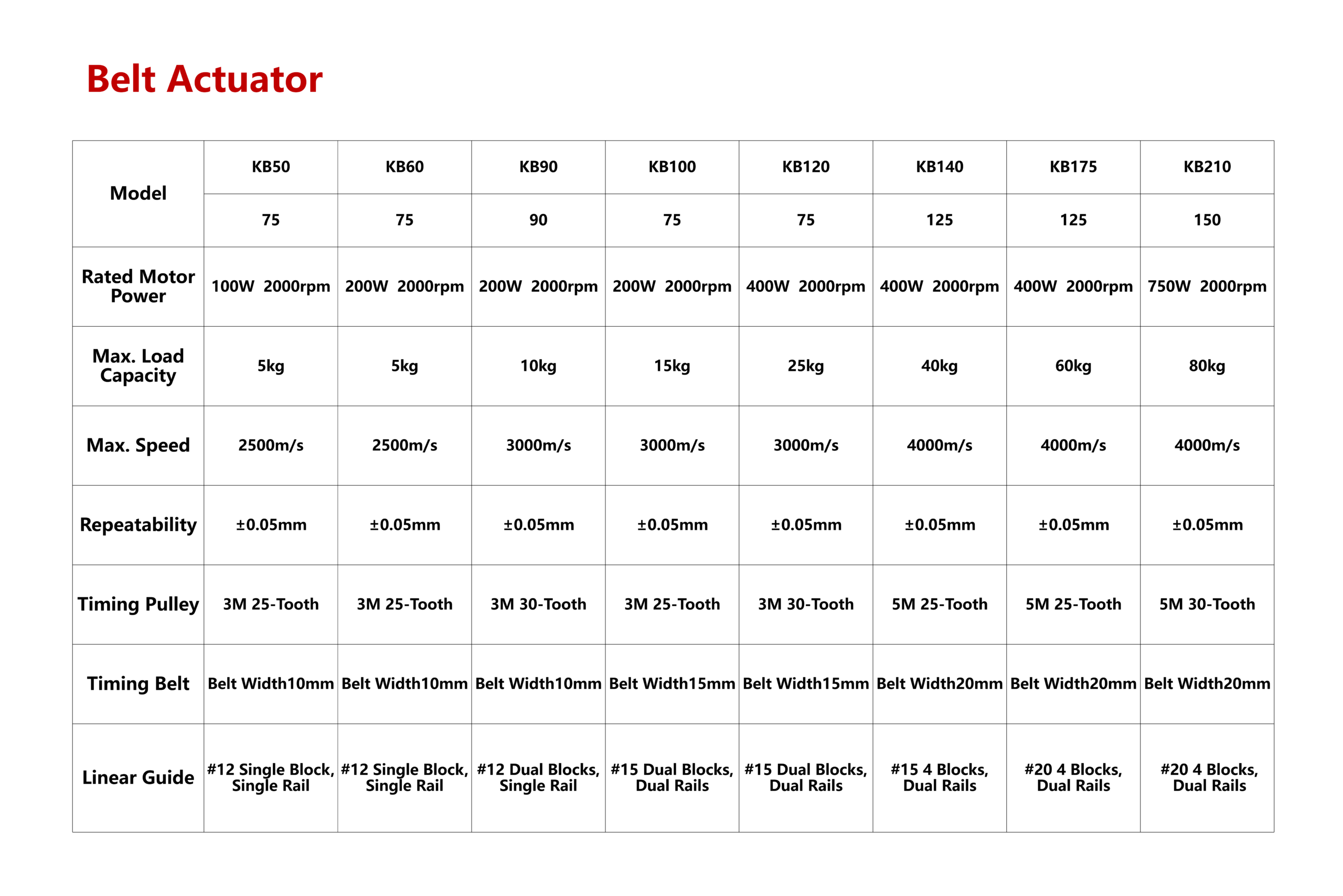

The KB Series uses a timing belt drive for high-speed, long-stroke linear motion. Compare the model specifications below to select the load capacity and drive configuration for your application.
| Model | KB50 75 |
KB60 75 |
KB90 90 |
KB100 75 |
|---|---|---|---|---|
| Rated motor power (W) | 100 | 200 | 200 | 200 |
| Motor speed (rpm) | 2000 | 2000 | 2000 | 2000 |
| Max. load capacity (kg) | 5 | 5 | 10 | 15 |
| Max. speed (mm/s) | 2500 | 2500 | 3000 | 3000 |
| Repeatability (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Timing pulley | 3M · 25-tooth | 3M · 25-tooth | 3M · 30-tooth | 3M · 25-tooth |
| Timing belt width (mm) | 10 | 10 | 10 | 15 |
| Model | KB120 75 |
KB140 125 |
KB175 125 |
KB210 150 |
|---|---|---|---|---|
| Rated motor power (W) | 400 | 400 | 400 | 750 |
| Motor speed (rpm) | 2000 | 2000 | 2000 | 2000 |
| Max. load capacity (kg) | 25 | 40 | 60 | 80 |
| Max. speed (mm/s) | 3000 | 4000 | 4000 | 4000 |
| Repeatability (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Timing pulley | 3M · 30-tooth | 5M · 25-tooth | 5M · 25-tooth | 5M · 30-tooth |
| Timing belt width (mm) | 15 | 20 | 20 | 20 |
Linear guide configuration
| Model | Linear guide |
|---|---|
| KB50 / KB60 | #12 single block, single rail |
| KB90 | #12 dual blocks, single rail |
| KB100 / KB120 | #15 dual blocks, dual rails |
| KB140 | #15 four blocks, dual rails |
| KB175 / KB210 | #20 four blocks, dual rails |
