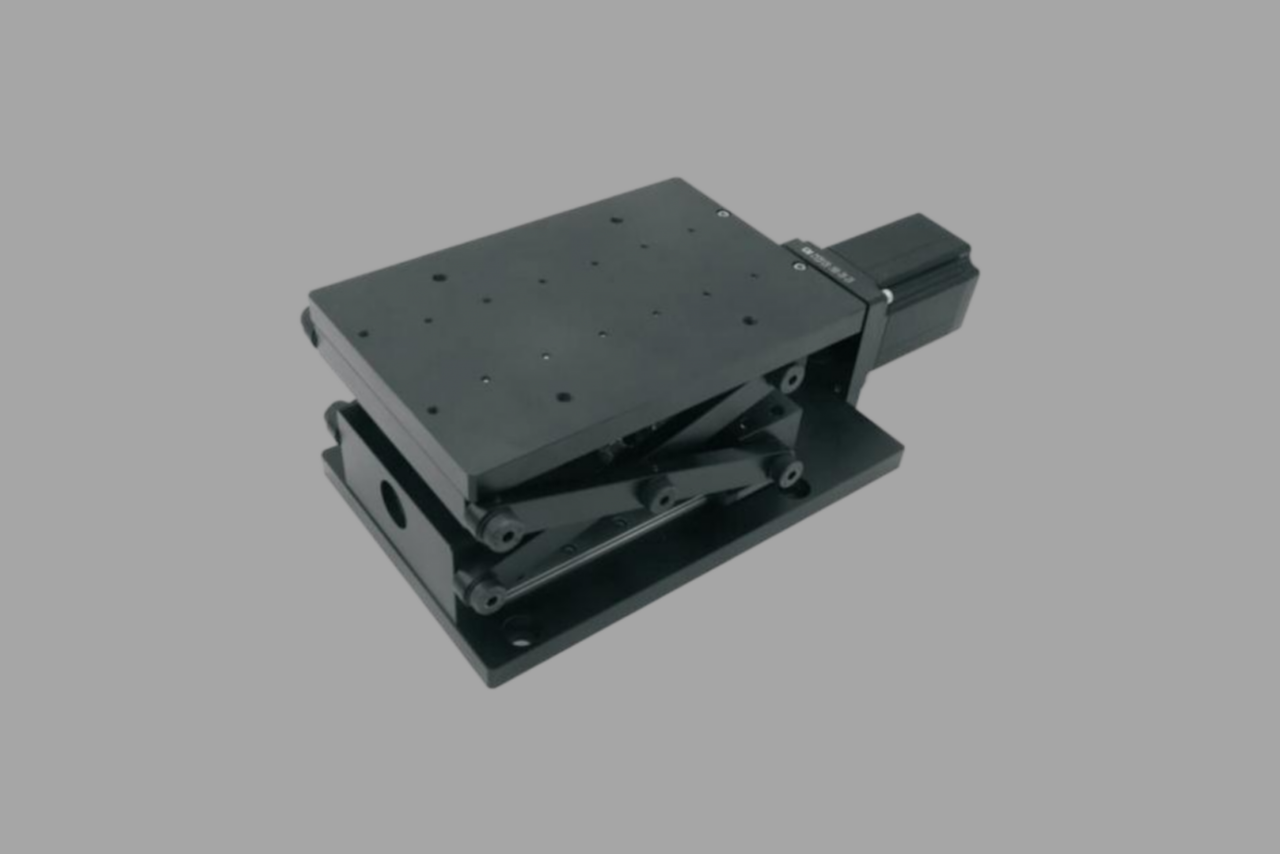

Motorized Lift Platform
Motorized Lift Platform
Price range: ¥1.00 through ¥2.00
The CY Series motorized lift platforms employ high-rigidity ball screw drives to achieve ±2μm repeatability and up to 100kg load capacity, delivering stable and reliable vertical precision positioning solutions for industrial equipment.
| Mechanical Dimensions(mm) | 278×155×50 |
|---|---|
| Delivery Time | 7day |
Product Features
- Ball screw drive: The CY Series motorized lift platforms use high-rigidity ball screw drives for vertical precision positioning.
- Repeatability: Offers repeatability of ±2 μm for industrial equipment.
- Load capacity: Supports loads up to 100 kg, depending on model.

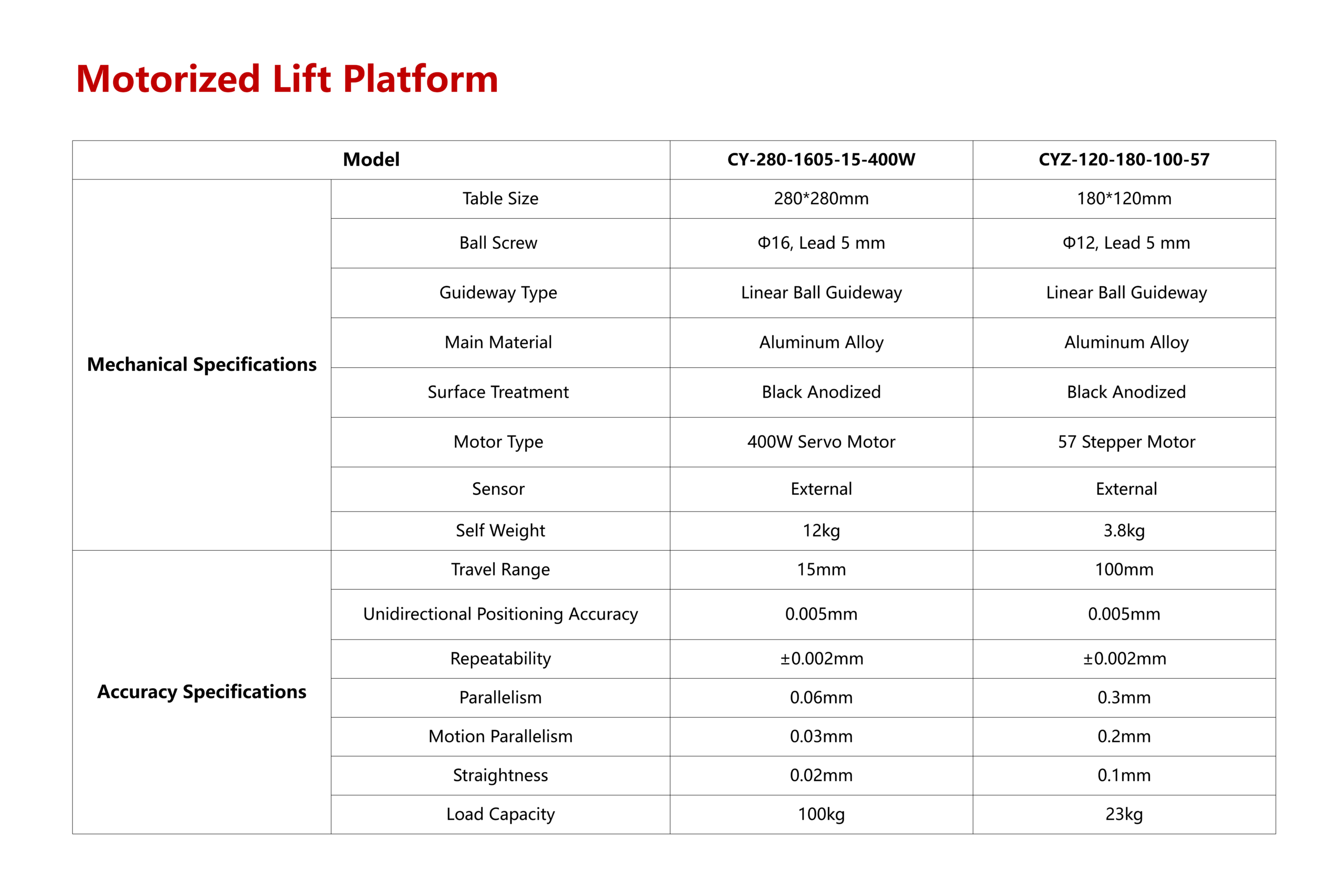

Technical Specifications
Specifications are grouped by model.
CY-280-1605-15-400W
| Parameter | Specification |
|---|---|
| Table size | 280 × 280 mm |
| Ball screw | Φ16, Lead 5 mm |
| Guideway type | Linear Ball Guideway |
| Main material | Aluminum Alloy |
| Surface treatment | Black Anodized |
| Motor type | 400 W Servo Motor |
| Sensor | External |
| Self weight | 12 kg |
| Travel range | 15 mm |
| Unidirectional positioning accuracy | 0.005 mm |
| Repeatability | ±0.002 mm |
| Parallelism | 0.06 mm |
| Motion parallelism | 0.03 mm |
| Straightness | 0.02 mm |
| Load capacity | 100 kg |
CYZ-120-180-100-57
| Parameter | Specification |
|---|---|
| Table size | 180 × 120 mm |
| Ball screw | Φ12, Lead 5 mm |
| Guideway type | Linear Ball Guideway |
| Main material | Aluminum Alloy |
| Surface treatment | Black Anodized |
| Motor type | 57 Stepper Motor |
| Sensor | External |
| Self weight | 3.8 kg |
| Travel range | 100 mm |
| Unidirectional positioning accuracy | 0.005 mm |
| Repeatability | ±0.002 mm |
| Parallelism | 0.3 mm |
| Motion parallelism | 0.2 mm |
| Straightness | 0.1 mm |
| Load capacity | 23 kg |
