OBC Power Burn-in system
OBC Power Burn-in system

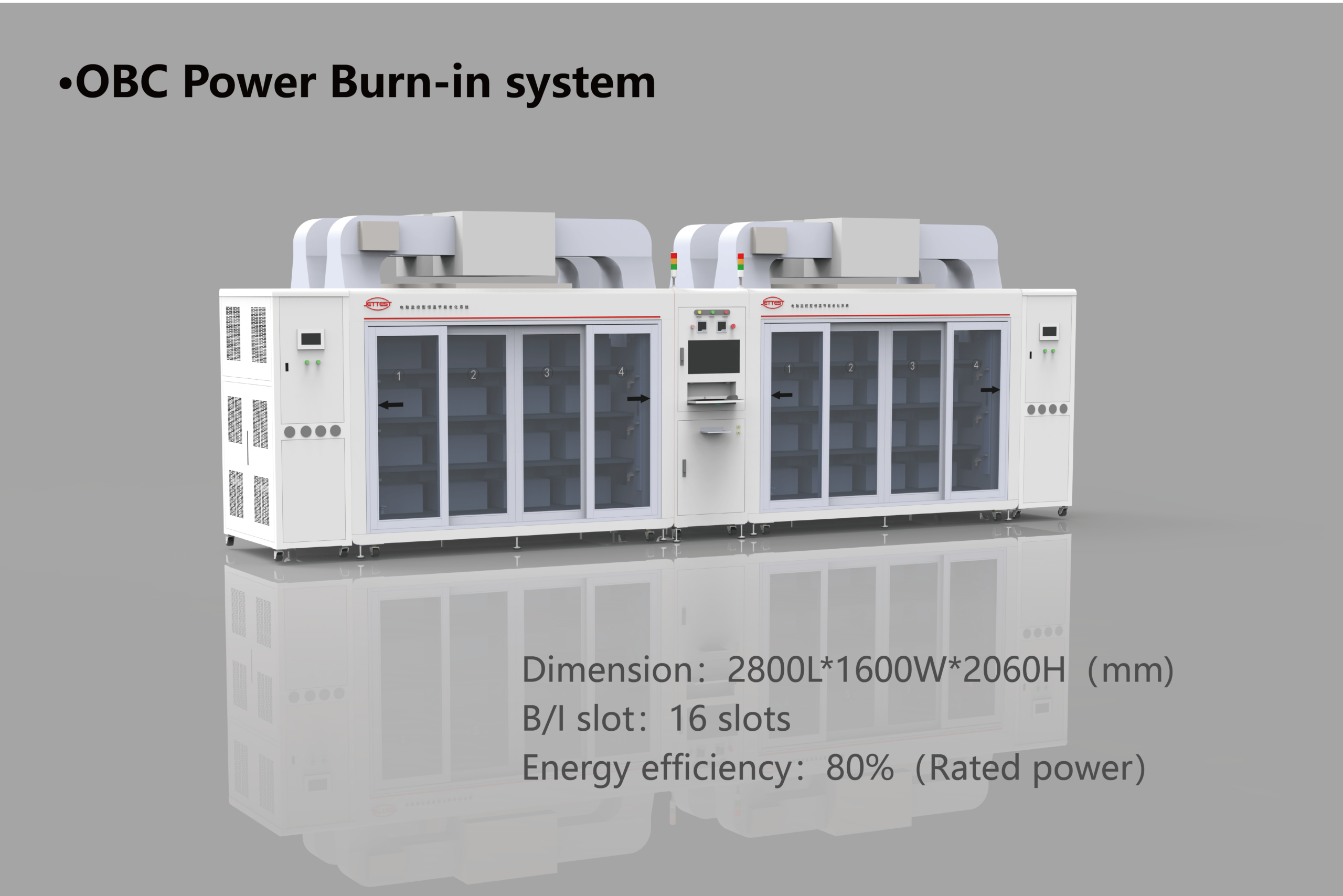

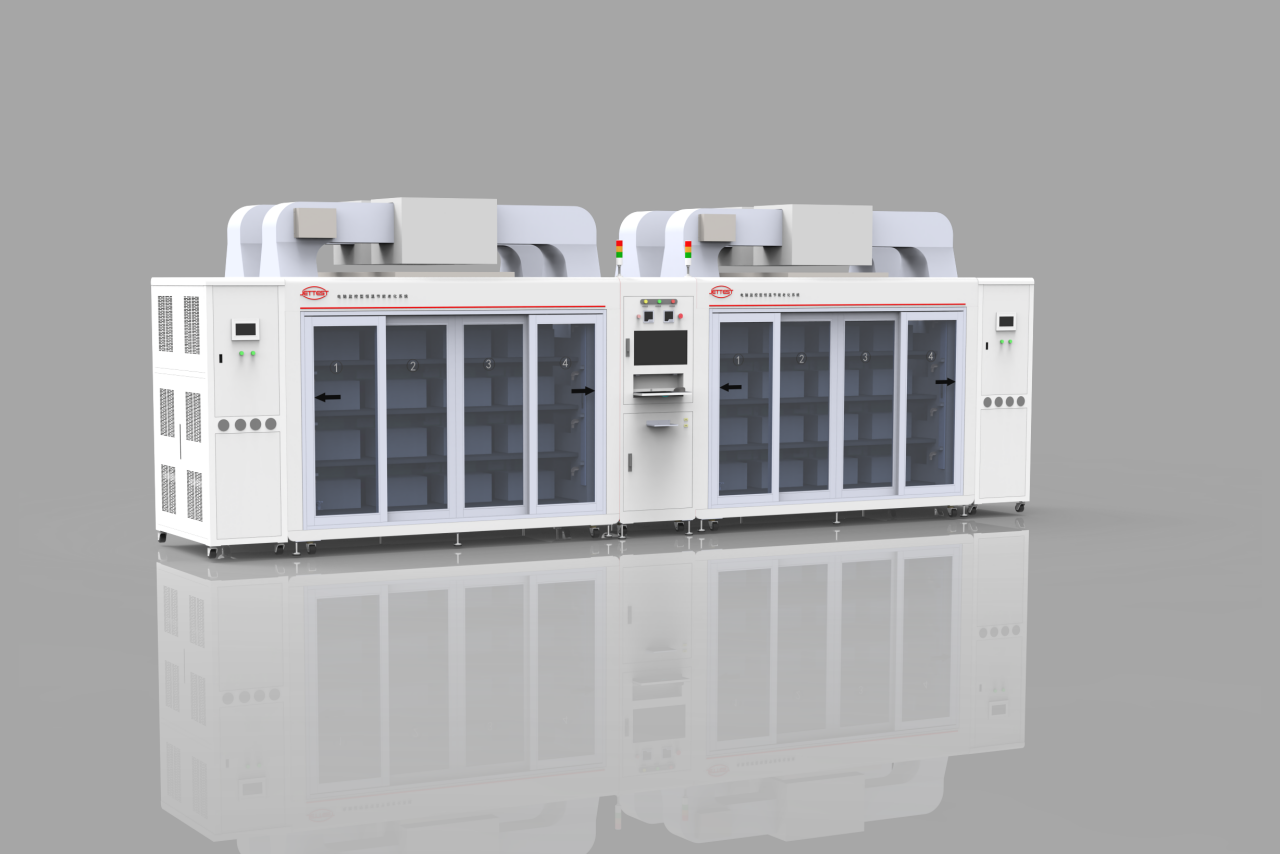

An OBC power burn-in system for new energy charging modules, with 16 burn-in slots across 4 layers and an energy saving load operating in CC/CV modes. It supports PC+PLC monitoring, MES process tracking and automatic pipeline water drying after aging.
| Dimension(L*W*H) | 2800*1600*2060（mm) |
|---|---|
| B/I slot | 16 PCS |
| Applicable Products | On-Board Charger (OBC) |
| Energy efficiency | 80%(Rated power) |
Product Features
Automatic monitoring
PC+PLC automatically monitor aging without personnel on duty
MES traceability
MES tracking the process for easy traceability
Voltage, current and temperature settings
Feely to set the voltage, current and temperature.
Automatic pipeline drying
The water in the pipeline will be dried automatically after aging completed
Technical Specifications
Device Parameters

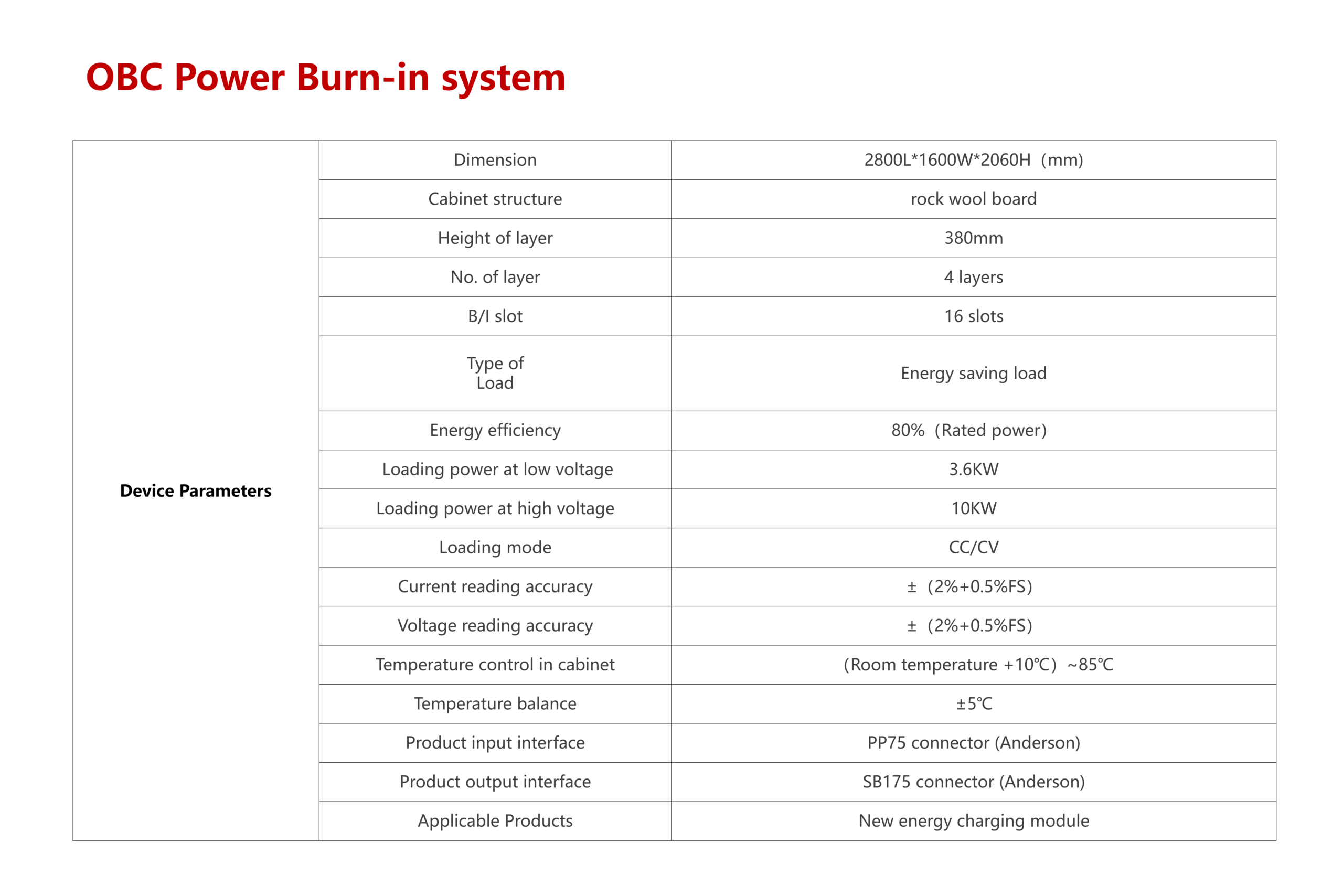

| Parameter | Specification |
|---|---|
| Dimension | 2800L*1600W*2060H (mm) |
| Cabinet structure | rock wool board |
| Height of layer | 380mm |
| No. of layer | 4 layers |
| B/I slot | 16 slots |
| Type of Load | Energy saving load |
| Energy efficiency | 80% (Rated power) |
| Loading power at low voltage | 3.6KW |
| Loading power at high voltage | 10KW |
| Loading mode | CC/CV |
| Current reading accuracy | ± (2%+0.5%FS) |
| Voltage reading accuracy | ± (2%+0.5%FS) |
| Temperature control in cabinet | (Room temperature +10°C) ~85°C |
| Temperature balance | ±5°C |
| Product input interface | PP75 connector (Anderson) |
| Product output interface | SB175 connector (Anderson) |
| Applicable Products | New energy charging module |
