Motor Driver Burn-in Line
Motor Driver Burn-in Line

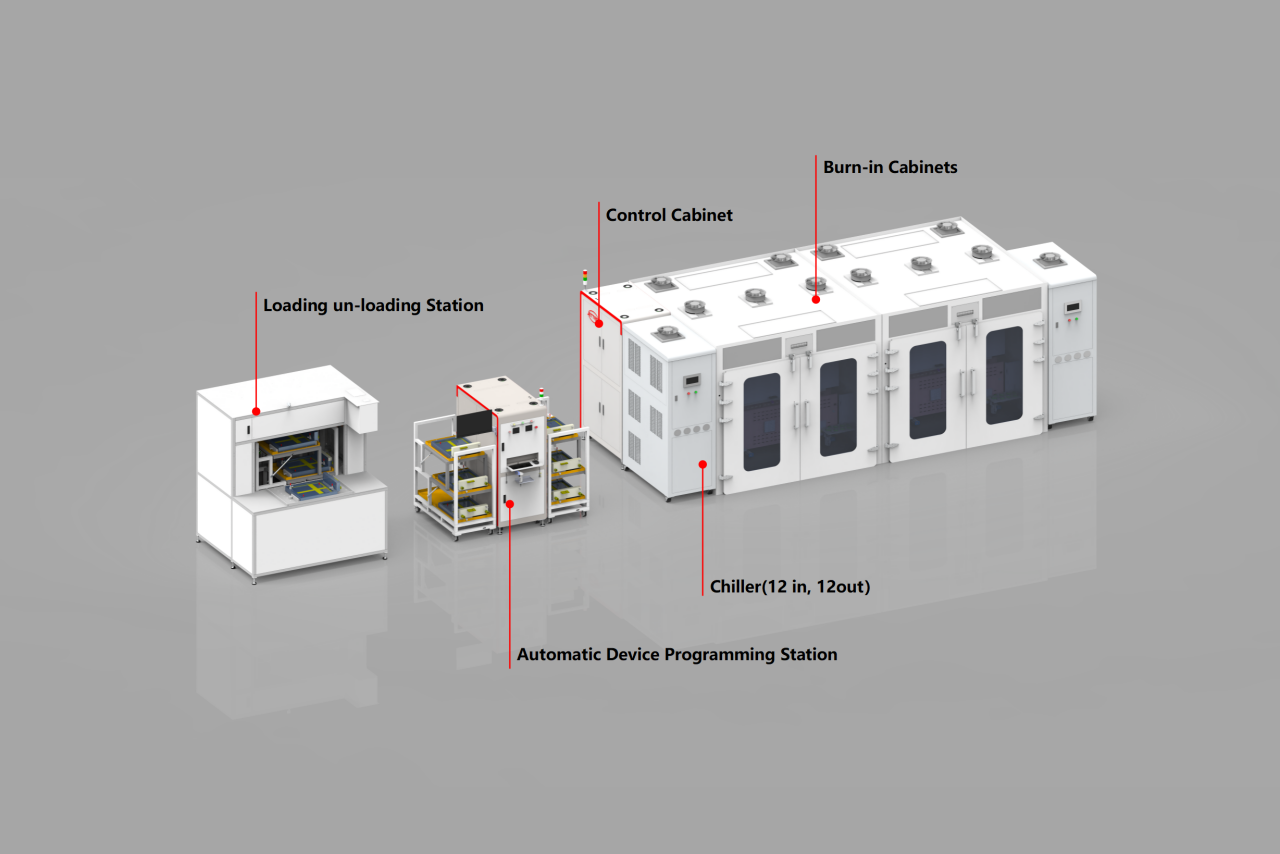

This equipment is a specialized aging test system for new energy vehicle motor drivers, verifying product reliability by simulating long-term operating conditions. It can simultaneously test 12 high-power drivers, examining their stable performance during continuous operation through simulated loads and precise temperature control.

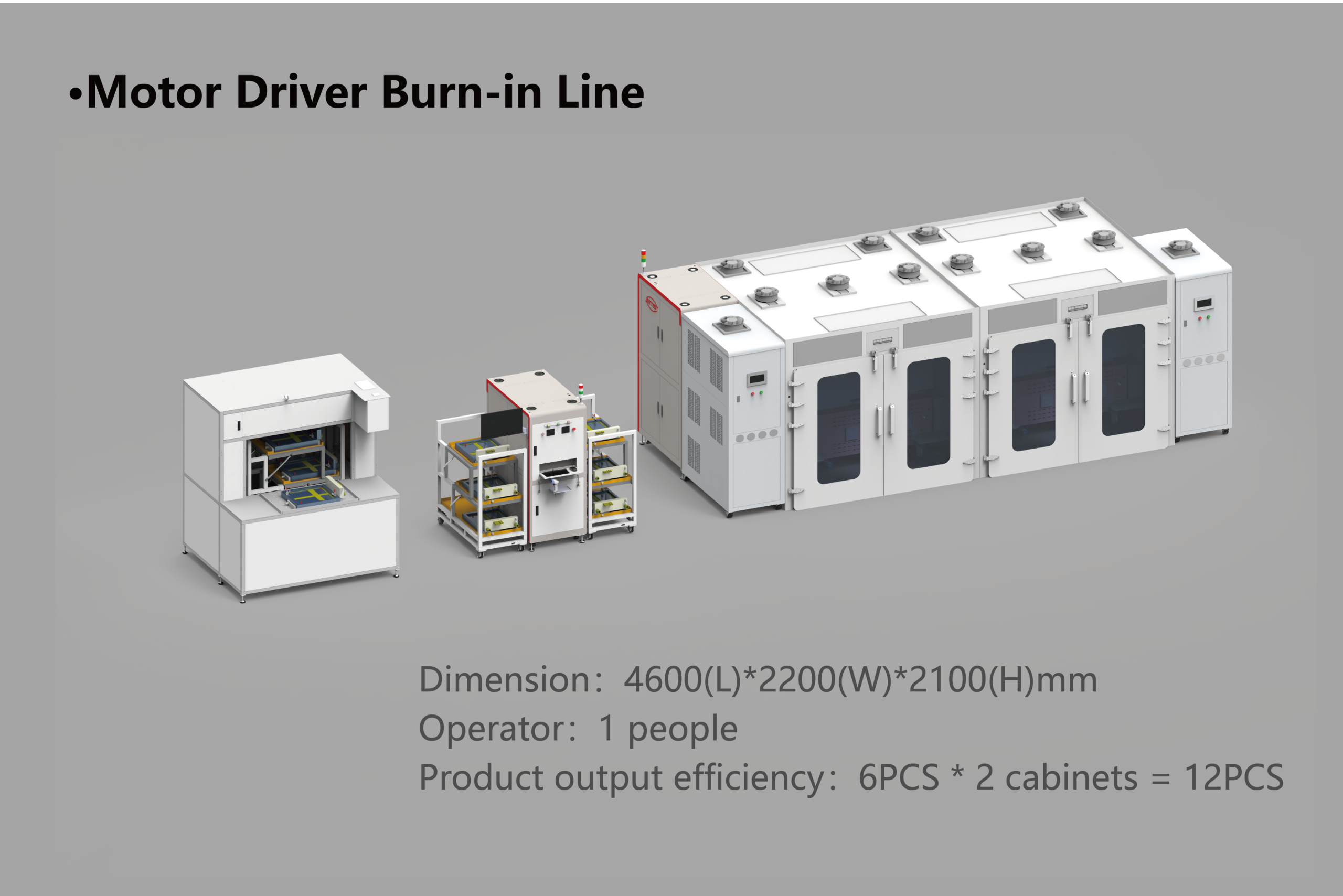

| Dimension(L*W*H) | 4600*2200*2100(mm)（Burn-in Cabinets） |
|---|---|
| Product output efficiency | 6PCS * 2 cabinets = 12PCS |
| Applicable Products | Motor Driver for New Energy Vehicles |
| Operator | 1 people |
Product Features
- Modular unit, easy installation and maintenance, simple and safe operation, flexible combinations according to user requirements.
- Whole-line product process data control, with traceability support and MES protocol compatibility.
- Human–machine integrated, with intelligent key units, strong suitability for demonstration.
Technical Specifications

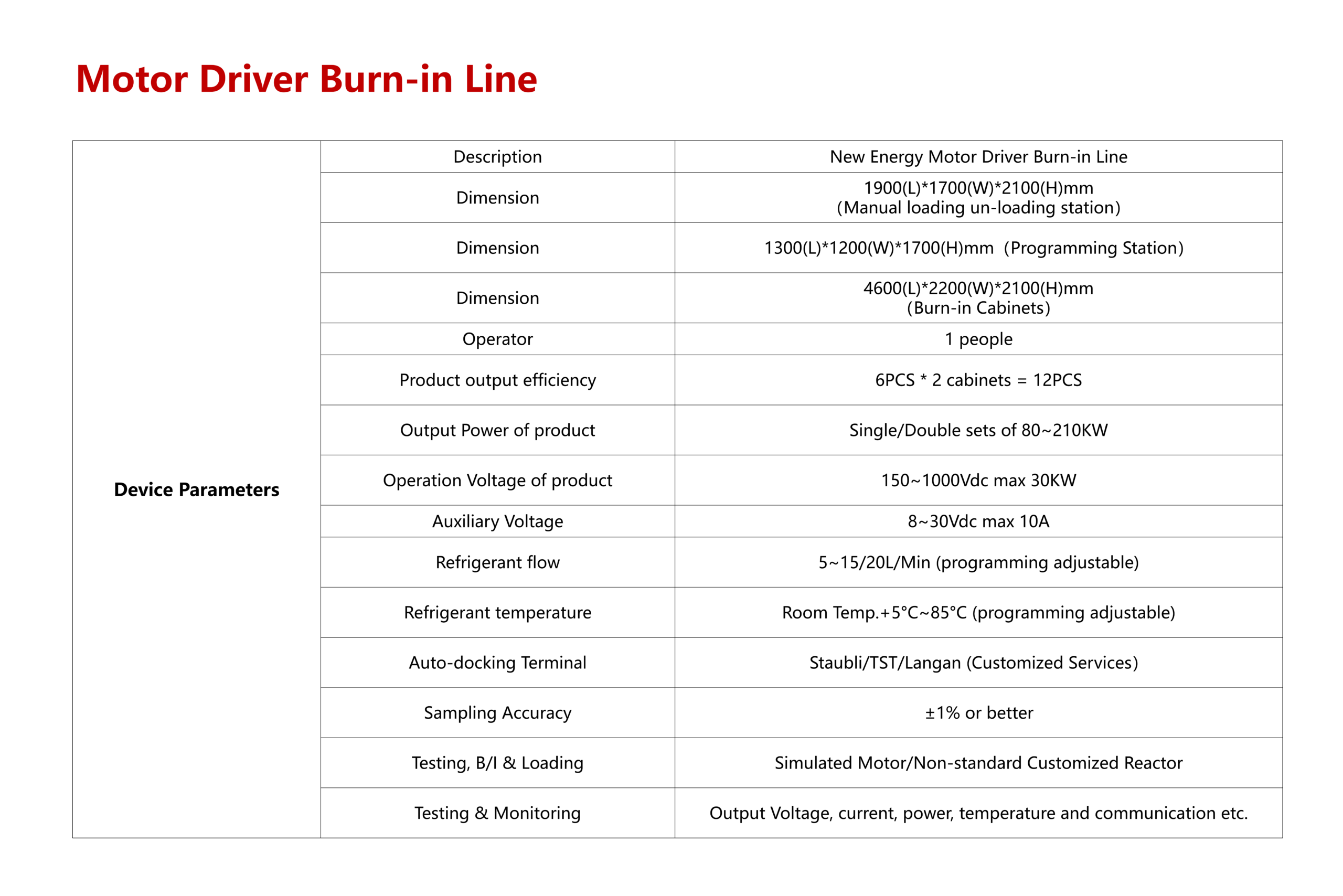

Device Parameters
| Parameter | Specification |
|---|---|
| Description | New Energy Motor Driver Burn-in Line |
| Dimension | 1900(L)*1700(W)*2100(H)mm (Manual loading un-loading station) |
| Dimension | 1300(L)*1200(W)*1700(H)mm (Programming Station) |
| Dimension | 4600(L)*2200(W)*2100(H)mm (Burn-in Cabinets) |
| Operator | 1 people |
| Product output efficiency | 6PCS * 2 cabinets = 12PCS |
| Output Power of product | Single/Double sets of 80~210KW |
| Operation Voltage of product | 150~1000Vdc max 30KW |
| Auxiliary Voltage | 8~30Vdc max 10A |
| Refrigerant flow | 5~15/20L/Min (programming adjustable) |
| Refrigerant temperature | Room Temp.+5°C~85°C (programming adjustable) |
| Auto-docking Terminal | Staubli/TST/Langan (Customized Services) |
| Sampling Accuracy | ±1% or better |
| Testing, B/I & Loading | Simulated Motor/Non-standard Customized Reactor |
| Testing & Monitoring | Output Voltage, current, power, temperature and communication etc. |
