Control Card JET-P4002
Control Card JET-P4002
¥350.00

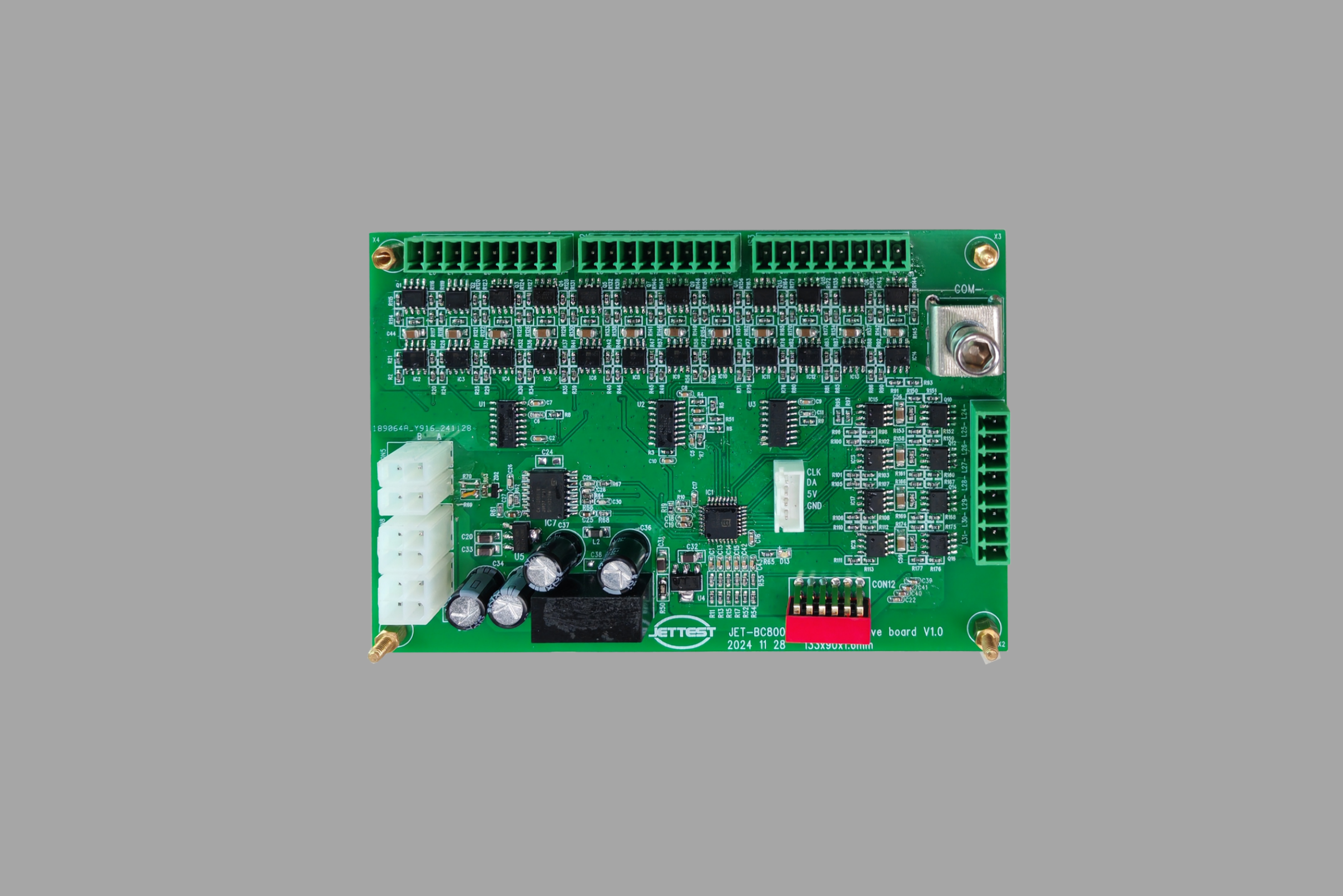

This is a high-performance 32-channel MOSFET driver control card designed for industrial automation and intelligent lighting control systems. It adopts a stable power supply design and standard RS485 communication interface, providing reliable and efficient driving capability for various load control scenarios.

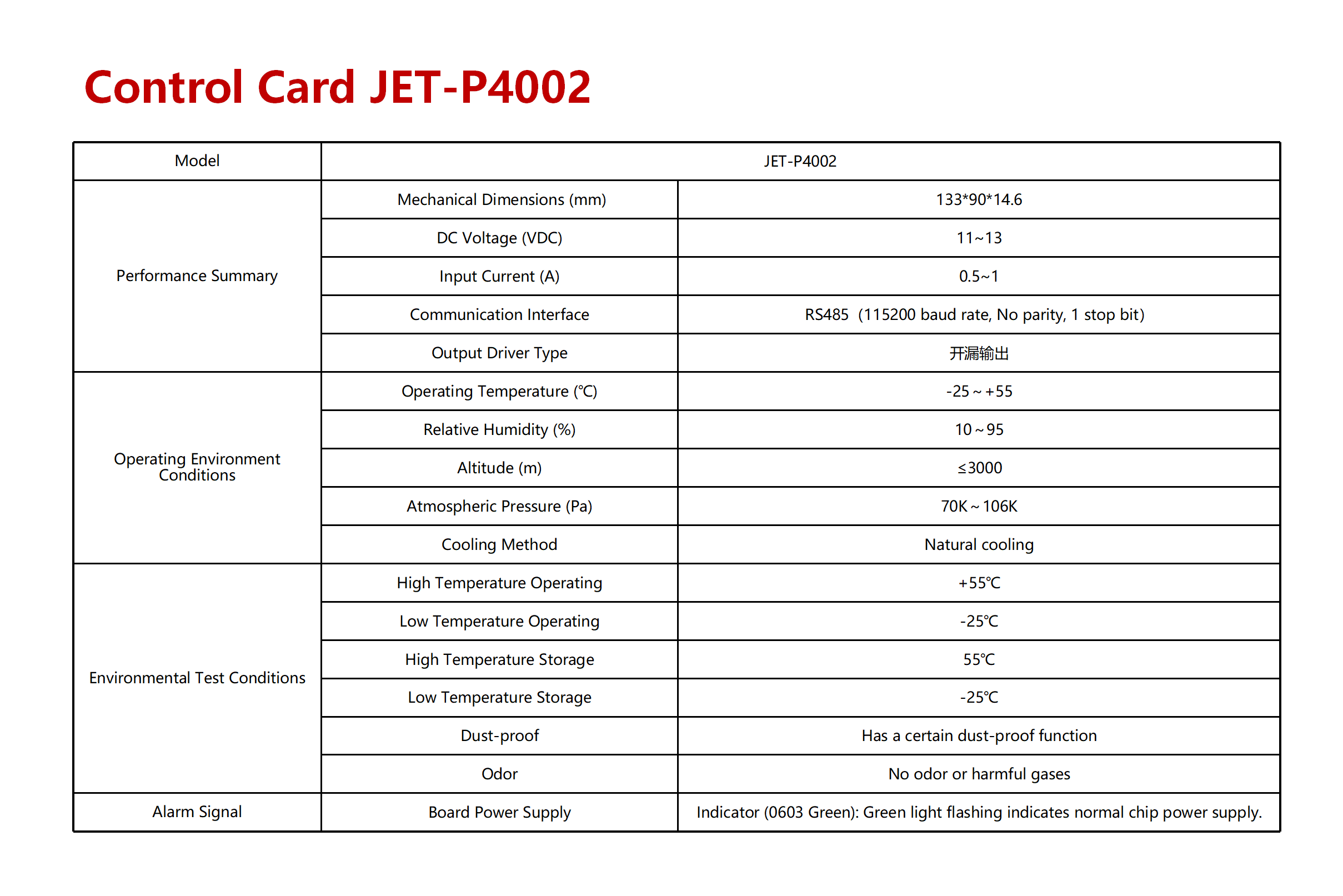

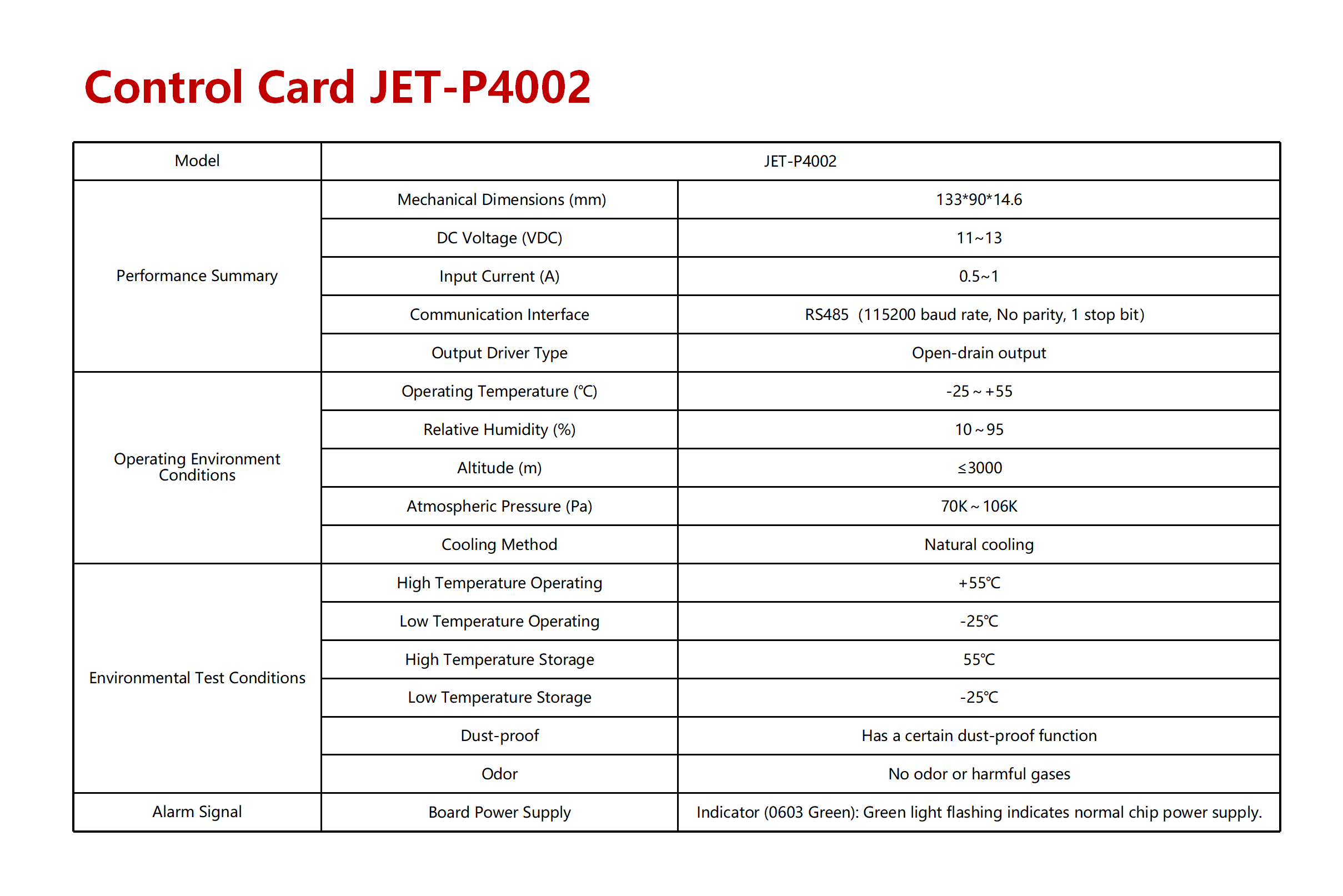

| Mechanical Dimensions(mm) | 133*90*14.6 |
|---|---|
| Delivery Time | To Be Negotiated |

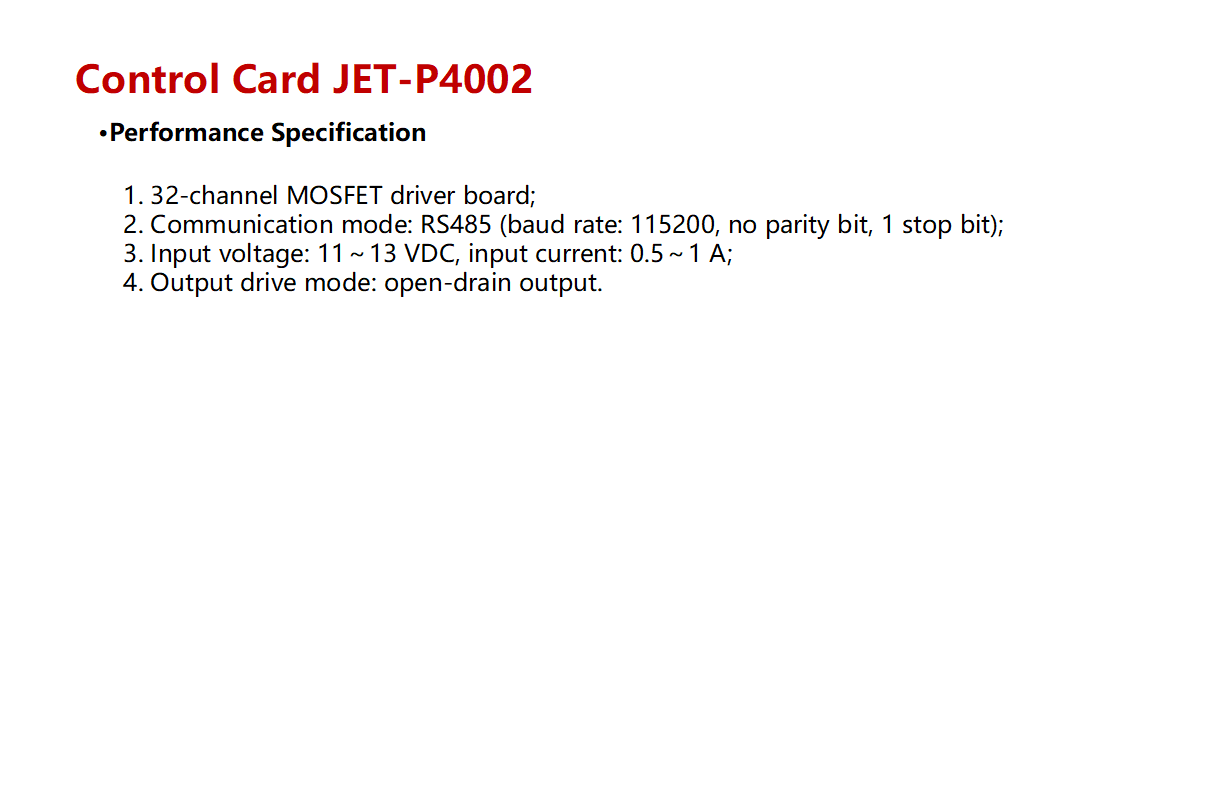

Product Features
- Driver board: 32-channel MOSFET driver board.
- Communication: RS485 at 115200 baud, with no parity bit and 1 stop bit.
- Input supply: Input voltage: 11～13 VDC; input current: 0.5～1 A.
- Output mode: Open-drain output.

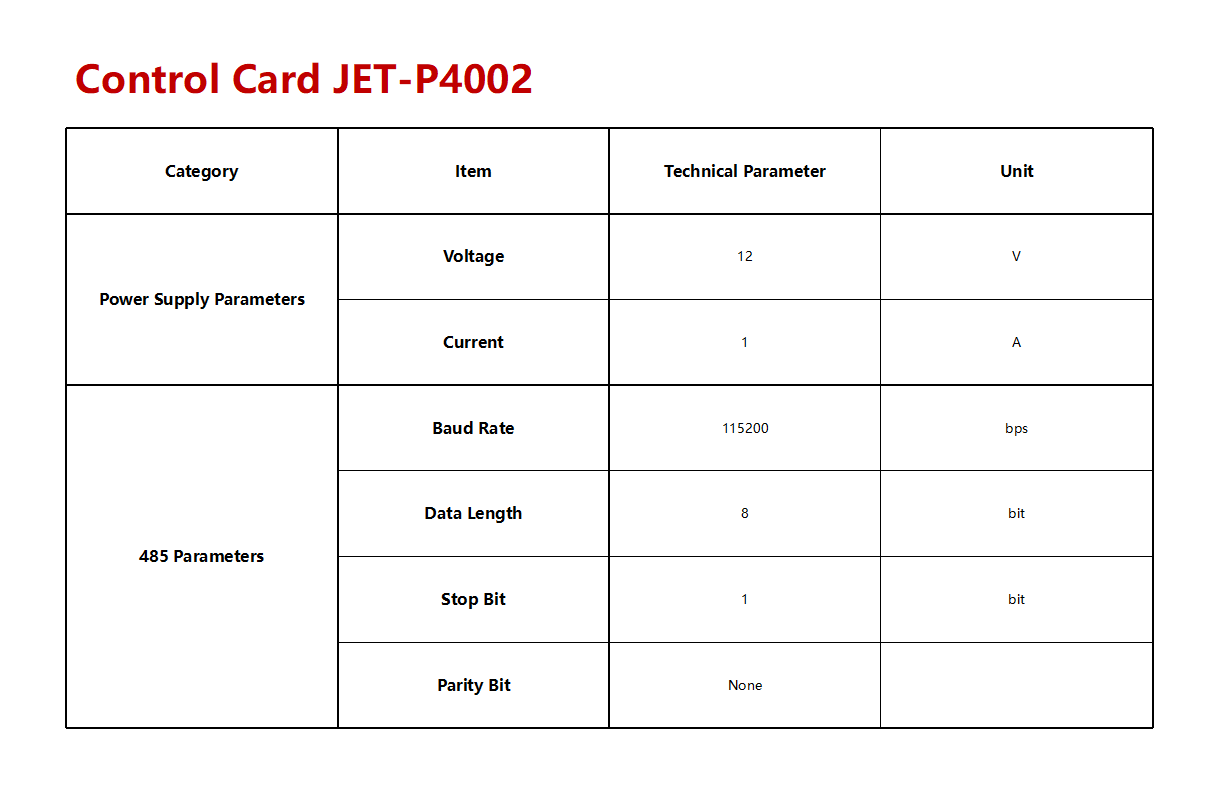

Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Parameters — Voltage | 12 V |
| Power Supply Parameters — Current | 1 A |
| 485 Parameters — Baud Rate | 115200 bps |
| 485 Parameters — Data Length | 8 bit |
| 485 Parameters — Stop Bit | 1 bit |
| 485 Parameters — Parity Bit | None |

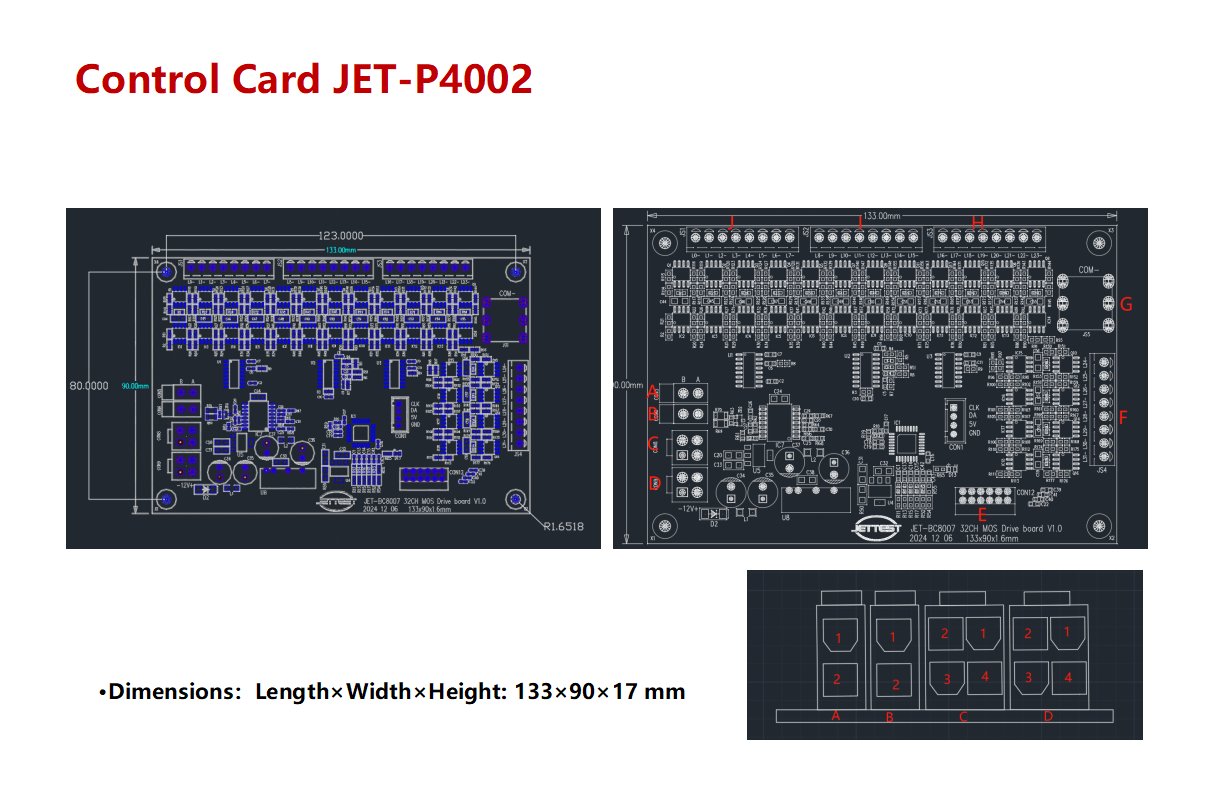

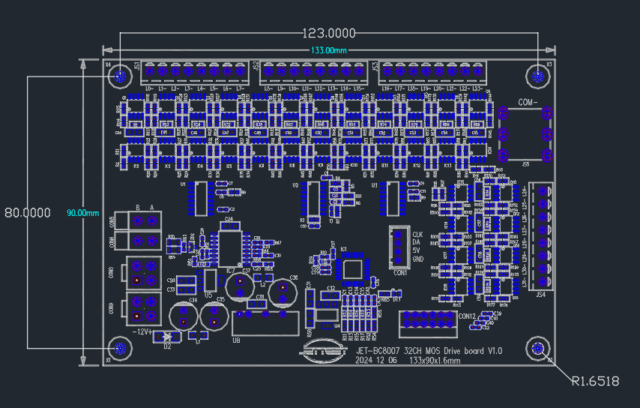

Dimensions
Length × Width × Height: 133 × 90 × 17 mm

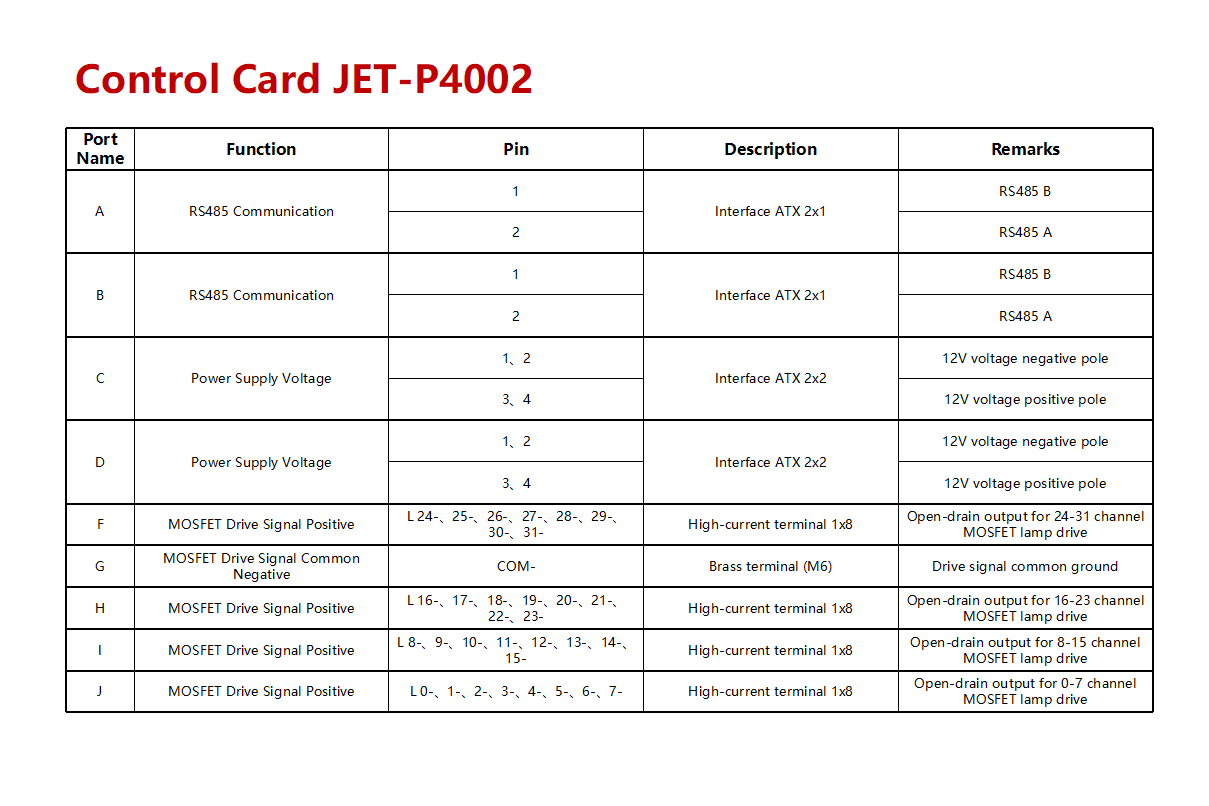

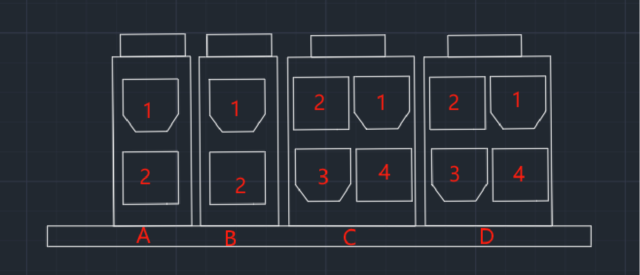

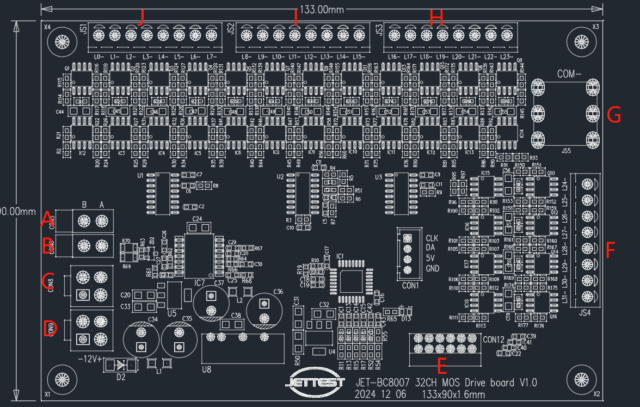

Port Definition and Pinout
| Port | Function and Pinout |
|---|---|
| A | Function: RS485 Communication Description: Interface ATX 2x1 Pin 1: RS485 B Pin 2: RS485 A |
| B | Function: RS485 Communication Description: Interface ATX 2x1 Pin 1: RS485 B Pin 2: RS485 A |
| C | Function: Power Supply Voltage Description: Interface ATX 2x2 Pin 1、2: 12V voltage negative pole Pin 3、4: 12V voltage positive pole |
| D | Function: Power Supply Voltage Description: Interface ATX 2x2 Pin 1、2: 12V voltage negative pole Pin 3、4: 12V voltage positive pole |
| F | Function: MOSFET Drive Signal Positive Description: High-current terminal 1x8 Pin L 24-、25-、26-、27-、28-、29-、30-、31-: Open-drain output for 24-31 channel MOSFET lamp drive |
| G | Function: MOSFET Drive Signal Common Negative Description: Brass terminal (M6) Pin COM-: Drive signal common ground |
| H | Function: MOSFET Drive Signal Positive Description: High-current terminal 1x8 Pin L 16-、17-、18-、19-、20-、21-、22-、23-: Open-drain output for 16-23 channel MOSFET lamp drive |
| I | Function: MOSFET Drive Signal Positive Description: High-current terminal 1x8 Pin L 8-、9-、10-、11-、12-、13-、14-、15-: Open-drain output for 8-15 channel MOSFET lamp drive |
| J | Function: MOSFET Drive Signal Positive Description: High-current terminal 1x8 Pin L 0-、1-、2-、3-、4-、5-、6-、7-: Open-drain output for 0-7 channel MOSFET lamp drive |
