Communication Card JET-P5001A
Communication Card JET-P5001A
¥350.00
This is a multi-protocol communication conversion card that supports LIN/CAN to network communication. It integrates multiple mainstream industrial communication interfaces and allows network parameter modification via RS485, providing flexible and reliable data transmission solutions for industrial automation and intelligent control systems.
| Mechanical Dimensions(mm) | 114*84*17 |
|---|---|
| Delivery Time | To Be Negotiated |
- Performance Specification
1. Communication card, supports network parameter modification via RS485, and realizes LIN/CAN to network communication;
2. Power supply: 10~24V, maximum current 0.2A;
3. Communication interfaces: 1-channel RS485, 2-channel CAN, 2-channel LIN, 1-channel LAN - Product Technical Specifications
Category Item Technical Parameter Unit Power Supply Parameters Voltage 12 V Current 0.15 A 485 Parameters Baud Rate 115200 bps Data Length 8 bit Stop Bit 1 bit Parity Bit None CAN Parameters Arbitration Baud Rate 50K-1M bps Data Baud Rate 100K-5M bps CANFD Supported Terminal Resistance 120 Ω Extended Frame Supported LIN Parameters Baud Rate 2.4-20 Kbps Sync Break Field 10-14 bit Checksum Mode Classic and Enhanced Mode - Dimensions：Length×Width×Height: 84×114×16 mm

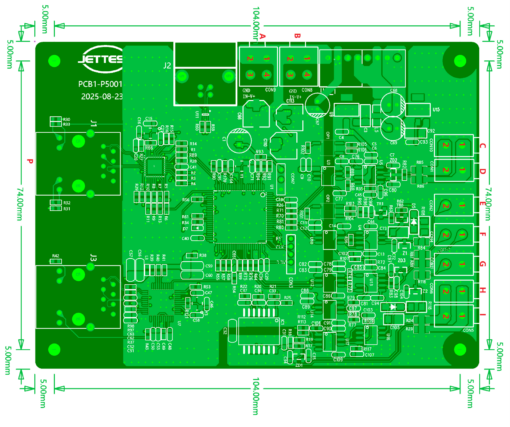

- Port Definition and Pinout
Port Function Pin Remarks P Ethernet Port Connect to network cable B Power Supply 1 12V power supply negative pole 3 12V power supply positive pole C CAN2 Control 1 CAN2-L data line 2 CAN2-H data line D CAN2 Control 1 CAN2-L data line 2 CAN2-H data line E LIN1 Control 1 GND 2 LIN1-BUS data line F CAN1 Control 1 CAN1-L data line 2 CAN1-H data line G LIN2 Control 1 GND 2 LIN2-BUS data line H RS485 Control 1 RS485-A positive signal 2 RS485-B negative signal I RS485 Control 1 RS485-A positive signal 2 RS485-B negative signal
