Hollow Rotary Stage
Hollow Rotary Stage
Price range: ¥1.00 through ¥9.00

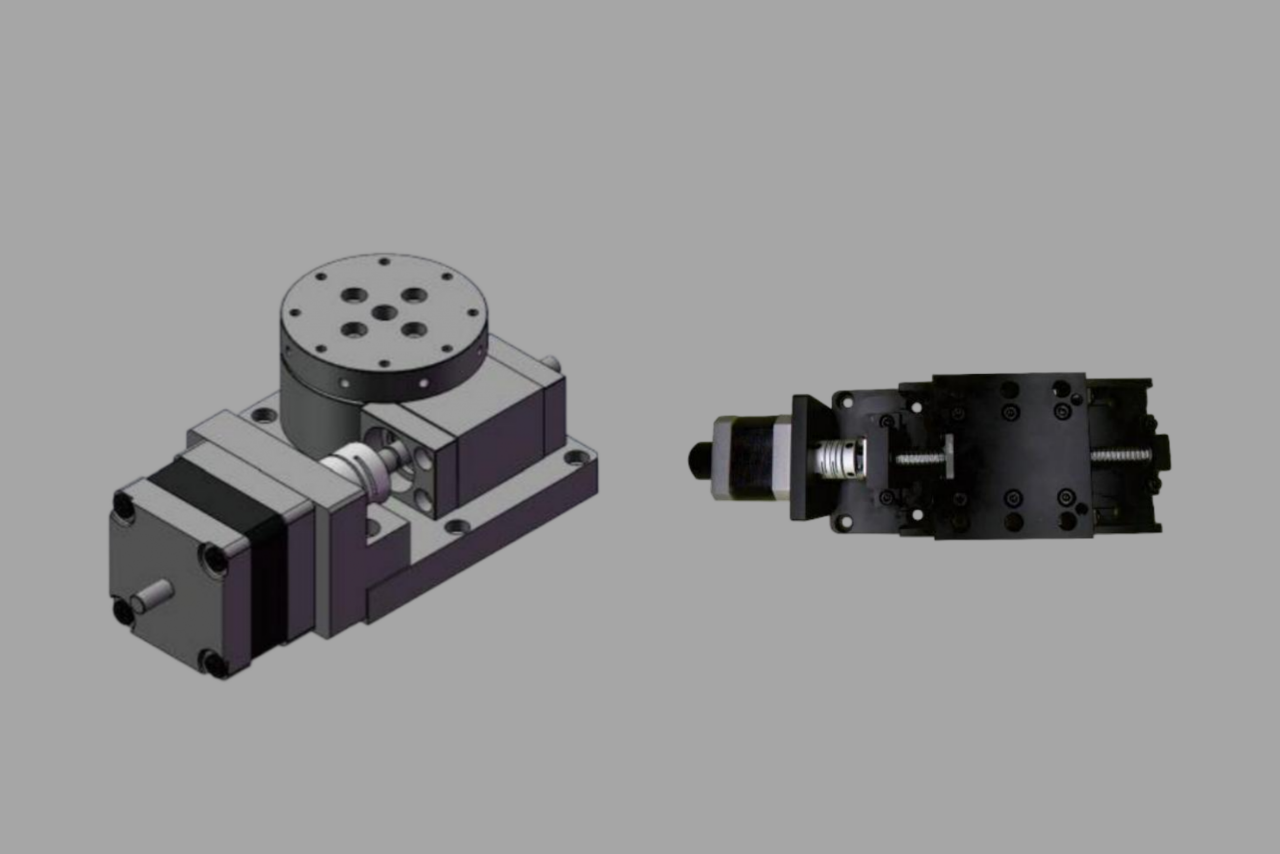

CY Series rotary and linear modules for precision automation. CY50A/CY60A list 0.02° repeatability; CY80XYZ/CY80-50A list ±5um, and CY65XY/CY65 list ±1um, with model-dependent drive and guide configurations.
| Dimensions(mm） | Depending on model |
|---|---|
| Delivery Time | 7day |
Product Features
- Motion configurations: The listed models include 360° rotary travel on CY50A/CY60A and 18 mm or 50 mm travel on the other models.
- Drive and guide options: CY50A/CY60A use worm gear drives and rolling bearings. The other listed models use lead screws and crossed roller guides.
- Model-specific repeatability: CY50A/CY60A list 0.02°. CY80XYZ/CY80-50A list ±5um; CY65XY/CY65 list ±1um.

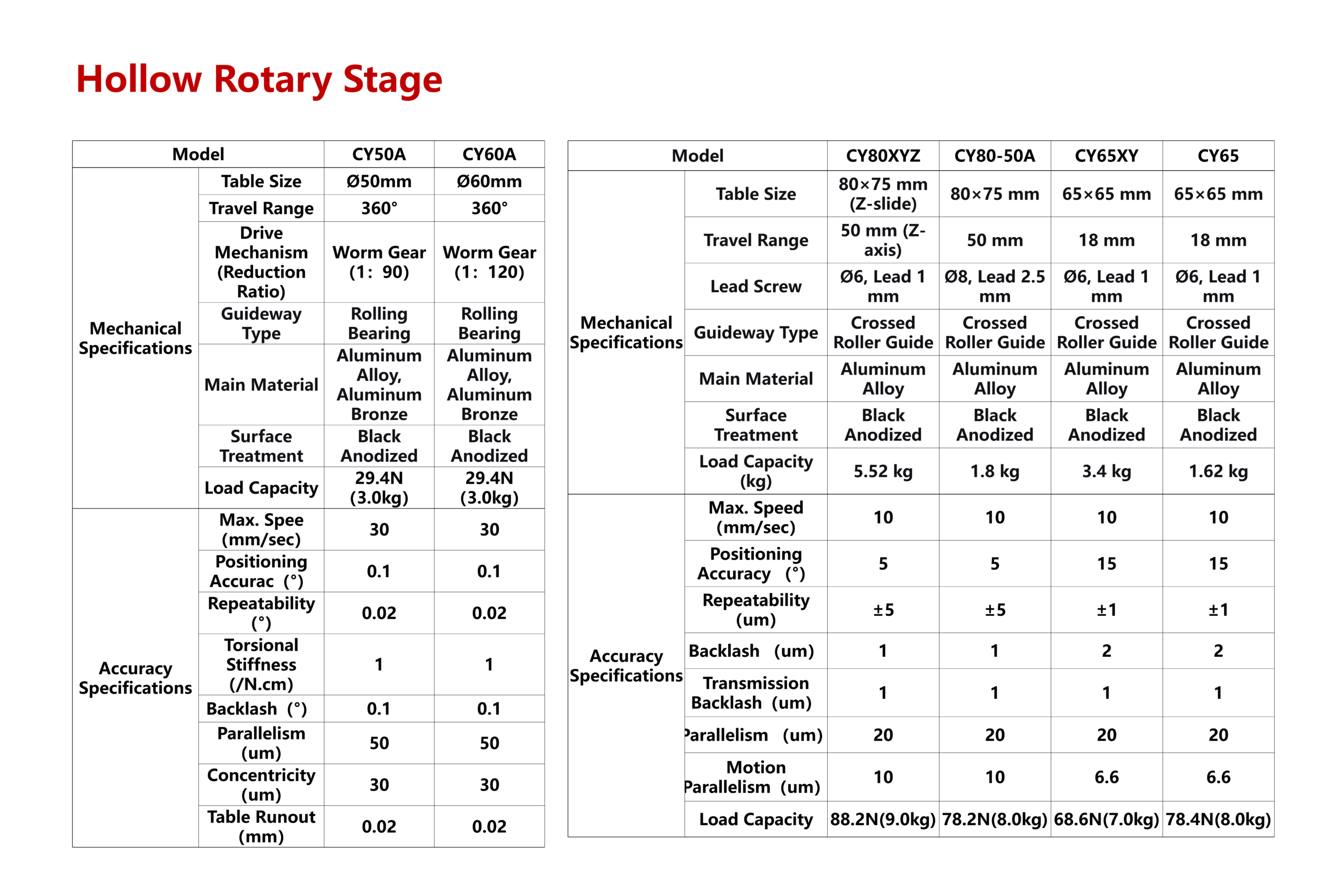

Technical Specifications
Specifications are grouped by model. Units and signs follow the original specification sheet.
CY50A
| Parameter | Specification |
|---|---|
| Table Size | Ø50mm |
| Travel Range | 360° |
| Drive Mechanism (Reduction Ratio) | Worm Gear (1: 90) |
| Guideway Type | Rolling Bearing |
| Main Material | Aluminum Alloy, Aluminum Bronze |
| Surface Treatment | Black Anodized |
| Load Capacity | 29.4N (3.0kg) |
| Max. Speed (mm/sec) | 30 |
| Positioning Accuracy (°) | 0.1 |
| Repeatability (°) | 0.02 |
| Torsional Stiffness (/N.cm) | 1 |
| Backlash (°) | 0.1 |
| Parallelism (um) | 50 |
| Concentricity (um) | 30 |
| Table Runout (mm) | 0.02 |
CY60A
| Parameter | Specification |
|---|---|
| Table Size | Ø60mm |
| Travel Range | 360° |
| Drive Mechanism (Reduction Ratio) | Worm Gear (1: 120) |
| Guideway Type | Rolling Bearing |
| Main Material | Aluminum Alloy, Aluminum Bronze |
| Surface Treatment | Black Anodized |
| Load Capacity | 29.4N (3.0kg) |
| Max. Speed (mm/sec) | 30 |
| Positioning Accuracy (°) | 0.1 |
| Repeatability (°) | 0.02 |
| Torsional Stiffness (/N.cm) | 1 |
| Backlash (°) | 0.1 |
| Parallelism (um) | 50 |
| Concentricity (um) | 30 |
| Table Runout (mm) | 0.02 |
CY80XYZ
| Parameter | Specification |
|---|---|
| Table Size | 80 × 75 mm (Z-slide) |
| Travel Range | 50 mm (Z-axis) |
| Lead Screw | Ø6, Lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity — Mechanical (kg) | 5.52 kg |
| Max. Speed (mm/sec) | 10 |
| Positioning Accuracy (°) | 5 |
| Repeatability (um) | ±5 |
| Backlash (um) | 1 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 20 |
| Motion Parallelism (um) | 10 |
| Load Capacity — Accuracy | 88.2N(9.0kg) |
CY80-50A
| Parameter | Specification |
|---|---|
| Table Size | 80 × 75 mm |
| Travel Range | 50 mm |
| Lead Screw | Ø8, Lead 2.5 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity — Mechanical (kg) | 1.8 kg |
| Max. Speed (mm/sec) | 10 |
| Positioning Accuracy (°) | 5 |
| Repeatability (um) | ±5 |
| Backlash (um) | 1 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 20 |
| Motion Parallelism (um) | 10 |
| Load Capacity — Accuracy | 78.2N(8.0kg) |
CY65XY
| Parameter | Specification |
|---|---|
| Table Size | 65 × 65 mm |
| Travel Range | 18 mm |
| Lead Screw | Ø6, Lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity — Mechanical (kg) | 3.4 kg |
| Max. Speed (mm/sec) | 10 |
| Positioning Accuracy (°) | 15 |
| Repeatability (um) | ±1 |
| Backlash (um) | 2 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 20 |
| Motion Parallelism (um) | 6.6 |
| Load Capacity — Accuracy | 68.6N(7.0kg) |
CY65
| Parameter | Specification |
|---|---|
| Table Size | 65 × 65 mm |
| Travel Range | 18 mm |
| Lead Screw | Ø6, Lead 1 mm |
| Guideway Type | Crossed Roller Guide |
| Main Material | Aluminum Alloy |
| Surface Treatment | Black Anodized |
| Load Capacity — Mechanical (kg) | 1.62 kg |
| Max. Speed (mm/sec) | 10 |
| Positioning Accuracy (°) | 15 |
| Repeatability (um) | ±1 |
| Backlash (um) | 2 |
| Transmission Backlash (um) | 1 |
| Parallelism (um) | 20 |
| Motion Parallelism (um) | 6.6 |
| Load Capacity — Accuracy | 78.4N(8.0kg) |
